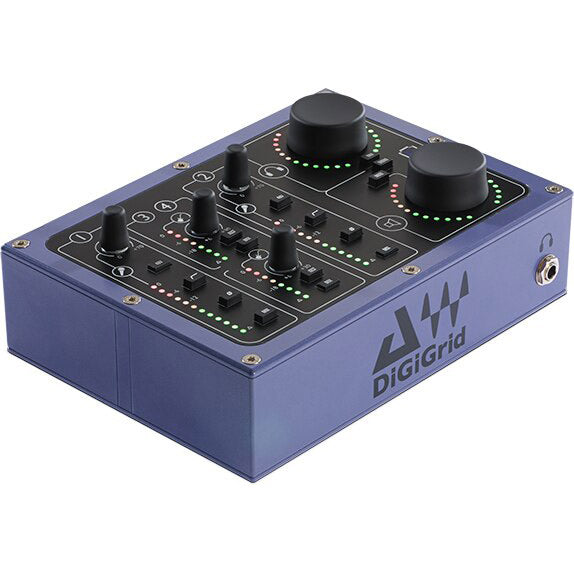

The Waves DiGiGrid D is a compact 4-input, 6-output 96 kHz audio interface that delivers professional-grade recording quality, ultra-low latency monitoring, and pristine sonic performance. Whether you’re in the studio, classroom, live venue, or at home, the DiGiGrid D enhances your DAW setup while expanding your recording and monitoring capabilities.
Designed for maximum flexibility, the DiGiGrid D can be used as a standalone audio interface or integrated seamlessly into a larger Waves SoundGrid network. With 2 mic/line inputs, 2 instrument/line inputs, 4 line outputs, and a powerful headphone amplifier, it’s the perfect solution for musicians, producers, educators, and engineers who need high-quality audio I/O in a portable desktop format.
The high-resolution input/output meters and analog controls give you intuitive, hands-on command of your sound, while Ethernet connectivity (Cat 5e/Cat 6) ensures fast, stable, and scalable audio networking. Power options include 12V DC (included) and Power-over-Ethernet (PoE) for ultimate setup flexibility.
With compatibility across Waves SuperRack, MultiRack, eMotion LV1, and SoundGrid Studio, the DiGiGrid D integrates effortlessly into existing systems, making it ideal for everything from temporary tracking/editing setups to full-scale productions.
Key Features
-
4 Inputs / 6 Outputs: 2 mic/line, 2 instrument/line, 4 line outs, plus high-powered headphone amp.
-
Standalone or Networked: Use independently or expand via Waves SoundGrid.
-
Studio-Grade Audio: 96 kHz resolution with ultra-low latency monitoring.
-
Professional Controls: Analog knobs and high-resolution meters for hands-on workflow.
-
Versatile Applications: Ideal for studio, home recording, education, and live sound.
-
Flexible Power: Runs on included 12V DC supply or Power-over-Ethernet (PoE).
-
Network Ready: Simple single Ethernet cable connection.
-
Cross-Software Compatibility: Works with Waves SuperRack, MultiRack, eMotion LV1 & SoundGrid Studio.
The Waves DiGiGrid D is the ultimate portable desktop interface, offering professional audio quality, network integration, and the flexibility to scale with your needs. Whether you’re tracking, editing, mixing, or teaching, DiGiGrid D keeps your workflow fast, stable, and sonically pristine.
Mic Input
-
Input Impedance: 1.5 kΩ
-
Gain Range: 0 to +70 dB
-
Frequency Response (Analog to Analog): –3 dB, <10 Hz to 100 kHz
-
Harmonic Distortion: 0.005% (at 40 dB Gain)
-
Noise EIN: Typically –127 dB (at 70 dB Gain)
-
High-Pass Filter: –3 dB at 100 Hz, 18 dB/Octave
Line Input
-
Input Impedance: 1 MΩ / 10 kΩ
-
Gain Range: +6 to +30 dB
-
Frequency Response (Analog to Analog): –3 dB, <10 Hz to 100 kHz
-
Harmonic Distortion: 0.005%
-
Noise:
-
Min Gain: –82 dBu
-
Max Gain: –73 dBu
Headphones
-
Gain Range: ∞ to +10 dB
-
Max Output Level (RMS):
-
16 Ω: 2.3 V
-
32 Ω: 3.7 V
-
100 Ω: 6.0 V
-
200 Ω: 7.5 V
-
600 Ω: 8.8 V
Monitor Outputs
-
Maximum Output Level: +22 dBu
-
Residual Output Noise: < –92 dBu
-
Output Impedance: 50 Ω
-
Harmonic Distortion: 0.005%
Physical Specs
-
Dimensions (W × H × D): 22.05 cm × 7.85 cm × 16 cm
(8.68" × 3.09" × 6.29")
-
Device Weight: 1.7 kg (3.75 lbs)
-
Package Weight: 2.72 kg (6 lbs)
