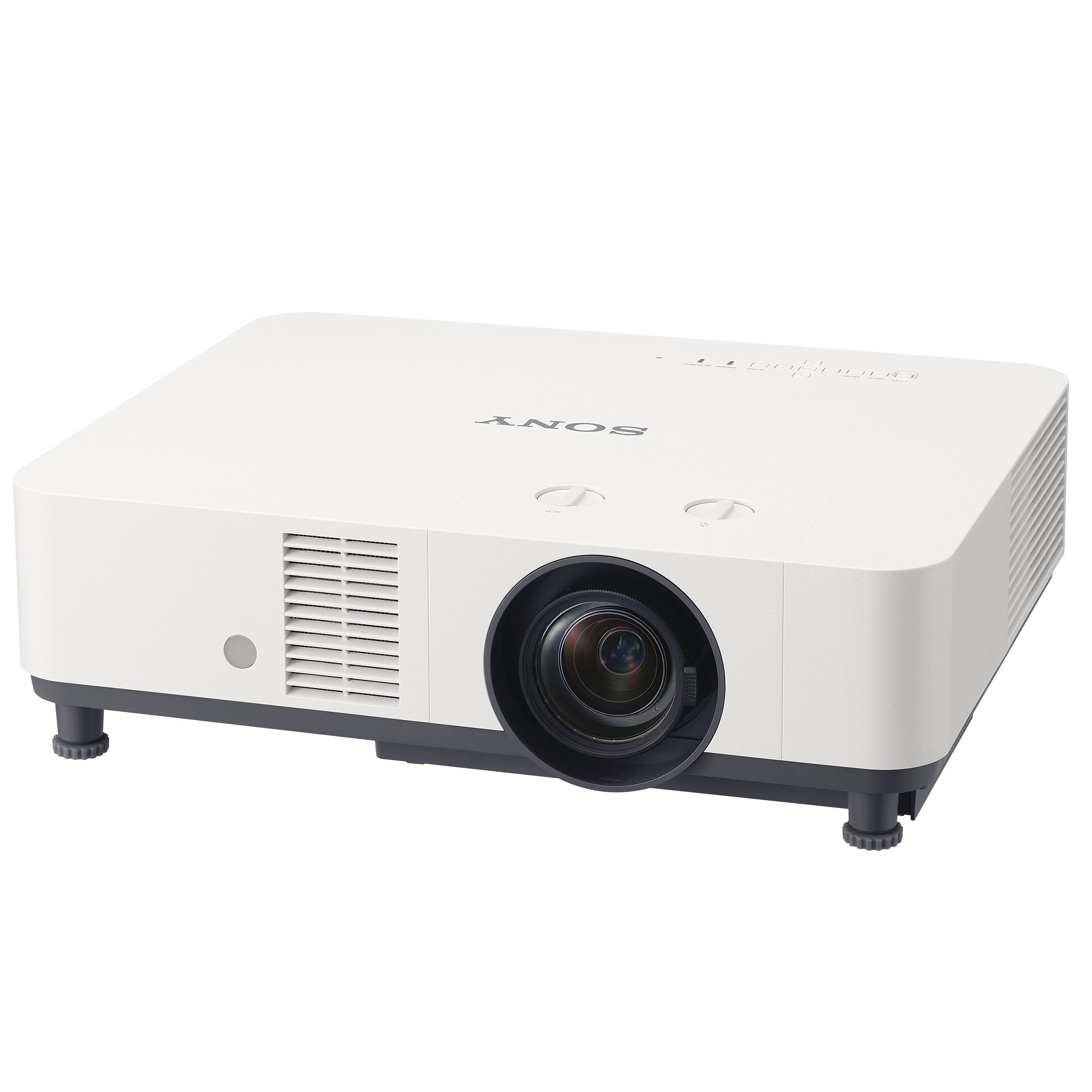

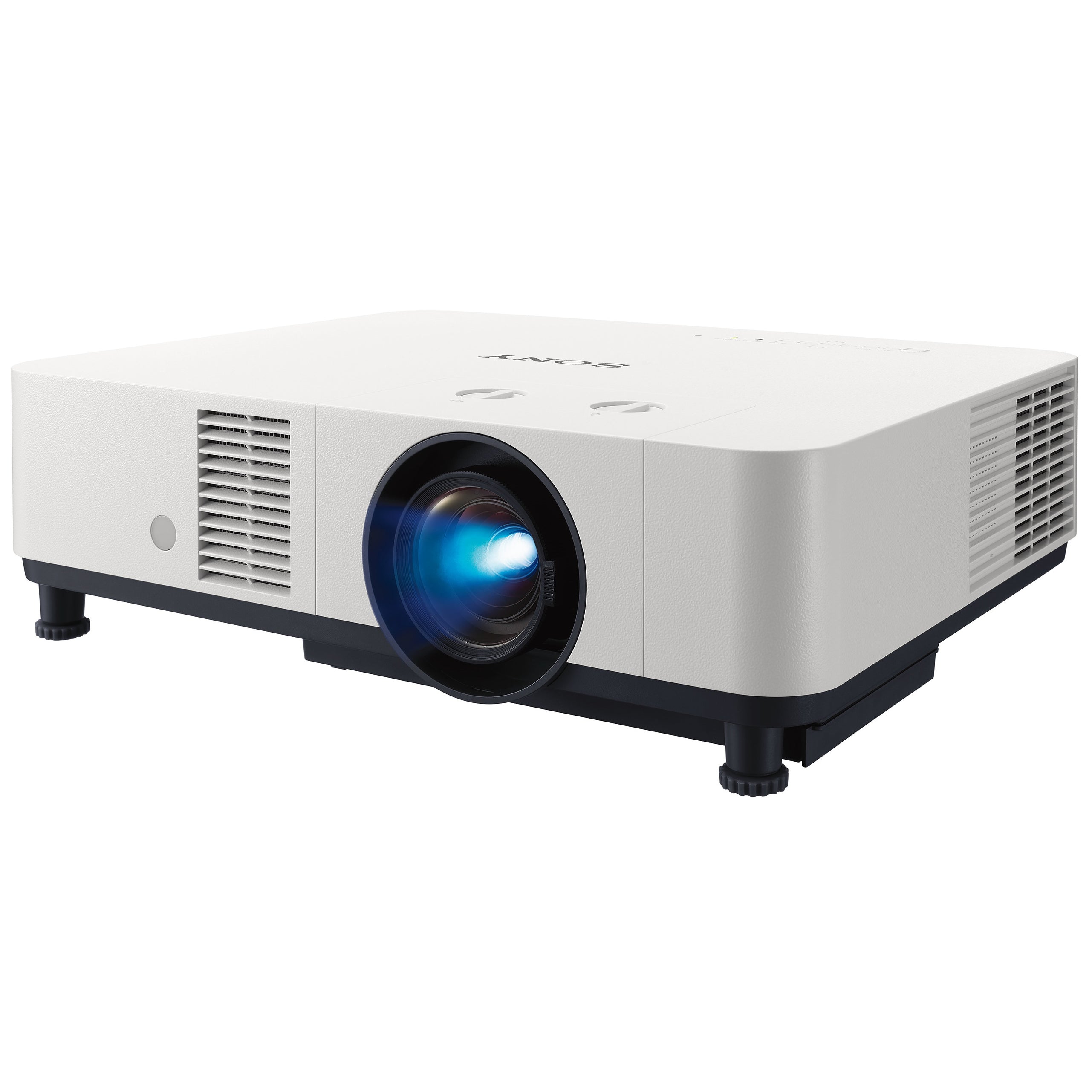

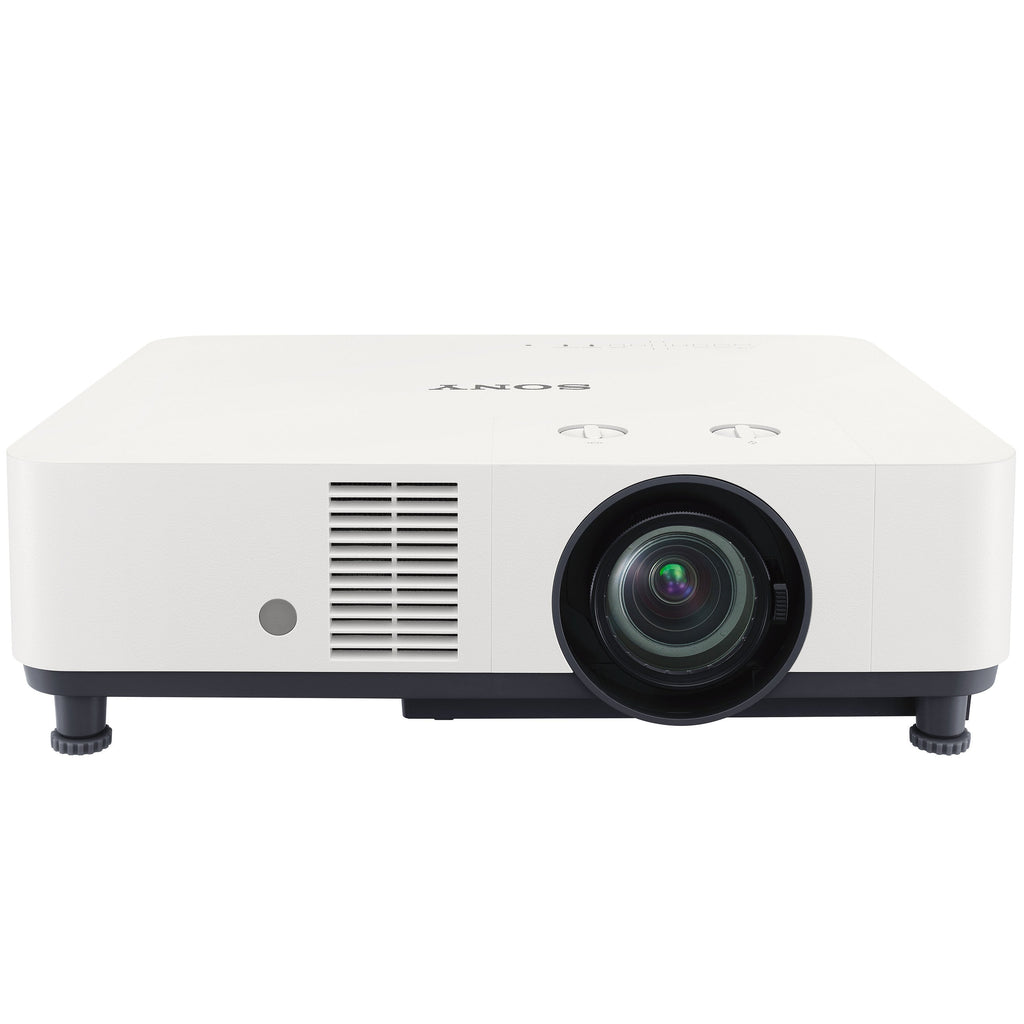

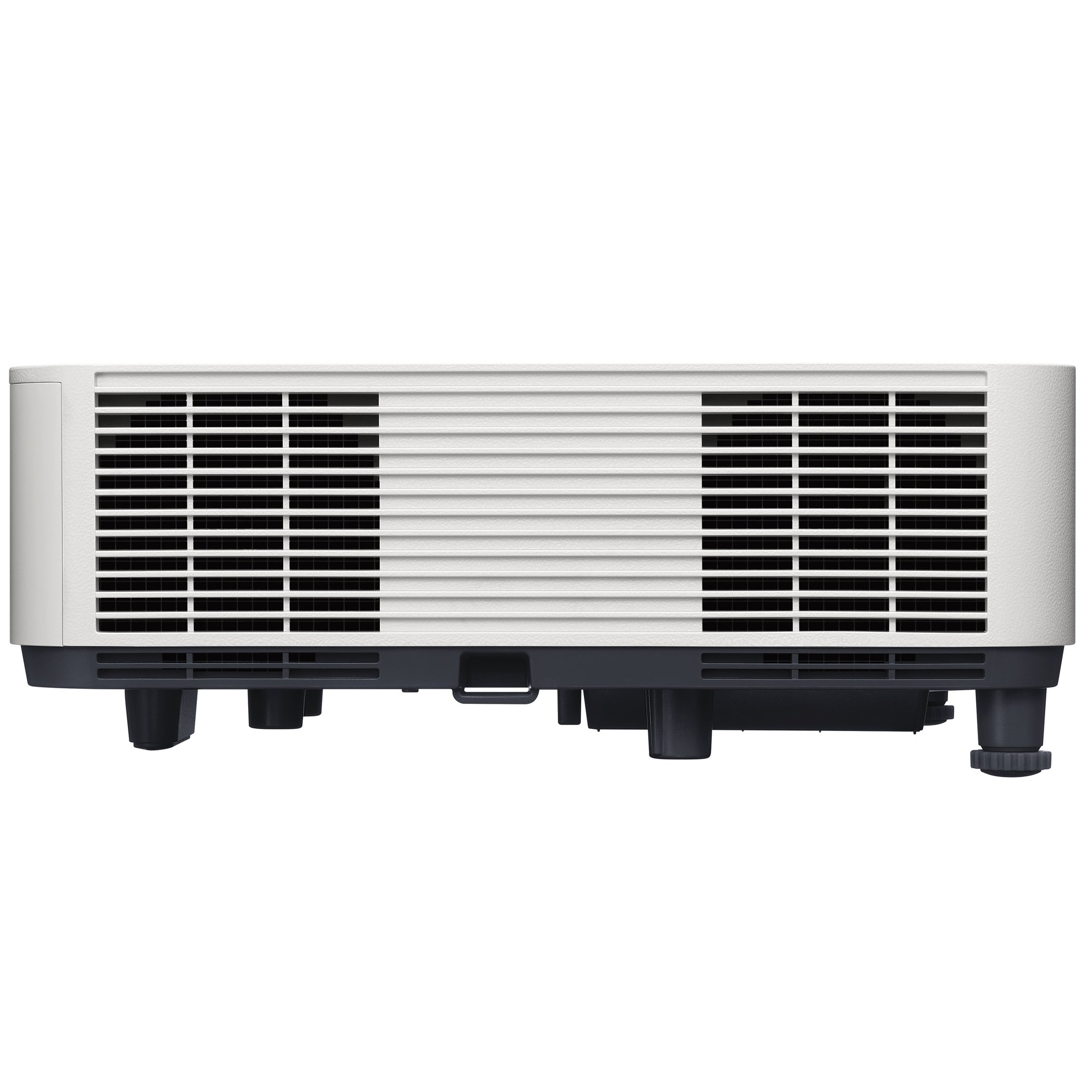

The Sony VPL-PHZ61/51 laser projector delivers brilliant 6,400 / 5,300 lumens brightness* in an impressively slim, lightweight design. Engineered for professional environments, this high-performance projector ensures bold, rich color and razor-sharp clarity, even in brightly lit rooms—making it the ideal choice for conference rooms, lecture halls, classrooms, simulation, and Esports applications.
Key Features:
-
Outstanding Brightness & Color – Up to 7,000lm center brightness with Sony’s exclusive Bright View technology for vivid images in any lighting condition.
-
Crisp, Clear Detail – Enhanced Reality Creation technology ensures sharper text, diagrams, and visuals.
-
Energy-Efficient Performance – Optimized picture quality with intelligent energy-saving features.
-
4K 60P Input Support – Seamless integration in multi-screen setups with no signal conversion needed.
-
Smart Installation Design – Slim, discreet body with flexible lens shift (+55% vertical) and widened throw ratio for easy projector replacements.
-
Low Maintenance & Long-Lasting – Laser light source with extended brightness and minimal filter care.
-
Seamless Connectivity – Auto Input Select, Auto Power On, and Data Cloning for hassle-free setup.
Why Choose the Sony VPL-PHZ61/51?
Unlike traditional projectors that fade in bright environments, Sony’s Bright View and Ambiance Intelligent Settings automatically adjust images for maximum visibility and color accuracy. Its scaler effortlessly converts 4K input to WUXGA, delivering near-4K image quality with exceptional sharpness. With minimal maintenance, versatile installation, and advanced 4K compatibility, the VPL-PHZ61/51 is the ultimate laser projector for modern professional AV environments.
Display System
-
LCD projection system (3 LCD panels)
-
BrightEra LCD technology
-
Panel Size: 0.64" (16.3 mm) x 3, aspect ratio 16:10
-
Resolution: 1920 × 1200 (WUXGA), 6,912,000 pixels
Projection Lens
-
Focus: Manual
-
Zoom: Manual, approx. x1.6
-
Lens Shift: Vertical –35% to +55%, Horizontal ±15%
-
Throw Ratio: 1.23:1 to 1.97:1
Light Source
-
Laser diode
-
Screen Size: 40" to 300" (1.02–7.62 m diagonal)
-
Brightness (Standard): 6,400 lm / 7,000 lm center
-
Brightness (Middle): 4,700 lm
-
Contrast Ratio: ∞:1
Performance
-
Reality Creation & Bright View color technology
-
Display Frequency: Horizontal 15–92 kHz / Vertical 24–92 Hz
-
Keystone Correction: Horizontal ±30°, Vertical ±30°
Supported Resolutions
-
Computer Input: Up to 1920 × 1200 (WUXGA)
-
Video Input: NTSC, PAL, SECAM, 480i/p, 576i/p, 720p, 1080i/p, 3840p (24/25/30/60), 4096p (24/25/30/60)

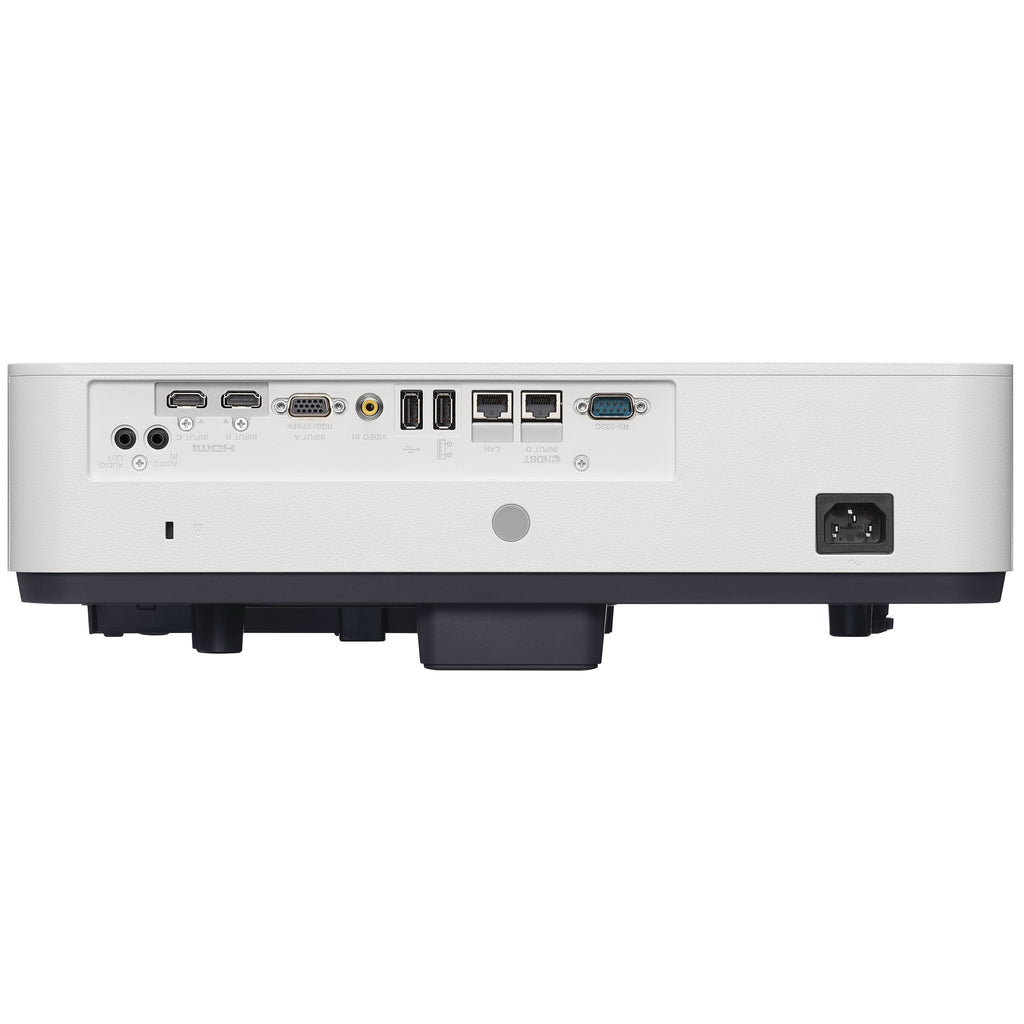

Inputs / Outputs
-
Input A: RGB/Y Pb Pr (Mini D-sub 15), Audio (stereo mini jack)
-
Input B: HDMI 19-pin (HDCP), HDMI audio
-
Input C: HDMI 19-pin (HDCP), HDMI audio
-
Input D: HDBaseT (RJ45, video/audio/LAN/control)
-
Video In: Composite (phono jack, shared audio)
-
Output: Stereo mini jack
-
Remote: RS232C (D-sub 9-pin)
-
LAN: RJ45 (10BASE-T/100BASE-TX)
-
USB: Type-A × 1 (firmware update, power supply)
Audio
General
-
OSD Languages: 27 (English, French, German, Italian, Spanish, Japanese, Chinese, Korean, Arabic, Russian, etc.)
-
Acoustic Noise: 37 dB (Standard) / 34 dB (Middle)
-
Operating Temperature: 0–40°C (32–104°F)
-
Operating Humidity: 20–80% (no condensation)
-
Storage Temp: –10–60°C (14–140°F)
Power
-
Requirements: AC 100–240V, 50/60 Hz
-
Consumption: 463W (100–120V) / 434W (220–240V)
-
Standby: 0.5W (Low Mode)
-
Networked Standby: 1W (LAN), 21W (all terminals connected)
-
Activation: Approx. 2 minutes
Dimensions & Weight
-
Size (W×H×D): 422 × 129 × 338 mm (16 5/8 × 5 3/32 × 13 5/16 in)
-
Without filter: 422 × 100 × 333 mm (16 5/8 × 3 15/16 × 13 1/8 in)
-
Weight: Approx. 7 kg (15 lbs)
Notes
-
Brightness values per ISO 21118 and may vary by environment.
-
Center brightness measured in Standard mode.
-
Supports VESA Reduced Blanking signals.
