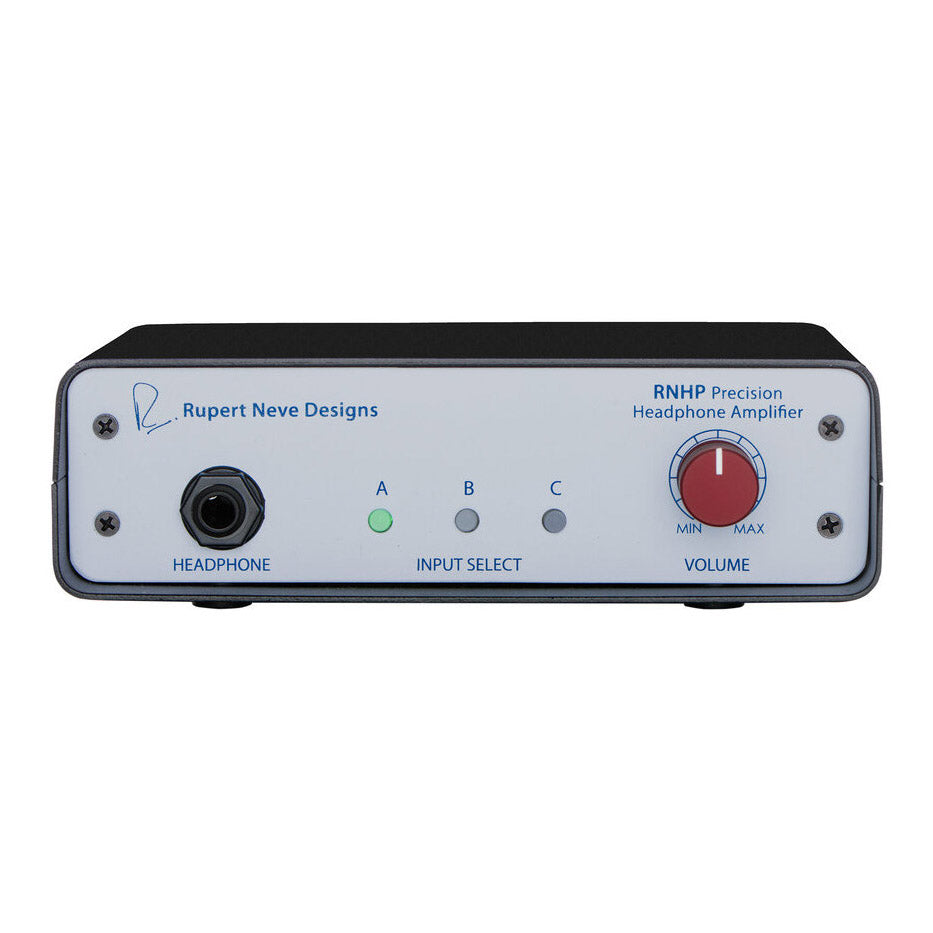

The Rupert Neve RNHP delivers wide-open, ultra-detailed sound with the legendary tonal fidelity you expect from Rupert Neve Designs. Engineered for tracking, mixing, and critical listening, this high-headroom headphone amplifier ensures accurate translation and effortless drive of high-impedance headphones up to 600Ω.
Key Features
-
High-Power, High-Headroom Design: Drives demanding headphones with ease, preserving dynamic range and detail.
-
Near-Zero Output Impedance: Direct-coupled amplifier design ensures faithful and transparent sound reproduction.
-
Precision Stereo Potentiometer: Provides accurate, smooth level control with perfect left-right channel balance.
-
Versatile Inputs: Calibrated +4 dBu balanced line, unbalanced RCA, and 3.5mm (1/8") inputs for any source.
-
Durable Construction: Rugged steel clamshell chassis with VESA 100 compatibility for secure mounting.
-
24V DC Power Input: Ensures stable, reliable operation in both studio and live environments.
Why It Stands Out
Headphone amplification is critical to capturing the full nuance of your mix. The RNHP draws directly from the acclaimed headphone section of the 5060 Centerpiece Desktop Mixer, translating every detail with clarity, depth, and neutrality. Its high output power and ultra-low distortion design make it ideal for professional studios, home setups, or any environment where accurate monitoring is essential.
Max Input Levels
-
XLR Input ("A"): +22.8 dBu @ 1 kHz
-
RCA Input ("B"): +14.7 dBu @ 1 kHz
-
3.5 mm Input ("C"): +3.3 dBu @ 1 kHz
Output Power (typical headphones)
-
44 Ω load: 3.617 VAC RMS @ 1 kHz → 300 mW RMS
-
16 Ω load: 1.933 VAC RMS @ 1 kHz → 230 mW RMS
-
150 Ω load: 5.108 VAC RMS @ 1 kHz → 175 mW RMS
Output Impedance
-
0.08 Ω @ 1 kHz, 16–150 Ω load, 0 dBu input
Frequency Response
-
±0.2 dB from 10 Hz – 120 kHz
Noise (typical headphones, BW 22 Hz – 22 kHz)
-
XLR Input ("A"): –101.9 dBV
-
RCA Input ("B"): –100.9 dBV
-
3.5 mm Input ("C"): –88.8 dBV
Dimensions
-
6.5 × 4.6 × 1.9 " (WxDxH)
Power Supply Requirements
-
24 VDC @ 0.25 A (6 W minimum, use supplied adapter)
