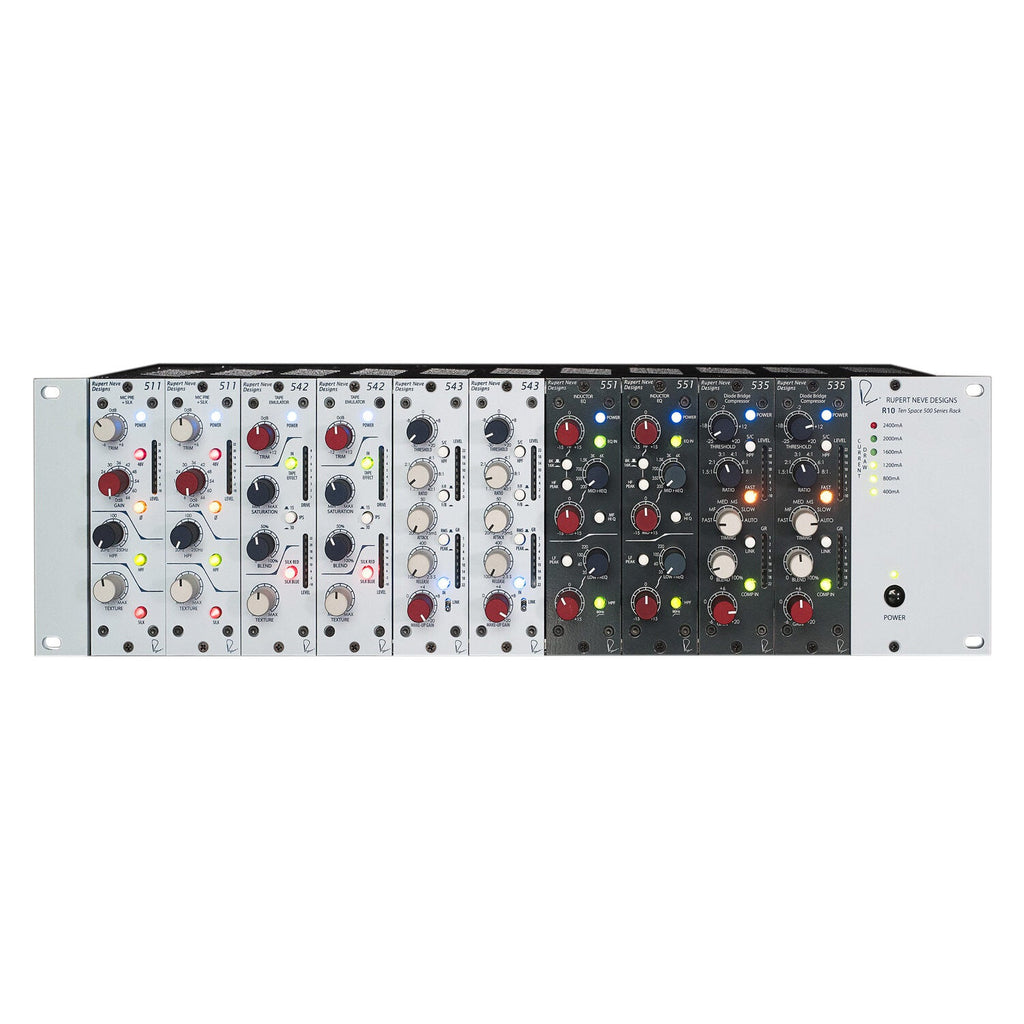

The R10 500 Series Rack is designed for engineers who demand maximum power, stability, and flexibility for their 500 Series modules. With 10 fully powered slots, robust current capacity, and professional-grade construction, the R10 ensures your analog gear performs at its best, whether in the studio or on the road.
Key Features
-
10 Card Slots: Accommodates a full set of 500 Series modules with over 150% of required current, preventing power rail issues under heavy load.
-
3 Link Jumpers: Enables VCA buss linking for compatible compressor modules (e.g., 535, 543) in paired channels (1-2, 3-4, etc.).
-
Current Meter: LED metering monitors current draw for troubleshooting and safety.
-
Robust +48V Phantom Power: Supports condenser microphones and other phantom-powered modules.
-

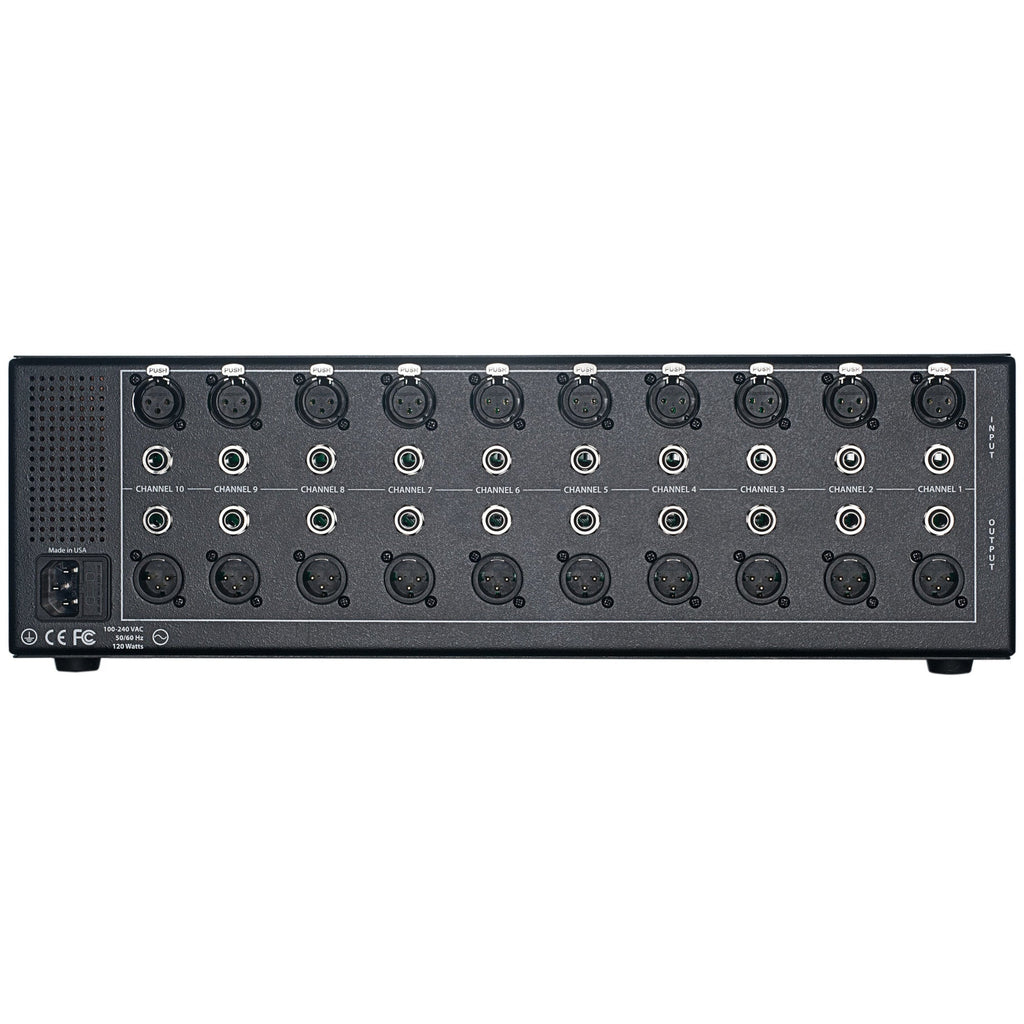

Parallel Inputs/Outputs: Each channel has balanced XLR and TRS inputs wired in parallel, along with balanced XLR and TRS outputs for flexible routing.
-
Universal Power Input: IEC connection accommodates 100–240V worldwide.
-
Solid Steel Construction: Durable chassis with ultra-strong rack ears ensures long-lasting reliability.
-
Modular Compatibility: Built to official 500 Series specifications, with adjustable screw holes to accommodate out-of-spec modules.
-
Blank Panels Available: Protect and cover empty slots for a clean and professional look.
Why It Stands Out
The R10 isn’t just a rack—it’s a powerful backbone for your 500 Series setup. Its high-current design, precision power distribution, and professional monitoring features give engineers the confidence to run multiple high-demand modules simultaneously. Whether you’re running compressors, preamps, EQs, or effects, the R10 ensures consistent performance, safety, and sonic integrity.
DC Voltage to Units
-
±16 VDC
-
+48 VDC for phantom power
Maximum Current
-
2650 mA total
-
2400 mA for modules
-
250 mA for phantom power
AC Power Requirements
-
100–240 VAC, 50/60 Hz
-
50 W
Dimensions (L × D × H)
Weight
