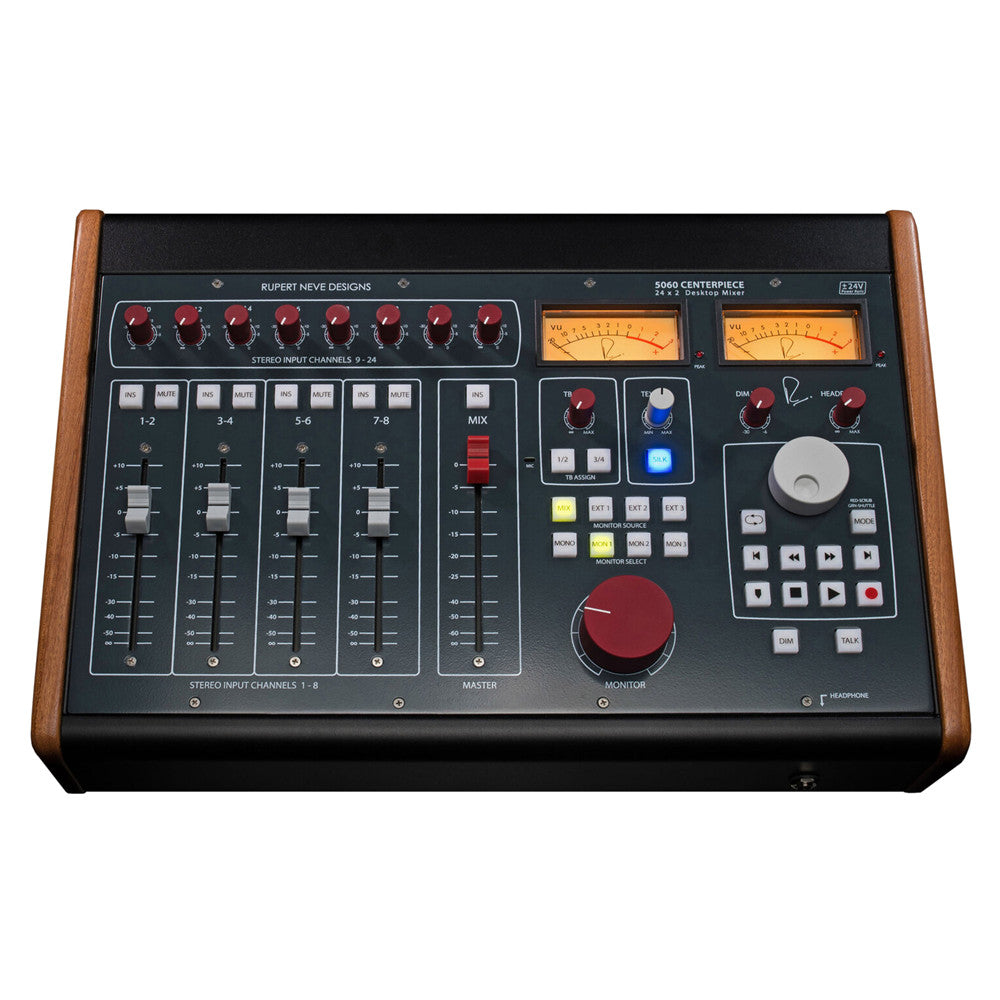

The Rupert Neve 5060 Centerpiece brings the iconic tonality and workflow of Rupert Neve’s legendary 5088 console to your desktop. Designed for engineers and producers seeking the warmth, depth, and precision of Neve’s custom transformers, the 5060 combines a 24×2 mix-buss with flexible monitoring, transport control integration, and refined DAW-centric features.
Key Features
-
24 x 2 Mix-Buss with 100mm Stereo Fader – Control the master stereo output with precision, including transformer-coupled inserts for compression or EQ.
-
Silk & Texture Modes – Continuously variable Texture controls with Silk Red and Silk Blue allow you to add harmonic color to highs (Red) or lows (Blue) or leave the mix pristine.
-
Talkback System – Includes talkback mic with level control, direct out, and insert assignment. Dim function automatically reduces monitor volume during talkback. Optional remote talkback connectivity via ¼” input.
-
Monitor Source & Selection – Choose between the stereo mix-bus or up to three external monitor inputs. Monitor selection supports latching of Mon 3 for subwoofer setups or complex studio monitoring.
-
Headphone Amp – Class-A reference-grade headphone amplifier with independent level control. Signal follows monitor selection.
-
Monitor Level Control – Precision 21-step attenuator ensures accurate left/right stereo tracking and repeatable monitoring levels.
-
VU & Peak Meters – RMS VU meters display selected monitor source levels, with peak indicators to prevent clipping.
-
Dim Function – Reduce monitor volume between -6dB and -30dB for quick, subtle level adjustments during talkback or monitoring.
-
DAW Transport Controls – Integrated MIDI/USB transport control for play, stop, record, shuttle, jog, loop, and marker drop.
Compact Desktop Workflow
Sized for your studio desk, the 5060 Centerpiece delivers the sonic signature of Rupert Neve’s full-size consoles in a compact, accessible form. It’s perfect for producers and engineers who want analog character, flexible monitoring, and DAW integration without a full console footprint.
Audio Mixer / Console Specifications
Input Levels
-
Channels 1–8 (fader at 0 dB): > +26 dBu
-
Channels 9–24 (trim at 0 dB): > +22 dBu
Output Levels
-
Stereo Outputs (1 kHz, any combination of inputs): > +27 dBu
-
Monitor Outputs (1 kHz): +25 dBu
-
Headphone Output: > +20 dBu (unloaded)
THD+N
-
Channels 1–8 (unity, BW <10 Hz – 80 kHz)
-
+20 dBu, 20 Hz: 0.03%
-
+20 dBu, 2 kHz: 0.003%
-
+20 dBu, 20 kHz: 0.02%
-
Channels 9–24 (trim unity, BW <10 Hz – 80 kHz)
-
+20 dBu, 20 Hz: 0.03%
-
+20 dBu, 2 kHz: 0.004%
-
+20 dBu, 20 kHz: 0.02%
-
Monitor Outputs
-
+20 dBu, 20 Hz: <0.03%
-
+20 dBu, 2 kHz: <0.02%
-
+20 dBu, 20 kHz: <0.02%
-
Headphone Out (2 kHz, 16 dBu, 68 Ω): <0.02%
Noise
-
Channels 1–24 at unity: Better than -90 dBV
-
Channels 9–24 at unity, 1–8 muted: Better than -100 dBV
-
Headphone Out (22 Hz–22 kHz): Better than -85 dBV
Crosstalk
-
Channel to channel: > 60 dB
CMRR
-
1 kHz, input to channel 1, fader at unity: -70 dBu
Frequency Response
-
10 Hz – 120 kHz: ±0.25 dB
Intermodulation Distortion (IMD)
-
+4 dBu, CCIF/DFD: Better than 0.0008%
Silk Mode (Texture Control Max)
-
Blue / Red:
-
+20 dBu, 20 Hz: Up to 5%
-
+20 dBu, 200 Hz: Up to 0.2%
Peak LEDs
-
Engage Threshold: +22 dBu
Loads
-
Monitor and Line Outputs: ≥3 kΩ
-
Headphone Output: ≥16 Ω recommended
Power
-
AC Mains: 100–240 VAC, 50/60 Hz
-
Power Consumption: 110 W Max
-
Fuses: Internal, not user-accessible
Mechanical
-
Dimensions (WxDxH): 18.5″ x 12.5″ x 5.75″ (back), 3.5″ (front)
-
Weight: 22 lbs
Environmental
-
Operating Temp: 0°C – 35°C
-
Storage Temp: -10°C – 50°C
-
Operating Humidity: 10% – 95% non-condensing
