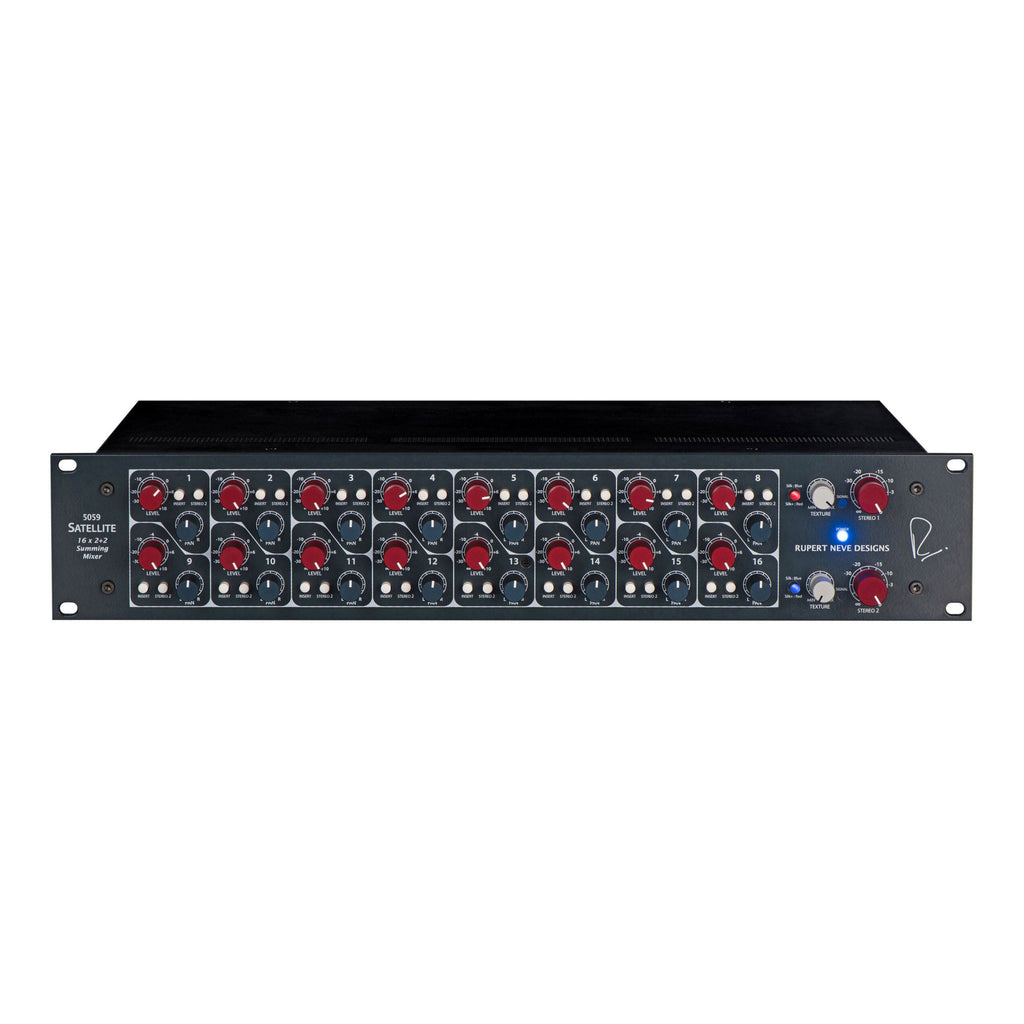

The Rupert Neve 5059 Satellite is a 2U rack-mountable summing mixer designed for professional studios seeking the legendary analog warmth, clarity, and musicality of Rupert Neve consoles. With 16 input channels and dual stereo outputs, it offers complete control over your mix while adding the subtle harmonic richness that has defined countless hit records.
Key Features
-
16-Channel Summing Mixer – Individual channel level, pan, inserts, and stereo 2 send controls for precise mixing.
-
Silk / Texture – Dial in classic Rupert Neve harmonic character to taste.
-
New Class-A Topologies – High-performance circuit design for clean, dynamic summing.
-
Custom Transformers – Provides warmth, depth, and subtle harmonic coloration.
-
Stereo 2 Send – Easily route stems to outboard effects or alternate mixes.
-
Master and Channel Controls – Level controls from -∞ to 0 dB for all stereo outputs.
-
Professional Rack-Mountable Design – 2U chassis fits seamlessly into modern studio setups.
Studio-Ready Analog Mojo
The 5059 Satellite offers unparalleled flexibility and sonic excellence for both stem and full mix summing. Its dual stereo outputs allow for separate mix stems or alternate master mixes, while the Silk/Texture control and custom transformers deliver the rich analog character Neve is famous for. Perfect for enhancing DAW mixes, integrating with outboard gear, or creating fully analog summing workflows.
Audio Module / Device Specifications
Input / Load
-
Load Impedance: 100 kΩ
-
Frequency Response:
-
±0.1 dB from 20 Hz to 20 kHz
-
-3 dB @ 3.5 Hz / 185 kHz
Noise
-
IEC-A weighted:
-
Buss outputs: -106 dBV
-
Single channel assigned @ -∞: -104 dBV
-
Single channel assigned @ Unity: -103 dBV
-
Unweighted, 22 Hz – 22 kHz:
-
Single channel @ +10 dB: -100 dBV
-
Buss outputs @ -∞: -101 dBV
-
Buss outputs @ Unity: -100 dBV
-
Buss outputs @ +10 dB: -97 dBV
Signal-to-Noise Ratio
-
+20 dBu output, unweighted (22 Hz – 22 kHz): 116 dB
-
+20 dBu output, IEC A weighted: 119 dB
-
+4 dBu output, unweighted: 100 dB
-
+4 dBu output, IEC A weighted: 103 dB
Output Level
-
Summing busses to XLR outputs (20 Hz – 40 kHz): +26 dBu
-
Single channel to buss (20 Hz – 40 kHz): +24.5 dBu
THD & Noise
-
1 kHz @ +20 dBu output: < 0.003%
-
20 Hz @ +20 dBu output: < 0.005%
THD with Silk Engaged
-
Blue Silk:
-
100 Hz @ +20 dBu, texture 12 o’clock: 0.2% typical
-
100 Hz @ +20 dBu, texture fully CW: 0.65% typical
-
Red Silk:
-
100 Hz @ +20 dBu, texture 12 o’clock: 0.1% typical
-
100 Hz @ +20 dBu, texture fully CW: 0.35% typical
Other Specs
-
Slew Rate: 4 V/µS
-
Crosstalk (Buss 1 → Buss 2):
-
1 kHz: > -90 dB
-
10 kHz: > -70 dB
Power
-
AC Mains: 100–240 VAC, 50/60 Hz
-
Power Consumption: 45 W
-
Fuses: Internal, not user-accessible
Mechanical
-
Dimensions (HxWxD): 3.5" x 19" x 8"
-
Weight: 23 lbs
