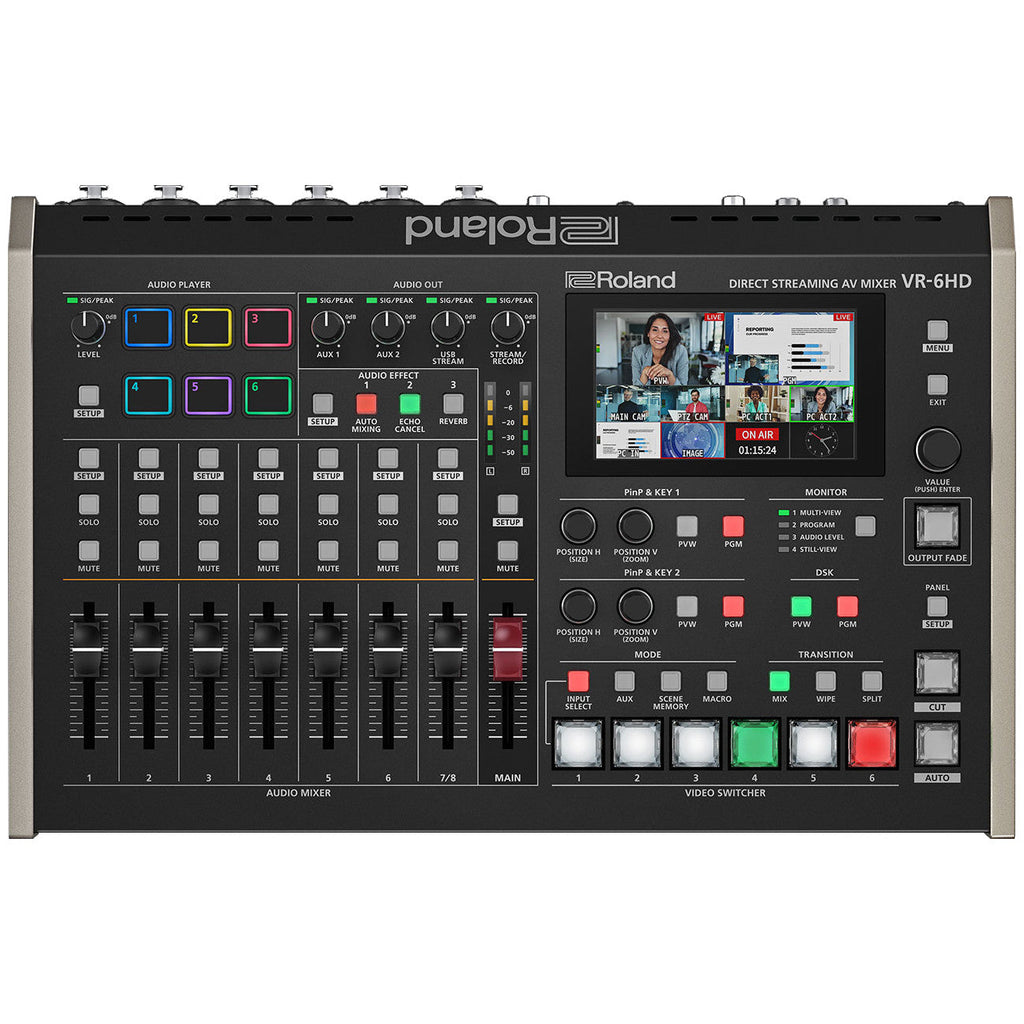

The Roland VR-6HD is a portable, all-in-one audio/video mixer and streaming solution, designed for business livestreams, corporate presentations, worship services, and professional video productions. Compact yet powerful, it combines video switching, audio mixing, and dual streaming encoders into a single unit, allowing one operator to manage every aspect of a live production with ease.
Key Features
-
Six HDMI Inputs with Frame Rate Converters – Supports 1080p resolution and cinema/broadcast frame rates with real-time scalers for seamless source integration.
-
Five-Layer Video Effects Engine – Picture-in-picture, overlays, and composition effects add professional polish to your livestreams.
-
Five Total Outputs – Three HDMI, USB-C streaming, and a dedicated direct streaming output for flexible monitoring and delivery.
-
Six Output Modes – Program, Sub-Program, Aux, Preview, Multi-View, and Still-View, giving complete control over video routing and content.
-

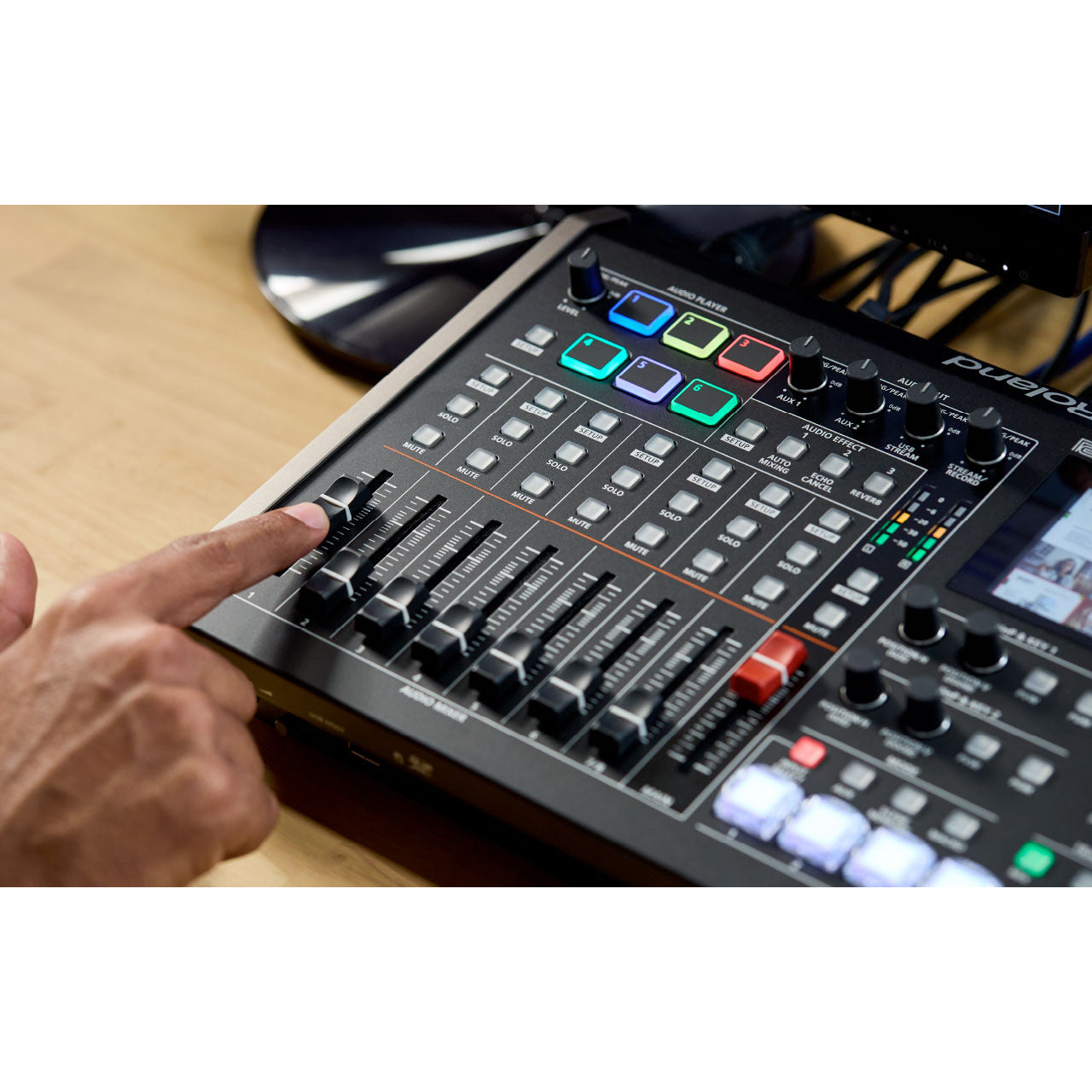

28-Channel Digital Audio Mixer – Advanced DSP effects and processing for clean, professional-quality sound.
-

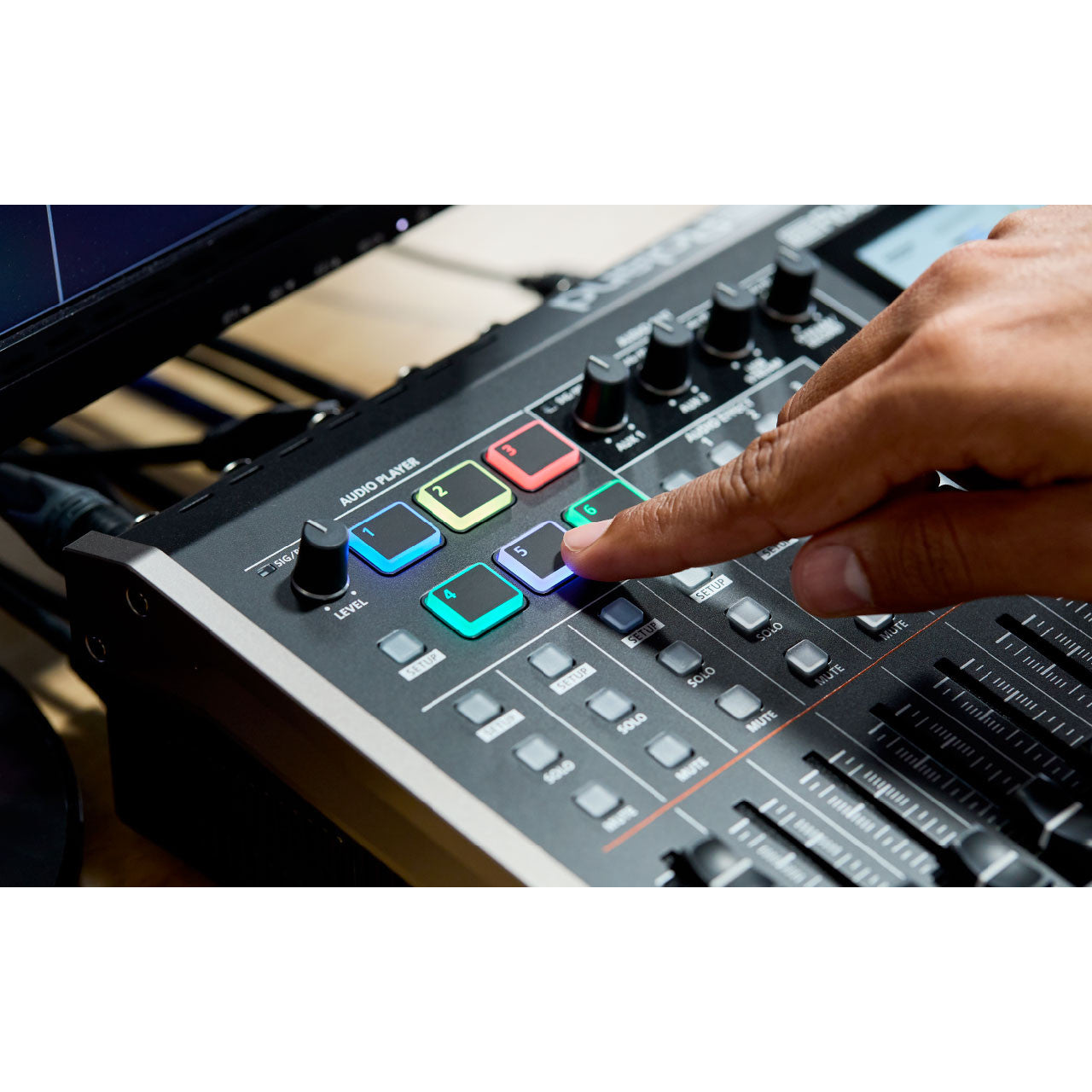

Audio Player with Trigger Pads – Six trigger pads for sound effects, backing tracks, or voiceovers, with onboard storage for 12 audio files.
-

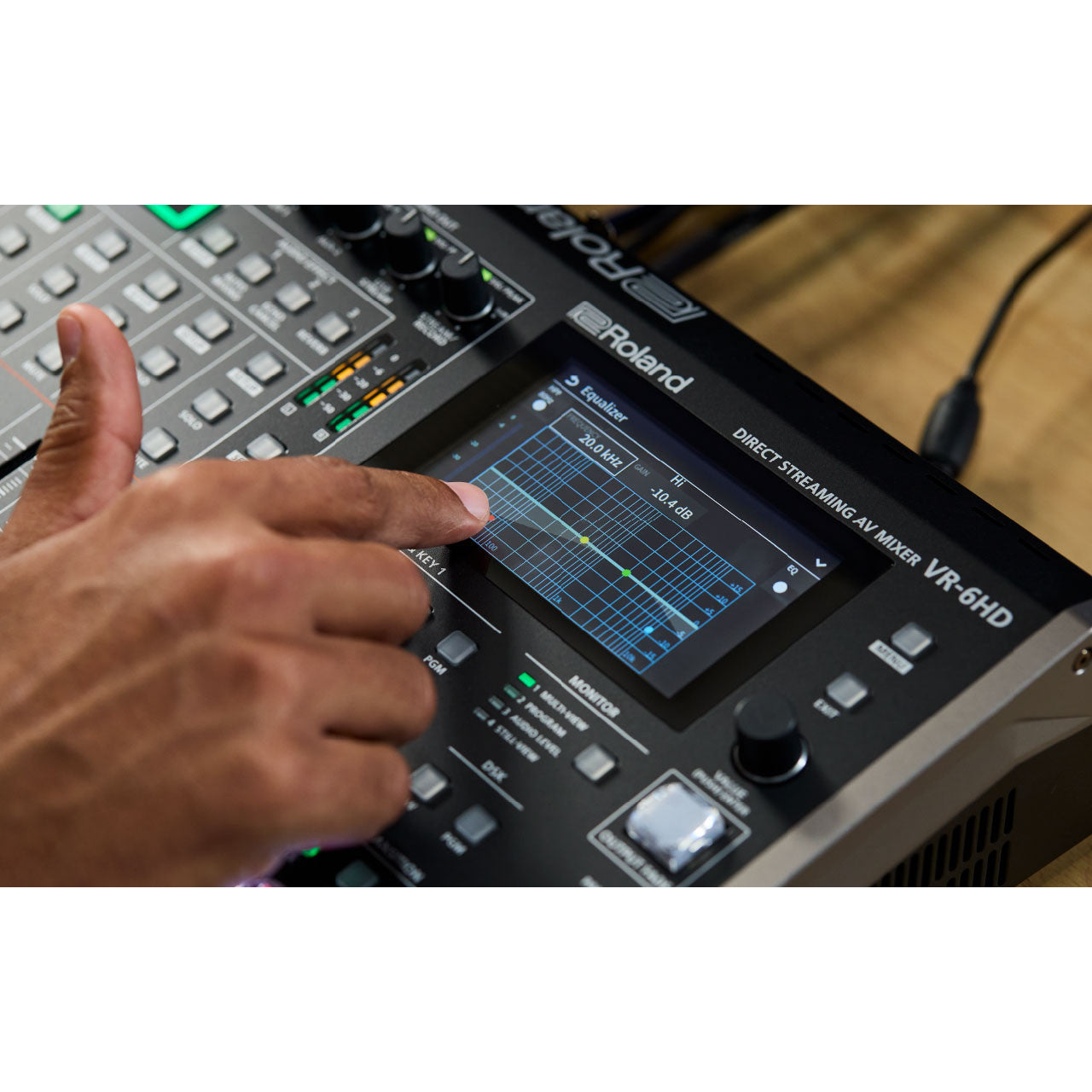

Integrated 4.3-Inch Touchscreen – Intuitive graphical menu for easy control and navigation.
-
PTZ Camera Control – Manage up to six PTZ cameras with support for multiple brands and mixed protocols.
-
Extensive Connectivity – Bluetooth®, USB, RS-232, LAN, and wireless/wired camera tally support.
-
Direct Streaming and Recording – Built-in encoders allow two simultaneous livestreams at up to 1080p/60 FPS, with SDXC card recording for archiving and editing.
-
Still Store Function – Save up to 16 images (BMP, JPEG, PNG with alpha channel) for instant recall during productions.

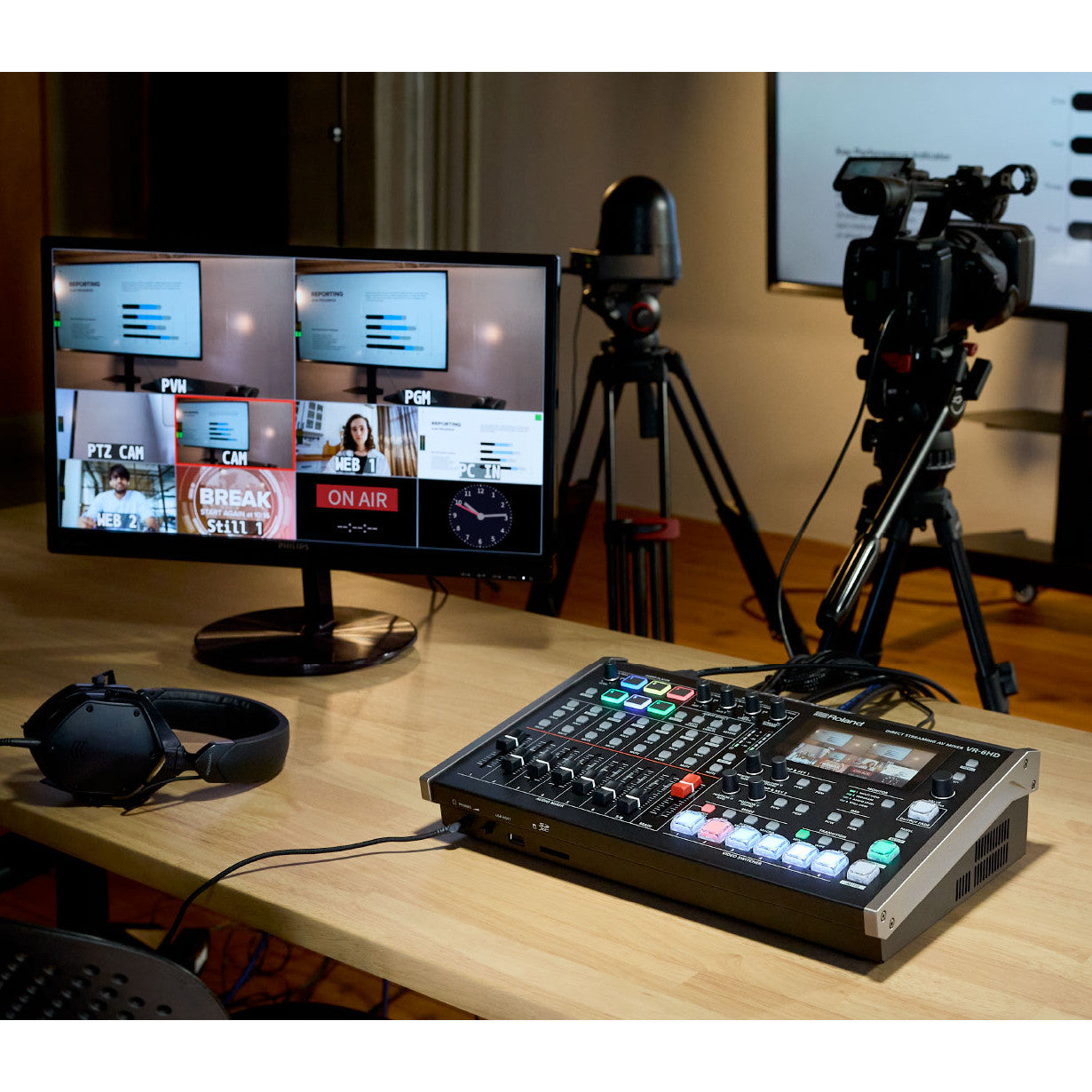

Professional Livestreaming Made Simple
With the VR-6HD, you get a complete live production setup in a portable, ultra-compact design. Its integrated workflow eliminates the need for multiple devices and complex cabling. One operator can easily manage video, audio, effects, PTZ cameras, and streaming, making it perfect for corporate events, online presentations, worship, or any professional livestream application.
Video Specifications
-
Video Processing: 4:2:2 (Y/Pb/Pr), 8-bit
-
Number of Video Channels: 6
Video Input Formats
VIDEO IN 1–6:
-
SD: 480/59.94i, 480/59.94p, 576/50i, 576/50p
-
HD: 720/59.94p, 720/50p; 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, 1080/60p, 1080/29.97p, 1080/30p, 1080/25p, 1080/23.98p, 1080/24p
-
Computer: VGA 640×480/60 Hz, SVGA 800×600/60 Hz, XGA 1024×768/60 Hz, WXGA 1280×800/60 Hz, SXGA 1280×1024/60 Hz, FWXGA 1366×768/60 Hz, SXGA+ 1400×1050/60 Hz, UXGA 1600×1200/60 Hz, WUXGA 1920×1200/60 Hz
Notes:
-
Refresh rate is the max per resolution
-
Conforms to CEA-861-E, VESA DMT Version 1.0 Rev 11
-
1920×1200/60 Hz: Reduced blanking
-
Interlaced input converted internally to progressive
-
Frame rates: *1 = 59.94/60 Hz, *2 = 50 Hz
Video Output Formats
VIDEO OUT 1–3:
-
720p: 59.94, 60, 50 Hz
-
1080i: 59.94, 60, 50 Hz
-
1080p: 59.94, 60, 29.97, 30, 50, 25, 23.98, 24 Hz
USB STREAM:
-
1080/59.94p, 60p, 29.97p, 30p, 50p, 25p, 23.98p, 24p
-
720/59.94p, 60p, 29.97p, 30p, 50p, 25p, 23.98p, 24p
-
640×480/59.94, 60, 29.97, 30, 50, 25, 23.98, 24 Hz
-
Supports uncompressed (YUY2) and compressed (Motion JPEG)
Stream & Record Formats: 720p, 1080p, same frame rates as USB STREAM
File Formats:
-
MP4: H.264, up to 20,000 kbps; AAC LC 16-bit/48 kHz stereo, up to 384 kbps
-
WAV: Linear PCM 16-bit/48 kHz stereo
Video Player: MP4, max 1080/60p, ≤20,000 kbps
Still Image: BMP, PNG, JPEG, max 1920×1080, 24-bit color; internal memory: 16 files; supports PNG alpha channel
Video Effects
-
Transition: Cut, Mix (Dissolve/FAM/NAM), Wipe (8 types), Split (2 types)
-
Composition: PinP ×2 (Square, Circle, Diamond), Keyer ×2 (Luminance/Chroma Key), DSK (Luminance, Chroma, Alpha, External Key)
-
Other: Multi-View ×3, Flip horizontal/vertical, Still Image capture/playback, Output fade (Audio/Video), Test pattern, Stream delay
Audio Specifications
-
Processing: 24-bit/48 kHz
-
Number of Channels: 28
Audio Input:
-
USB STREAM: Linear PCM 24-bit/48 kHz, 2ch
-
Bluetooth: Linear PCM 24-bit/48 kHz, 2ch
-
VIDEO IN: Linear PCM 24-bit/48 kHz, 2ch
Audio Output:
-
VIDEO OUT: Linear PCM 24-bit/48 kHz, 8ch
-
Analog: AUDIO OUT 1/L, 2/R (XLR), 3/L, 4/R (RCA)
-
PHONES: stereo miniature
Audio Player: WAV, 16/48 kHz or 44.1 kHz, stereo, up to 16 tracks
Audio Effects:
-
Channel: High pass filter, Echo canceller, Anti-feedback, Noise gate, De-esser, Compressor, 4-Band EQ, Voice changer, Delay, Auto mixing
-
Master: Reverb, 4-Band EQ, Compressor/Limiter, Loudness Auto Gain, Adaptive Noise Reduction, Low Frequency Cut, 15-Band GEQ, Delay
-
Others: Output fade, Test tone
Common Features
-

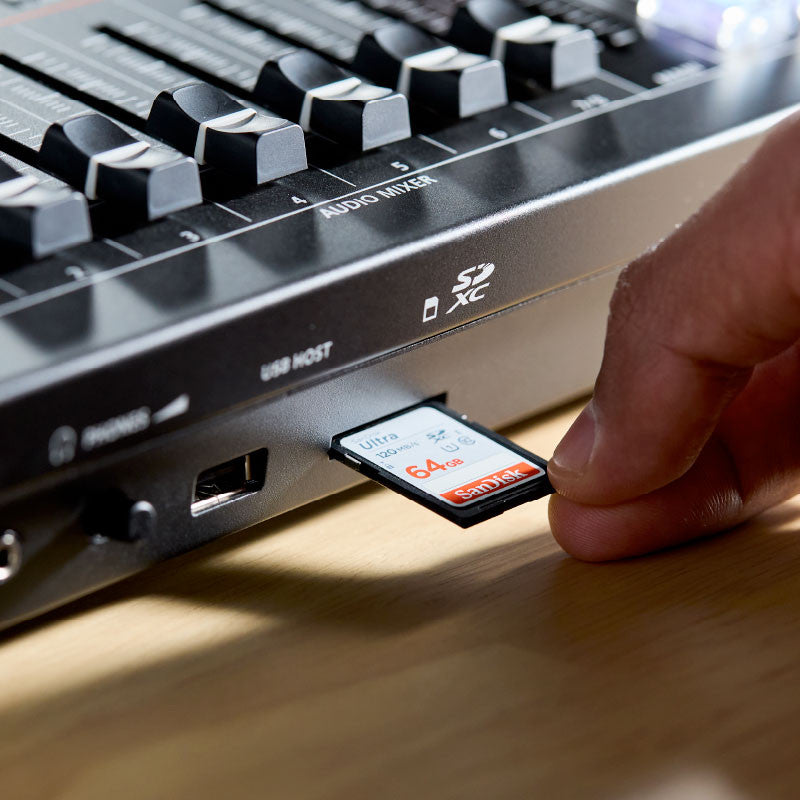

Recording Media: SDHC/SDXC card (SDXC required for video), USB memory
-
Scene Memory: 32 types
-
Macro Control: 100 types
-
Sequencer Control: 1000 types
-
Panel lock, EDID Emulator, Auto Switching/Input Detect, Smart Tally
-
Remote Camera Control: up to 6 units
-
External Recording Control

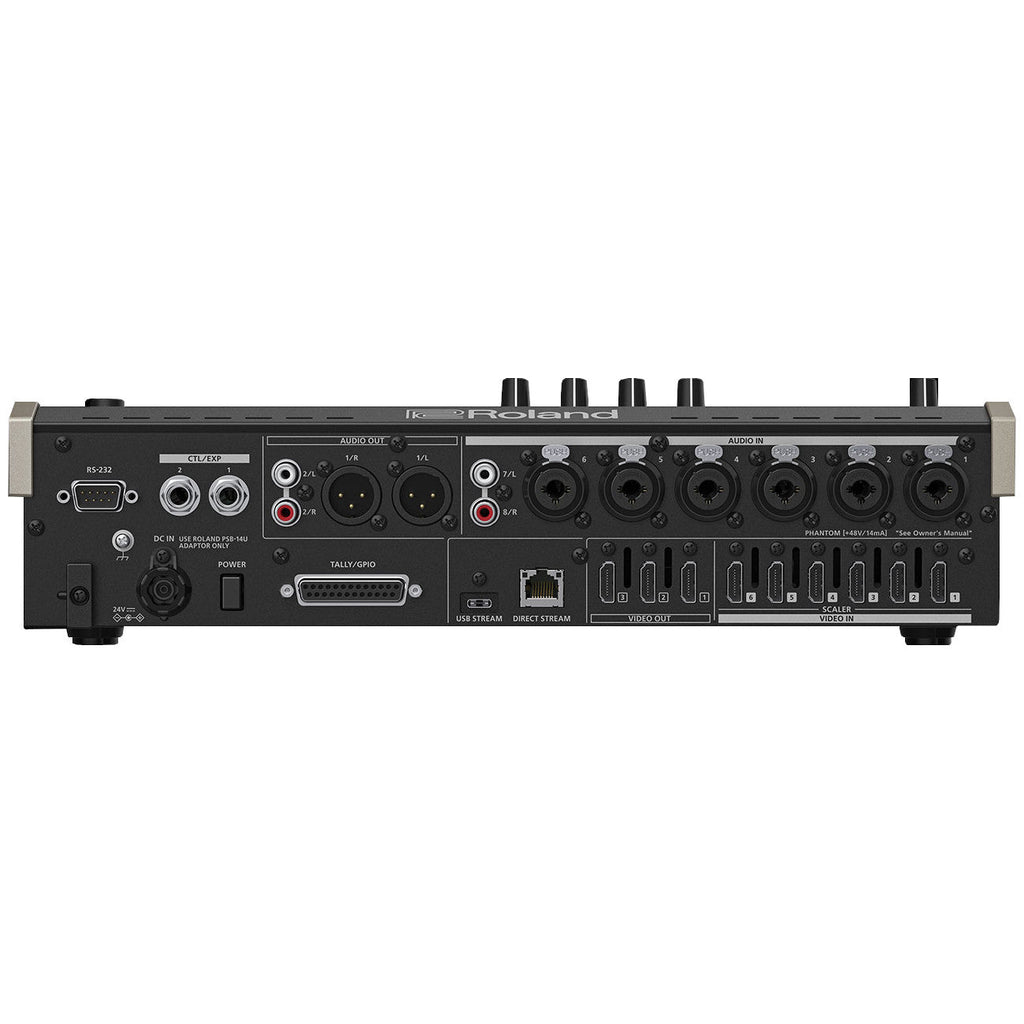

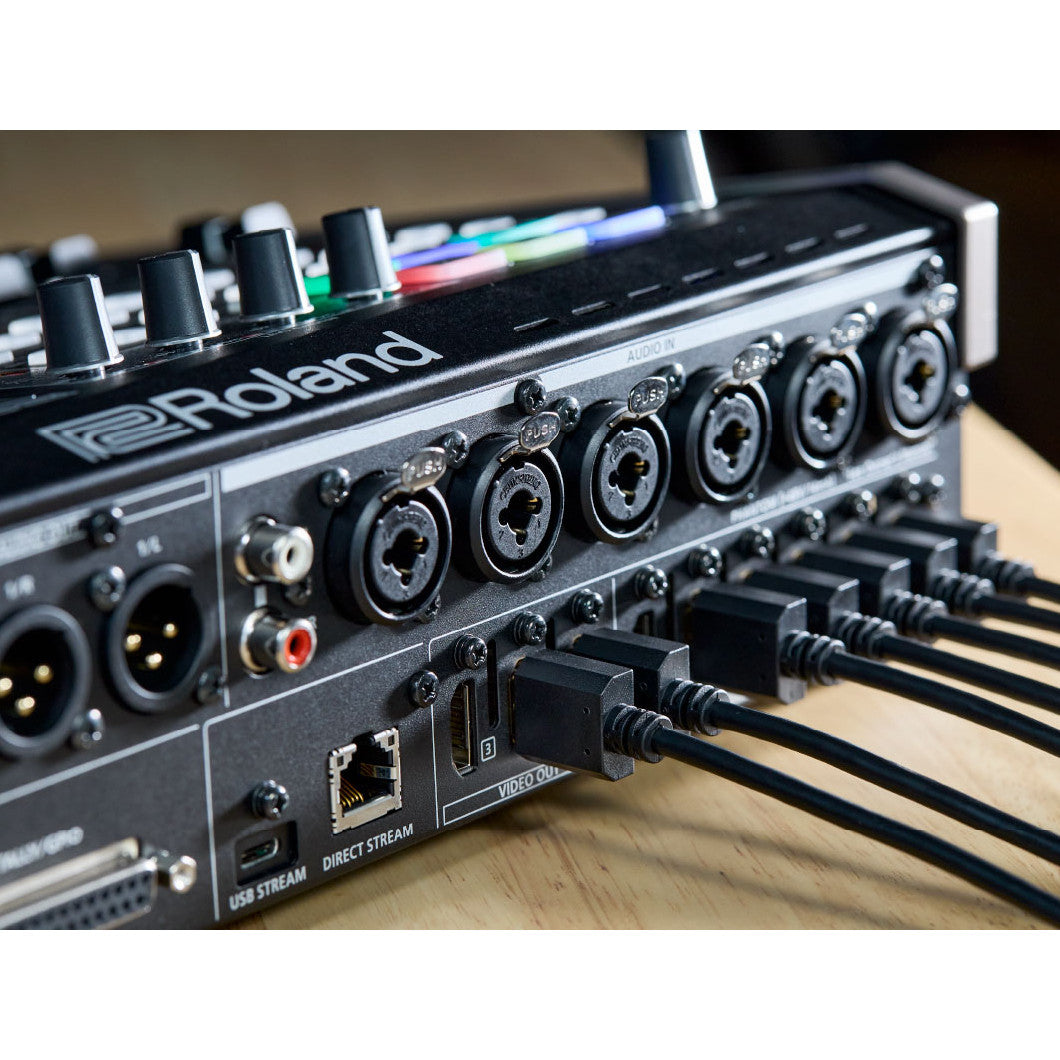

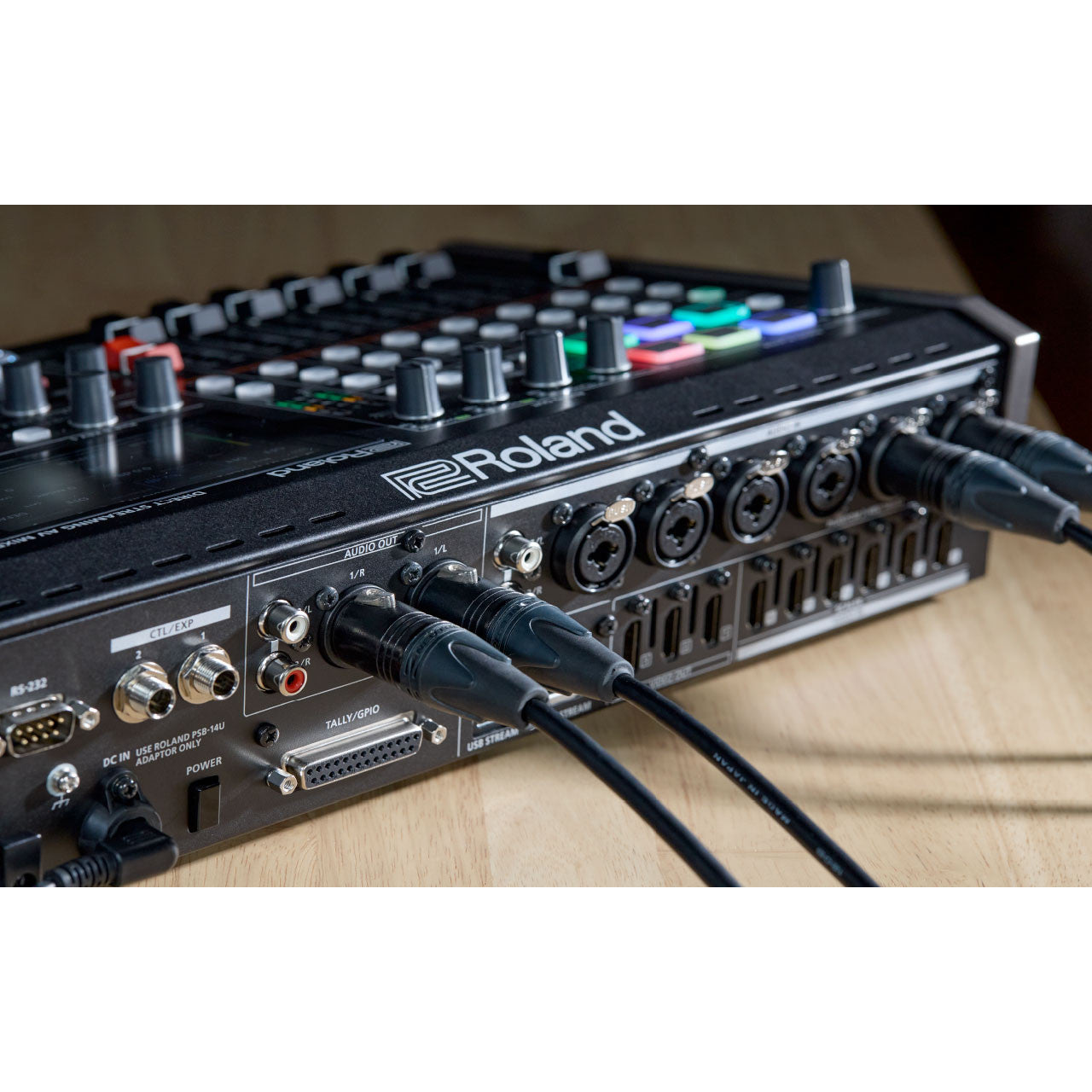

Connectors
Video: VIDEO IN 1–6 HDMI Type A ×6 (HDCP, multi-format), VIDEO OUT 1–3 HDMI ×3, USB STREAM Type-C
Audio Inputs: AUDIO IN 1–6 XLR/TRS combo (phantom), 7/8 RCA
Audio Outputs: AUDIO OUT 1/2 XLR, 3/4 RCA, PHONES miniature, USB STREAM Type-C
Other: USB HOST A (flash), CTL/EXP 1,2 TRS, TALLY/GPIO DB-25, RS-232 DB-9, DIRECT STREAM RJ45
Audio Input/Output Characteristics
-
Input Level: AUDIO IN 1–6: -64 to +4 dBu, 7/8: -10 to +10 dBu
-
Input Impedance: 1–6: 8.4 kΩ, 7/8: 10 kΩ
-
Output Level: XLR: +4 dBu, RCA: -10 dBu, PHONES: 92 mW ×2
-
Output Impedance: XLR: 600 Ω, RCA: 1 kΩ, PHONES: 33 Ω
Bluetooth: v5.0, A2DP/GATT, SBC codec
Display
-
4.3” Wide QVGA (480×272), backlit LCD, color touch screen
Power & Environmental
-
AC Adaptor, 2.3 A, 55 W
-
Operating Temp: 0–40°C (32–104°F)
Physical
-
Dimensions (W×D×H): 14-5/8 × 9-9/16 × 3-15/16 in (370×242×100 mm)
-
Weight: 7 lbs 8 oz (3.4 kg)
Optional Accessories
-
Footswitch: BOSS FS-5U, FS-6, FS-7
-
Expression Pedal: EV-5, EV-30, BOSS FV-500L, FV-500H
