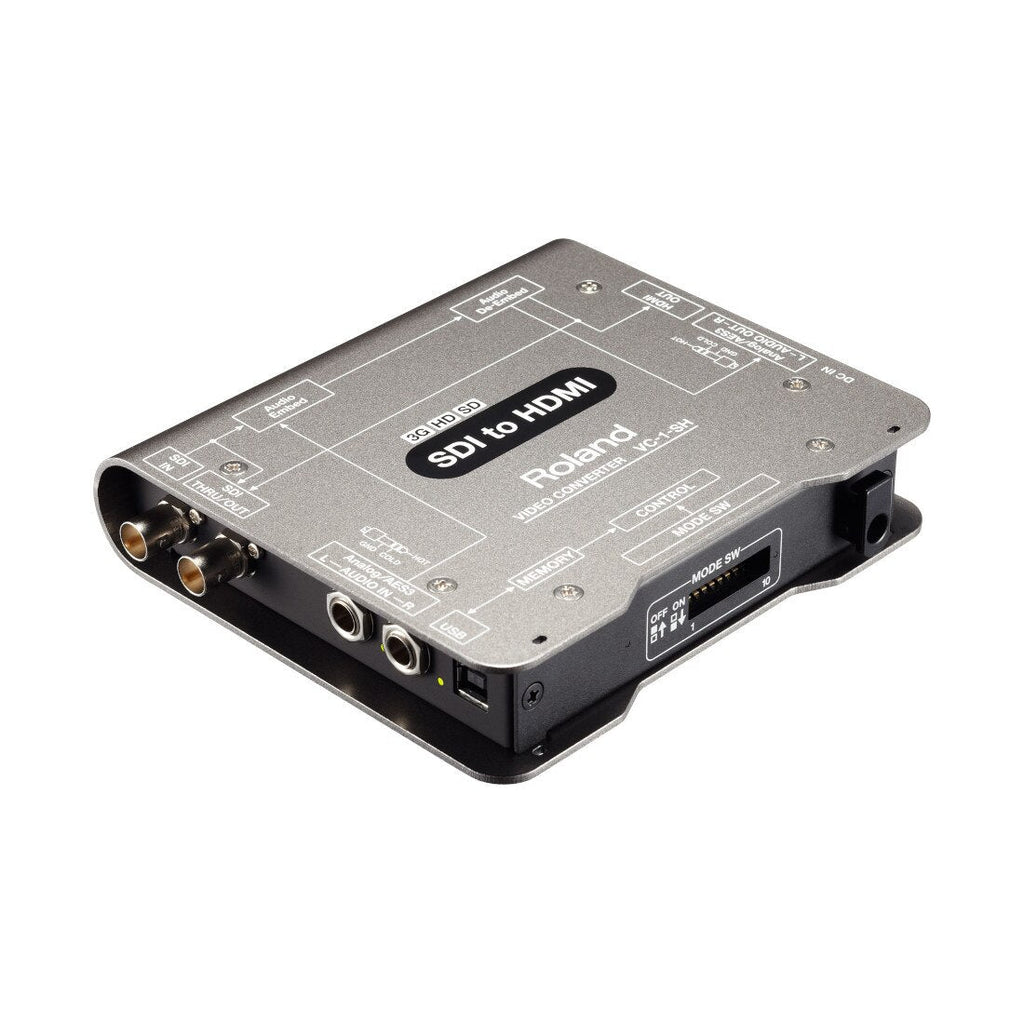

Roland VC-1-SH SDI to HDMI Video Converter

The Roland VC-1-SH is a professional SDI-to-HDMI video converter designed for live production, broadcast, and AV integration. It delivers lossless image conversion while maintaining the original signal’s rich blacks and super-whites, ensuring a high-quality viewing experience. Ideal for cost-effective monitoring and flexible setups, the VC-1-SH integrates seamlessly with Roland video mixers like the V-40HD.

Key Features

• SDI to HDMI Conversion – Converts 3G (Level A & B), HD, and SD SDI signals to HDMI for cost-effective monitoring.

• Lossless Image Quality – Maintains the original video characteristics with no interlacing artifacts or signal errors.

• HDCP Compliance – Supports HDMI copy-protected content for secure workflows.

• Audio Embedding & De-Embedding – Selectable channels let you route audio to and from video devices.

• VC-1 RCS Software Control – Configure and control the converter remotely via PC or Mac.

• AES/EBU Digital Audio Support – Ensures high-quality audio signals through the conversion process.

• On-Board Re-Clocker – Compensates for SDI signal attenuation over long cable runs.


Reliable & Professional

The VC-1-SH is a versatile, compact solution for monitoring SDI sources on HDMI displays without compromising image quality. Its re-clocking technology guarantees stable, artifact-free signals even with long cable runs, while selectable audio embedding/de-embedding provides flexibility in routing audio in professional workflows. Perfect for live events, studios, or hybrid setups, the VC-1-SH ensures seamless integration into any production environment.

Input Connectors

• SDI:
• BNC ×1

• HDMI:
• Type A (19 pins) ×1

• Analog Audio:
• 1/4" TRS (balanced) ×1 pair (L/R)

• Digital Audio:
• 1/4" TRS (balanced) ×1 (shared with Analog Audio R channel)


Processing

• Audio embedding

• Audio de-embedding


Output Connectors

• SDI: BNC ×1 (Thru/Out)

• HDMI: Type A (19 pins) ×1

• Analog Audio: 1/4" TRS (balanced) ×1 pair (L/R)

• Digital Audio: 1/4" TRS (balanced) ×1 (shared with Analog Audio R channel)


Input / Output Formats

SDI

• Standards: SMPTE 424M / 425M-AB, 292M, 259M-C

• Video:
• 1080p/i: 60/59.94/50/30/29.97/25/24/23.98 Hz

• 720p: 60/59.94/50/30/29.97/25 Hz

• 720x480i, 720x576i

• Audio: Linear PCM, 24-bit, 48 kHz, 16 channels


HDMI

• Video:
• 1080p/i: 60/59.94/50/30/29.97/25/24/23.98 Hz

• 720p: 60/59.94/50/30/29.97/25 Hz

• 480i/p, 576i/p

• Audio: Linear PCM, 24-bit, 48 kHz, 8 channels


SDI Output

• Standards: SMPTE 424M / 425M-AB, 292M, 259M-C

• Video: Same as SDI input

• Audio: Same as SDI input


HDMI Output

• Video: Same as HDMI input

• Audio: Same as HDMI input


Audio Input / Output Specifications

• Analog Input Level: +4 dBu (Max +24 dBu)

• Analog Input Impedance: 110 Ω

• Analog Output Level: +4 dBu

• Analog Output Impedance: 600 Ω

• Digital Output: AES3, 16/24-bit, 32/48 kHz, 2 channels

• Digital Output Impedance: 110 Ω


USB

• Type B (Hi-Speed USB) ×1


Power

• DC 9V

• Power Consumption: 8 W


Physical & Environmental

• Operating Temperature: 0–40°C

• Dimensions (WxDxH): 5-15/16 × 5-1/8 × 1-3/16 in (150 × 130 × 30 mm)

• Weight: 1 lb 2 oz (500 g)


Notes

• 0 dBu = 0.775 Vrms
