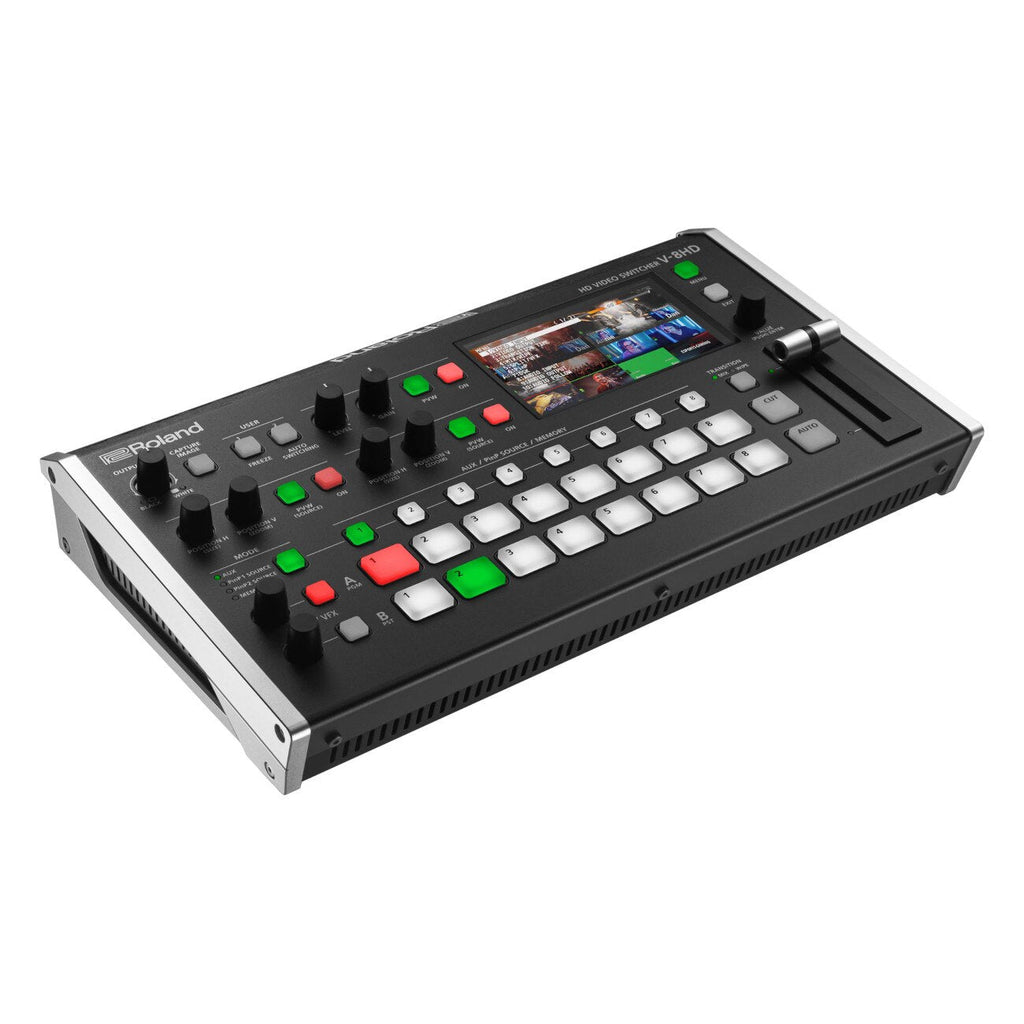

Roland V-8HD HD Video Switcher

The Roland V-8HD is a compact, portable, and professional-grade HDMI video switcher designed for live events, streaming, and hybrid productions. With its all-in-one hardware workflow, intuitive controls, and built-in effects engine, it empowers operators to produce engaging, broadcast-quality video without the complexity of computer-based setups.

Key Features

• All-HDMI Workflow – Connect cameras, computers, tablets, and other HDMI devices for a simplified and flexible setup.

• Five-Layer Effects & Keying Engine – Create professional overlays, picture-in-picture, and dynamic compositions.

• Built-in Multi-Viewer Preview Monitor – Keep track of all video inputs at a glance for smooth live switching.

• Aux Output – Send a separate video feed for projectors, secondary screens, or live streaming.

• Technology-Assisted Automatic Switching – Reduce operator workload and maintain smooth transitions during live events.

• 18-Channel Digital Audio Mixer – Mix embedded HDMI audio with microphones, line inputs, and additional sound sources, complete with onboard effects.

• Start & Stop Atomos Recorders – Integrate and control external recorders directly from the switcher.

• iPad Remote Control App – Operate the V-8HD remotely via the free AeroCaster app for iOS.

• Ultra-Mobile & Lightweight – Easy to transport, set up, and deploy at any venue.

• Cost-Efficient Solution – Reduces the need for multiple devices and complex software setups, lowering overall production costs.


Creative & Reliable

The Roland V-8HD is perfect for live concerts, corporate events, esports, and educational productions. Its all-HDMI workflow and robust audio/video mixing capabilities allow operators to manage complex productions efficiently. With automatic switching, multi-layer effects, and remote control support, the V-8HD provides professional results with minimal effort.

Video

• Processing: 4:2:2 (Y/Pb/Pr), 8-bit

• Input Connectors:
• HDMI INPUT 1–6: Type A × 6 (HDCP supported)

• HDMI INPUT 7–8: Type A × 2 (HDCP & Multi-format supported)

• Output Connectors:
• HDMI OUTPUT 1–3: Type A × 3 (HDCP supported)


Supported Video Input Formats

• INPUT 1–6:
• 720/59.94p, 720/60p, 720/50p

• 1080/59.94i, 1080/60i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p

• 1080/50i, 1080/50p, 1080/25p

• 1080/23.98p, 1080/24p

• Interlaced inputs are internally converted to progressive

• INPUT 7–8:
• 480i/p, 576i/p, 720p, 1080i/p, 1080/29.97p, 1080/30p, 1080/25p, 1080/23.98p, 1080/24p

• VGA to WUXGA resolutions supported

• Refresh rates per resolution; conforming to CEA-861-E / VESA DMT 1.0

• Interlaced signals converted to progressive


Supported Video Output Formats

• OUTPUT 1–2:
• 720p: 59.94/60/50 Hz

• 1080i: 59.94/60/50 Hz

• 1080p: 59.94/60/50 Hz

• OUTPUT 3:
• 1080p: 59.94/60/50 Hz


Video Effects

• Transitions: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (8 types)

• Composition:
• PinP ×2 (SQUARE, CIRCLE, DIAMOND)

• SPLIT ×2

• Keyer ×2 (Luminance & Chroma Key)

• DSK (Luminance & Chroma Key)

• Other Effects: Flip horizontal/vertical, Still Image Capture/Playback, Output fade (Audio/Video WHITE or BLACK), Test pattern output


Still Image Support

• BMP, PNG, JPEG up to 1920×1080, 24-bit color

• Internal memory: 8 files; exportable to USB

• PNG alpha channel not supported


Audio

• Processing: 24-bit / 48 kHz

• Formats: Linear PCM, 2ch

• Effects: Delay, High Pass Filter, Compressor, Noise Gate, Equalizer, Multi-band Compressor, Limiter, Test Tone Output


Connectors

• Input: HDMI 1–8, AUDIO IN (RCA)

• Output: HDMI 1–3, AUDIO OUT (RCA), PHONES (Stereo mini)


Audio Levels

• Input Level: AUDIO IN -10 dBu (max +8 dBu)

• Input Impedance: 38 kΩ

• Output Level: AUDIO OUT -10 dBu (max +8 dBu), PHONES 92 mW + 92 mW (32 Ω)

• Output Impedance: AUDIO OUT 1 kΩ, PHONES 10 Ω


Other Connectors & Functions

• USB MEMORY: USB A (flash drive)

• REMOTE: USB B (iPad control)

• CTL/EXP: 1/4-inch TRS phone

• Preset Memory: 24 scenes

• Panel lock, EDID Emulator, Auto Switching, Auto Input Detect


Display

• 4.3-inch TFT Color LCD, 480×272 dots


Power

• AC Adaptor

• Current Draw: 3.3 A

• Power Consumption: 39.6 W


Physical

• Dimensions (W×D×H): 12-1/2 × 7-5/8 × 2-13/16 in (317 × 193 × 70 mm)

• Weight: 4 lbs 7 oz (2 kg)

• Operation Temperature: 0–40°C / 32–104°F
