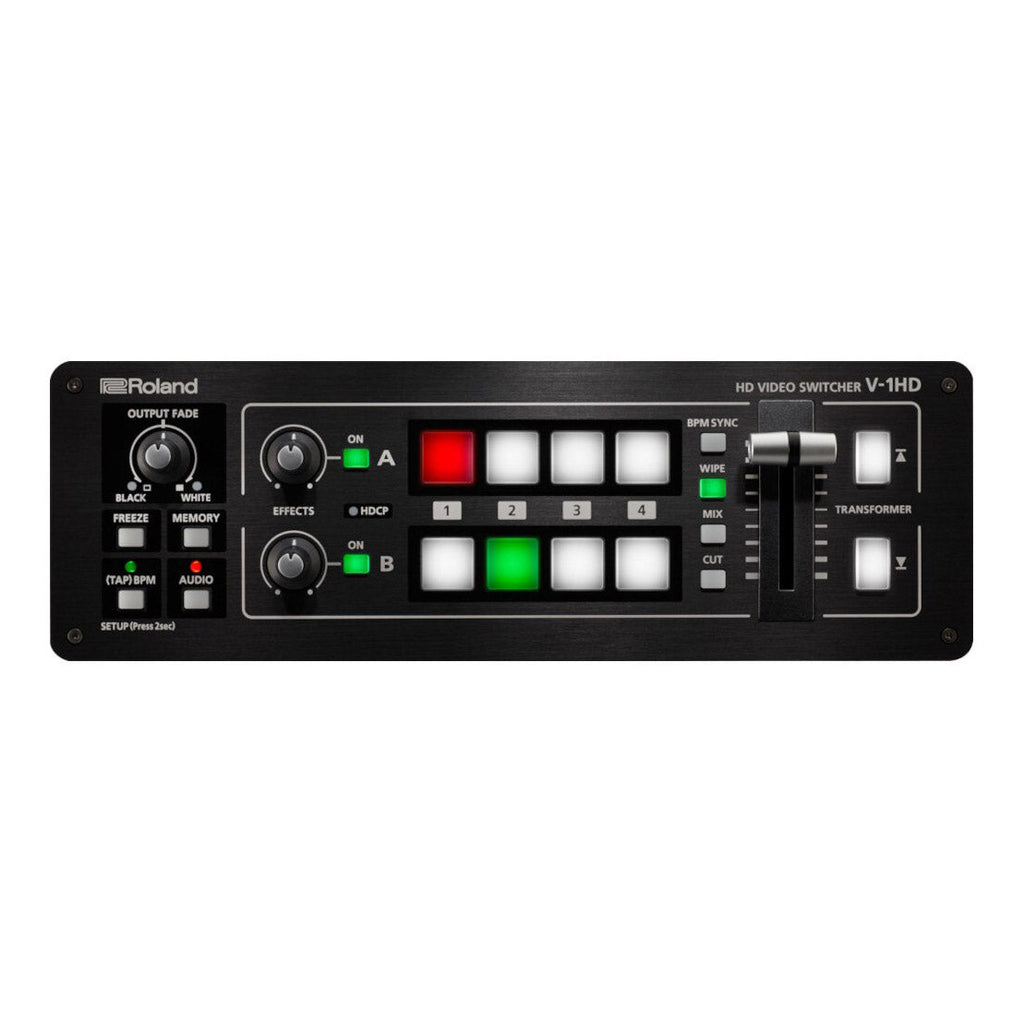

The Roland V-1HD is a compact yet powerful 4-channel HDMI video switcher designed for live streaming, presentations, worship services, esports, and more. Seamlessly switch between cameras, PCs, Macs, action cameras, tablets, gaming consoles, or Blu-ray players—all in Full HD 1080p. Its intuitive interface and hardware controls make professional video production accessible for both beginners and experienced operators.
Key Features
-
4 HDMI Inputs & 2 HDMI Outputs – Connect multiple sources and feed displays, recorders, or streaming devices simultaneously.
-
Full HD 1080p Support – High-quality video output for crisp and clear live visuals.
-
3-Layer Effects Engine – Create picture-in-picture, split-screen compositions, Chroma/Luminance keying, and advanced visual effects.
-
12-Channel Digital Audio Mixer – Mix embedded audio from HDMI channels with external stereo or mic inputs; includes EQ, reverb, delay, and mastering effects.
-
Easy Hardware Operation – Backlit buttons, T-Fader, and output fade dial for smooth transitions.
-
Automatic Switching Modes – Input Scan (1–120 seconds) and BPM Sync for tempo-driven video transitions.
-
Remote Control Options – Control via USB or MIDI, or use the V-1HD RCS application for Mac, PC, or iPad to adjust switching, audio, and effects remotely.
-
Multi-Viewer Preview – Monitor your sources with live previews and ensure seamless production.
Compact Yet Professional
The V-1HD delivers studio-quality live production capabilities in a portable design. Its powerful effects engine, versatile audio mixer, and intuitive controls make it ideal for small studios, live events, educational presentations, and streaming workflows. Whether you’re producing a multi-camera livestream or adding visual polish to an event, the V-1HD gives you the tools to operate confidently and efficiently.
Video
-
Processing: 4:2:2 (Y/Pb/Pr), 8-bit
-
Input Connectors: HDMI INPUT 1–4: Type A (19-pin) × 4 (*HDCP Supported)
-
Output Connectors: HDMI OUTPUT: Type A (19-pin), HDMI PREVIEW: Type A (19-pin) (*HDCP Supported)
Input Formats
-
HDMI: 720p/59.94, 720p/50 (*FORMAT switch = 720p)
-
HDMI: 1080i/59.94, 1080i/50, 1080p/59.94, 1080p/50 (*FORMAT switch = 1080i or 1080p)
-
Interlaced signals converted internally to progressive
-
Frame rate selectable via SETUP (59.94 or 50 Hz)
Output Formats
-
HDMI: 720p/59.94, 720p/50 (*FORMAT switch = 720p)
-
HDMI: 1080i/59.94, 1080i/50 (*FORMAT switch = 1080i)
-
HDMI: 1080p/59.94, 1080p/50 (*FORMAT switch = 1080p)
-
Frame rate selectable via SETUP (59.94 or 50 Hz)
Video Effects
-
Transitions: CUT, MIX (DISSOLVE/FAM/NAM/MOSAIC), WIPE (30 types), TRANSFORMER (11 types)
-
Visual Effects:
-
NEGATIVE, EMBOSS, COLORIZE, COLORPASS, POSTERIZE, SILHOUETTE, MONOCOLOR, FINDEDGE, FLIP
-
WH-LUMIKEY@, BK-LUMIKEY@, GR-CHROMAKEY@, BL-CHROMAKEY@
-
PinP (1/4, 1/3, 1/2)@, SPLIT (H-STRETCH, H-CENTER, V-STRETCH, V-CENTER)@
-
@ effects applied commonly to A-BUS and B-BUS
Audio
-
Processing: 24-bit / 48 kHz
-
Input Connectors:
-
Digital: HDMI INPUT 1–4 (19-pin) × 4
-
Analog: AUDIO IN (RCA), MIC (Stereo mini, plug-in power supported)
-
Output Connectors:
-
Digital: HDMI OUTPUT (Type A), HDMI PREVIEW (Type A)
-
Analog: AUDIO OUT (RCA), PHONES (Stereo mini)
-
Input Levels: AUDIO IN: -10 dBu (max +8 dBu), MIC: -41 to -13 dBu (max -1 dBu)
-
Input Impedance: AUDIO IN: 15 kΩ, MIC: 10 kΩ
-
Output Levels: AUDIO OUT: -10 dBu (max +8 dBu), PHONES: 72 mW + 72 mW (32 Ω)
-
Output Impedance: AUDIO OUT: 1 kΩ, PHONES: 10 Ω
Audio Effects
-
EQ, Delay, Compressor, High-Pass Filter, Gate, Reverb, Mastering Effects
Other Connectors & Functions
-
USB: B Type (for PC remote control)
-
MIDI: IN, OUT/THRU
-
Functions:
-
Memory (8 types)
-
Freeze (capture input video)
-
BPM Sync (auto transitions synced to tempo)
-
Output Fade (White / Black / Audio)
Power
-
Supply: AC adaptor
-
Current Draw: 1.5 A
-
Power Consumption: 18 W
Physical
-
Dimensions (WxDxH): 12.33" × 4" × 2.33"
-
Weight: 2.63 lbs
