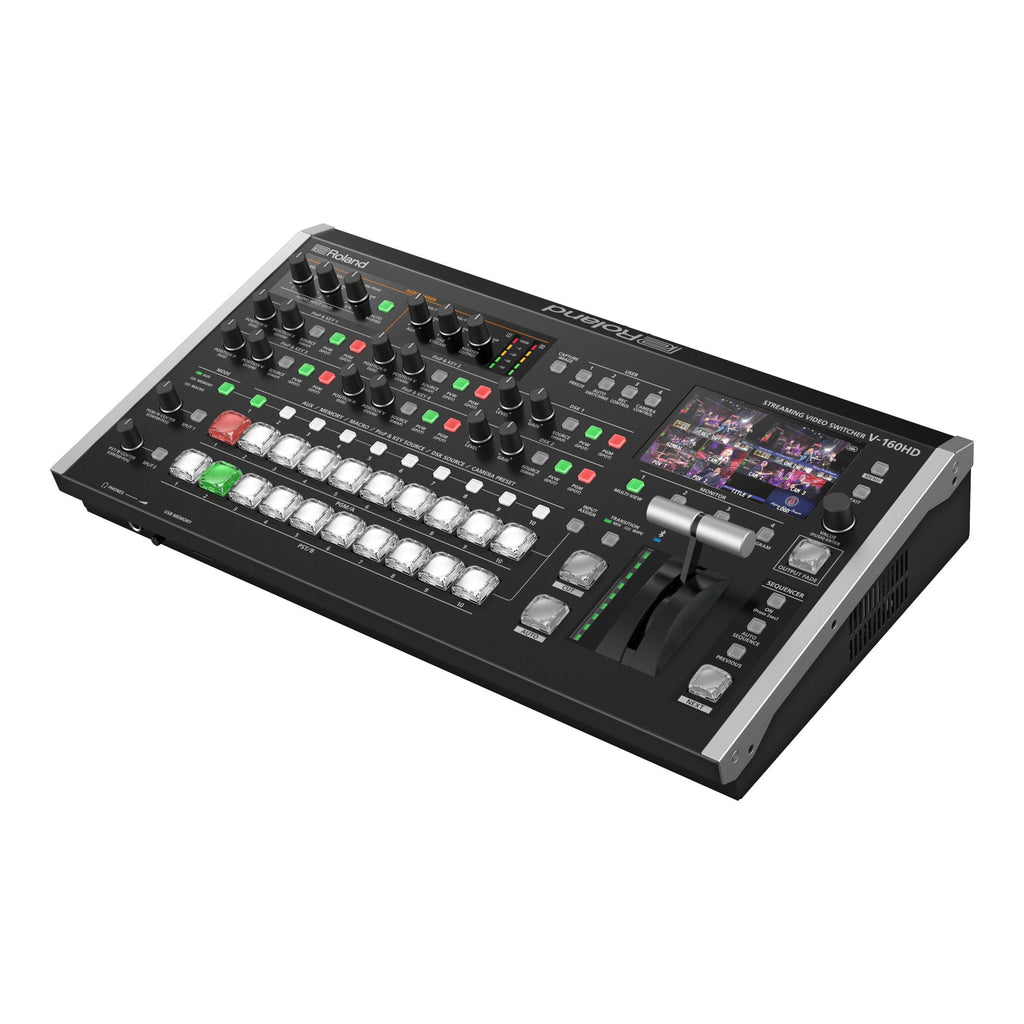

Roland V-160HD Streaming Video Switcher

The Roland V-160HD is a powerful, portable hybrid event switcher that combines the flexibility of software-based livestreaming with the reliability of professional broadcast hardware. Designed for modern productions, it delivers 16 total video inputs, advanced audio mixing, multi-layer video effects, and integrated streaming—all in a single, easy-to-use system.

Key Features

• 16 Video Inputs – Eight 3G SDI and eight HDMI inputs, each with frame rate converters; four HDMI inputs include real-time scalers for seamless integration with laptops, mobile devices, and gaming consoles.

• 7 Video Outputs – Three HDMI, three SDI, and one USB-C streaming output; assignable to Program, Sub-Program, Aux, Preview, or three Multi-View modes.

• Built-In Streaming – USB-C webcam-style output for plug-and-play livestreaming to Zoom, Teams, YouTube, Facebook Live, and more at up to 1080p/60 FPS.

• 40-Channel Digital Audio Mixer – Mix audio from all 16 video sources plus mic, line-level, USB-C, Bluetooth, and RCA inputs, complete with effects and processing tools.

• Creative Video Engine – Eight-layer effects engine with picture-in-picture, keying, and up to 16 still store slots (BMP, JPEG, PNG with alpha channel).

• Advanced Automation – Macros, presets, and sequencing functions streamline complex productions with single-button recall.

• PTZ Camera Control – Built-in support for Canon, JVC, Panasonic, Sony, PTZOptics, Avonic, and VISCA-compatible PTZ cameras with mixed-protocol control.

• Professional Integration – Device control via Bluetooth, USB, RS-232, LAN, and wireless/wired tally support.

• Remote Control – Free control software for iPad, macOS, and Windows.

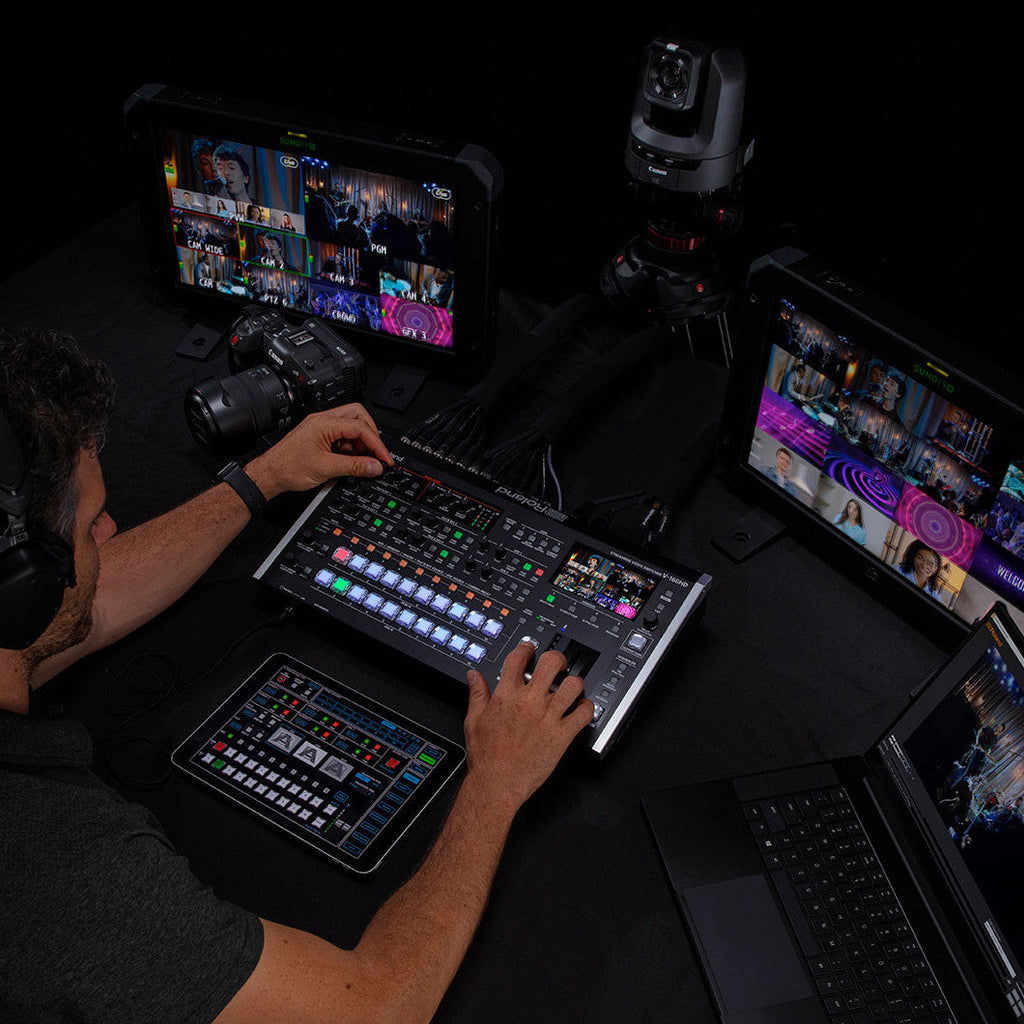

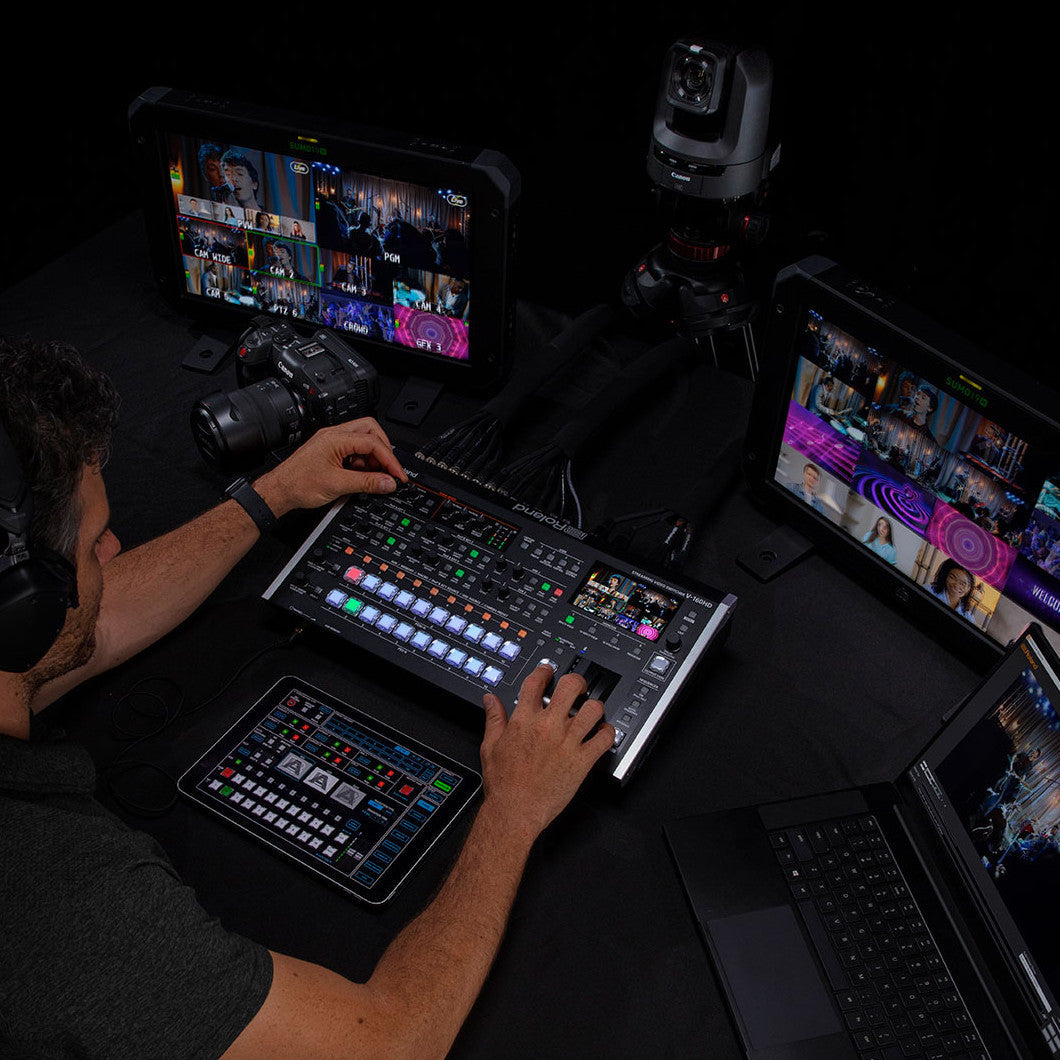

The Ultimate Hybrid Production Hub

Perfect for corporate events, houses of worship, esports, concerts, and conferences, the V-160HD can handle in-person and streaming components simultaneously. Its versatile connectivity supports both professional SDI workflows and everyday HDMI devices, while seven assignable outputs give operators complete flexibility for program feeds, preview monitors, recordings, and live audiences.

Whether operated by a single user or integrated into a larger production environment, the Roland V-160HD sets a new standard for hybrid event switching.

Video

• Processing: 4:2:2 (Y/Pb/Pr), 8-bit

• Video Channels: 16


Input Formats

HDMI IN 1–4, SDI IN 1–8

• 720/59.94p, 720/50p

• 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p

• 1080/50i, 1080/50p, 1080/25p

• 1080/23.98p, 1080/24p

• Interlaced converted to progressive internally


HDMI IN 5–8

• 480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p

• 576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p

• 1080/23.98p, 1080/24p

• PC Resolutions: VGA → WUXGA (1920×1200, reduced blanking)


Output Formats

HDMI OUT 1–2, SDI OUT 1–3:

• 720p (59.94/60/50 Hz)

• 1080i (59.94/60/50 Hz)

• 1080p (59.94/60/50/29.97/30/25/23.98/24 Hz)


HDMI OUT 3:

• 1080p (59.94/60/29.97/30/50/25/23.98/24 Hz)


USB Stream:

• 1080p, 720p, 640×480p (frame rates: 59.94, 60, 29.97, 30, 25, 23.98, 24, 50 Hz)

• Formats: Uncompressed (YUY2) & Compressed (Motion JPEG)


Still Image

• Formats: BMP, PNG (alpha supported), JPEG

• Max Resolution: 1920×1080, 24-bit

• Internal Storage: Up to 16 files

• Export via USB flash drive


Video Effects

• Transitions: Cut, Mix (Dissolve/FAM/NAM), Wipe (8), Split (2)

• Composition:
• PinP x4 (Square, Circle, Diamond)

• Keyer x4 (Luminance, Chroma)

• DSK x2 (Luminance, Chroma, Alpha, External Key)

• Other: Multi-view (3), Flip H/V, Still Capture & Playback, Output Fade (white/black), Test Pattern


Audio

• Processing: 24-bit / 48 kHz

• Channels: 40


Audio Formats

• USB Stream (I/O): Linear PCM, 24-bit, 48 kHz, 2ch

• Bluetooth (Input): Linear PCM, 24-bit, 48 kHz, 2ch

• HDMI IN: PCM 24-bit, 48 kHz, 2ch

• HDMI OUT: PCM 24-bit, 48 kHz, 8ch

• SDI IN: PCM 24-bit, 48 kHz, 2ch (SMPTE 299M)

• SDI OUT: PCM 24-bit, 48 kHz, 8ch (SMPTE 299M)


Audio Effects

• Channel Effects: HPF, Echo Canceller, Anti-feedback, Noise Gate, De-esser, Compressor, 3-band EQ, Voice Changer, Delay, Auto Mixing

• Master Effects: Reverb, 3-band EQ, Delay, Multi-band Compressor, Limiter

• Other: Output Fade, Test Tone


Common Features

• Preset Memory: 30 types

• Macro Control: 100 types

• Sequencer Control: 1000 steps

• Panel Lock, EDID Emulator

• Auto Switching / Auto Input Detect

• Smart Tally

• Remote Camera Control (up to 16 units)

• External Recording Control

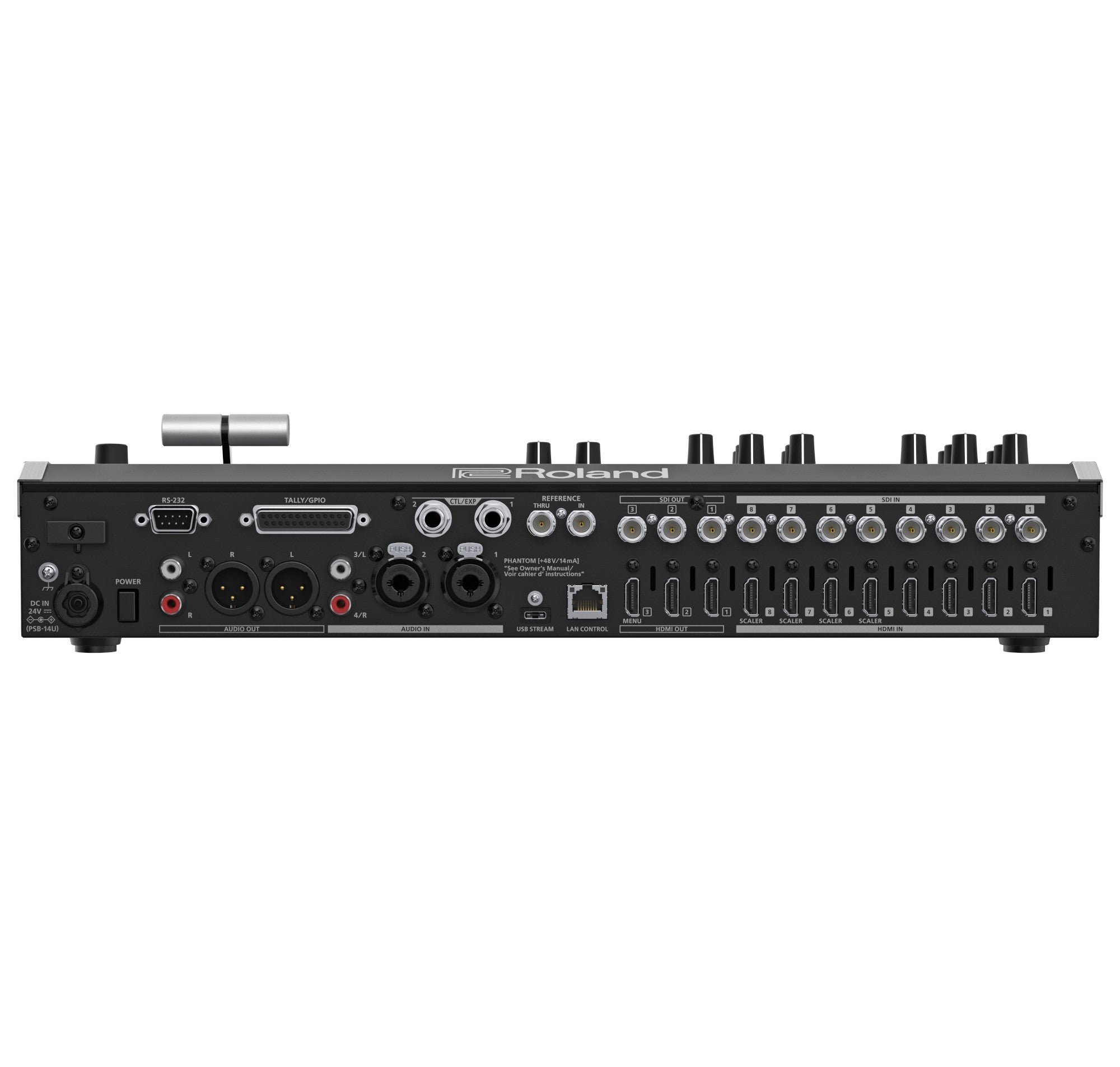

Connectors

Video Inputs

• HDMI IN 1–4: HDMI Type A x4 (HDCP supported)

• HDMI IN 5–8: HDMI Type A x4 (HDCP & Multi-format supported)

• SDI IN 1–8: BNC x8 (SMPTE 424M/425M-AB, 292M)


Video Outputs

• HDMI OUT 1–3: HDMI Type A x3 (HDCP supported)

• SDI OUT 1–3: BNC x3 (SMPTE 424M/425M-AB, 292M)

• USB Stream: USB Type-C™


Audio Inputs

• Analog:
• AUDIO IN 1–2: Combo (XLR/TRS, +48V phantom, 14 mA max)

• AUDIO IN 3/L, 4/R: RCA phono

• Digital:
• USB Stream: USB Type-C™

• Bluetooth

• HDMI IN 1–8

• SDI IN 1–8


Audio Outputs

• Analog:
• AUDIO OUT: XLR

• AUDIO OUT: RCA phono

• PHONES: Stereo 1/4"

• Digital:
• USB Stream: USB Type-C™

• HDMI OUT 1–3

• SDI OUT 1–3


Other

• USB MEMORY (USB A): Flash drive, keypad control

• USB STREAM: USB Type-C™ (PC/iPad control)

• Bluetooth: iPad remote control

• CTL/EXP: 1/4" TRS (footswitch, expression pedal)

• TALLY/GPIO: DB-25 (16 tally/GPO, 8 GPI)

• RS-232: DB-9 (remote control)

• LAN CONTROL: RJ45, 100BASE-TX

• Reference IN/THRU: BNC (Black Burst, Bi-Level, Tri-Level sync)


Audio I/O Characteristics

• Input Levels:
• AUDIO IN 1–2: -60 to +4 dBu (max +24 dBu)

• AUDIO IN 3/L, 4/R: -10 dBu (max +10 dBu)

• Impedances:
• AUDIO IN 1–2: 9.4kΩ (<24 dBu), 74.4kΩ (≥24 dBu)

• AUDIO IN 3/L, 4/R: 47kΩ

• Output Levels:
• AUDIO OUT (XLR): +4 dBu (max +24 dBu)

• AUDIO OUT (RCA): -10 dBu (max +10 dBu)

• PHONES: 92 mW + 92 mW (32Ω load)

• Output Impedance:
• XLR: 600Ω

• RCA: 1kΩ

• PHONES: 10Ω


Other Specifications

• Bluetooth: v4.2 (A2DP audio, GATT MIDI over BLE, SBC codec, SCMS-T content protection)

• Display: 4.3" TFT Color LCD (480×272)

• Power Supply: AC Adaptor

• Current Draw: 2.5 A

• Consumption: 55 W

• Operating Temp: 0–40 °C (32–104 °F)


Size & Weight

• Dimensions: 17-1/4 x 10 x 4-1/16" (437×253×103 mm)

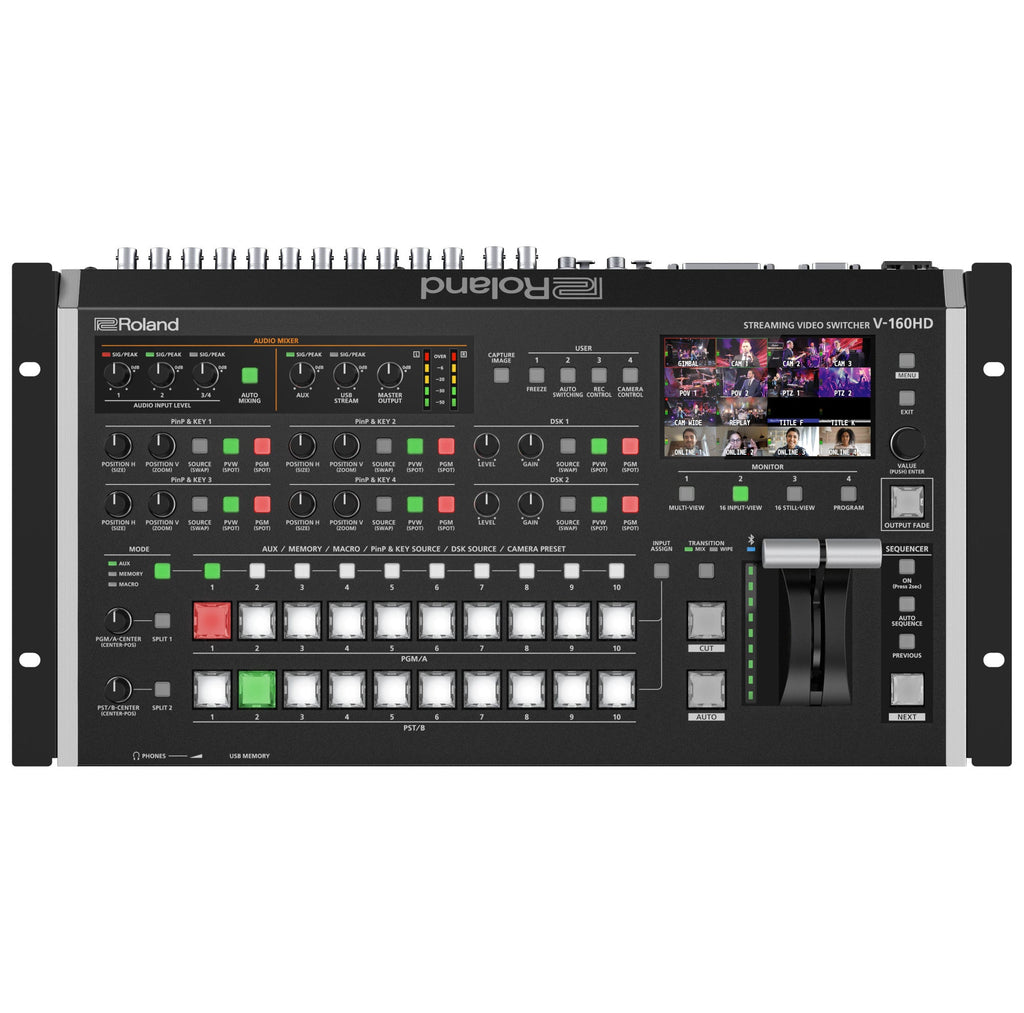

• With Rack Mount Angles: 18-15/16 x 10 x 4-1/16" (480×253×103 mm)

• Weight: 8 lbs 10 oz (3.9 kg, excl. AC adaptor)
