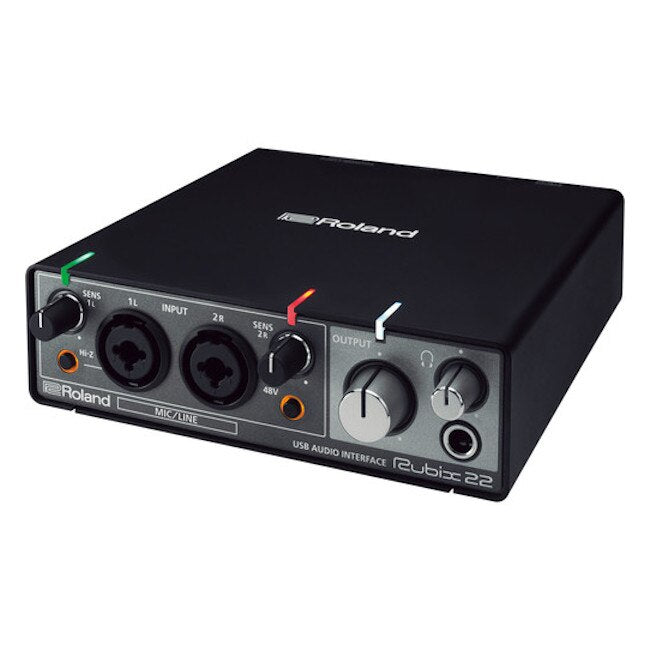

Roland RUBIX22 USB Audio Interface

The Roland Rubix22 is a compact, high-fidelity 2-in/2-out USB audio interface, perfect for home studios, live performance, and mobile music production. Combining low-noise preamps, MIDI connectivity, and rugged metal construction, it delivers studio-quality sound in a portable, reliable package.

Key Features:

• 2 Low-Noise Mic Preamps – XLR/TRS combo jacks with pristine audio clarity.

• Hi-Z Instrument Input – Ideal for guitars, basses, and other high-impedance sources.

• MIDI In/Out Ports – Seamlessly integrate keyboards, controllers, and other MIDI devices.

• Extensively Shielded Design – Minimizes noise and interference for professional-quality recordings.

• Compact Metal Chassis – Sturdy construction built for portability and durability.

• Low Latency & Class-Compliant Drivers – Smooth performance with Mac, PC, and iPad compatibility.

• Ground Lift Switches – Reduce hum and noise in challenging venue environments.

• Includes Ableton Live Lite – Start recording and producing immediately.


High-Resolution, Portable Recording

With support for 24-bit/192kHz audio, the Rubix22 captures clear, detailed sound for instruments, vocals, and MIDI devices. Its easy-to-read indicators, low-noise circuitry, and rugged, portable design make it the perfect choice for musicians, producers, and performers who need reliable, professional audio anywhere.

Audio Channels

• Recording Channels: 2

• Playback Channels: 2


Signal Processing

• PC Interface Resolution: 24-bit

• AD/DA Conversion: 24-bit

• Sampling Frequencies: 44.1 kHz, 48 kHz, 96 kHz, 192 kHz


Connectivity & Interfaces

• USB: Hi-Speed USB Type B

• MIDI: IN / OUT

• Audio Inputs:
• XLR Balanced (1L, 2R) with +48 V phantom power, 6 mA max per channel

• 1/4-inch TRS balanced jacks (1L, 2R)

• 1/4-inch TS jack (INPUT 1L) for high-impedance instruments

• Audio Outputs:
• 1/4-inch TRS balanced outputs (1L, 2R)

• Stereo 1/4-inch headphone output

• DC Input: USB Type Micro-B (5V)


Controls & Switches

• Input Sensitivity Knobs (SENS 1L, 2R)

• Hi-Z Switch

• 48V Phantom Power Switch

• Output Volume Knob

• Headphones Volume Knob

• Power Source Switch

• Direct Monitor Switch

• Ground Lift Switch


Indicators

• Level Meters (1L, 2R)

• POWER Indicator

• Hi-Z Indicator

• 48V Phantom Indicator


Input/Output Levels

• Nominal Input:
• XLR: -60 to -12 dBu

• 1/4-inch TRS: -44 to +4 dBu

• Maximum Input:
• XLR: +2 dBu

• 1/4-inch TRS: +18 dBu

• Nominal Output: -6 dBu (balanced)

• Maximum Output: +8 dBu (balanced)

• Headphones: 20 mW + 20 mW (L/R, 47Ω)

• Headroom: 14 dB


Impedance

• Input:
• XLR: ≥ 4 kΩ balanced

• 1/4-inch TRS: ≥ 15 kΩ balanced

• 1/4-inch TS (Hi-Z on): ≥ 500 kΩ

• Output:
• 1/4-inch TRS: 2 kΩ balanced

• Headphones: 47 Ω


Performance Specs

• Residual Noise: -94 dBu typ. (min input sensitivity, 600 Ω terminated, IHF-A)

• Dynamic Range:
• AD Block (Input 1L, 2R): 104 dB typ.

• DA Block (Output 1L, 2R): 109 dB typ.


Power Requirements

• Powered via USB (DC 5V)

• Current Draw: 500 mA


Operating System Compatibility

• Windows 7 / 8 / 8.1 / 10

• macOS 10.10 or later

• iOS 9 or later


Note: Performance may vary depending on the computer configuration, motherboard design, and connected devices.

Physical Dimensions & Weight

• Dimensions (WxDxH): 5-3/4 x 6-1/2 x 1-13/16 inches (145 x 165 x 46 mm)

• Weight (main unit only): 2 lbs 4 oz (1 kg)
