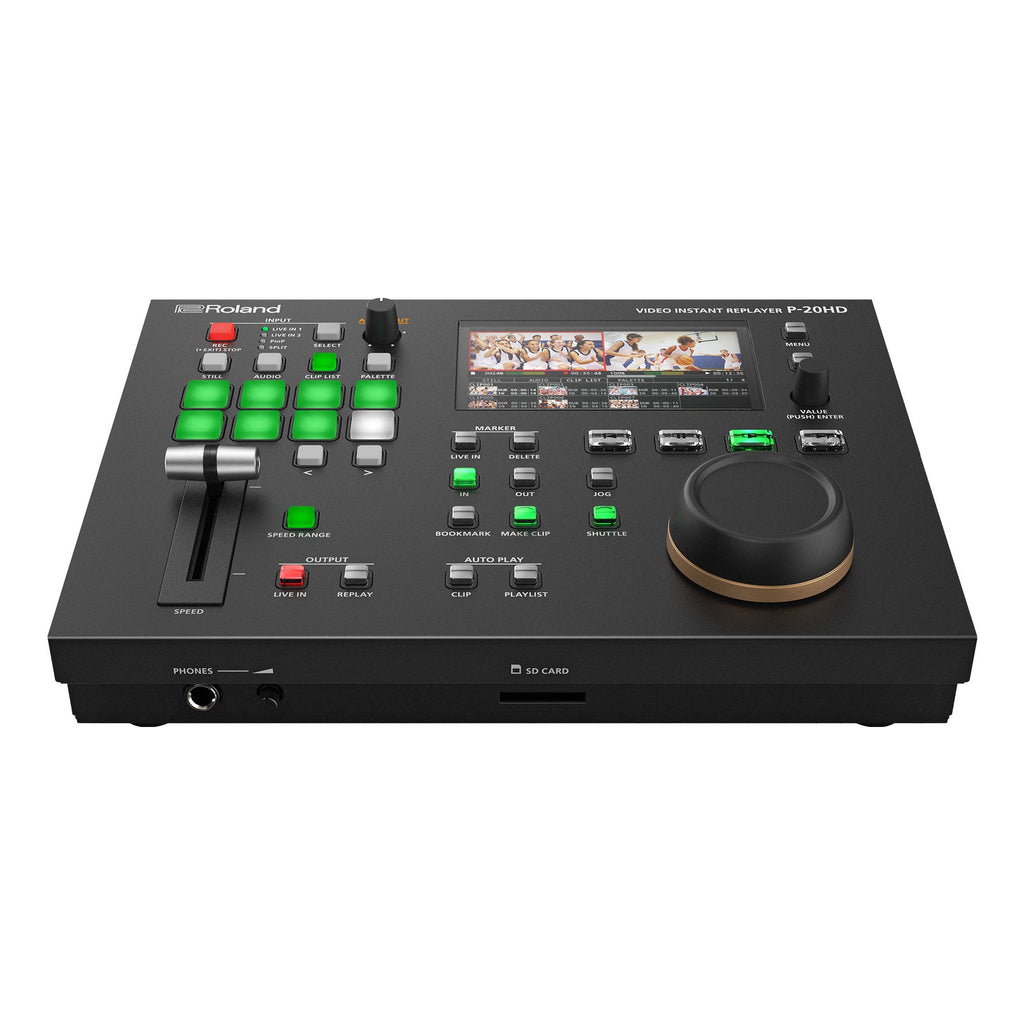

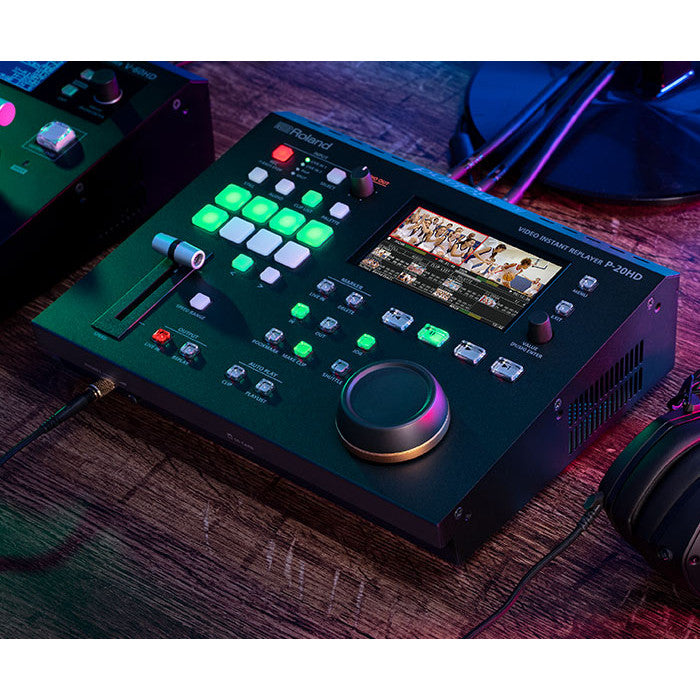

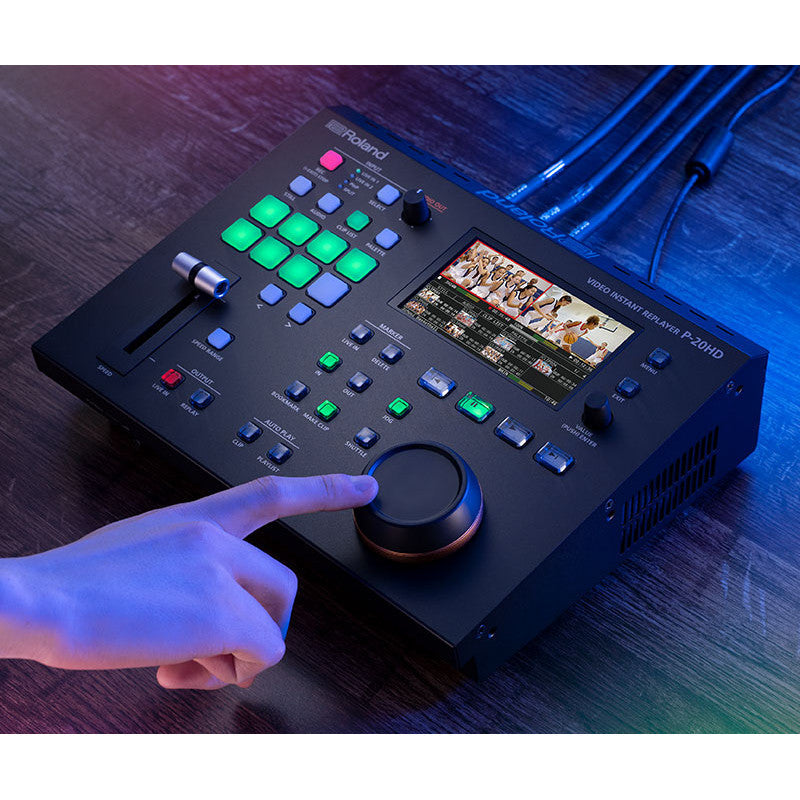

The Roland P-20HD is a portable, all-in-one slow-motion replay solution designed for sports productions, esports, and training events. Deliver professional-quality instant replays and variable speed playback with intuitive controls, without the complexity and expense of traditional replay systems.
Key Features:
-
Slow-Motion Instant Replay & Variable Speed Playback – Capture every highlight with precision.
-
Simultaneous Recording & Playback – Keep the action flowing while creating highlight clips.
-
Clip Playlist Builder – Quickly assemble highlight reels for live or streaming presentations.
-
Integrated Color LCD – Preview clips and monitor playback with ease.
-
High-Capacity SD Card Recording – Affordable and widely available storage media.
-
Compact & Reliable Hardware Design – Perfect for single-operator setups and portable production.
-
Seamless Integration – Works with Roland HDMI cameras and A/V switchers, supporting two HDMI inputs with built-in scalers.

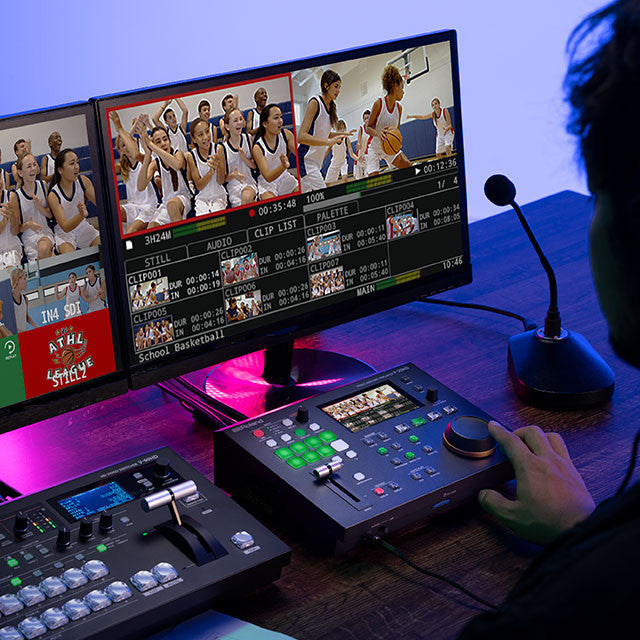

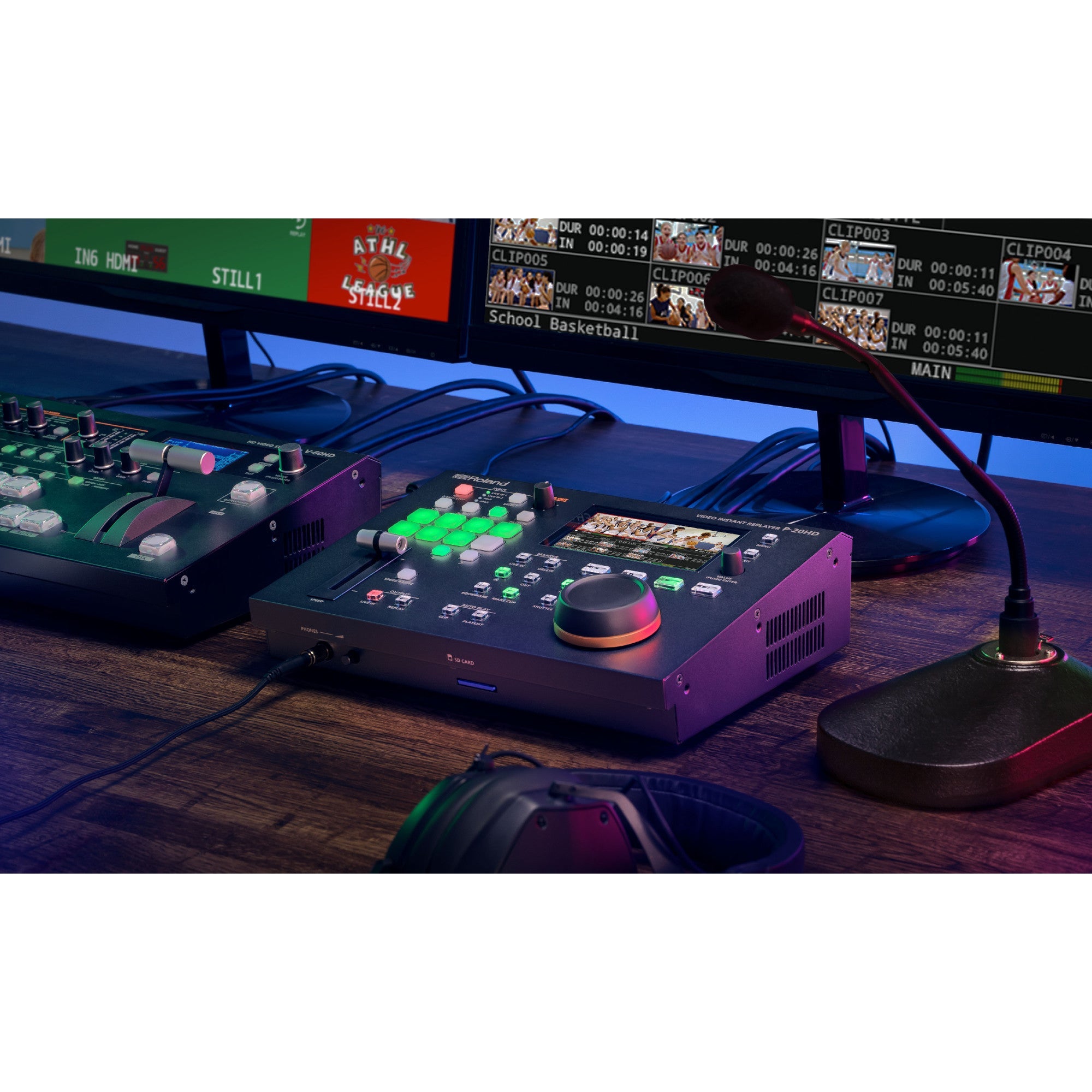

Effortless Replay for Live Productions
The P-20HD brings instant replay capabilities to any production environment. Whether used on its own or integrated with existing Roland switchers, it allows operators to cue, preview, and play back critical moments while recording continues in the background. Ideal for school sports, esports competitions, training sessions, or live event streaming, it delivers professional replay performance in a compact, easy-to-use package.
Video Processing
-
Video Format: 4:2:2 (Y/Pb/Pr), 8-bit color
-
Input Connectors: 2x HDMI Type A (*Multi-format supported)
-
Output Connectors:
-
MAIN: HDMI Type A (*Multi-format supported)
-
PREVIEW: HDMI Type A
Supported Input Resolutions & Frame Rates
-
720/59.94p, 720/50p
-
1080/59.94i, 1080/50i
-
1080/59.94p, 1080/50p
-
SVGA 800x600/60Hz, XGA 1024x768/60Hz, WXGA 1280x800/60Hz
-
FWXGA 1366x768, SXGA 1280x1024/60Hz, SXGA+ 1400x1050/60Hz
-
UXGA 1600x1200/60Hz, WUXGA 1920x1200/60Hz (reduced blanking)
-
Conforms to CEA-861-E and VESA DMT Version 1.0 Revision 11
Output Formats
-
MAIN: 720p/1080i/p, 50/59.94 Hz
-
PREVIEW: 1080p, 50/59.94 Hz
Still Image Support
-
BMP: 1920x1080, 24-bit uncompressed
-
PNG: 1920x1080 or 480x270 (title image), 24-bit color, 8-bit alpha
-
Supports up to 16 files per project and one title image per LIVE IN and REPLAY bus
Recording
-
Instant Replay Mode
-
File Format: MPEG2-TS
-
Video Codec: H.264 High@L.4.1, 10 Mbps, 8-bit 4:2:0
-
Audio Codec: AAC LC, 128 kbps, 48 kHz, 16-bit stereo
-
Recording Modes: Resolution priority or framerate priority
-

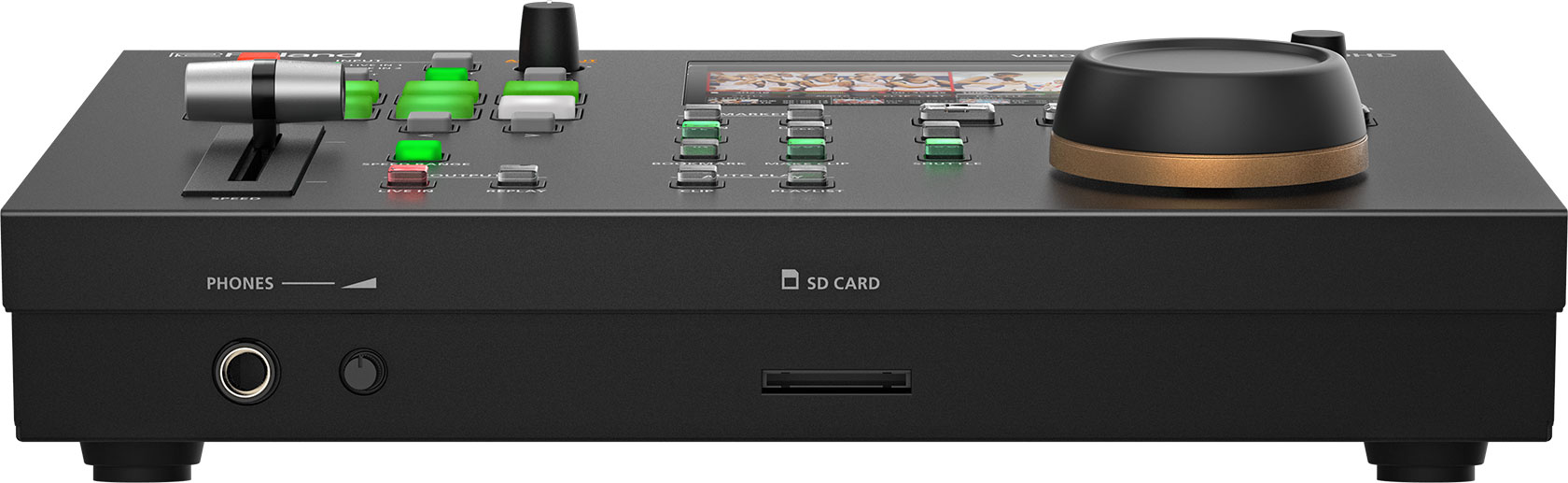

Storage: SD/SDHC/SDXC card
Video Effects
-
Composition: PiP, Split
-
Transition: Cut, Mix, Wipe
-
Other: Flip horizontal, still image playback, test pattern output, annotation
Audio Processing
-
Sample Rate: 24-bit / 48 kHz
-
Formats: Linear PCM, 24-bit/48kHz, 2 channels
-
Inputs: 2x HDMI, RCA phono (AUDIO IN)
-
Outputs: HDMI MAIN/PREVIEW, RCA phono, 1/4” stereo headphones
-
Input Level: -10 dBu (Max +8 dBu), Impedance: 15 kΩ
-
Output Level: AUDIO OUT -10 dBu (Max +8 dBu), PHONES 92 mW + 92 mW @32Ω
-
Output Impedance: AUDIO OUT 1 kΩ, PHONES 10 Ω
-
Audio Effects: Delay, High-pass filter, Compressor, Noise Gate, EQ, Limiter, Test tone output
-
Audio Player: WAV (Linear PCM, 48kHz, 16-bit stereo, up to 16 files per project)

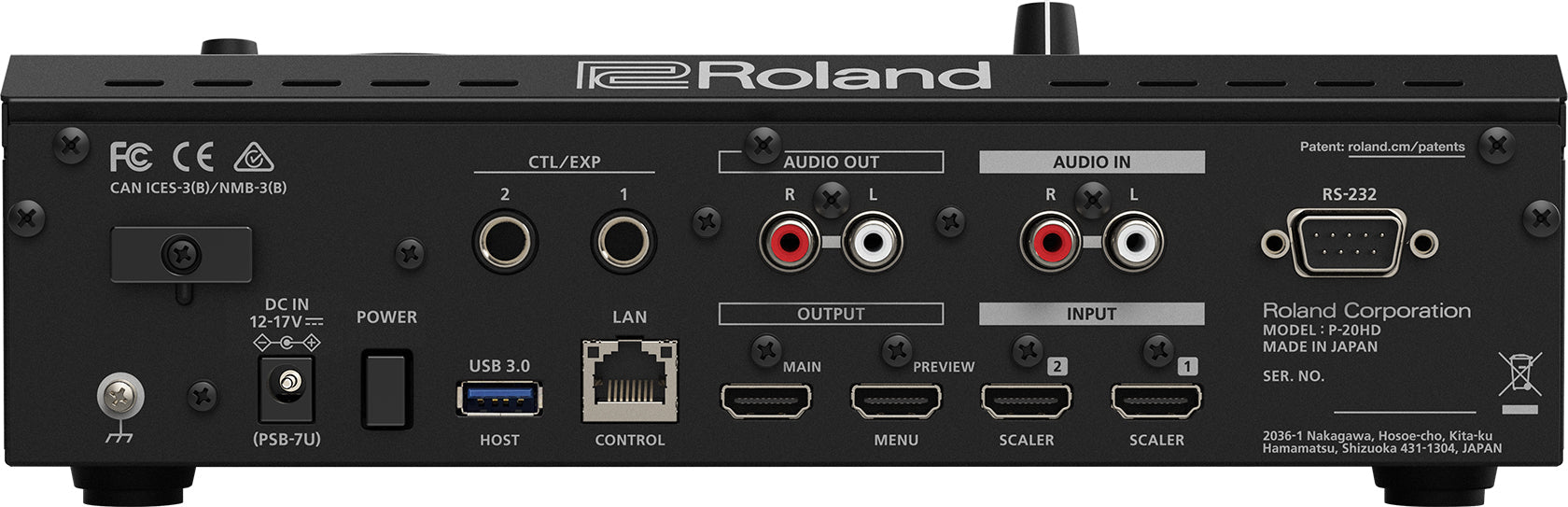

Connectivity
-
USB HOST: USB-A (Flash drive, Wacom tablet, keyboard)
-
LAN: RJ-45, 1000BASE-T (remote control, FTP)
-
RS-232: DB-9 Male (remote/switcher control)
-
CTL/EXP 1 & 2: 1/4” TRS jacks
-
DC IN
Other Features
-
Panel lock function
-
EDID Emulator
-
Export: MP4 recording files
-
Export/Import: Project archive files
-

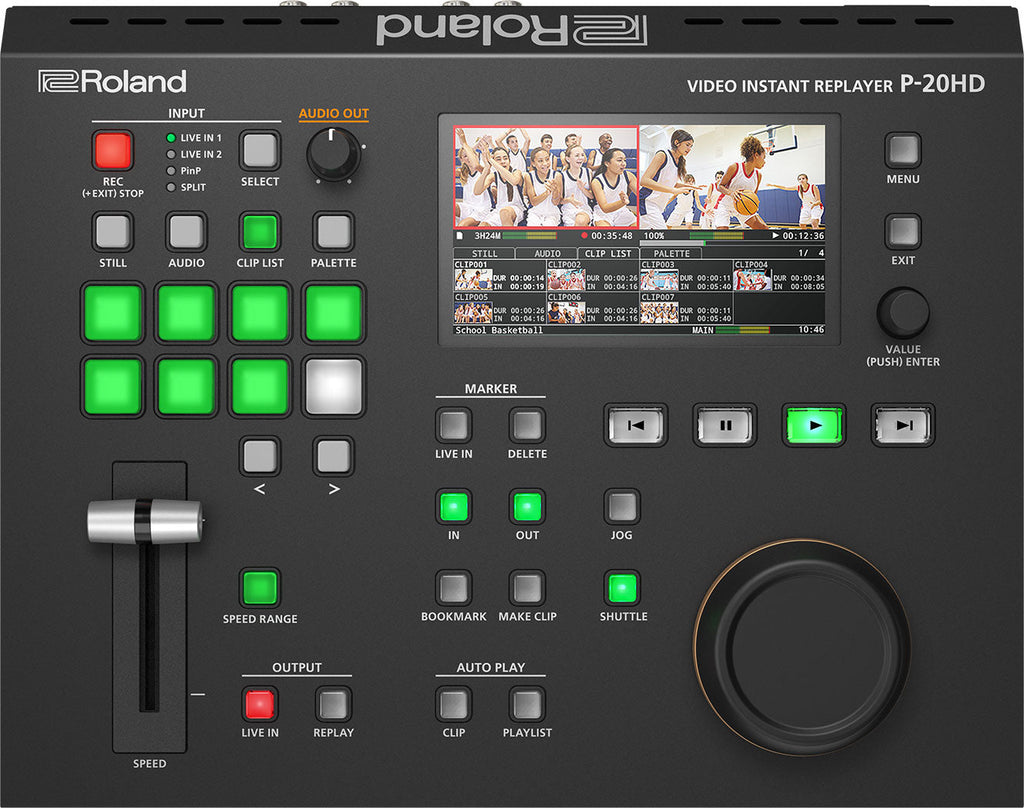

Display: 4.3” TFT Color LCD, 480x272
Power & Environmental
-
Power Supply: AC adaptor
-
Current Draw: 3 A
-
Power Consumption: 36 W
-
Operating Temperature: 32–104°F (0–40°C)
Physical Dimensions & Weight
-
Dimensions (WxDxH): 10-7/16 x 8-9/16 x 3-7/16” (265 x 216 x 87 mm)
-
Weight (excluding AC adaptor): 4 lbs 11 oz (2.1 kg)
