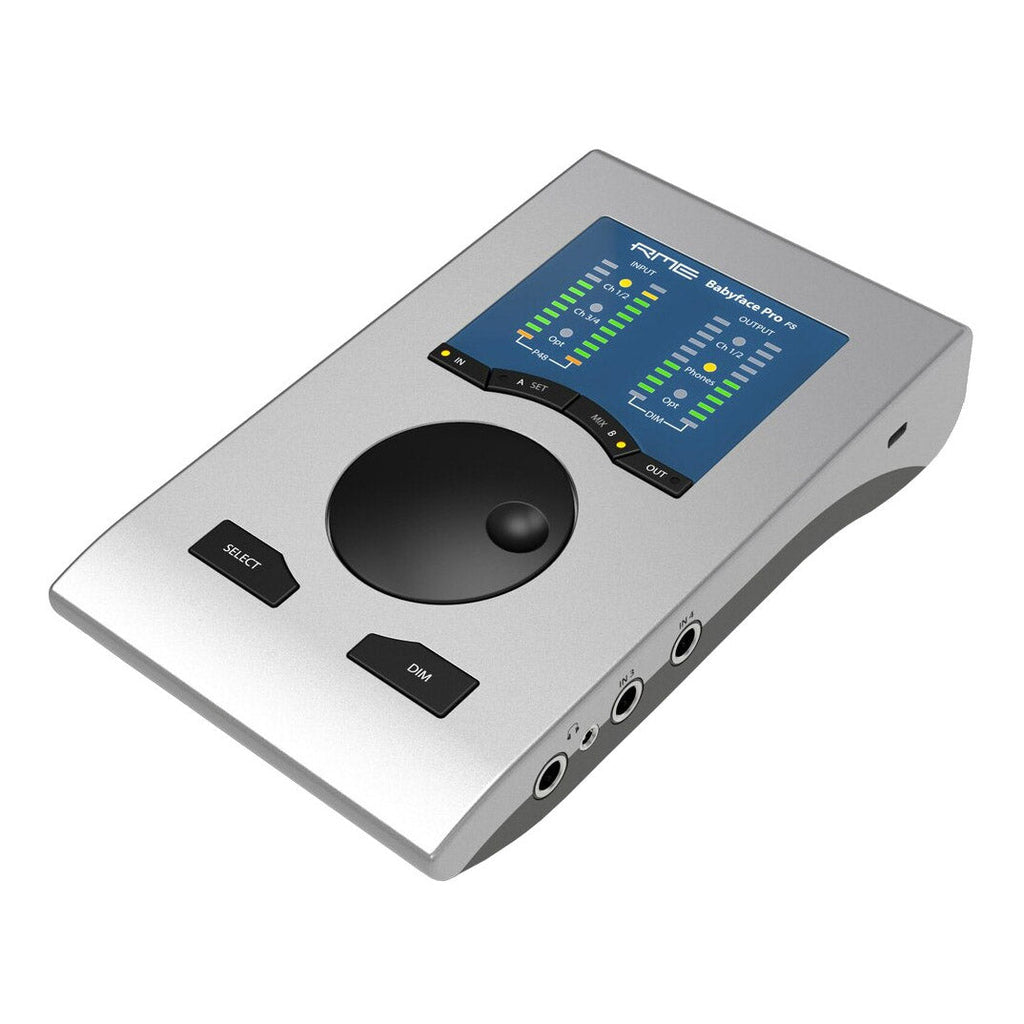

The RME Babyface Pro is a premium 12-channel USB audio interface, engineered for uncompromising audio quality, portability, and professional flexibility. Carved from a solid block of aluminum, this rugged yet lightweight interface combines state-of-the-art analog and digital circuitry with RME’s renowned SteadyClock FS technology, ensuring ultra-stable clocking and pristine signal integrity.
Key Features:
-
12 Input/Output Channels – Record a complete band, drum kit, or multi-instrument setup.
-
+19 / +4 dBu Output Switch – Prevent overload and distortion while improving signal-to-noise ratio.
-
SteadyClock FS Circuit – Industry-leading jitter reduction for cleaner audio.
-
90 mW Headphone Output – Powerful, high-fidelity headphone monitoring.
-
Ultra-Low Latency – Professional-grade performance for live and studio recording.
-
3.5 mm TRS Phones & Dual XLR Inputs – Versatile connectivity with phantom power for condenser mics.
-
RME TotalMix FX – DSP-powered mixing, EQ, routing, and latency-free effects.
-
K-Slot Theft Protection – Added security for mobile and studio use.
Professional Performance, Anywhere
Upgraded from previous models, the Babyface Pro delivers:
-
Enhanced signal-to-noise ratio with improved input gain.
-
20 mW boost in headphone output power.
-
10 dB lower THD for headphone outputs and reduced impedance.
-
All improvements made without increased power consumption.
Smart Design & Connectivity
With XLR, instrument, MIDI, ADAT, and USB ports, plus a DC power option for class-compliant mode, the Babyface Pro integrates seamlessly into any professional setup. Six easy-access buttons and a precision encoder dial provide intuitive control, while the compact, durable chassis makes it perfect for mobile recording, live performance, and studio work.
The RME Babyface Pro sets the benchmark for portable professional audio interfaces—offering reference-quality sound, robust build, and unmatched reliability for musicians, producers, and engineers worldwide.
Analog Inputs (Mic/Line 1-2)
-
Connectors: XLR, electronically balanced
-
Input Impedance: 2 kΩ balanced / 5.2 kΩ with PAD, 1 kΩ unbalanced / 2.6 kΩ with PAD
-
Gain Range: –11 dB to +65 dB
-
Maximum Input Level (Gain 0dB): +8 dBu (PAD +19 dBu)
-
Maximum Input Level (Gain 65dB): –57 dBu (PAD –46 dBu)
-
SNR: 113.7 dB RMS unweighted / 117 dBA
-
Frequency Response: 18 Hz–20.8 kHz @44.1kHz, 7 Hz–45.8 kHz @96kHz, 5 Hz–88 kHz @192kHz
-
THD: <–112 dB / <0.00024%
-
THD+N: <–108 dB / <0.00035%
-
Channel Separation: >110 dB
Analog Inputs (Line/Instrument 3-4)
-
Connector: 6.3 mm TS jack, unbalanced
-
Input Impedance: 1 MΩ
-
Maximum Input Level: +13 dBu (+4 dBu Gain 0dB), –5 dBu (–10 dBV Gain 9dB)
-
SNR: 116 dB RMS unweighted / 120 dBA
-
Frequency Response: 5 Hz–20.8 kHz @44.1kHz, <3 Hz–45.8 kHz @96kHz, <2 Hz–92 kHz @192kHz
Analog Outputs (Line Out 1-2, XLR)
-
Dynamic Range: 115 dB RMS unweighted / 118 dBA
-
Frequency Response: 0–20.8 kHz @44.1kHz, 0–45 kHz @96kHz, 0–89 kHz @192kHz
-
THD: –106 dB / 0.0005%
-
THD+N: –102 dB / 0.0008%
-
Channel Separation: >110 dB
-
Output Impedance: 300 Ω balanced / 150 Ω unbalanced
-
Output Level @0dBFS: Balanced +19 / +4 dBu, Unbalanced +13 / +7 dBu
Headphone Outputs (Phones 3/4)
-
Connectors: 6.3 mm TRS, 3.5 mm TRS, unbalanced
-
Output Impedance: 10 Ω (6.3 mm), 0.1 Ω (3.5 mm)
-
Max Power @0.1% THD: 60 mW (6.3 mm), 90 mW (3.5 mm)
-
SNR: 114–114.8 dB RMS unweighted / 117–118 dBA
-
Noise Level: –101.8 dBu / –107 dBu
Digital I/O
-
ADAT Optical: 8 channels 24-bit up to 48kHz, S/MUX 2 (4 channels @96kHz), S/MUX4 (2 channels @192kHz)
-
SPDIF Optical: Consumer and professional formats, 28–200 kHz sample rate
-
Jitter Suppression: >50 dB (2.4 kHz)
-
Clocks: Internal, ADAT In, SPDIF In, PLL ensures zero dropout
MIDI
-
1 x MIDI I/O via breakout cable (2 × 5-pin DIN)
-
Galvanically isolated, hi-speed mode <1 ms jitter/response
-
128-byte FIFOs for input/output
Power Supply
-
USB bus power or external supply
-
Idle Power: 2.8 W, Typical: 3.7 W, Max: 5.4 W
-
Current: 700 mA (5V USB), 313 mA (12V external)
Physical Specifications
-
Dimensions (WxHxD): 108 × 35 × 181 mm (4.25 × 1.4 × 7.1 in)
-
Weight: 680 g (1.5 lbs)
-
Operating Temperature: +5° to +50°C (41–122°F)
-
Relative Humidity: <75%, non-condensing
