The Novation Circuit Tracks is a powerful all-in-one groovebox designed for modern producers who want hands-on, portable music creation. With 2 polyphonic synth tracks, 2 MIDI tracks, and 4 drum tracks, Circuit Tracks combines intuitive sequencing, creative FX, and versatile connectivity in a compact, rugged package.
Key Features:
-
All-in-One Studio – 2 digital polyphonic synth tracks, 4 drum tracks, and 2 MIDI tracks for external gear.
-
Creative FX on Everything – Apply distortion, delay, reverb, and more to every track for dynamic sound design.
-
Portable & Powered – Built-in rechargeable battery provides up to 4 hours of untethered creation.
-
Seamless Workflow – Hands-on sequencer, velocity-sensitive pads, and tactile controls for fast, intuitive music making.
-
Sample Integration – Load your own samples via microSD card and shape them across drum and synth tracks.
-
Comprehensive Connectivity – Full-size MIDI in/out/thru, analogue sync out, audio inputs, and multiple output options.
-
Novation Components Integration – Backup projects, create MIDI templates, explore artist-made sounds, and manage patches.
-
USB-C & USB-A Included – Connect to modern Mac or Windows PCs with included USB power supply.
Designed for Maximum Creativity
Circuit Tracks empowers producers to build complex sequences, experiment with microtiming, and manipulate patterns using probability and mutate functions. Hundreds of artist-made presets and customizable synth macros let you craft your unique sound quickly. Whether you’re performing live, producing in the studio, or creating on the go, Circuit Tracks is rugged, compact, and ready to inspire wherever you are.

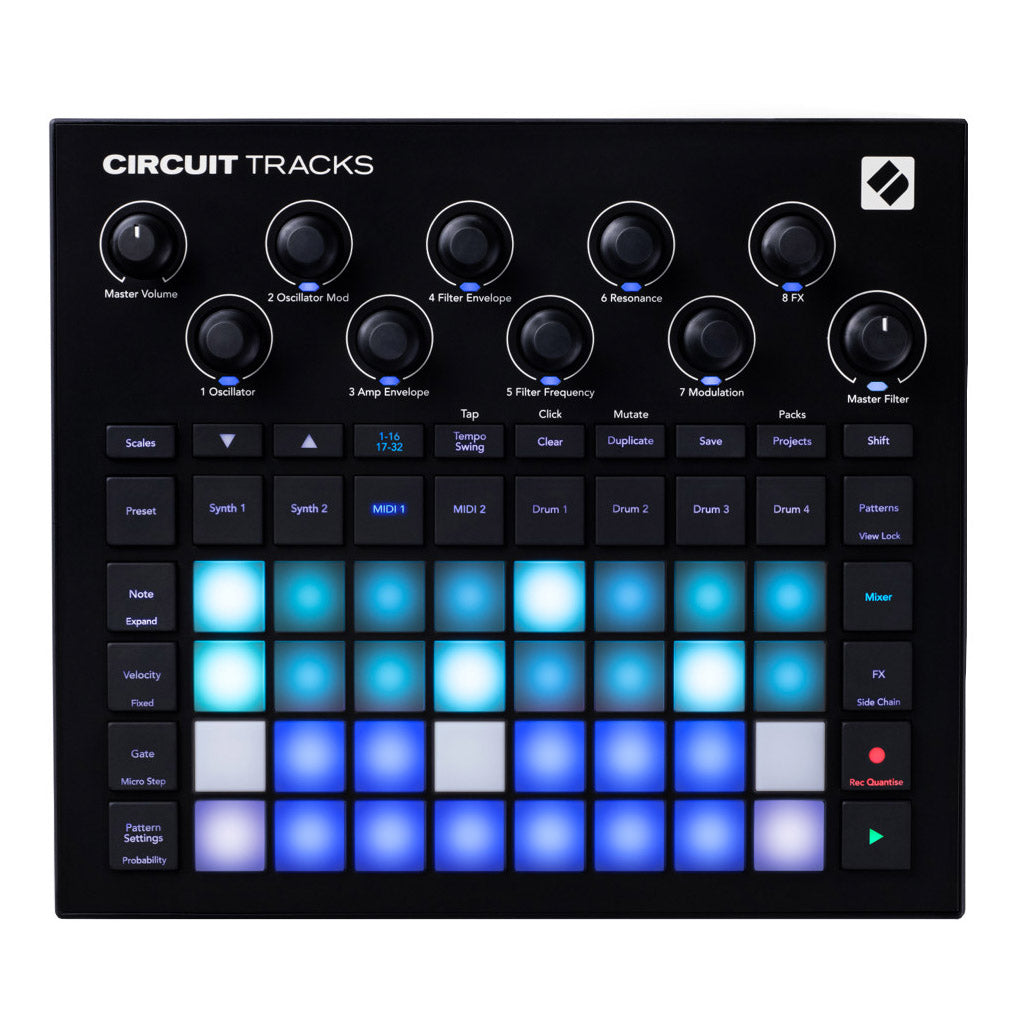

Hardware Features
-
32 RGB backlit velocity-sensitive pads
-
28 RGB backlit tactile click buttons
-
Power button with charge status LED
-

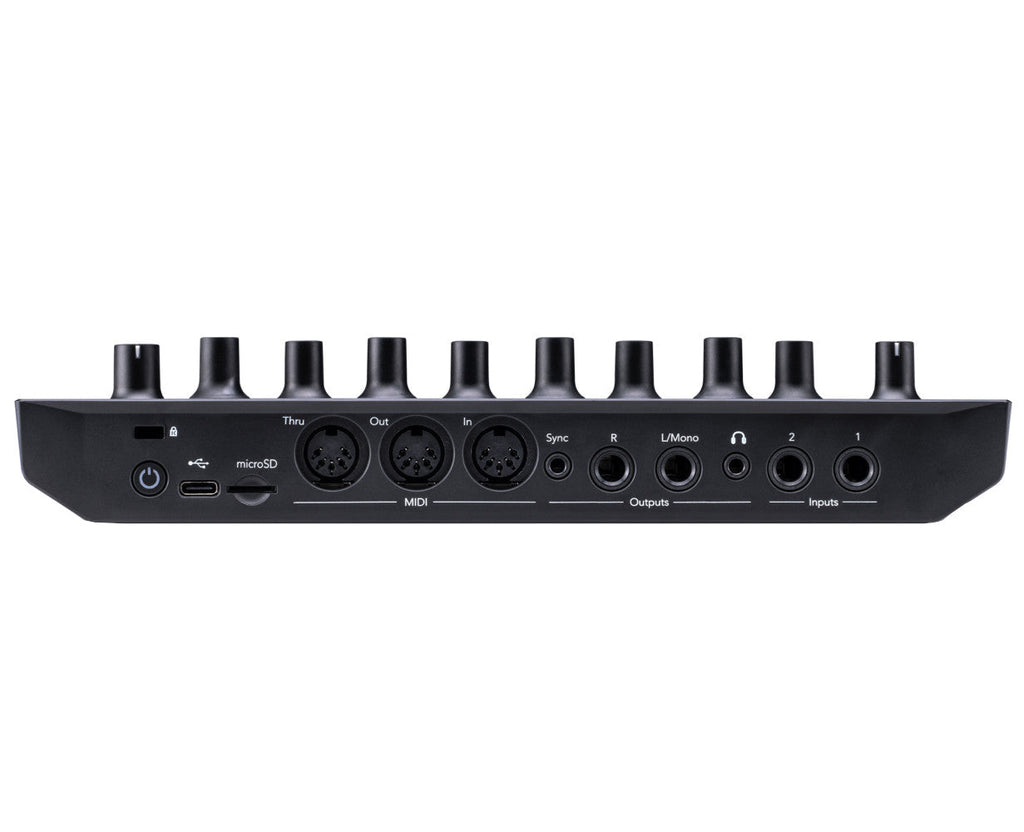

USB-C socket (power delivery, charging, MIDI)
-
Kensington MiniSaver security slot
-
microSD card slot for expandable storage
-
3× MIDI DIN (In, Out, Thru)
-
3.5 mm sync output
-
2× mono audio inputs
-
L/R stereo output pair
-
Headphones output
-
8 endless encoders with RGB indicators
-
Master volume potentiometer
-
Master filter potentiometer with center detent
Power Requirements
-
USB bus powered
-
Built-in rechargeable lithium-ion battery (up to 4 hours runtime)
-
Charging via USB-C port

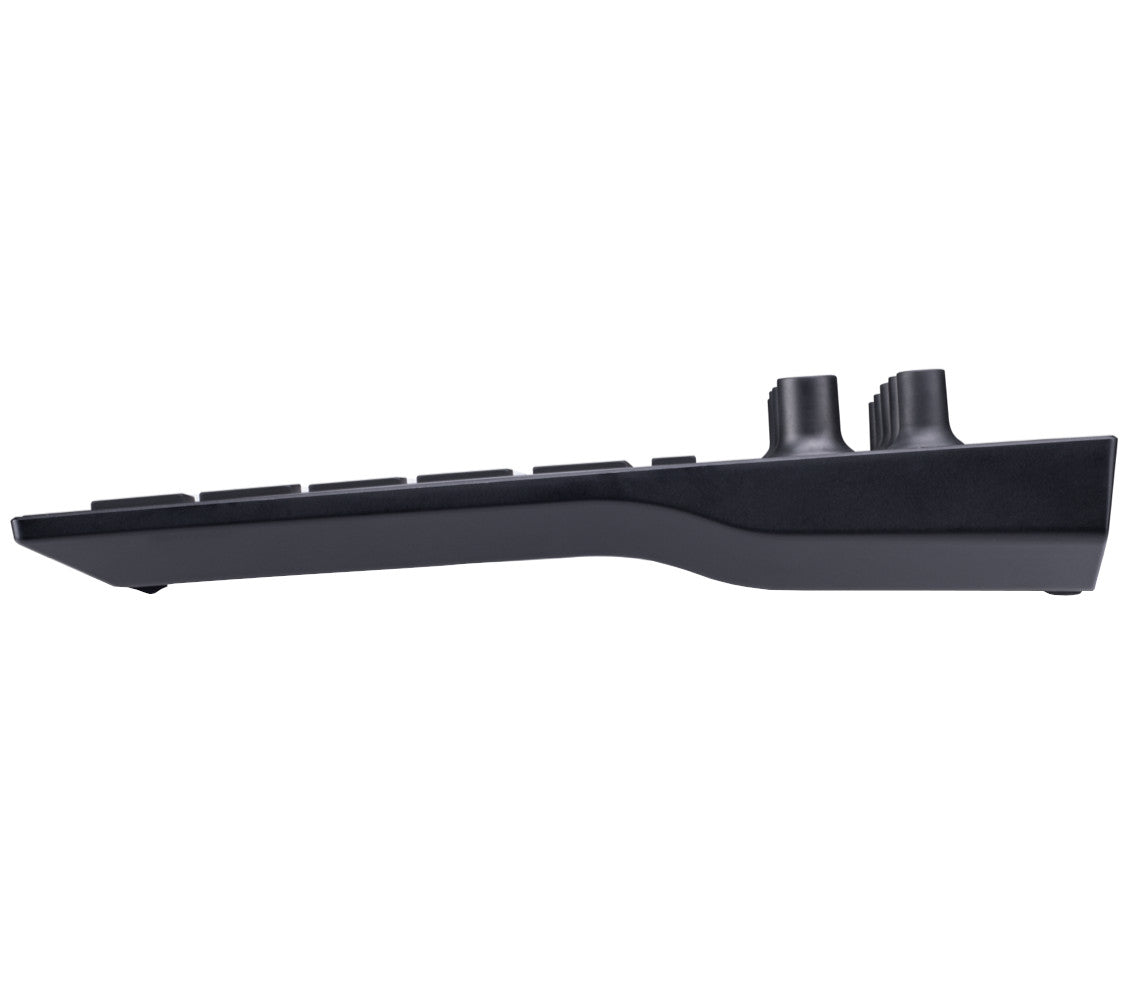

Dimensions
-
240 × 210 × 30 mm (L×D×H)
-
40 mm height including knob caps
