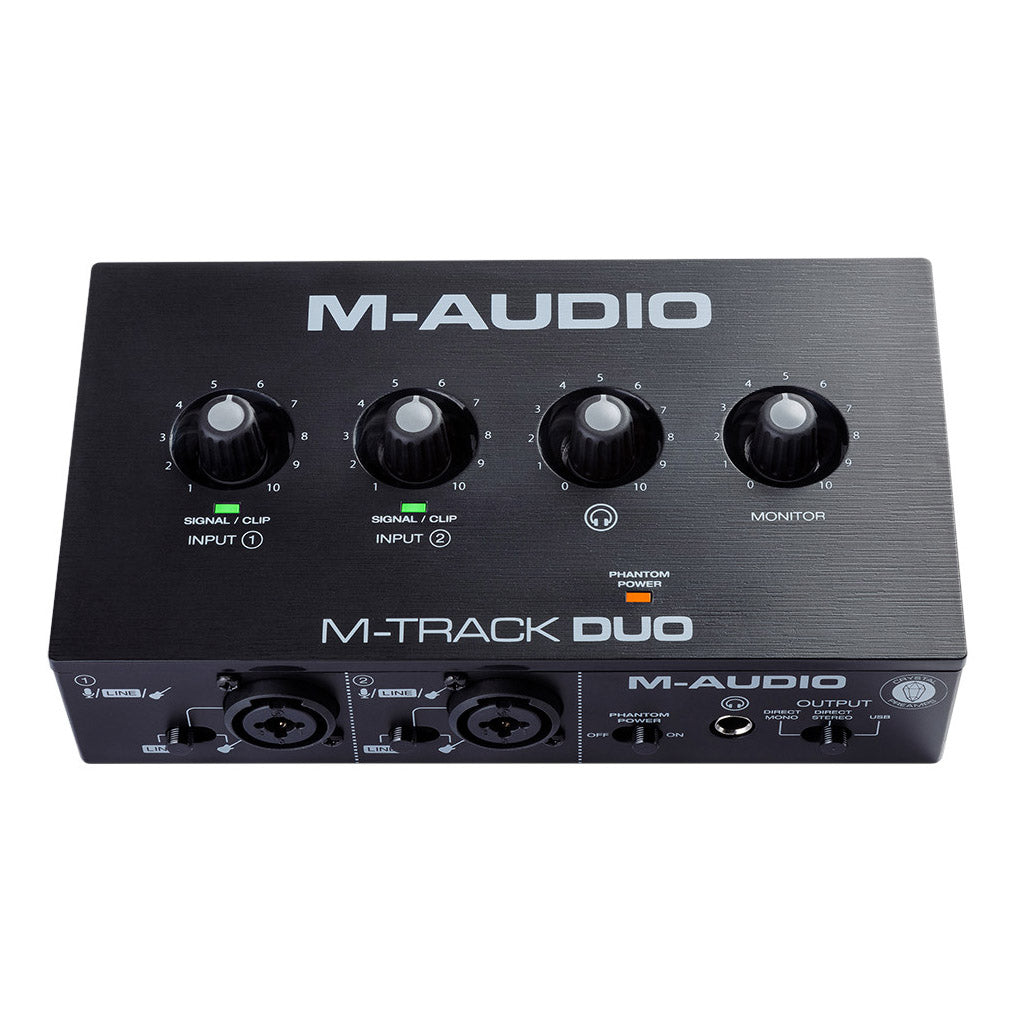

Record anywhere, anytime with the M-Track Duo, a compact and portable 2-channel USB interface designed for musicians, podcasters, and producers on the go. Delivering pristine 48 kHz audio resolution, this interface captures every nuance of your performance with clarity and precision.
Key Features
-

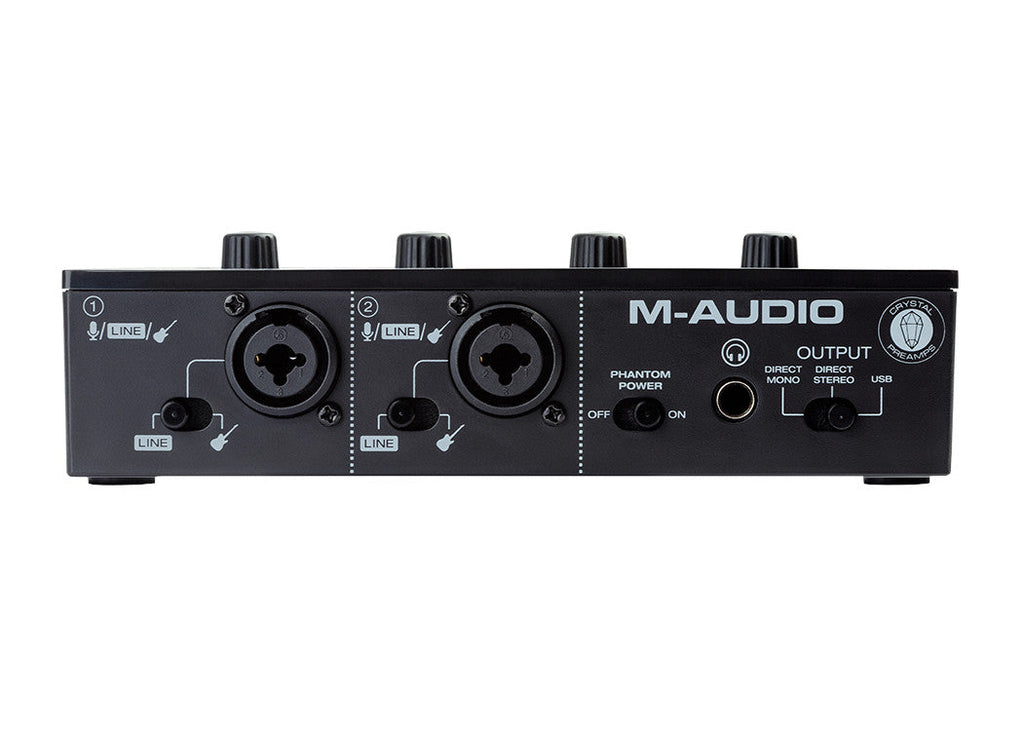

2 Combo Crystal Preamps – Ultra-transparent, low-noise preamps ensure professional audio quality for microphones, instruments, and line-level devices.
-
Dedicated Input Switches – Easily toggle between mic, instrument, or line-level signals.
-
+48V Phantom Power – Compatible with studio condenser microphones.
-
Stereo 1/4” Outputs & Headphone Output – Independent monitoring with USB/Direct Mono/Direct Stereo switch for zero-latency monitoring.
-
USB-Powered & Class-Compliant – Perfect for Mac, PC, or iOS devices, no external power required.
-
Included Software & Plugins – Pro Tools | First M-Audio Edition, MPC Beats, 20 Avid effects plugins, Xpand!2 synth, and Eleven Lite amp plugin.
Portable Studio Quality
The M-Track Duo is ultra-portable, allowing you to throw it in your bag and start recording on the go. Whether you’re laying down vocals, tracking instruments, or producing beats, its Crystal preamps and high-quality A/D converters ensure every detail is captured with clarity and depth.
Zero-Latency Monitoring
Monitor your recordings in real-time with the USB/Direct Mono/Direct Stereo switch. Balance the input signal with your DAW playback for flawless overdubs, ensuring professional results every time.
Complete Recording Solution
The M-Track Duo comes bundled with software and plugins to unleash your creativity right out of the box. From professional-grade DAWs to virtual instruments and guitar amp simulations, you have everything needed to produce, mix, and master your music or podcasts without delay.
Inputs
Mic Input (balanced XLR)
-
Frequency response: 20 Hz – 20 kHz (+0.1 dB)
-
Signal-to-noise ratio: 109 dB (A-weighted)
-
THD+N: 0.003% (min gain, 0 dBu out, A-weighted)
-
Preamp EIN: -128 dBu (max gain, 40 Ω source, A-weighted)
-
Gain range:
-
Direct mono: 0 – 54 dB
-
Direct stereo: 6 – 60 dB
Line Input (balanced 1/4" TRS)
-
Frequency response: 20 Hz – 20 kHz (+0.1 dB)
-
Sensitivity: -43 dBu
-
THD: 0.002% (min gain, 0 dBu out, A-weighted)
-
Gain range:
-
Direct mono: -10 – 44 dB
-
Direct stereo: -4 – 50 dB
Instrument Input (unbalanced 1/4" TS)
-
Frequency response: 20 Hz – 20 kHz (+0.1 dB)
-
THD+N: 0.005% (min gain, 0 dBu out, A-weighted)
-
Input impedance: 1 MΩ
-
Gain range:
-
Direct mono: -10 – 44 dB
-
Direct stereo: -4 – 50 dB
Outputs

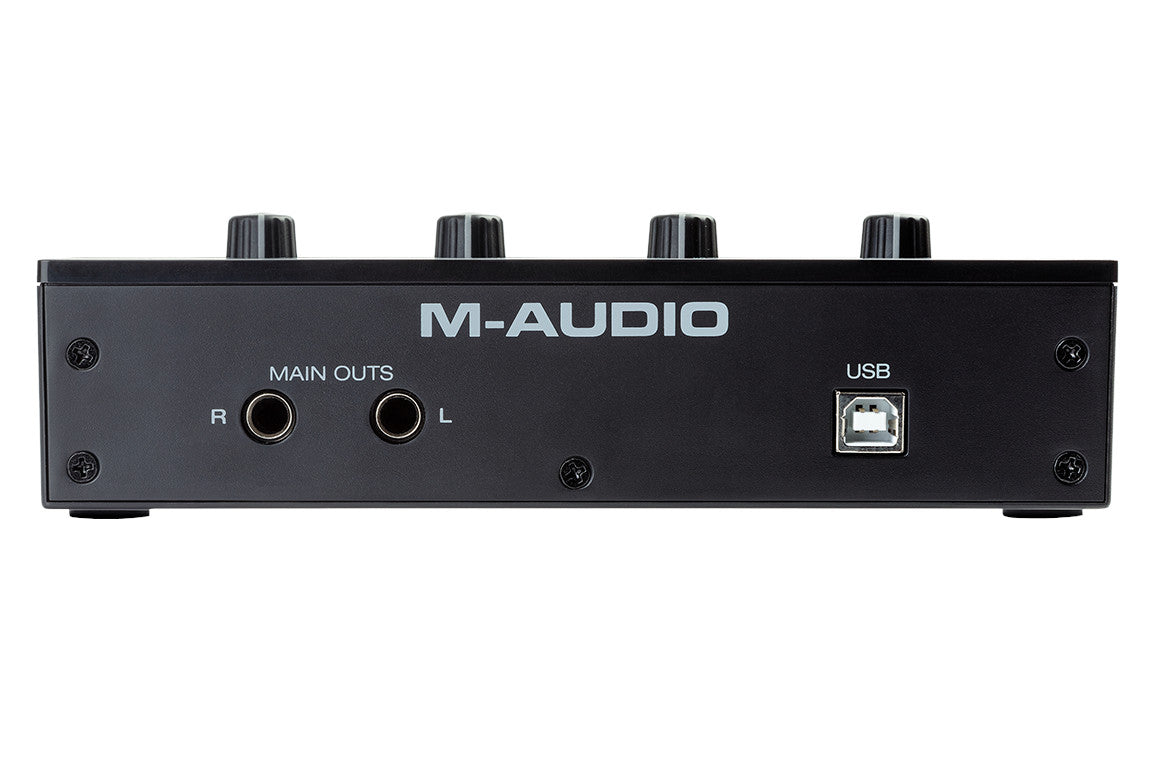

Main Outputs (L/R, impedance-balanced 1/4" TRS)
-
Frequency response: 20 Hz – 20 kHz (+0.1 dB)
-
Signal-to-noise ratio: 109 dB (A-weighted)
-
THD: 0.002% (0 dBu out, A-weighted)
-
Max output level: +4 dBu
Headphone Output (1/4" TRS)
-
Power: 60 mW per channel (32 Ω)
-
Frequency response: 20 Hz – 20 kHz (+0.5 dB)
-
THD+N: 0.02% (A-weighted)
-
Signal-to-noise ratio: 100 dB (A-weighted)
