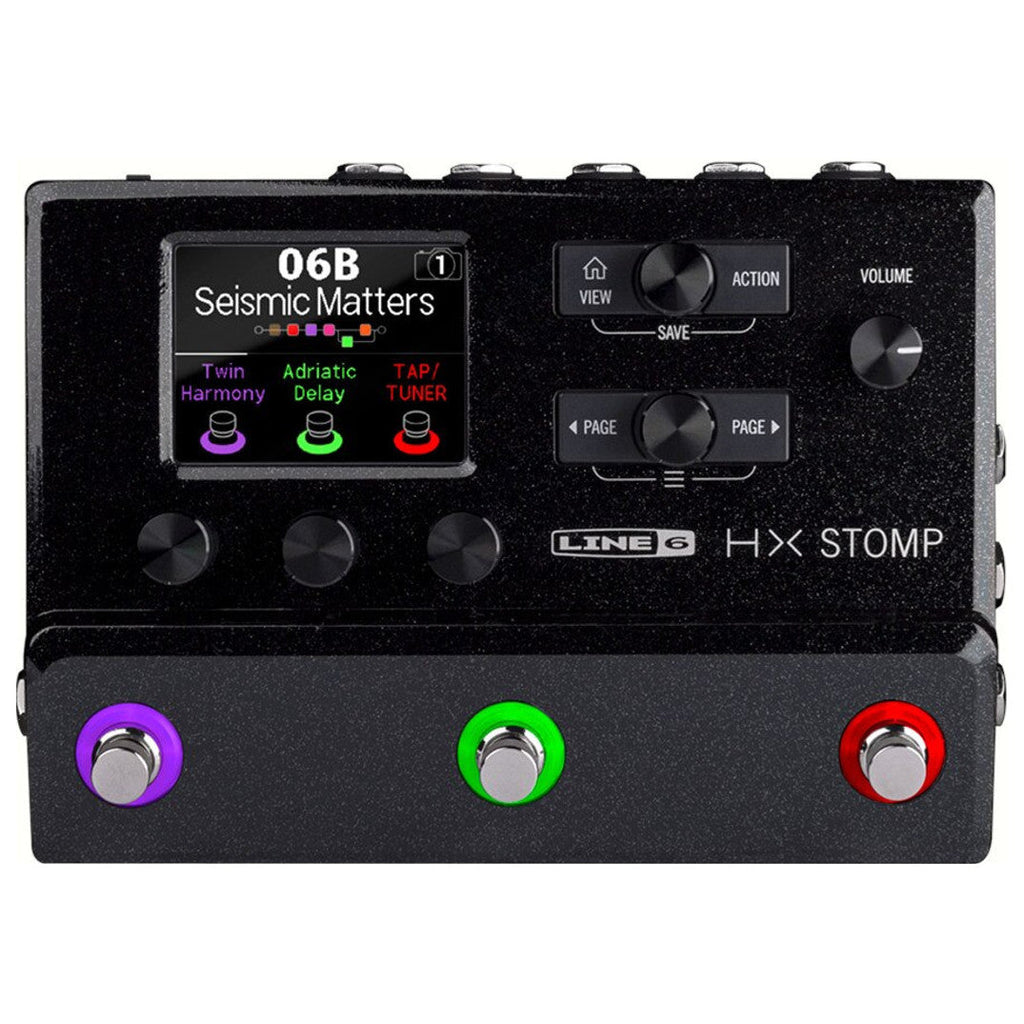

The Line 6 HX Stomp™ is a professional-grade, ultra-compact guitar processor delivering authentic Helix amp, cab, and effects tones in a pedal-sized unit. Powered by the same HX Modeling DSP technology as the full Helix series, it features over 300 amps, cabs, and effects—including legacy Line 6 M-Series and DL4 stompbox models plus a built-in looper. Perfect for pedalboards, direct-to-amp setups, or studio use, HX Stomp integrates effortlessly into any rig, serving as a powerful “super stompbox,” travel rig, tone expander, or audio interface.
At-a-Glance Highlights
-
HX Modeling tech with 300+ amps, cabs, and effects, including legacy M-Series & DL4 models
-
Compact pedalboard-friendly design with capacitive-touch footswitches
-
Snapshots and analog bypass for seamless tone switching
-
Flexible I/O with routing, level shifting, and Command Center control
-
Built-in looper and Powercab integration
-
Compatible with HX Edit software for detailed tone customization
Audio & Processing
-
Amp Models: 93
-
Effect Models: 266
-
Presets: 126 total (42 banks × 3 presets)
-
Simultaneous Processing Blocks: Up to 8 (DSP permitting)
-
Signal Flow Options: Up to 2 stereo chains — serial or parallel
-
Snapshots: 3 per preset
-
Impulse Responses (IRs): 128 IRs, 1024 or 2048 points
EQ & Display
-
Global EQ Bands: 3 fully parametric + variable low & high cut
-
Main Display: 2.4” (6 cm), color
Controls & Footswitches
-
Footswitches: 3 capacitive touch with RGB rings + 2 external
-
Footswitch Modes: Stomp, Preset, Snapshot
-
Footswitch Types: Latching and Momentary
-
Looper Types: 1-switch, shuffling
-
Looper Memory:
-
Full speed: 60 sec mono / 30 sec stereo
-
Half speed: 120 sec mono / 60 sec stereo
Inputs & Outputs
-
1/4" Inputs: Stereo L/R, Return L/R
-
1/4" Outputs: Main L/R, Stereo Send
-
XLR Inputs/Outputs: None
-
Effect Loops: 2 send / 2 return, stereo-linkable
-
Digital In/Out: None
-
Headphones: 1/4" stereo jack
-
MIDI: In, Out/Thru + USB
-
USB Audio Interface: 8 in / 6 out with re-amping
Control & Expansion
-
Master Remote Control: Command Center
-
Variable Impedance Circuitry: Stereo L/R inputs
-
1/4" Expression Pedal Inputs: EXP 1/2 (TRS; shared with Footswitch 4/5)
-
External Amp Control Outputs: None
-
G10T Wireless Transmitter: None
-
Relay Wireless Receiver: None
Build & Physical
-
Chassis: Cast aluminum
-
Treadle: Not included
-
Scribble Strip LCDs: None
-
Power Supply: DC-3
-
Dimensions (HxWxD): 2.7" × 7.1" × 4.96" (68 mm × 178 mm × 126 mm)
-
Weight: 1.7 lbs (0.79 kg)
