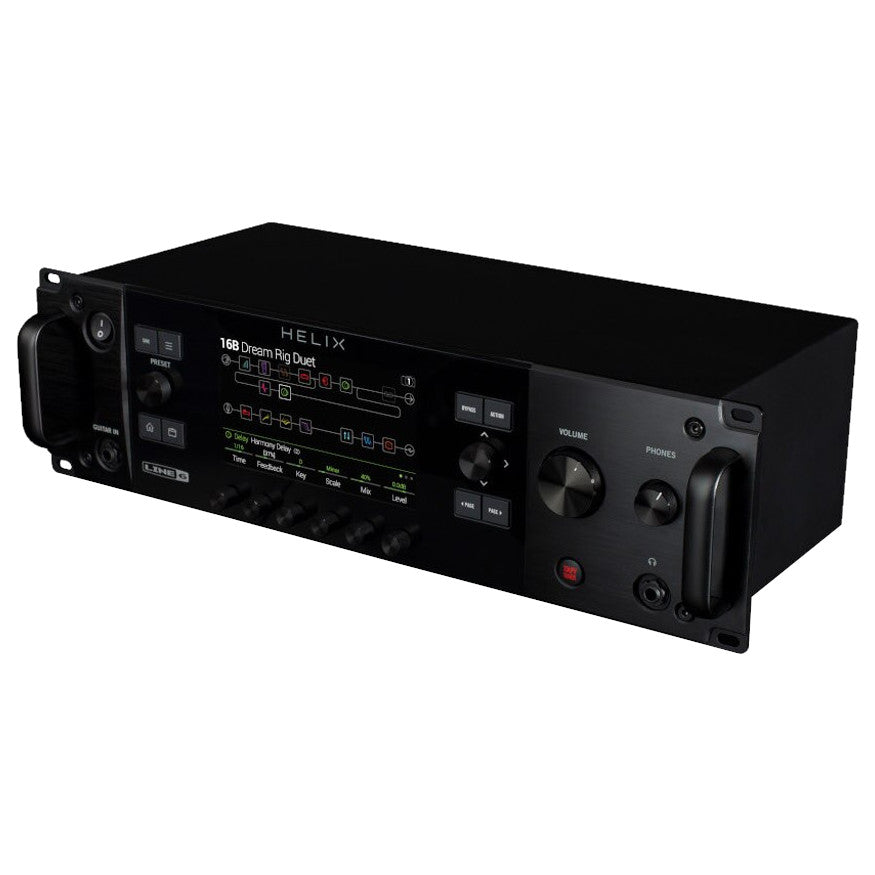

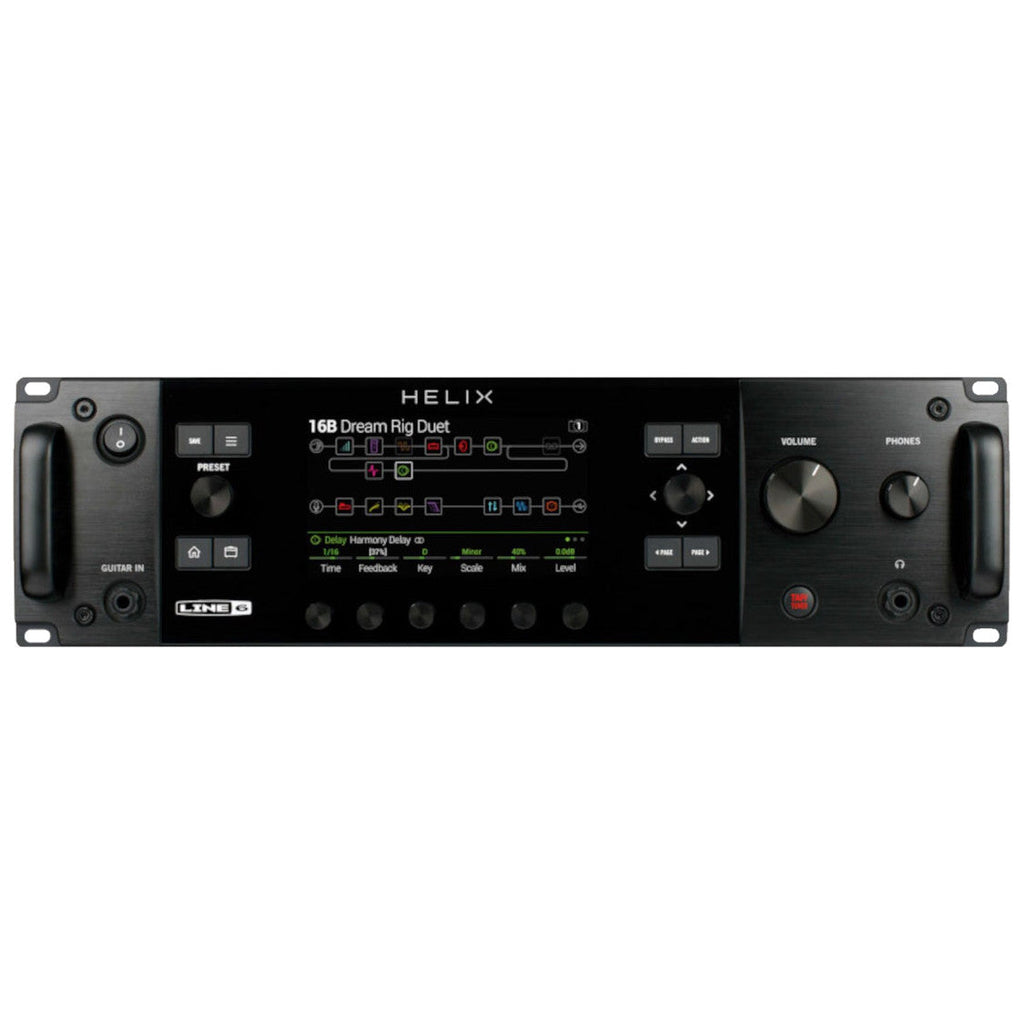

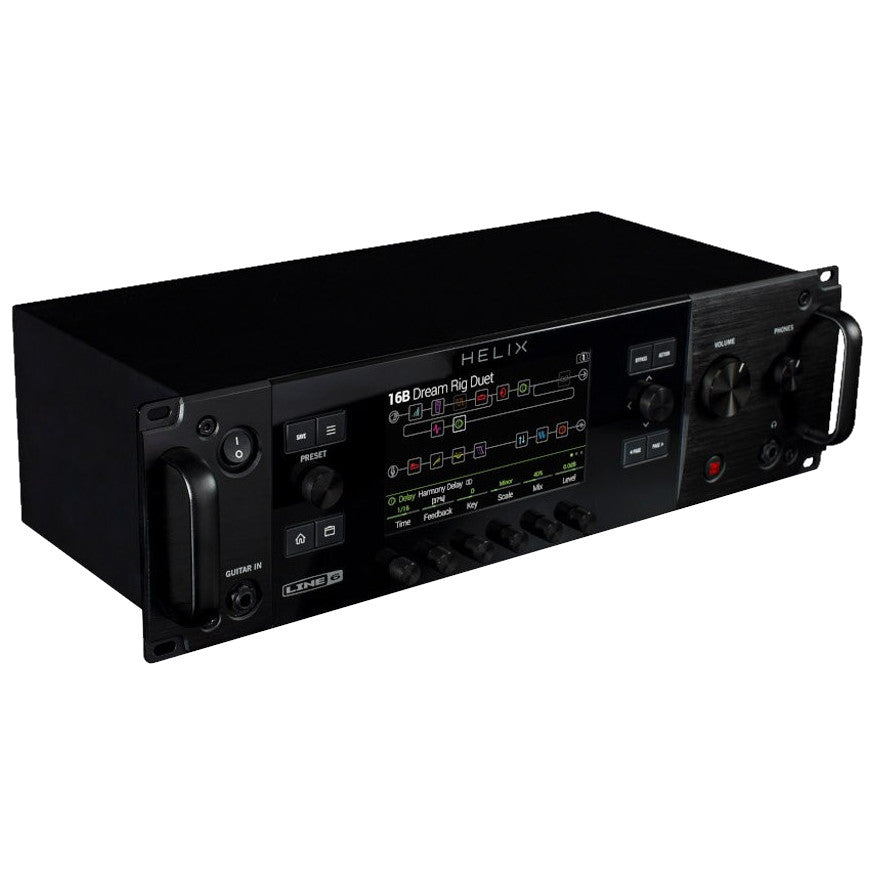

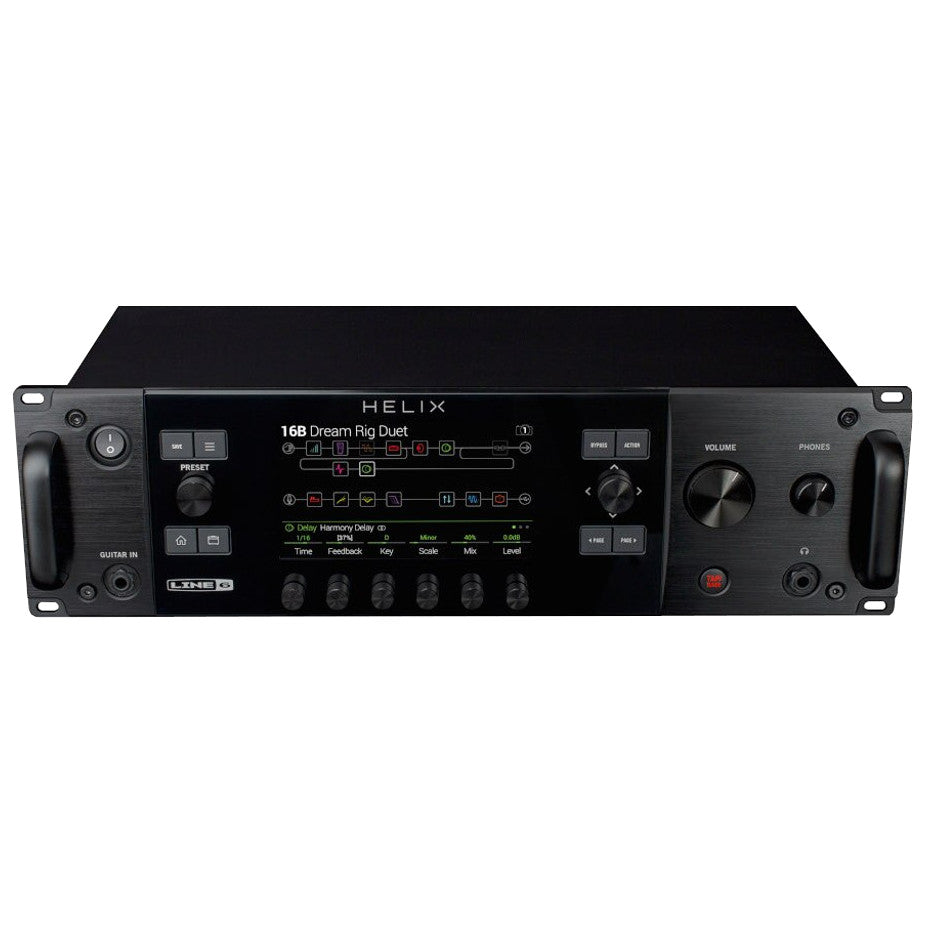

The Line 6 Helix™ Rack is a tour-grade, rack-mounted guitar processor featuring a powerful dual DSP HX Modeling engine with 4 stereo signal paths, 45 amps, 30 cabs, 16 mics, and 72 effects. It supports 3rd party cab IRs and offers an expansive 6.2” high-res LCD for easy navigation. With extensive I/O including 10 inputs, 12 outputs, 4 FX loops, 8-in/8-out USB audio interface, AES/EBU, SPDIF, and Wordclock sync, it seamlessly integrates into any rig. Deep MIDI control, expression pedal support, and external amp switching make Helix Rack a master controller for studio and stage.
At-a-Glance Highlights
-
Dual DSP HX Modeling with 4 discrete stereo signal paths
-
45 amps, 30 cabs, 16 mics, and 72 effects, plus 3rd party cab IR support
-
Large 6.2” 800x480 LCD display for intuitive control
-
Extensive I/O: 10 inputs, 12 outputs, 4 FX loops, AES/EBU, SPDIF, USB audio
-
Up to 3 expression pedals, CV out, external amp switching, and MIDI control
-
Tour-grade 3RU rack enclosure with optional foot controller
Audio & Processing
-
Amp Models: 93
-
Effect Models: 266
-
Presets: 1,024 total (8 setlists × 32 banks × 4 presets)
-
Simultaneous Processing Blocks: Up to 32 (DSP permitting)
-
Signal Flow Options: Up to 4 stereo chains — serial or parallel
-
Snapshots: 8 per preset
-
Impulse Responses (IRs): 128 IRs, 1024 or 2048 points
EQ & Display
-
Global EQ Bands: 3 fully parametric + variable low & high cut
-
Main Display: 6.2” (16.5 cm), color
Controls & Footswitches
-
Footswitches: 12 capacitive touch with RGB rings
-
Footswitch Modes: Stomp, Preset, Snapshot, Looper, Pedal Edit
-
Footswitch Types: Latching and Momentary
-
Looper Types: 6-switch, 1-switch, and shuffling
-
Looper Memory:
-
Full speed: 60 sec mono / 30 sec stereo
-
Half speed: 120 sec mono / 60 sec stereo

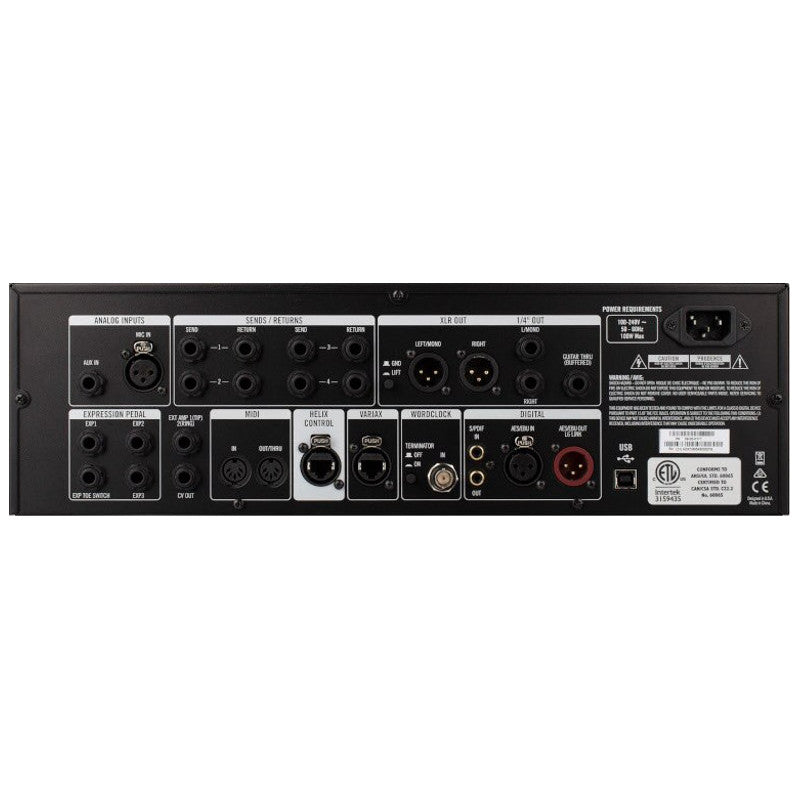

Inputs & Outputs
-
1/4" Inputs: Guitar, Aux, Return 1-4
-
1/4" Outputs: Main L/R, Send 1-4
-
XLR Inputs: Mic preamp with phantom power
-
XLR Outputs: Main L/R
-
Effect Loops: 4 send / 4 return, stereo-linkable
-
Digital In: Variax VDI, S/PDIF, AES/EBU with BNC word clock
-
Digital Out: S/PDIF, AES/EBU, L6 LINK™
-
Headphones: 1/4" stereo jack
-
MIDI: In, Out/Thru + USB
-
USB Audio Interface: 8 in / 8 out with re-amping
Control & Expansion
-
Master Remote Control: Command Center
-
Variable Impedance Circuitry: Guitar input
-
1/4" Expression Pedal Inputs: EXP 1, EXP 2, EXP 3, EXP Toe Switch
-
External Amp Control Outputs: 2 (Tip, Ring)
Build & Physical
-
Chassis: Rack section: cast aluminum and bent steel; Control section: bent steel with ABS side panels
-
Treadle: Not included
-
Scribble Strip LCDs: 12 x 2” (5 cm)
-
Power Supply: IEC
-
Dimensions (HxWxD): 5.25" × 19" × 9.5" (133 mm × 483 mm × 241 mm)
-
Weight: 9.3 lbs (4.2 kg)
