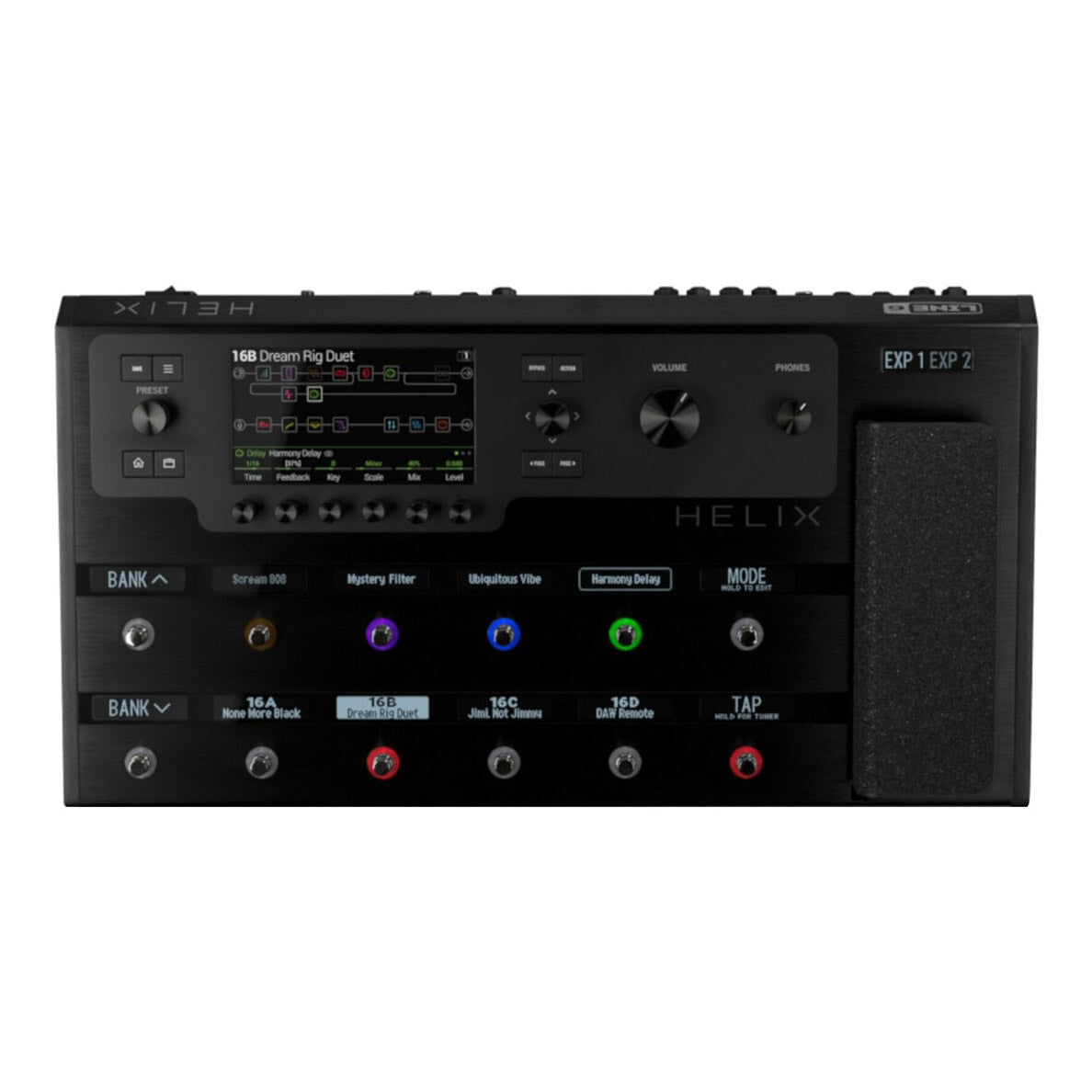

The Line 6 Helix™ is a tour-grade multi-effect guitar processor featuring a powerful dual DSP HX modeling engine with 4 stereo signal paths, 45 amps, 30 cabs, 16 mics, and 72 effects. It supports third-party cab IR imports and offers hands-free pedal editing with 12 capacitive footswitches and customizable scribble strips. With extensive I/O—including 10 inputs, 12 outputs, four FX loops, and an 8-in/8-out USB audio interface—plus AES/EBU, SPDIF, and VDI connectivity, Helix integrates seamlessly into any rig. Experience industry-leading 123dB dynamic range and deep MIDI control in a rugged, road-ready chassis.
At-a-Glance Highlights
-
Dual DSP HX modeling engine: 45 amps, 30 cabs, 16 mics, 72 effects
-
Import third-party 1024/2048 cab impulse responses (IRs)
-
12 capacitive footswitches with customizable scribble strips
-
Hands-free Pedal Edit mode for effect control via footswitches & expression pedal
-
Extensive I/O: 10 inputs, 12 outputs, 4 FX loops, AES/EBU, SPDIF, VDI, USB audio
-
123dB dynamic range guitar input for ultra-low noise and depth
-
Tour-grade rugged construction with advanced MIDI and expression pedal support
Audio & Processing
-
Amp Models: 87
-
Effect Models: 231
-
Presets: 1,024 total (8 setlists × 32 banks × 4 presets)
-
Simultaneous Processing Blocks: Up to 32 (depending on DSP capacity)
-
Signal Flow Options: Up to 4 stereo chains — serial or parallel
-
Snapshots: 8 per preset
-
Impulse Responses (IRs): 128 IRs, either 1024 or 2048 points
EQ & Display
-
Global EQ Bands: 3 fully parametric + variable low & high cut
-
Main Display: 6.2” (16.5 cm), color
Controls & Footswitches
-
Footswitches: 12 capacitive touch with RGB rings + expression toe switch
-
Footswitch Modes: Stomp, Preset, Snapshot, Looper, Pedal Edit
-
Footswitch Types: Latching and Momentary
-
Looper Types: 6-switch, 1-switch, and shuffling
-
Looper Memory:
-
Full speed: 60 sec mono / 30 sec stereo
-
Half speed: 120 sec mono / 60 sec stereo
Inputs & Outputs
-
1/4” Inputs: Guitar, Aux, Return 1-4
-
1/4” Outputs: Main L/R, Send 1-4
-
XLR Inputs: Mic preamp with phantom power
-
XLR Outputs: Main L/R
-
Effect Loops: 4 send / 4 return, stereo-linkable
-
Digital In: Variax VDI, S/PDIF
-
Digital Out: S/PDIF, AES/EBU, L6 LINK™
-
Headphones: 1/4" stereo jack
-
MIDI: In, Out/Thru + USB
-
USB Audio Interface: 8 in / 8 out with re-amping support
Control & Expansion
-
Master Remote Control: Command Center
-
Variable Impedance Circuitry: Guitar input
-
Expression Pedal Inputs: EXP 2, EXP 3
-
External Amp Control Outputs: 2 (Tip and Ring)
Build & Physical
-
Chassis: Extruded aluminum with cast aluminum side panels
-
Treadle: Cast aluminum
-
Scribble Strip LCDs: 13 x 2” (5 cm)
-
Power Supply: IEC
-
Dimensions (WxHxD):
-
Width: 22.05” (560 mm)
-
Height: 3.61” (92 mm)
-
Depth: 11.87” (301 mm)
-
Weight: 14.6 lb (6.6 kg)
