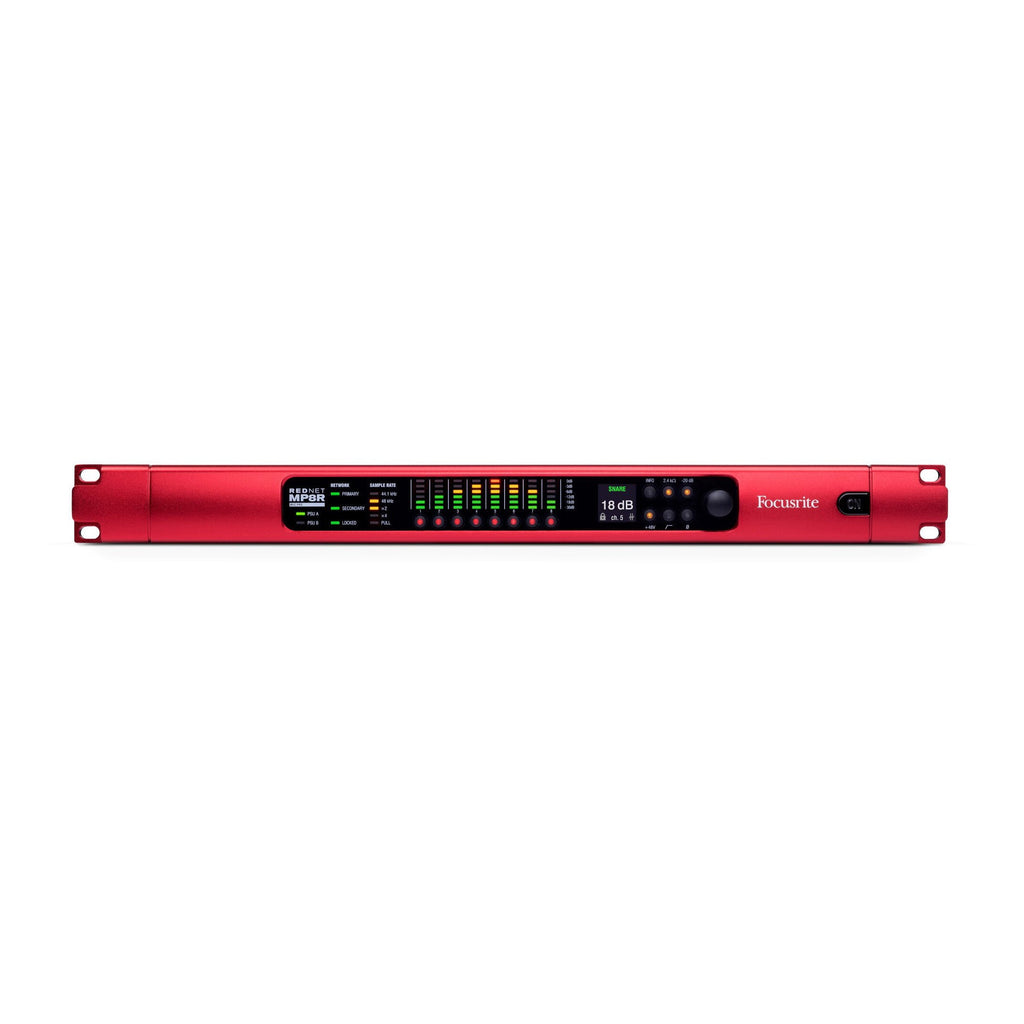

The RedNet MP8R is an 8-channel remote-controlled mic preamp and A/D converter for Dante audio-over-IP networks, delivering pristine 24-bit/192kHz audio with ultra-low latency. Designed for live sound, broadcast, and recording, it features dual power supplies, network redundancy, and remote control via Yamaha CL/QL consoles and RedNet Control software. With superior noise rejection, high input levels, and flexible controls including phantom power, pads, and high-pass filters, it offers reliable, professional-grade performance in a rugged 1U rack-mount chassis.
At-a-Glance Highlights
-
8-channel remote-controlled mic preamp with dual redundant power supplies
-
Supports 24-bit/192kHz A/D conversion with low latency and high dynamic range
-
Superior common-mode noise rejection and max input level of 28dBu for versatile use
-
Remote control of Gain, Phantom Power, HPF, and polarity via Yamaha CL/QL consoles
-
Dual etherCON network ports with redundancy and locking connectors for reliability
-
6-segment LED meters and OLED display for clear gain and system monitoring
Microphone Inputs
-
Number of Inputs: 8x female XLR
-
Gain Range: 10 dB to 65 dB (1 dB steps)
-
Max Input Level: 29 dBu ±0.5 (min gain with pad for 0 dBFS, Rs = 150Ω)
-
Min Input Level: -46 dBu ±0.5 (max gain without pad for 0 dBFS, Rs = 150Ω)
-
Frequency Response: 20 Hz – 40 kHz ±0.1 dB
-
THD+N: -98 dB (0.0012%) @ -1 dBFS, Rs = 150Ω
-
EIN (Equivalent Input Noise): -129 dBu A-weighted (typical), Rs = 150Ω
-
Signal-to-Noise Ratio: 118 dB A-weighted (typical), Rs = 150Ω
-
Phantom Power: 48 V, independently switchable per channel
-
Pad: -20 dB, independently switchable per channel
-
High-Pass Filter: -6 dB @ 65 ± 3 Hz, 12 dB/octave, independently switchable per channel
Supported Sample Rates
-
44.1 kHz
-
48 kHz
-
88.2 kHz
-
96 kHz
-
176.4 kHz
-
192 kHz
PSU
-
2x IEC inputs with retaining clips
Network
-
2x etherCON NE8FBH-S, also compatible with standard RJ45 connectors
