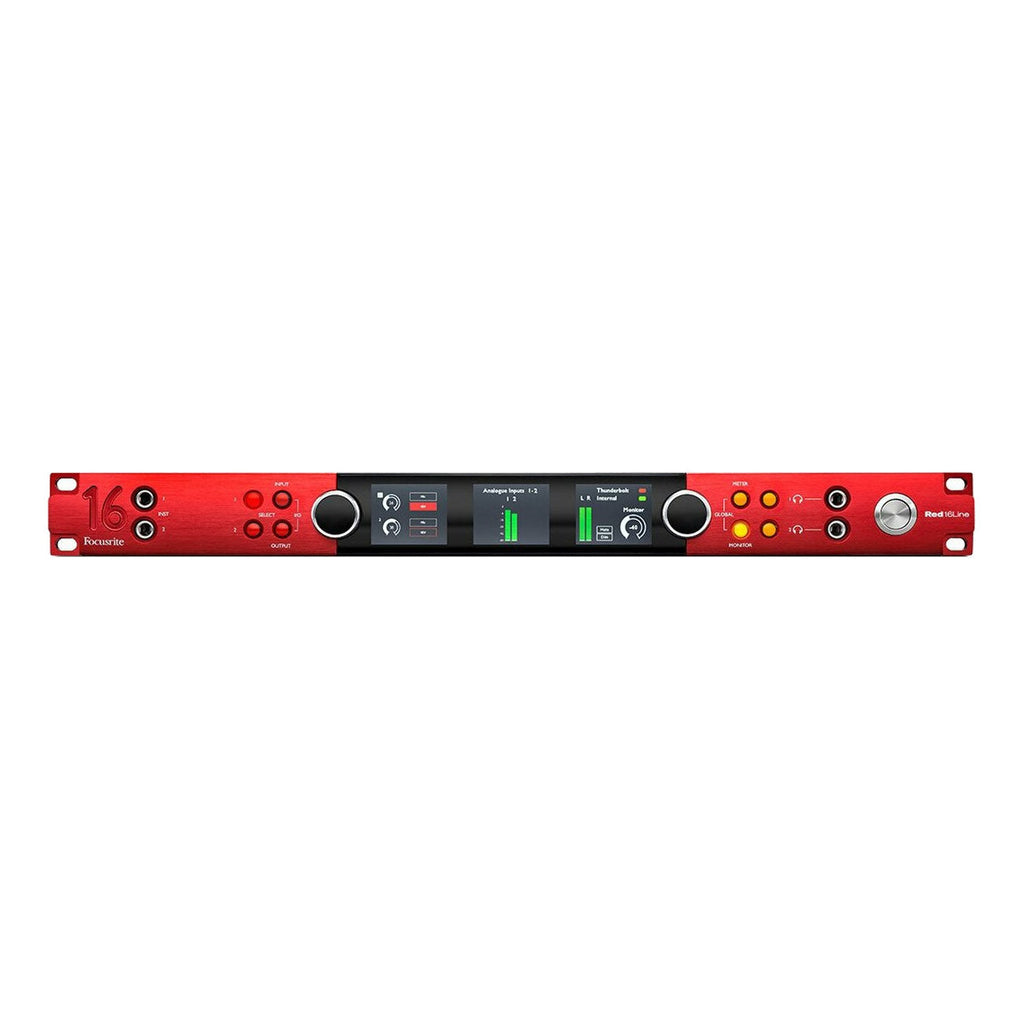

Focusrite Red 16Line Thunderbolt 3 Audio Interface

The Focusrite Red 16Line is a powerful, high-performance 16-channel audio interface designed for professional studios and production environments. Combining ultra-low latency, advanced mic preamps, and flexible digital connectivity, it seamlessly integrates into modern workflows — supporting Pro Tools | HD, Thunderbolt computers, Dante networks, and more — without the need for additional option cards.

Equipped with 2 digitally controlled Red Evolution mic preamps, 16 line inputs and outputs via D-sub, and 2 dedicated main monitor outputs, the Red 16Line delivers pristine audio quality with up to 121dB dynamic range and sample rates up to 192kHz. Its dual-port Dante card enables expansion via Ethernet, making it ideal for large-scale, networked audio setups.

At-a-Glance Highlights

• 16 line inputs/outputs via D-sub plus 2 main monitor outs

• Dual Red Evolution mic preamps with up to 63dB gain

• Simultaneous Dante, Thunderbolt, and DigiLink connectivity

• Ultra-low latency for seamless plugin tracking and virtual instruments

• Dual-port Dante card supports high sample rate networked audio

• RedNet Control software for flexible monitoring and routing


Simultaneous I/O Channel Count

• Up to 64 x 64


Digital I/O

• ADAT: Up to 16 inputs and 16 outputs
• S/PDIF: 2 inputs and 2 outputs


Power Supply Unit (PSU)

• 1x IEC input


Microphone Inputs

• Gain Range: 0–63 dB in 1 dB steps
• Max Input Level: > +19 dBu (minimum gain)
• Frequency Response: 20 Hz – 35 kHz ± 0.2 dB
• THD+N: -102 dB (0.0008%) @ -1 dBFS
• Signal-to-Noise Ratio: 119 dB (A-weighted, typical)
• High-Pass Filter (HPF): -3 dB @ 80 ± 3 Hz, 12 dB/octave, independently switchable per channel
• Air Mode: +2 dB boost at 10 kHz, -2 dB at 20 Hz (ref 1 kHz); input impedance drops to 2.2 kΩ

Line Inputs 1–16

• 0 dBFS Reference Level: +18 or +24 dBu (switchable)
• Frequency Response: 20 Hz – 35 kHz ± 0.2 dB
• THD+N: -102 dB (0.0008%) @ -1 dBFS
• Signal-to-Noise Ratio: 119 dB (A-weighted, typical)


Instrument Inputs

• Type: 2x 1/4" TS stereo jacks
• Gain Range: 0–63 dB in 1 dB steps
• Max Input Level: +15 dBu (minimum gain)
• Frequency Response: 20 Hz – 35 kHz ± 0.2 dB (min gain)
• THD+N: -100 dB (0.001%) @ -1 dBFS (at 11 dB gain)
• Signal-to-Noise Ratio: 117 dB (A-weighted, typical, min gain)
• High-Pass Filter (HPF): -3 dB @ 80 ± 3 Hz, 12 dB/octave, independently switchable per channel
• Air Mode: +2 dB boost at 10 kHz, -2 dB at 20 Hz (ref 1 kHz)


Line Outputs 1–16

• 0 dBFS Reference Level: +18 or +24 dBu (switchable)
• Frequency Response: 20 Hz – 35 kHz ± 0.2 dB
• Dynamic Range: 121 dB (A-weighted, typical), 20 Hz – 20 kHz
• Nominal Output Impedance: 136 Ω balanced (68 Ω each phase)

Monitor Outputs

• Outputs: 2x 1/4" TRS stereo jacks
• 0 dBFS Reference Level: +18 dBu
• Frequency Response: 20 Hz – 35 kHz ± 0.2 dB
• THD+N: -80 dB (0.01%) unweighted, 20 Hz – 20 kHz @ -1 dBFS input
• Dynamic Range: 120 dB (A-weighted)
• Nominal Output Impedance: 136 Ω balanced (68 Ω each phase)


Headphone Outputs

• Outputs: 2x 1/4" TRS stereo jacks
• 0 dBFS Reference Level: +16 dBm ± 0.5 dB
• Frequency Response: 20 Hz – 20 kHz ± 0.2 dB
• Dynamic Range: 114 dB (A-weighted, typical), 20 Hz – 20 kHz
• Output Impedance: 10 Ω
• Headphone Impedance Compatibility: 32 Ω – 600 Ω


Supported Sample Rates

• 44.1 kHz
• 48 kHz
• 88.2 kHz
• 96 kHz
• 176.4 kHz
• 192 kHz


Clock Sources

• Internal
• ADAT 1
• ADAT 2
• S/PDIF
• Word Clock
• Loop Sync
• Dante Network Master
