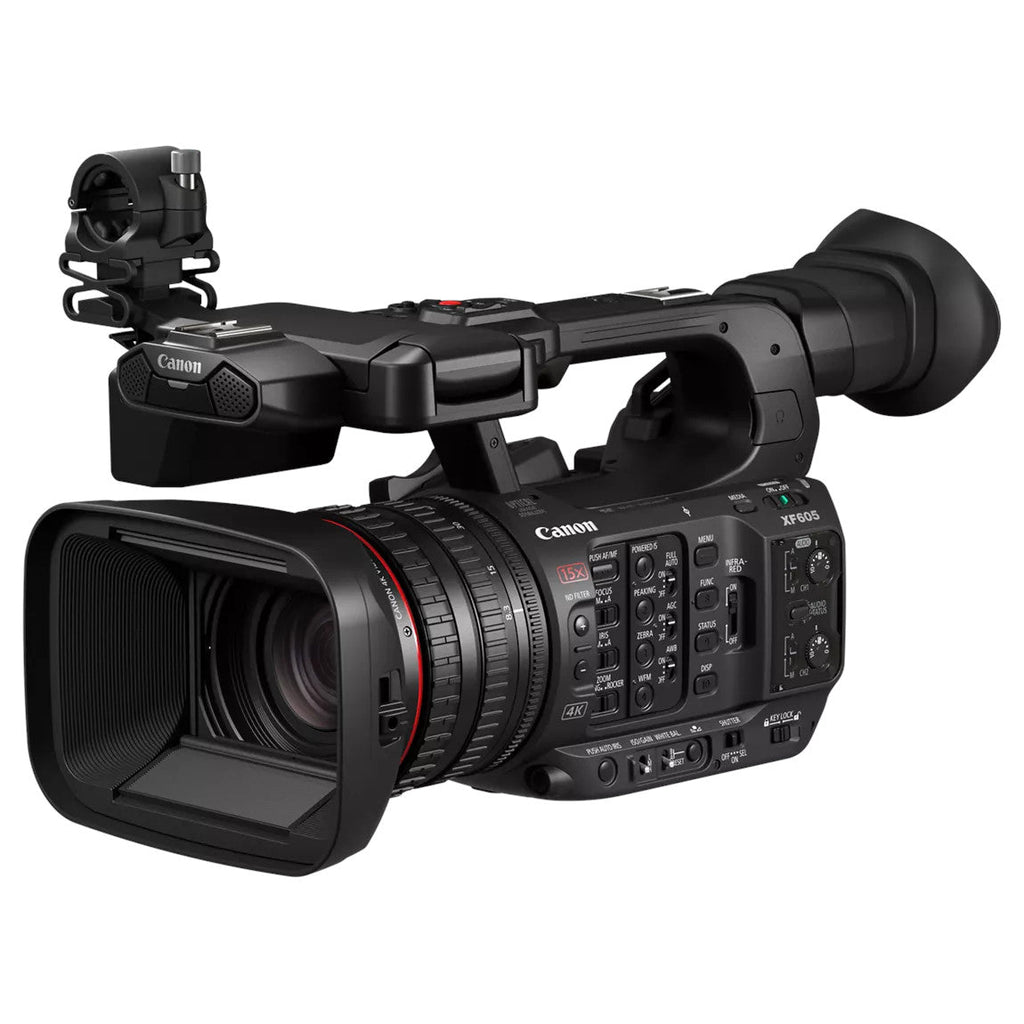

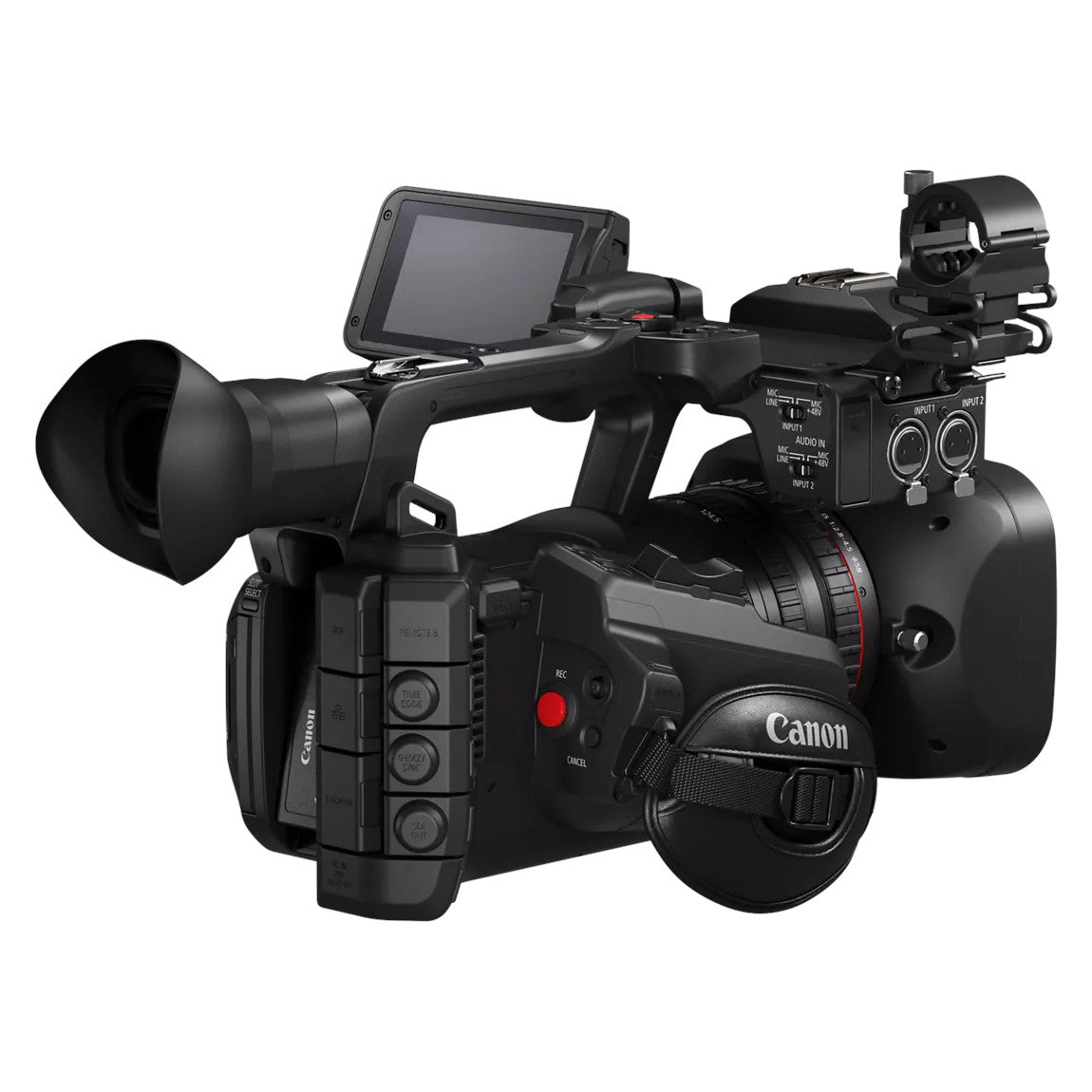

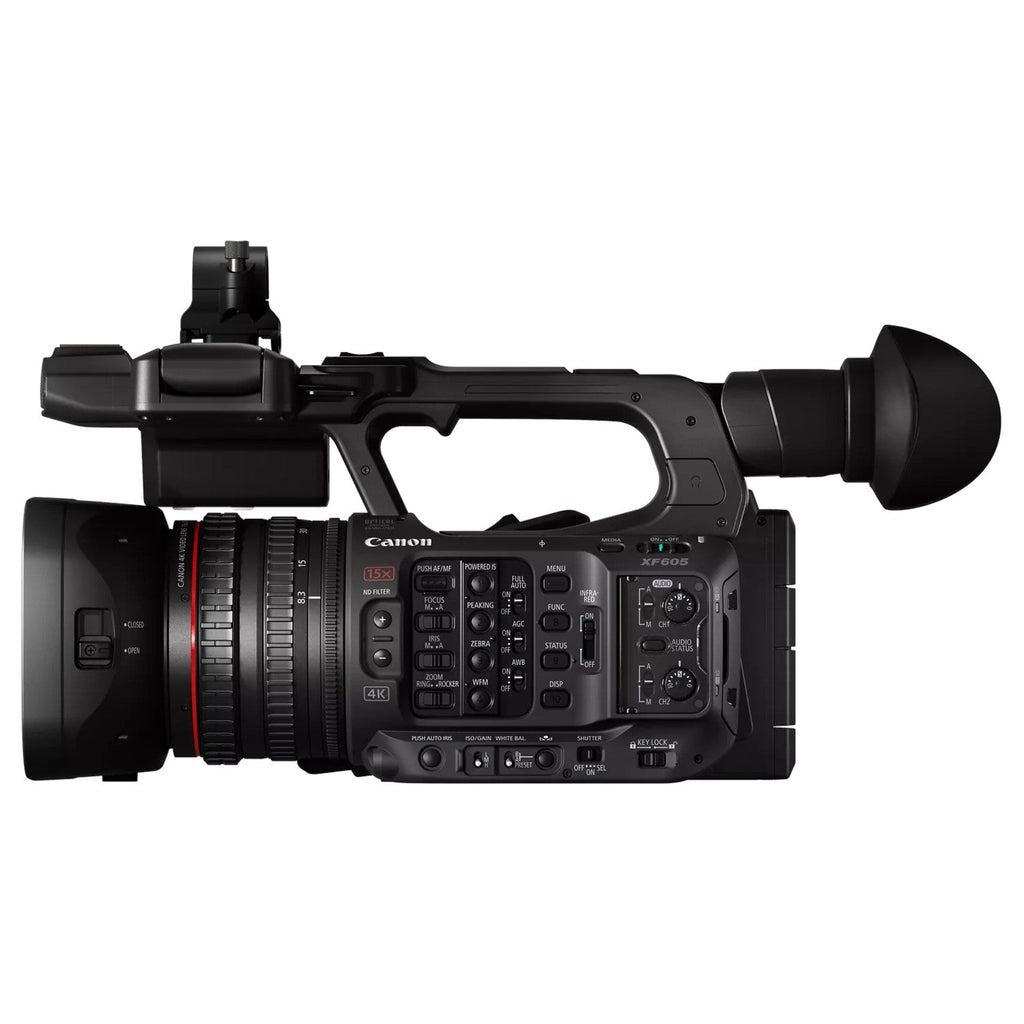

The Canon XF605 is a next-generation XF-series professional camcorder, designed to deliver outstanding 4K UHD HDR image quality, exceptional mobility, and versatile connectivity. Built for news gathering, documentary production, corporate events, and live streaming, the XF605 combines high-performance optics, advanced autofocus, and flexible recording capabilities in a compact, professional form factor.
Key Features
-
1.0-inch 4K UHD CMOS Sensor: Exceptional sensitivity and image quality for both bright and low-light conditions.
-
Dual Pixel CMOS AF with Eye Detection: High-speed, high-accuracy autofocus including iTR AF X head detection for stable tracking of faces and subjects.
-
4K UHD L-Series 15x Optical Zoom Lens: Manual 3-ring control, 9-blade iris, and 5-axis optical image stabilization for smooth, precise shots.
-
Independent 3-Density ND Filter: Provides flexible exposure control in challenging lighting.
-
High-Bit-Depth Recording: 4K UHD 59.94P 4:2:2 10-bit recording in XF-AVC (Intra-frame and Long GOP) and MP4 formats.
-
Dual SD Card Slots: Supports simultaneous or relay recording for uninterrupted workflows.
-
Slow & Fast Motion: Up to 120fps in Full HD; Interval and Frame recording for creative time-lapse and motion effects.
-
Professional Audio Flexibility: Multi-function shoe compatible with XLR microphone adapter for up to 4 XLR inputs.
-
Remote Control & Connectivity: Supports Canon XC Protocol for IP-based remote control via RC-IP100 or 3rd-party devices, Wi-Fi/Ethernet, Browser Remote, CTM mobile app, IP streaming, FTP transfer, and USB Video Class for webcam functionality.
-
On-Screen Display (OSD) Time Stamp Recording: Maintain precise reference for production needs.
Ideal For
The XF605 is perfect for professional video production, news gathering, corporate events, documentaries, and live streaming, offering fast autofocus, high-quality 4K HDR capture, and flexible remote control in a portable, field-ready camera.
Sensor & Image
-
Sensor: 1.0-inch 4K UHD CMOS
-
Total Pixels: 13.4 MP (4268 × 3148)
-
Effective Pixels: 8.29 MP (3840 × 2160)
-
Minimum Illumination: Approx. 1.5 lux (1/30 sec., 29.97P)
Lens & Zoom
-
Zoom: 15x optical
-
Focal Length: 8.3 – 124.5 mm (35mm equivalent 25.5 – 382.5 mm)
-
Aperture: f/2.8 – 4.5
-
Minimum Focusing Distance: 10 mm wide end, 60 cm full zoom
-
Image Stabilization: Optical (lens shift) + electronic (Dynamic/Powered/Standard/Off)
-
Filter Diameter: 58 mm
Focus & Exposure
-
Focusing: Dual Pixel CMOS AF with Eye Detection
-
Manual Exposure: Yes
-
Max Shutter Speed: 1/2000 sec
Recording & Codec
-
Formats: XF-AVC (MXF), MP4 (H.264 / HEVC)
-
Color Sampling: 4:2:2 10-bit (XF-AVC), 4:2:0 8/10-bit (MP4)
-
Frame Rates: 60p, 30p, 24p
-
Recording Media: SD card ×2 (SD/SDHC/SDXC)
-
Bitrates (4K UHD example):
-
XF-AVC: 260 – 410 Mbps
-
MP4 (HEVC): 100 – 225 Mbps
-
MP4 (H.264): 150 Mbps
Audio
-
XF-AVC: Linear PCM 24-bit / 48 kHz / 4ch
-
MP4: Linear PCM 16-bit / 48 kHz / 4ch or AAC 16-bit / 48 kHz / 2ch
-
Inputs: Built-in stereo mic, XLR 3-pin ×2, 3.5 mm stereo mini-jack
I/O Terminals
-
Video: HDMI (Type A), 12G-SDI
-
Audio: 3.5 mm jack, XLR ×2
-
Genlock & Timecode: Yes
-
USB: Type-C (USB 3.2 Gen1, UVC/PTP), Type-A
-
Ethernet: RJ-45 (1000BASE-T)
Monitor & Viewfinder
-
LCD: 3.5-inch, 2.76M dots, color, touch panel
-
EVF: 0.36-inch OLED, 1.77M dots, ~100% FOV
Power & Environment
-
Rated Power: 14.4V DC (battery), 24V DC (DC in)
-
Operating Temp: 0–40°C (performance), -5–45°C (operation)
-
Relative Humidity: 60–85% depending on mode
Dimensions & Weight
-
Body only: 168 × 173 × 333 mm (6.6 × 6.8 × 13.1 in)
-
With lens hood, eyecup, mic holder: 200 × 219 × 385 mm (7.9 × 8.6 × 15.2 in)
-
Weight: Approx. 4.4 lbs / 2,010 g (including grip belt, excluding hood/mic/eyecup)
This camera is a high-end, professional 1-inch 4K camcorder offering:
-
High-quality 4K recording (XF-AVC / MP4 HEVC)
-
Dual Pixel AF with Eye Detection
-
15x optical zoom with advanced image stabilization
-
Professional I/O (12G-SDI, XLR, Genlock, Timecode)
-
Long recording times depending on media size and codec
