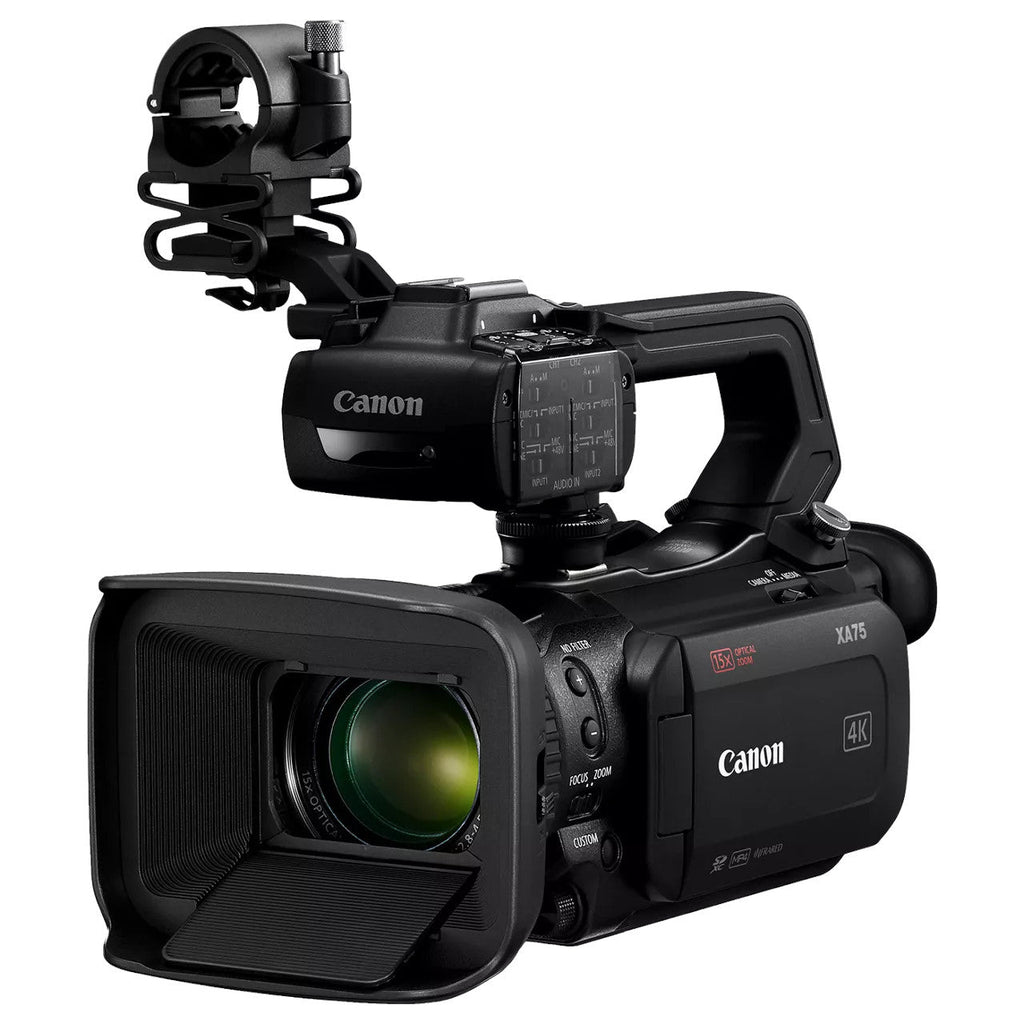

The Canon XA75 is a compact, versatile 4K UHD camcorder designed for professional video production, live streaming, and content creation. Equipped with a 1” CMOS sensor and DIGIC DV 6 processor, it delivers high-quality, oversampled HD and 4K UHD video with outstanding detail and low-light performance.
Featuring a 15x optical zoom lens with 5-axis optical image stabilization, the XA75 ensures sharp, stable footage even when handheld or on the move. The Dual Pixel CMOS Autofocus provides fast and accurate focus tracking for dynamic scenes.
Connectivity options include Mini-HDMI, 3G-SDI outputs, dual XLR and mic/line inputs, and USB Type-C with UVC support for HD livestreaming directly to a PC or Mac. With dual SD card slots, simultaneous and relay recording ensures uninterrupted capture for professional workflows.
The camera also features a 3.5" tiltable touchscreen LCD and OLED electronic viewfinder, giving operators flexibility and intuitive control during shoots.
Key Features
-
1” CMOS Sensor with DIGIC DV 6 Processor
-
UHD 4K30 Video Recording, XF-AVC and MP4 formats
-
15x Optical Zoom Lens with 5-Axis Optical Image Stabilization
-
Dual Pixel CMOS Autofocus for precise tracking
-
Dual SD Card Relay and Simultaneous Recording
-
Mini-HDMI and 3G-SDI Outputs
-

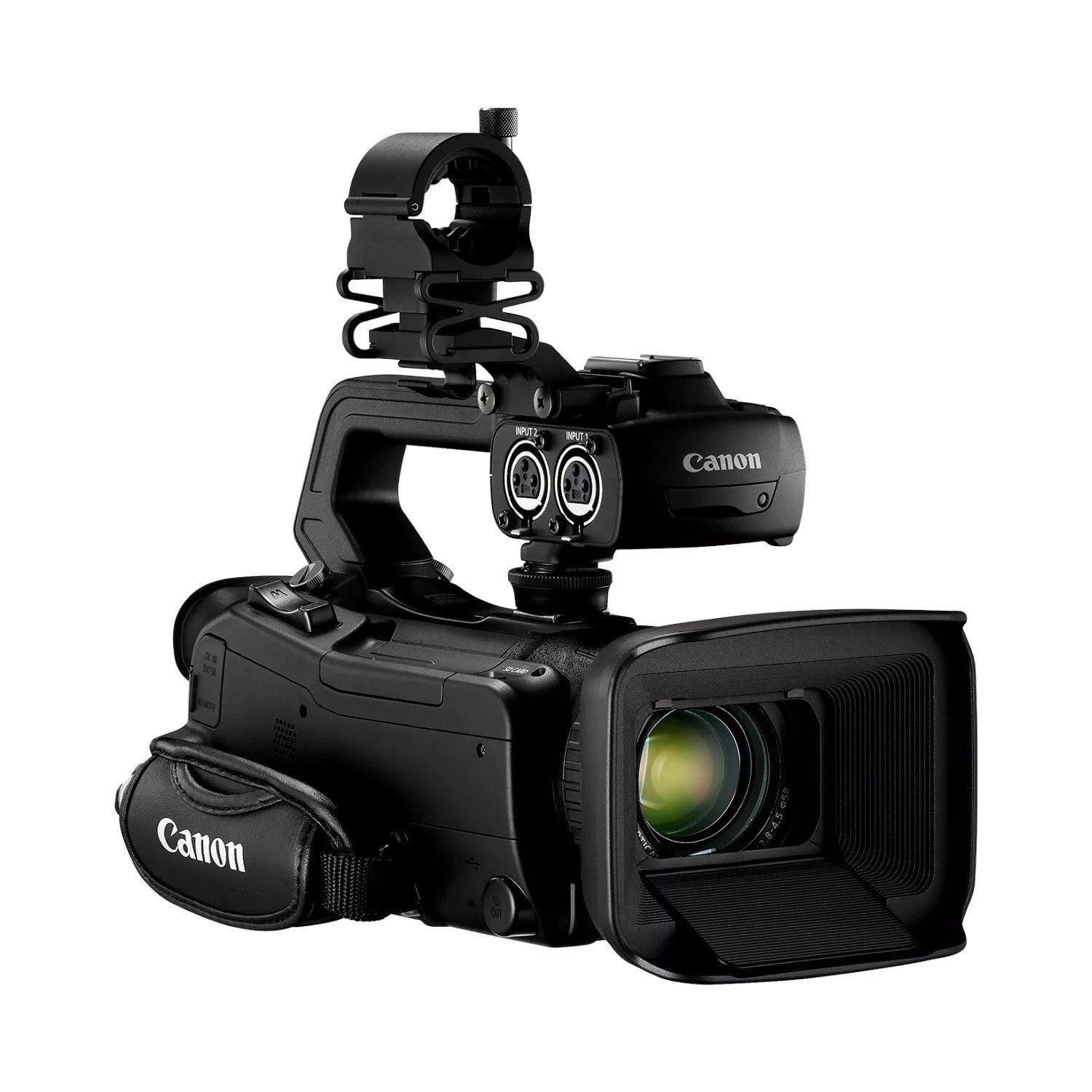

Dual XLR and Mic/Line Audio Inputs
-
USB Type-C with UVC Support for HD Livestreaming
-

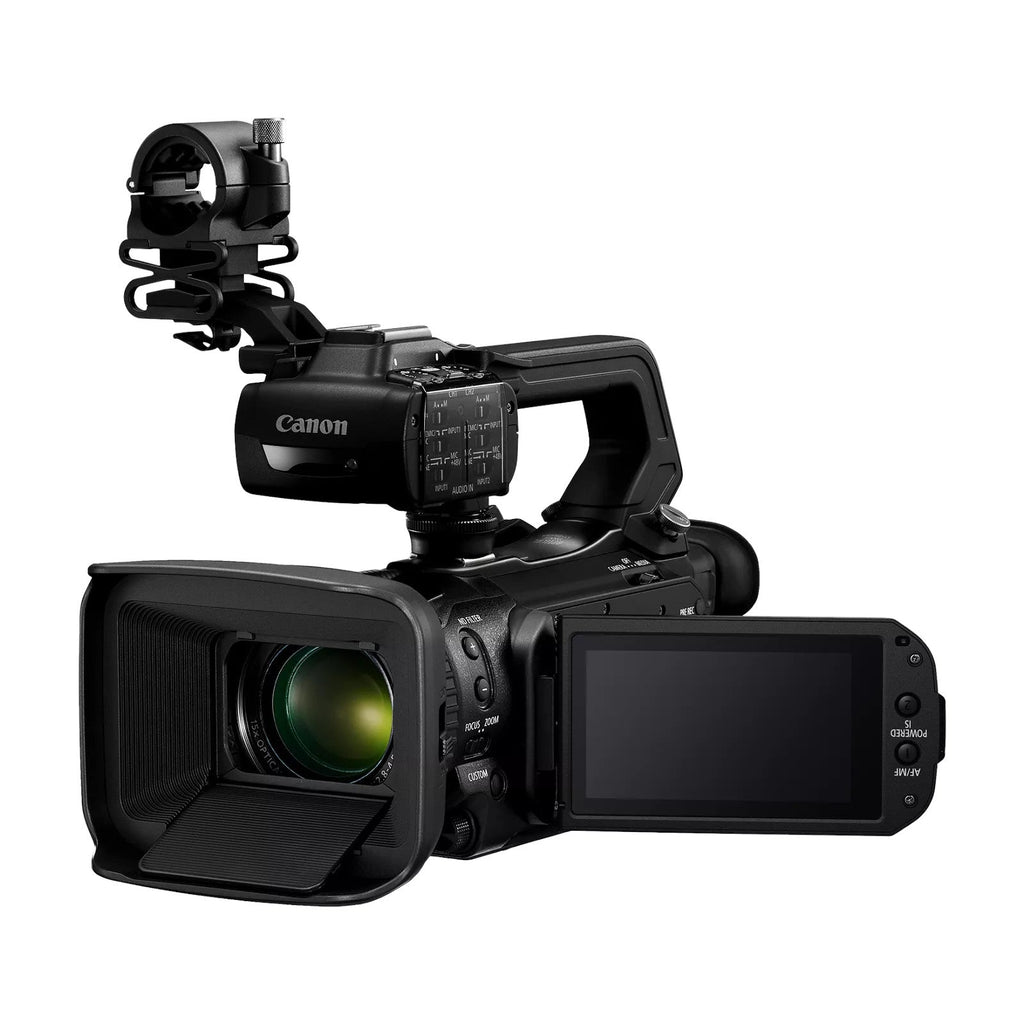

3.5” Tiltable Touchscreen LCD and OLED EVF
Ideal For
News, documentary, corporate, educational, and event videography, offering professional-grade performance in a portable, lightweight form factor.
1. Image Sensor
-
Type: CMOS
-
Sensor Size: 1.0 inch
-
Effective Pixels: ~8.29 MP
-
Total Pixels: 13.4 MP
-
Focus System: Dual Pixel CMOS AF, Contrast AF
-
Infrared Camera Support: Yes
2. Lens
-
Zoom: 15× optical
-
Focal Length: 25.5 – 382.5 mm (35mm equivalent)
-
Aperture: f/2.8 – f/4.5 (4K UHD, Dynamic IS OFF / Standard IS ON)
-
ND Filter: 3-step, switchable
-
Image Stabilization: Optical + electronic correction
3. LCD / EVF
-
LCD Monitor: 3.5-inch, 2.76M dots, capacitive touch
-
EVF: 0.36-inch OLED, 1.77M dots, articulating
4. Picture / Looks
-
Standard, Wide DR (800%), Neutral, Monochrome
5. Movie Recording
-
XF-AVC (MXF):
-
3840 × 2160 | 29.97p / 23.98p
-
1920 × 1080 | 59.94p / 59.94i / 29.97p / 23.98p
-
MP4:
-
3840 × 2160 | 29.97p / 23.98p
-
1920 × 1080 | 59.94p / 29.97p / 23.98p
-
1280 × 720 | 59.94p
-
Slow & Fast Motion: x0.4 and up (60 fps / Full HD 29.97p playback)
-
Color Sample / Bit Depth: 4:2:0, 8-bit
-
Audio:
-
MP4: AAC 2ch or LPCM 4ch
-
XF-AVC: LPCM 4ch
6. Recording Media
-
SD cards x2 (UHS-I U3 supported)
7. Professional Terminals
-
SDI: 3G-SDI
-
XLR Audio: 2 terminals
8. Other Terminals
-
HDMI, headphone, UVC (USB-C), DC IN (USB-C), remote, MIC (plug-in power supported)
9. Features
-
Detachable Handle: Yes
-
Wi-Fi: No
-
Wired LAN: No
This is a compact, professional camcorder-style camera with a 1-inch sensor, strong zoom range, internal ND, Dual Pixel AF, and XF-AVC/MP4 recording.
