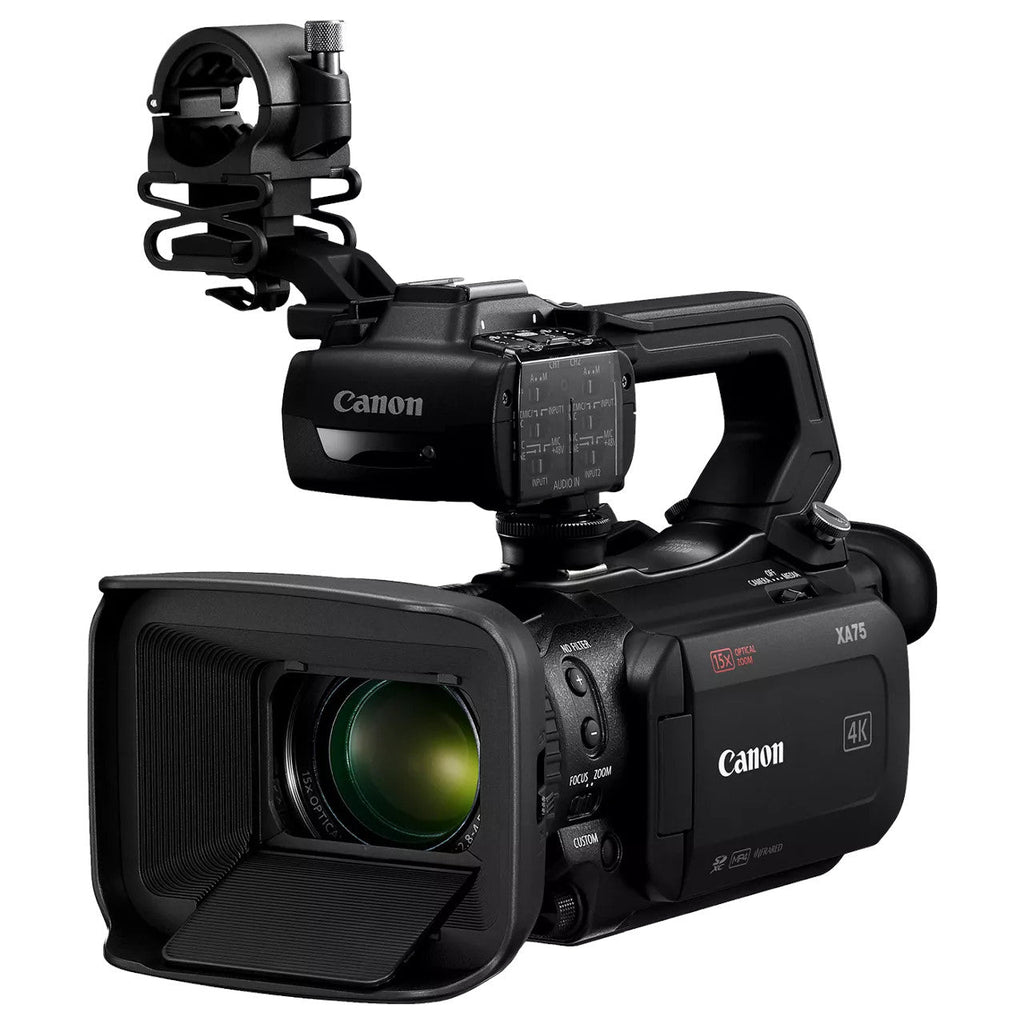

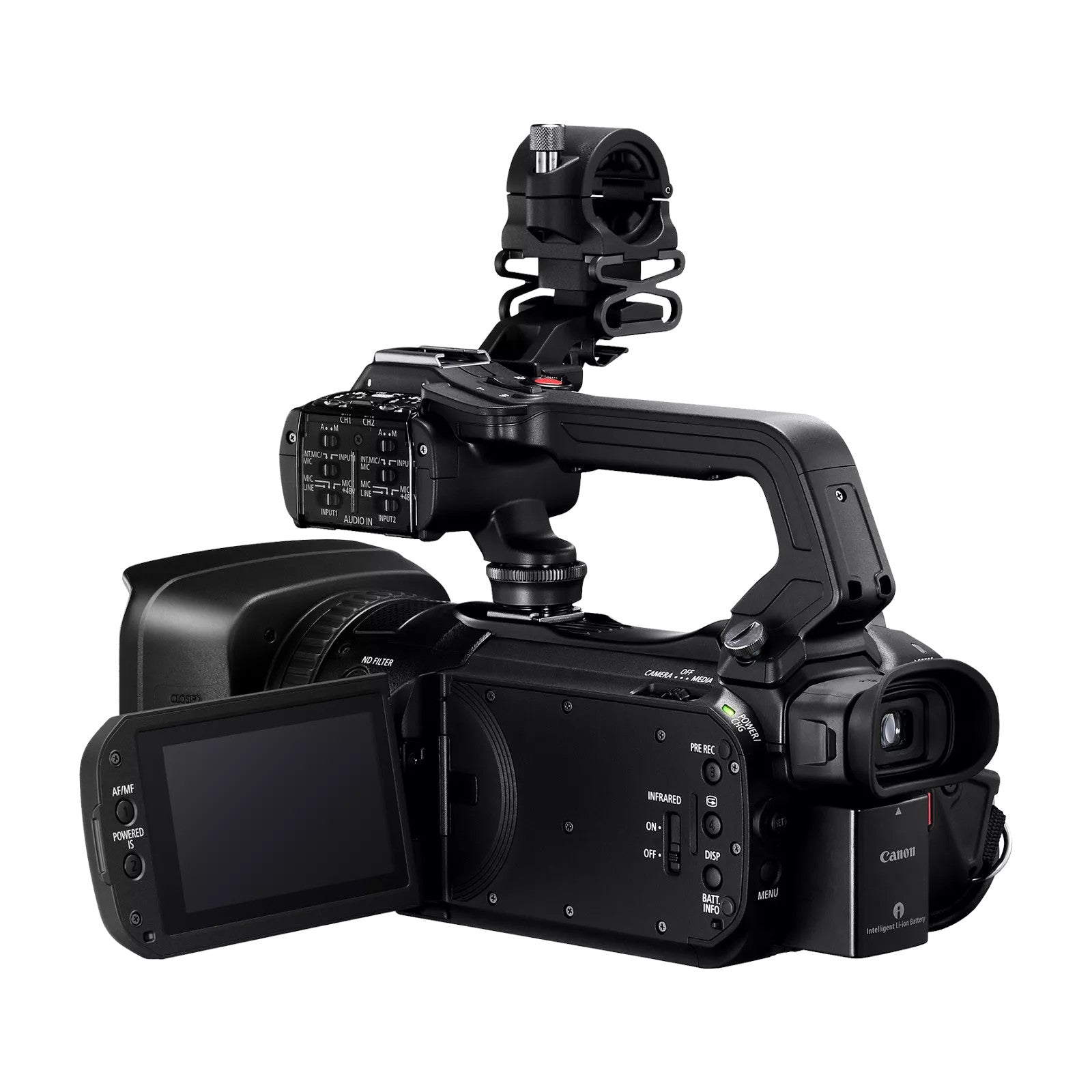

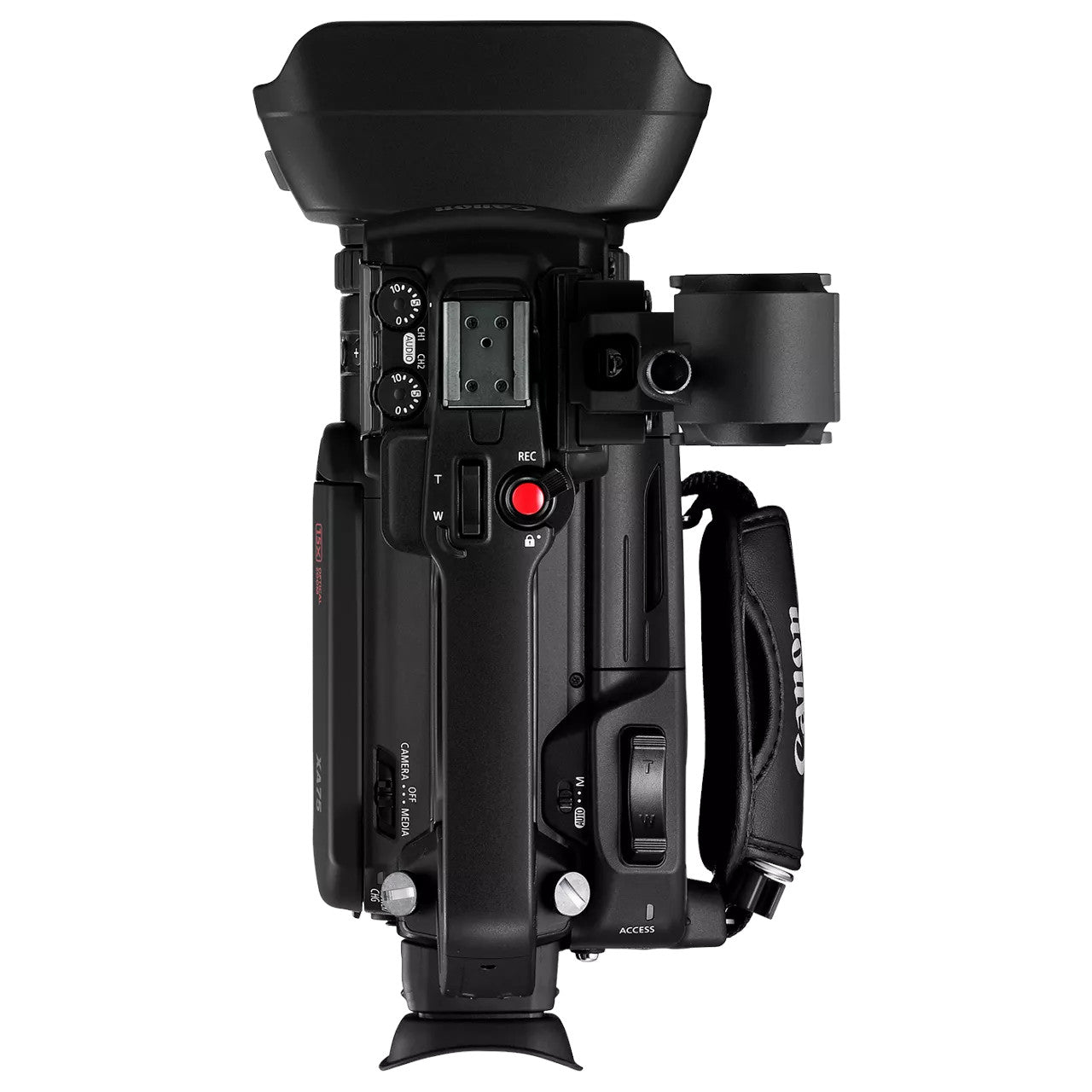

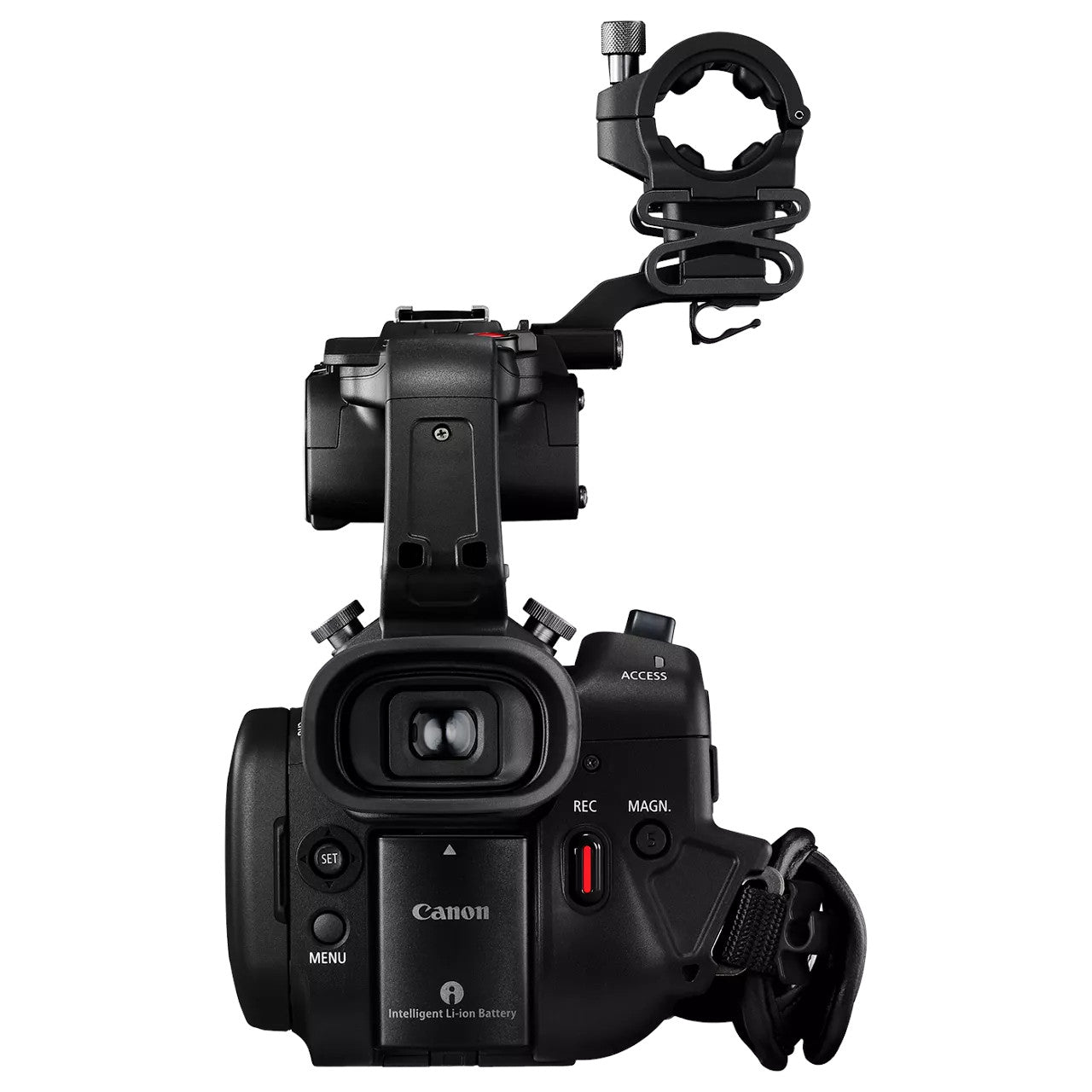

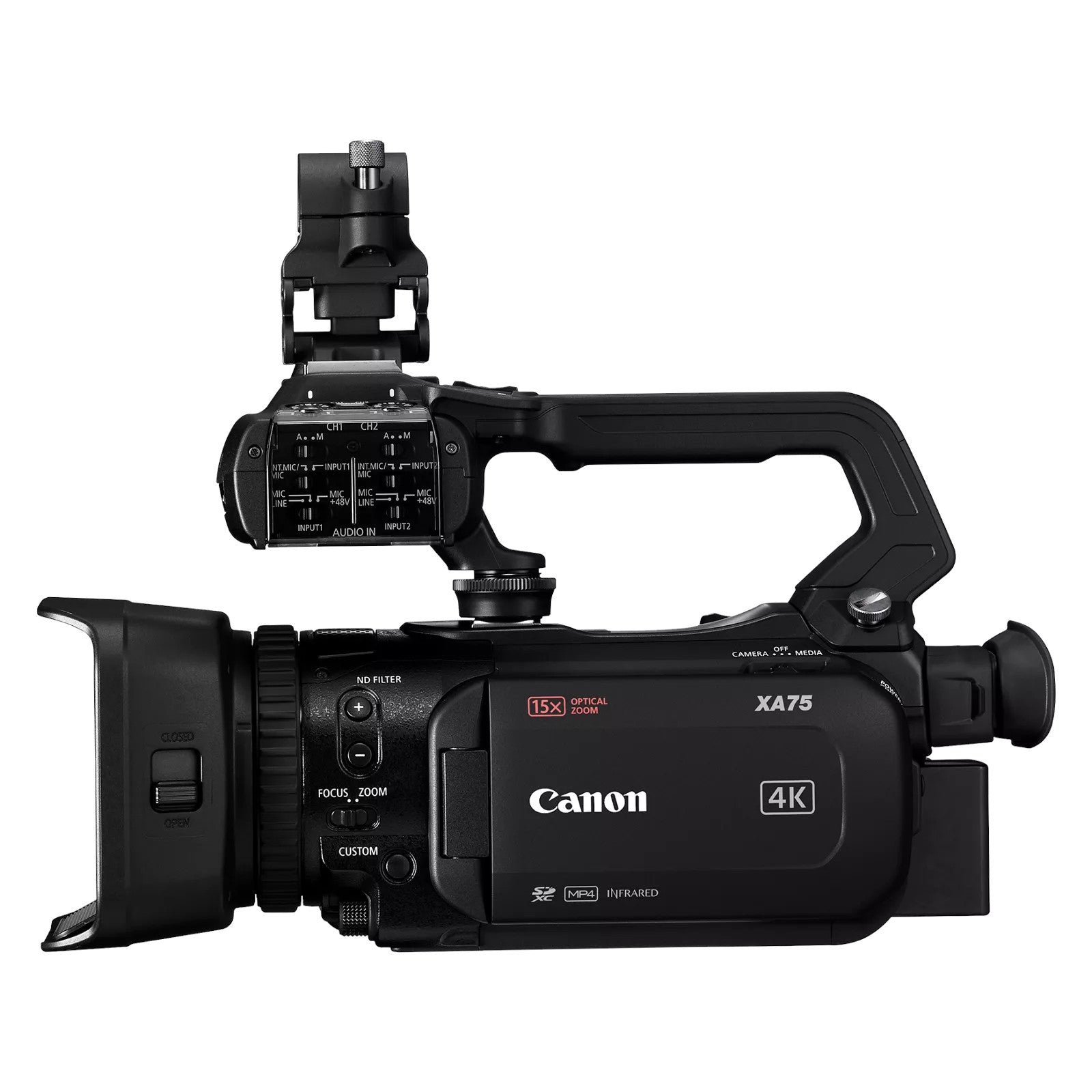

The Canon XA75 is a compact professional camcorder designed for high-quality 4K UHD video capture. Featuring a 1" CMOS sensor and DIGIC DV 6 image processor, it delivers exceptional detail, dynamic range, and color accuracy for professional video production.
Key Features
-
4K UHD Video Recording: Capture up to UHD 4K30 in XF-AVC or MP4 formats.
-
15x Optical Zoom Lens: Get clear, precise shots with integrated 5-axis optical image stabilization.
-
Dual Pixel CMOS Autofocus: Ensures fast, smooth, and accurate focusing on moving subjects.
-
Flexible Video Output: Mini-HDMI, 3G-SDI, and USB Type-C with UVC support for livestreaming.
-
Professional Audio Inputs: Dual XLR and Mic/Line inputs for high-quality sound recording.
-
Dual SD Card Slots: Supports relay and simultaneous recording for extended capture or backup.
-

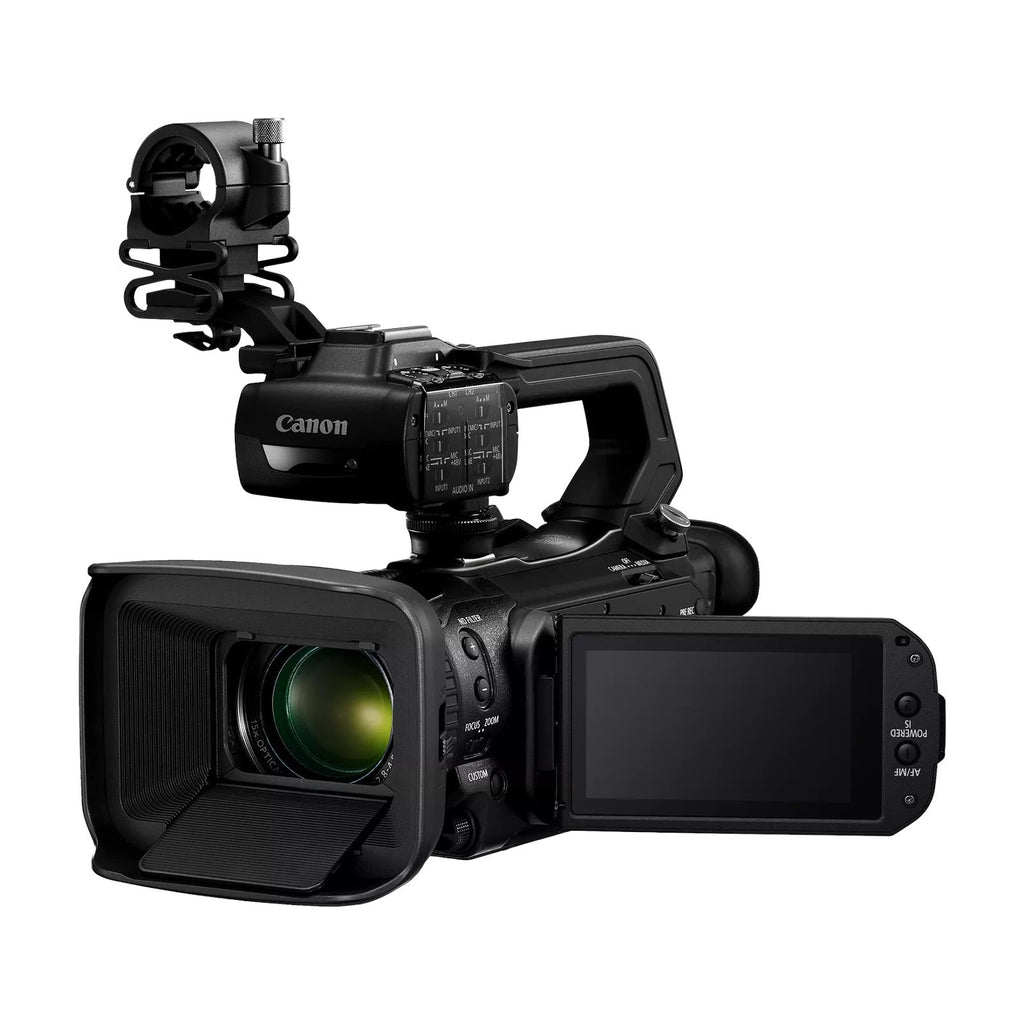

User-Friendly Interface: 3.5" tiltable touchscreen LCD and OLED EVF for monitoring and control.
-
On-Screen Display (OSD) Time Stamp Recording: Maintain accurate reference information in your recordings.
Ideal For
Perfect for documentaries, events, livestreaming, corporate videos, and broadcast, the Canon XA75 provides professional-grade 4K UHD recording in a compact, portable form factor, making it ideal for both studio and field production.
Image Sensor
-
Type: 1.0-inch CMOS
-
Total Pixels: 13.40 MP
-
Effective Pixels: 8.29 MP (3840 × 2160)
Lens & Zoom
-
Optical Zoom: 15x
-
35mm Equivalent Focal Length: 25.5 – 382.5 mm
-
Aperture: f/2.8 – 4.5
-
ND Filter: 3-step, switchable
-
Image Stabilizer: Optical + electronic correction
-
Infrared (IR) camera support: Yes
Focus
-
Dual Pixel CMOS AF
-
Contrast AF
-
Focus modes: Manual, Continuous AF, Face Detection & Tracking
Monitor & EVF
-
LCD: 3.5-inch, 2.76M dots, capacitive touch panel
-
EVF: 0.36-inch OLED, articulating, 1.77M dots
Recording & Media
-
Movie Recording Formats:
-
XF-AVC (MXF): 4K UHD 29.97p/23.98p, FHD 59.94p/59.94i/29.97p/23.98p
-
MP4: 4K UHD 29.97p/23.98p, FHD 59.94p/29.97p/23.98p, HD 1280 × 720 59.94p
-
Audio:
-
XF-AVC: LPCM 4ch
-
MP4: AAC 2ch or LPCM 4ch
-
Slow & Fast Motion: 0.4× and up (60 fps / FHD 29.97p playback)
-
Color Sampling: 4:2:0 8-bit
-
Recording Media: SD card × 2 (UHS-I U3 support)
Professional Terminals
-
SDI Terminal: 3G-SDI, Yes
-

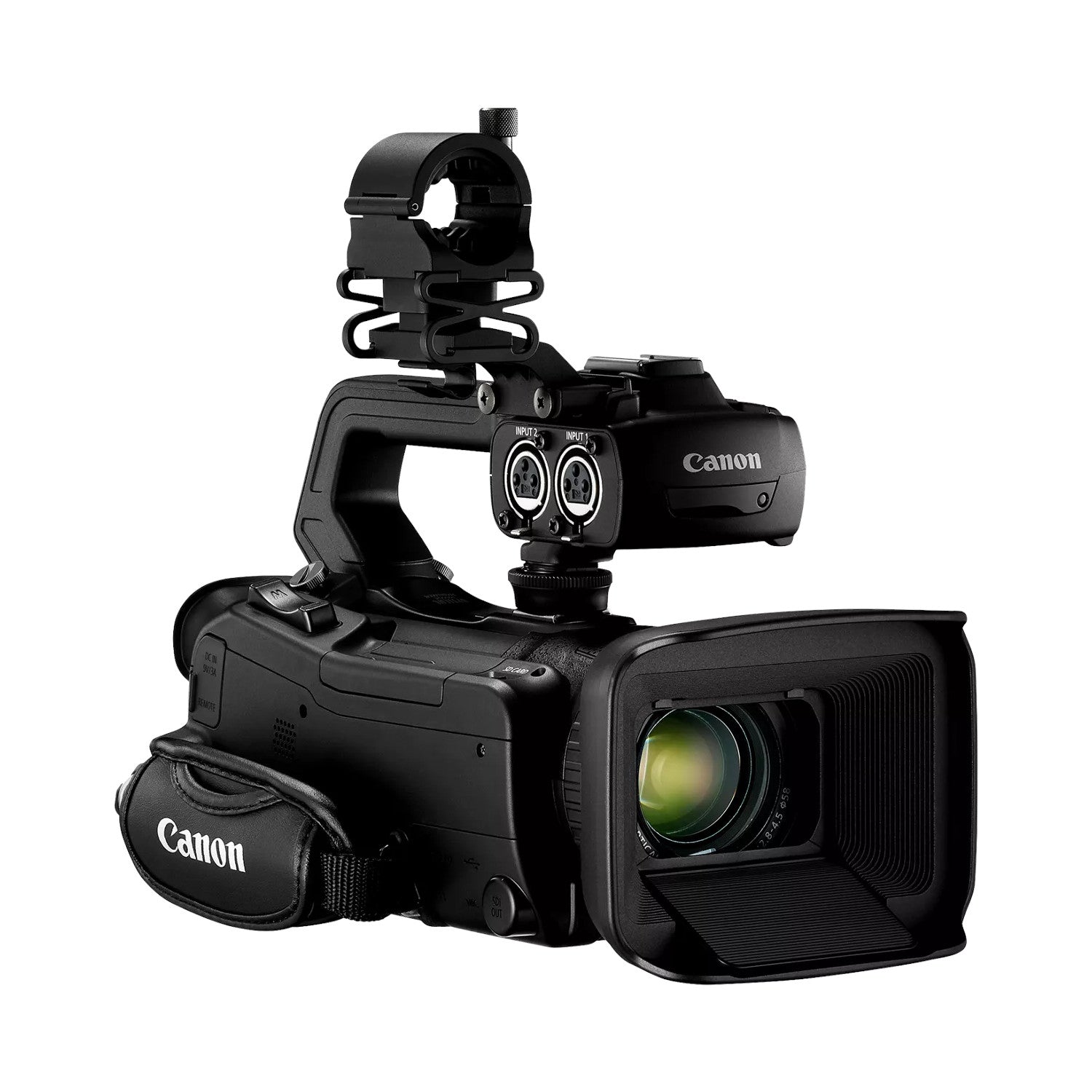

XLR Audio Input: 2 ports
-
Other: HDMI, separate headphone, USB Type-C (UVC), DC IN (USB Type-C), remote, MIC terminal (plug-in power)

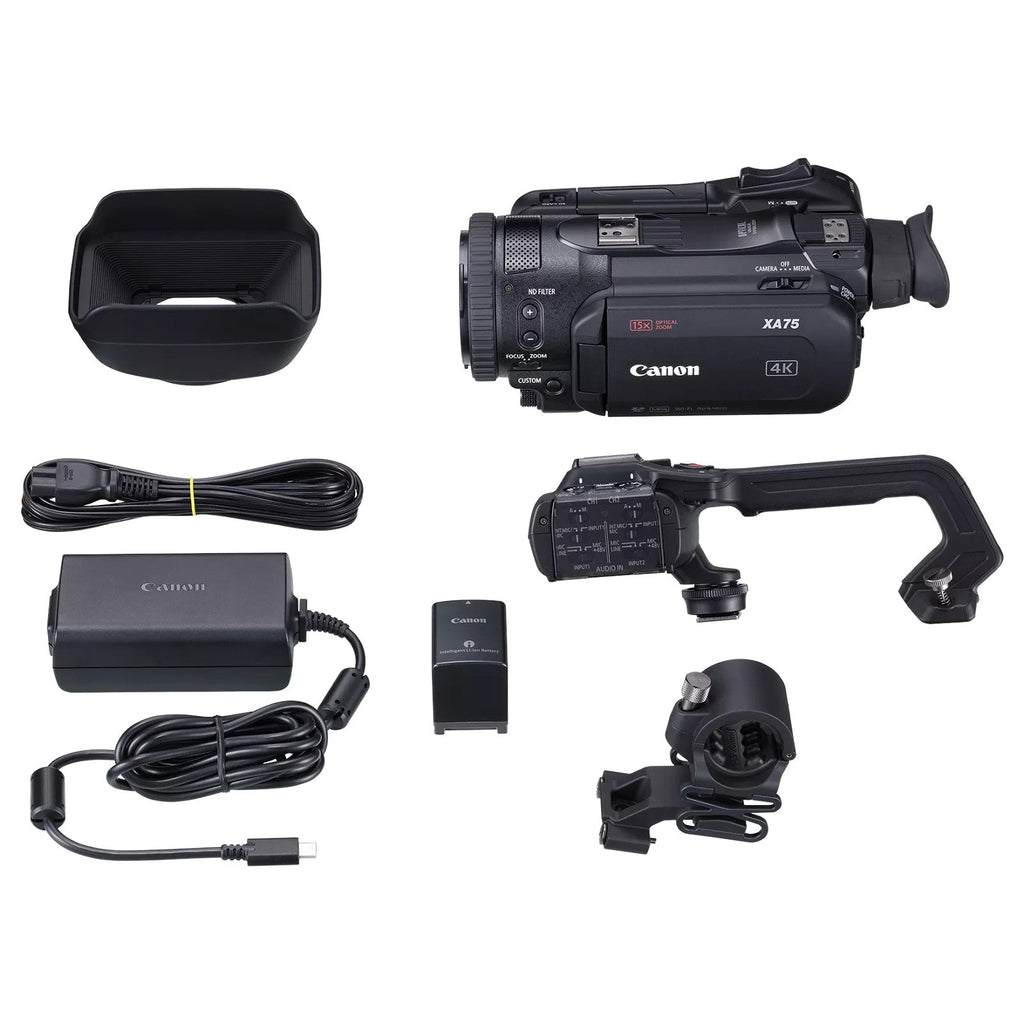

Body & Accessories
-
Detachable handle: Yes
-
Looks / Picture Modes: Standard, Wide DR (800%), Neutral, Monochrome
-
Wi-Fi: No
-
Wired LAN: No
This camera is essentially a compact, professional-grade camcorder with:
-
High-quality 1-inch sensor for better low-light performance than typical 1/2.3-inch sensors,
-
15x optical zoom with Dual Pixel AF for smooth autofocus,
-
3G-SDI and XLR connectivity for professional workflows,
-
Double SD card slots for redundancy or extended recording.
