The Canon XA60 is a compact professional camcorder engineered for high-quality 4K UHD video production. Equipped with a 1/2.3" CMOS sensor and Canon’s DIGIC DV 6 image processor, it delivers oversampled HD and 4K video with excellent detail, color accuracy, and smooth performance.
Key Features
-
High-Quality 4K UHD Video: Capture UHD 4K30 in XF-AVC or MP4 formats.
-
20x Optical Zoom Lens with Optical Image Stabilization: Get precise, smooth shots even at full zoom.
-
Advanced Autofocus & DIGIC DV 6 Processor: Ensures fast, accurate focus for professional video.
-
Flexible Video Output: Mini-HDMI and USB Type-C with UVC support for livestreaming or recording.
-
Dual SD Card Slots: Supports relay and simultaneous recording for extended capture or backup.
-
Professional Audio: Dual XLR and Mic/Line inputs for superior sound recording.
-
User-Friendly Interface: 3.5" tiltable touchscreen LCD and OLED EVF for intuitive monitoring and control.
-
Infrared Recording: Capture low-light and nighttime scenes easily.
Ideal For
Perfect for documentaries, events, livestreaming, corporate videos, and broadcast, the Canon XA60 provides reliable, professional-grade 4K UHD recording in a compact, portable package.
Image Sensor
-
Type: 1/2.3-inch 4K UHD CMOS
-
Resolution: 3840 × 2160 (4K UHD)
Lens & Zoom
-
Optical Zoom: 20x
-
35mm Equivalent Focal Length:
-
4K UHD: 29.3 – 601 mm
-
Full HD: 30.5 – 627 mm
-
Aperture: 8-bladed diaphragm
-
Image Stabilizer: Optical + electronic correction
-
Infrared (IR) support: Yes
Viewfinder & Monitor
-

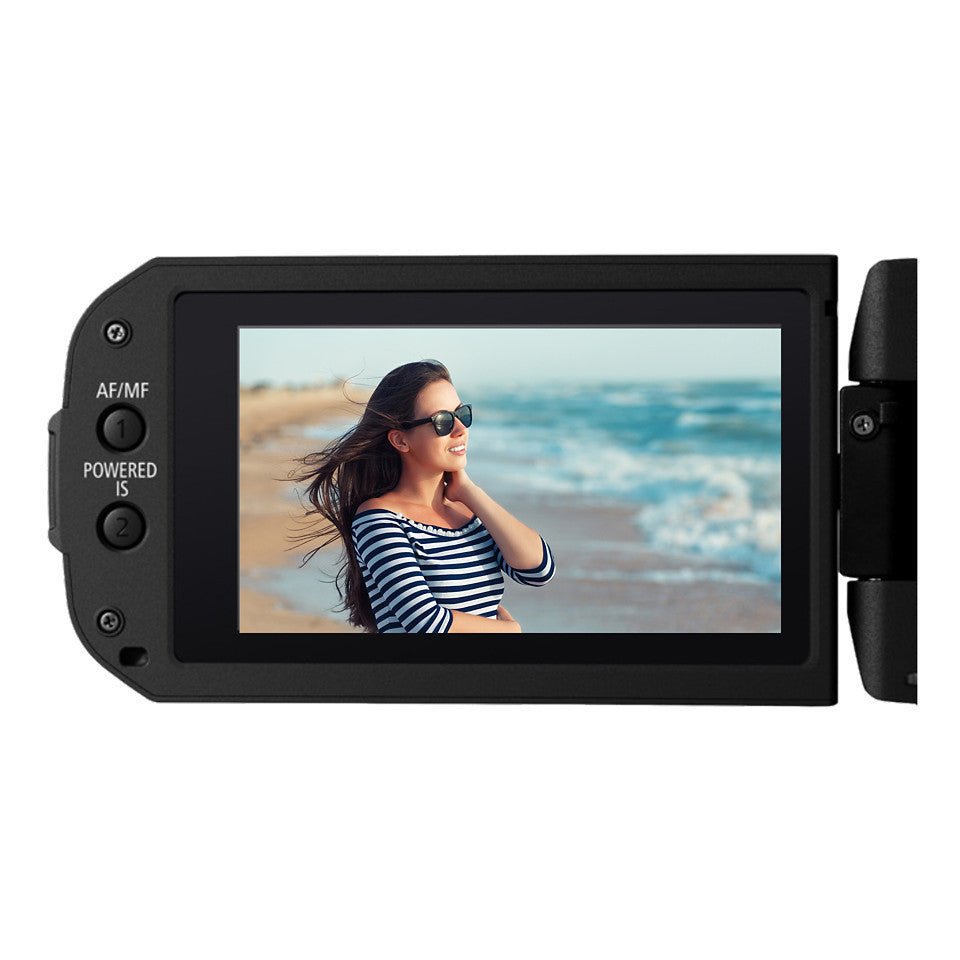

LCD: 3.5-inch, 2.76M dots, capacitive touch
-
EVF: 0.36-inch OLED, 1.77M dots, tiltable
Recording & Media
-
Formats: MXF (XF-AVC), MP4 (AVCHD: No)
-
Audio: LPCM 4ch (not available in 720p)
-
Features: Double recording, OSD recording, slow & fast motion recording
-
Cinema-look filters: No
-
Built-in memory: No
-
Memory cards: SD card × 2 slots
Professional Terminals
-
SDI: No
-
GENLOCK / Timecode: No
-
XLR Input 1/2: Yes
-
Other: HDMI, headphones, USB-C, DC IN (USB-C), remote, MIC terminal (plug-in power)
Accessories & Build
-

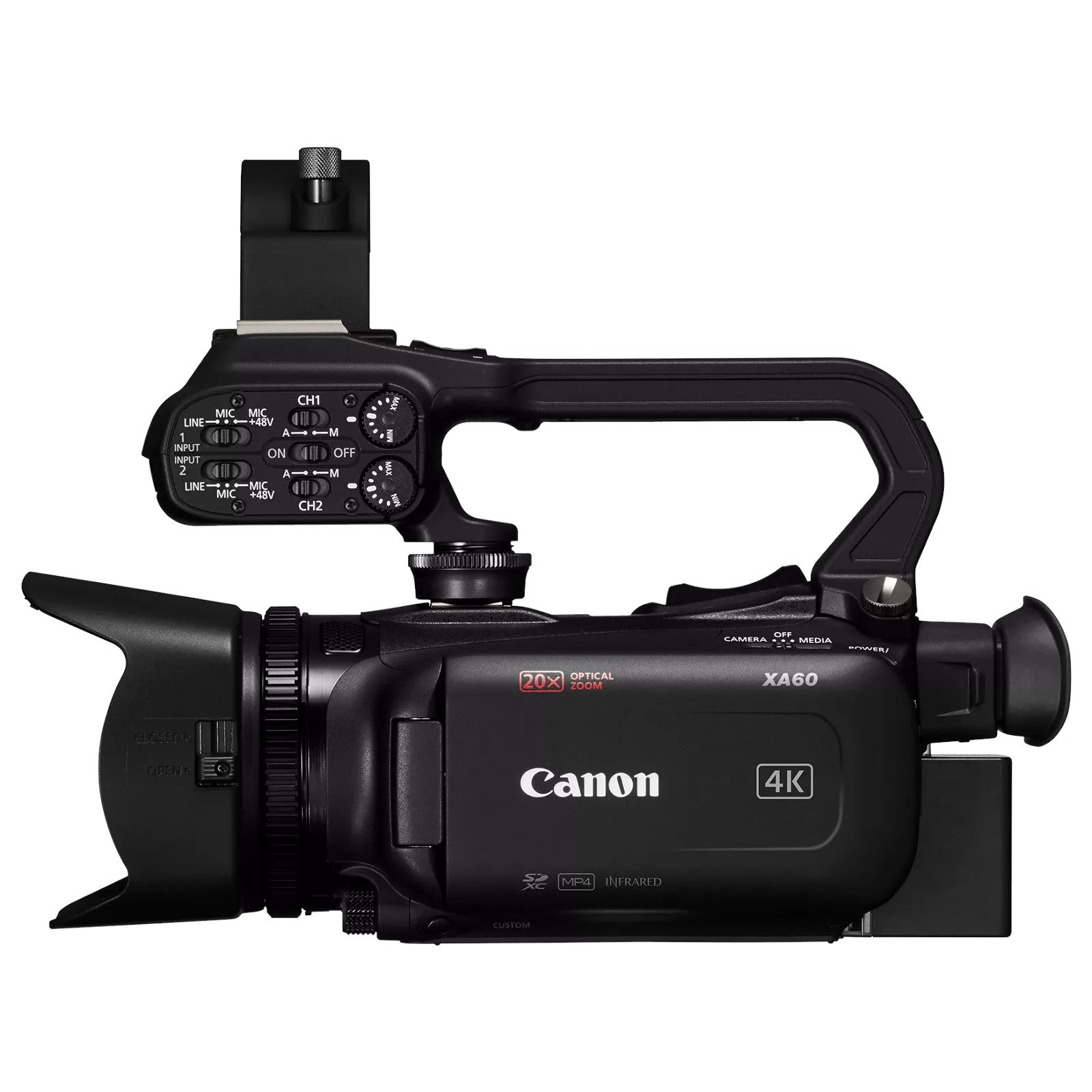

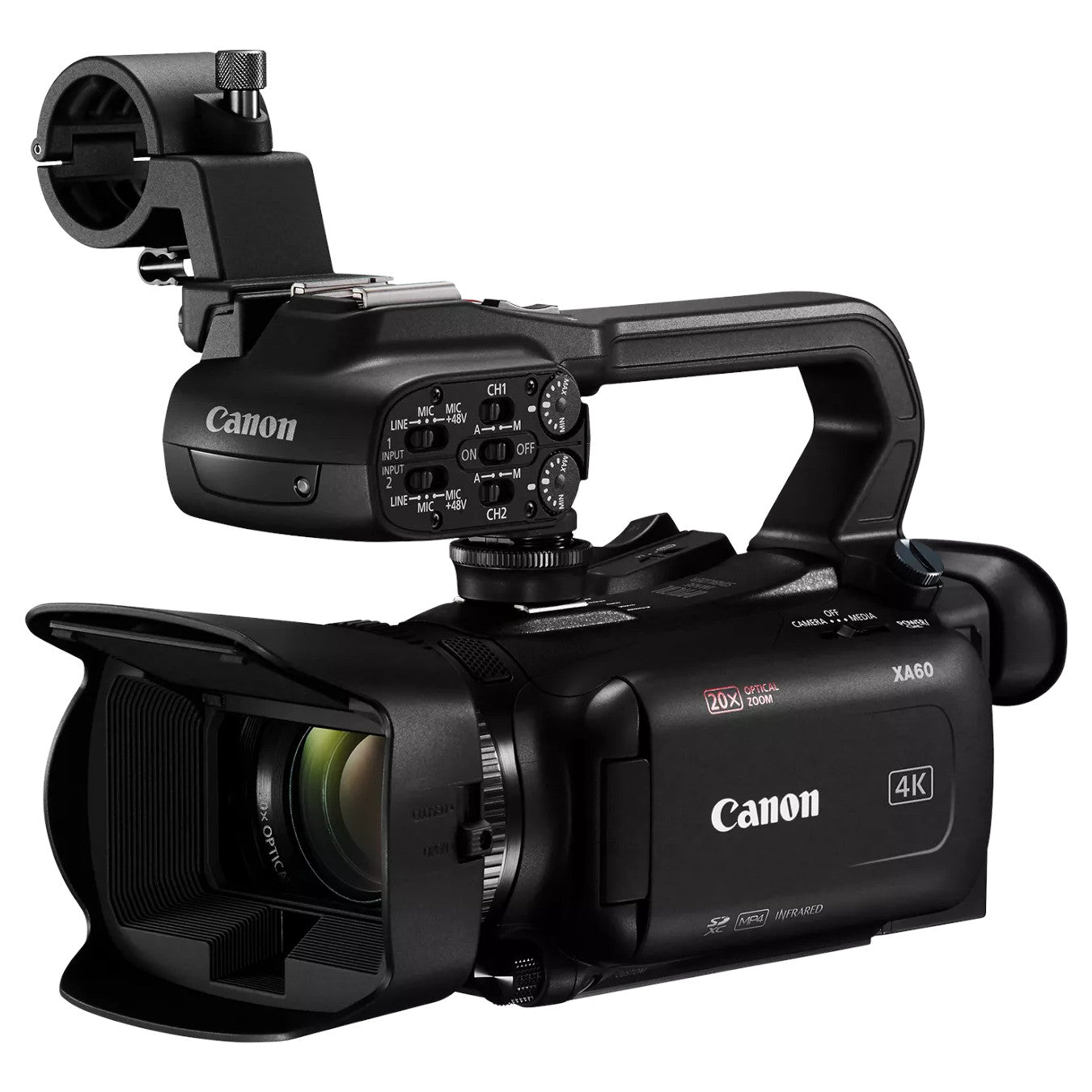

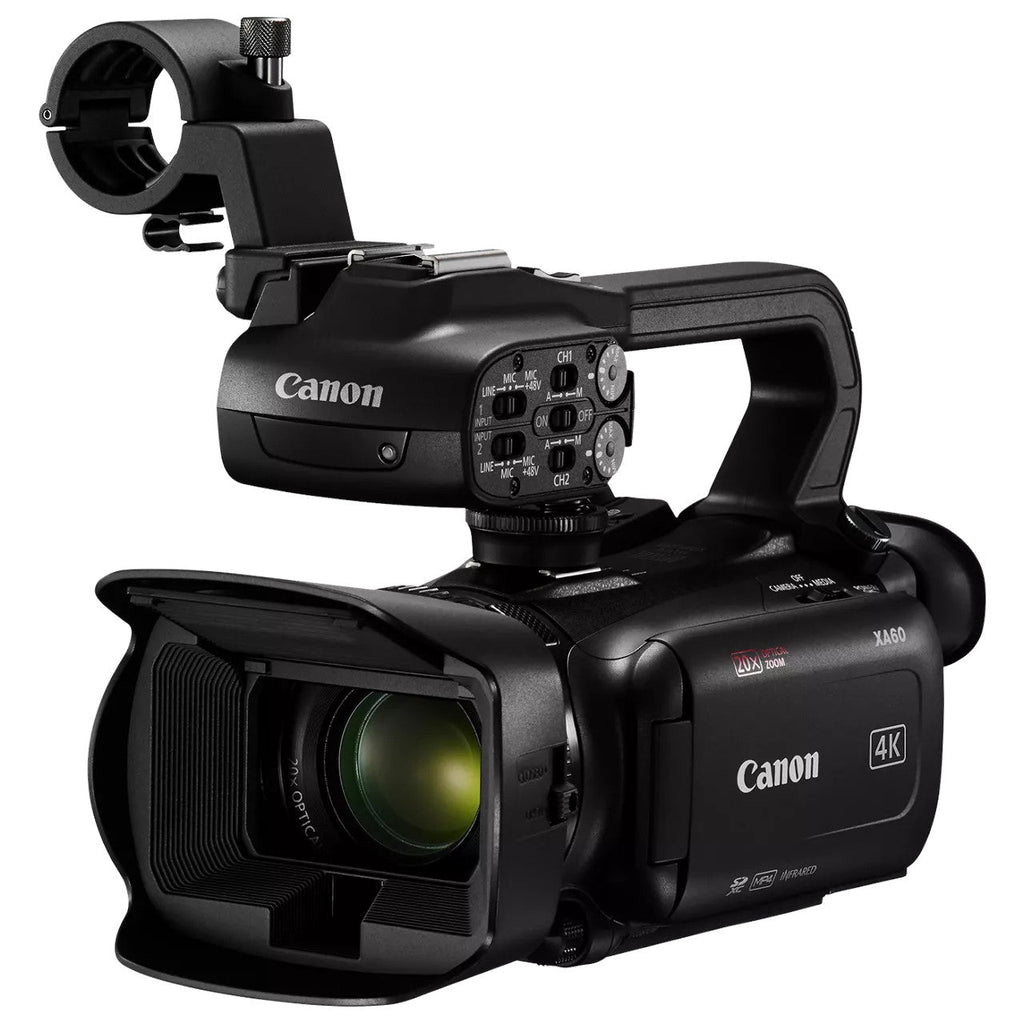

Handle unit: Detachable, cold shoe, XLR terminal, built-in IR light, mic holder, zoom lever, trigger, tally lamp
-
Lens hood with barrier: Yes
-
Wi-Fi / GPS: No (accessories supported)
Physical Specs
-
Dimensions: 4.3 × 3.3 × 7.2 in (109 × 84 × 182 mm)
-
Weight:
-
Body only: 1.63 lbs (740 g)
-
With lens hood, mic holder, handle, BP-820, memory card: 2.50 lbs (1,135 g)
This model is essentially a handheld professional 4K camcorder designed for compact, run-and-gun setups, with IR capability, optical stabilization, and XLR audio inputs.
