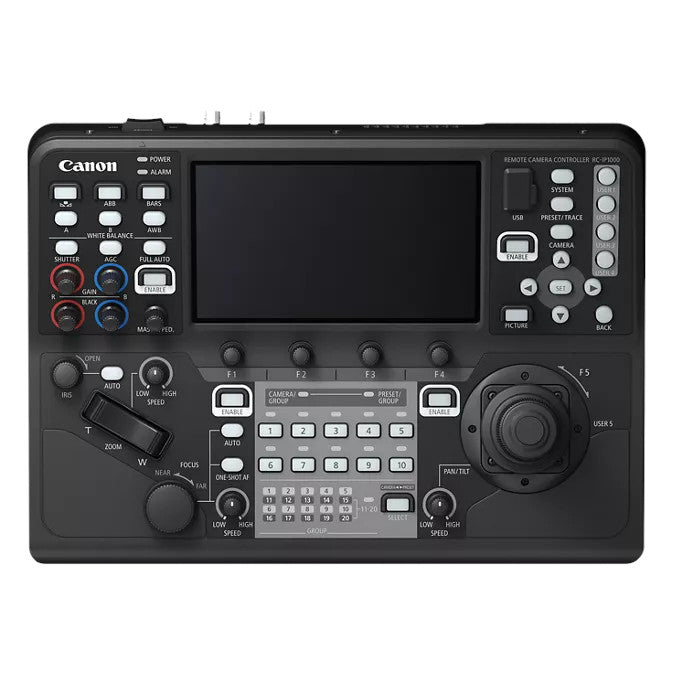

Take control of multiple PTZ cameras with precision, speed, and flexibility using the Canon RC-IP1000. Designed for multi-camera productions, this full-featured controller allows seamless operation of up to 200 supported Canon cameras over IP, including up to 5 via serial connections.
Key Features
-
7” Touch Panel: Clear display of live camera feeds, operation screens, and Touch AF for intuitive control.
-
Assignable Buttons and Dials: Customize 42 buttons and 14 dials for quick access to frequently used functions.
-
Smooth PTZ Control: Adjust pan, tilt, zoom, and camera settings remotely with precise lever and zoom rocker control.
-
Multi-Camera Operation: Simultaneously control multiple connected cameras with programmable trace operation.
-
4K 60P Video Support: High-quality input and output via 12G SDI for ultra-HD video workflows.
-
Camera OSD Integration: View and operate compatible camera on-screen menus directly from the touch panel.
-
Adjustable Response Rate: Customize control speed and reaction rate for smooth operation in any production environment.
Why It Stands Out
The RC-IP1000 is built for large-scale, professional PTZ setups, offering fast, intuitive control of multiple cameras while maintaining precise adjustments for pan, tilt, zoom, and focus. Its assignable buttons, dials, and programmable trace functionality make complex multi-camera productions simpler and more efficient.
-
LAN Terminal: PoE+ supported (IEEE 802.3at Compliant), PoE cannot be used with DC IN
-
DC IN 12V Terminal: DC 10.8–20 V, 2.5 A, 4-pin XLR connector
-
Power Consumption:
-
PoE+ input: 25 W (Class 4 PSE, requests 25.5 W)
-
DC input: 27 W (max)
-
Dimensions (WxHxD): 13.47 × 5.71 × 9.65 in (342 × 145 × 245 mm)
-
Weight: 7.5 lbs (3.4 kg)
-
Operating Temperature: 0 °C – 40 °C (32 °F – 104 °F)
Camera Control
-
Supported Cameras: CR-N700, CR-N500, CR-N300, CR-N100, CR-X500, CR-X300, C500 Mark II, C300 Mark III, XF605, EOS C70
-
Number of Connectable Cameras: 200 (5 via serial)
-
Camera Select Buttons: 10
-
Camera Groups: 20 (up to 10 cameras per group)
-
Video Interfaces: 12G-SDI IN/OUT, HDMI OUT, IP IN
-
Protocols Supported: XC (IP), NU (serial)
-
Presets: Up to 100 per camera
-
Trace: Up to 10 per camera
-
Other Controls: Control lever, zoom rocker, focus dial, 10 user buttons, 14 dials, directional select buttons
Add-On Applications
-
RA-AT001: Auto Tracking
-
RA-AL001: Auto-loop
Screen
-
LCD: 7-inch touch panel, 800×480 resolution
-
Camera Video Preview: Yes (SDI IN / IP), up to 9 cameras per page
-
Touch Focus: Yes (SDI IN / IP)
-
Crop Frame Control: Yes (SDI IN / IP, CR-N700 only)
-
OSD Menu Display: Yes (SDI IN / IP, select cameras only*)
-
*XF605, EOS C70, EOS C500 Mark II, EOS C300 Mark III

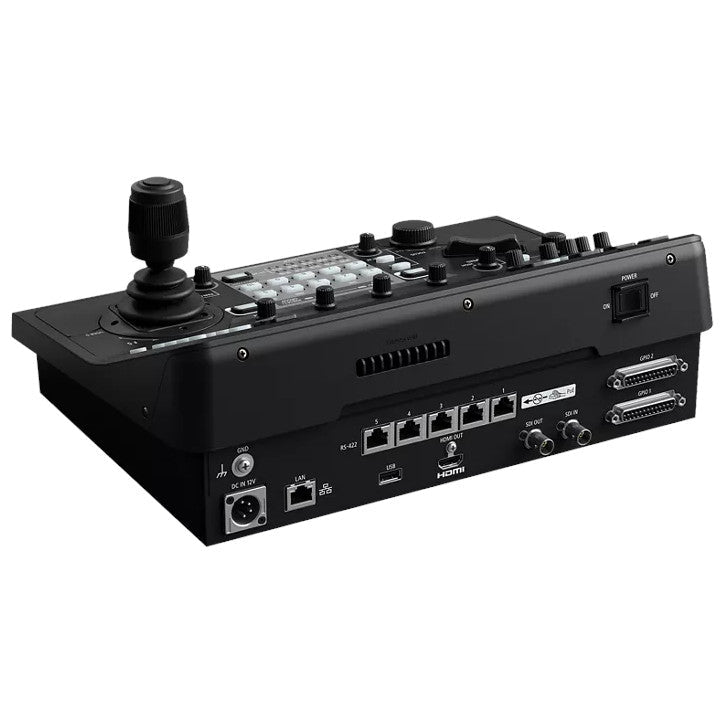

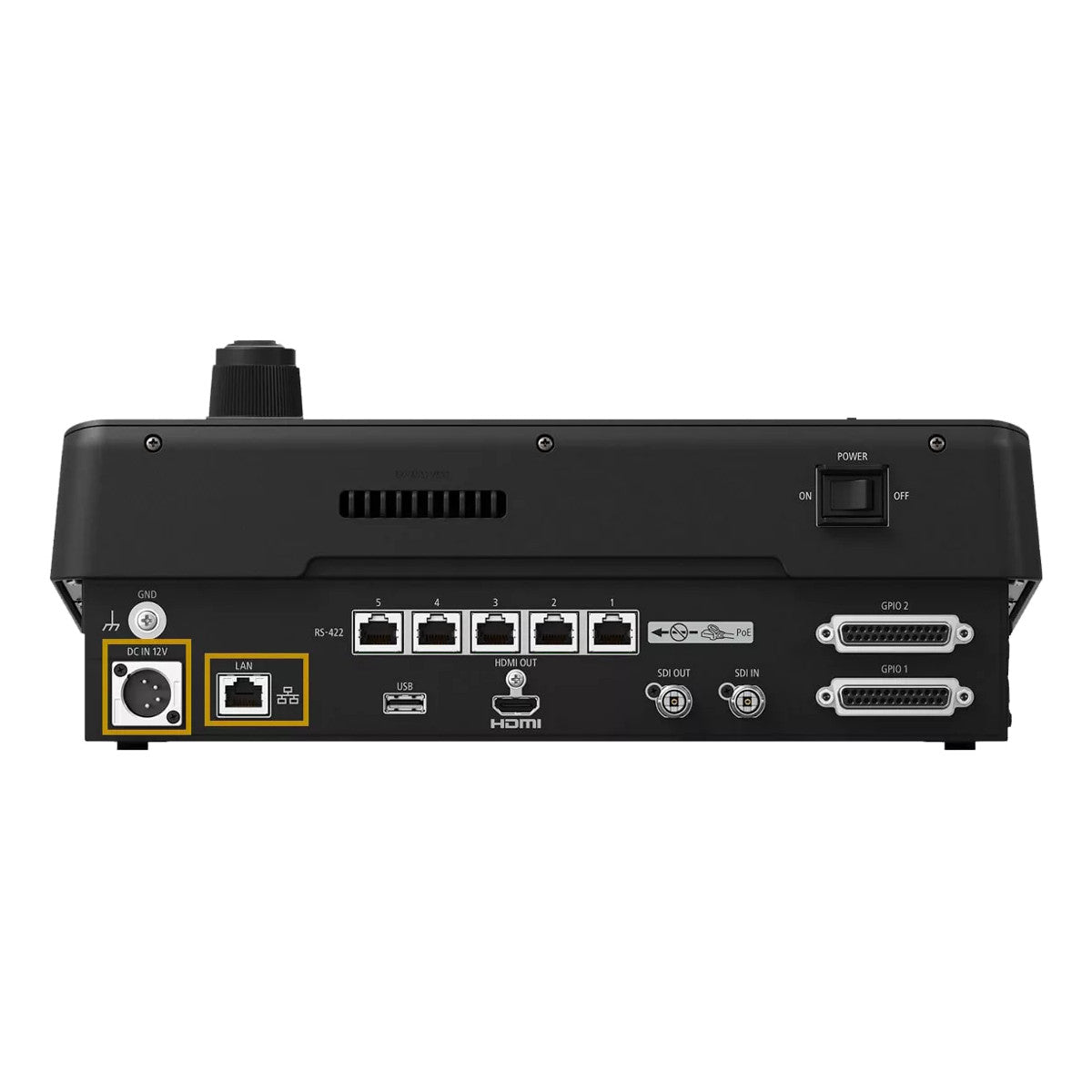

Terminals
-
GPIO: D-Sub 25pin × 2
-
LAN / PoE+: RJ45 (IP camera control, IP video input, PoE+ power)
-
Serial: RJ45 × 5 (serial camera control)
-
12G-SDI IN: SDI video input
-
12G-SDI OUT: Video output
-
HDMI OUT: Type A ×1
-
12V DC 4-Pin XLR: DC power
-
USB Type A ×2: Save settings, firmware update
