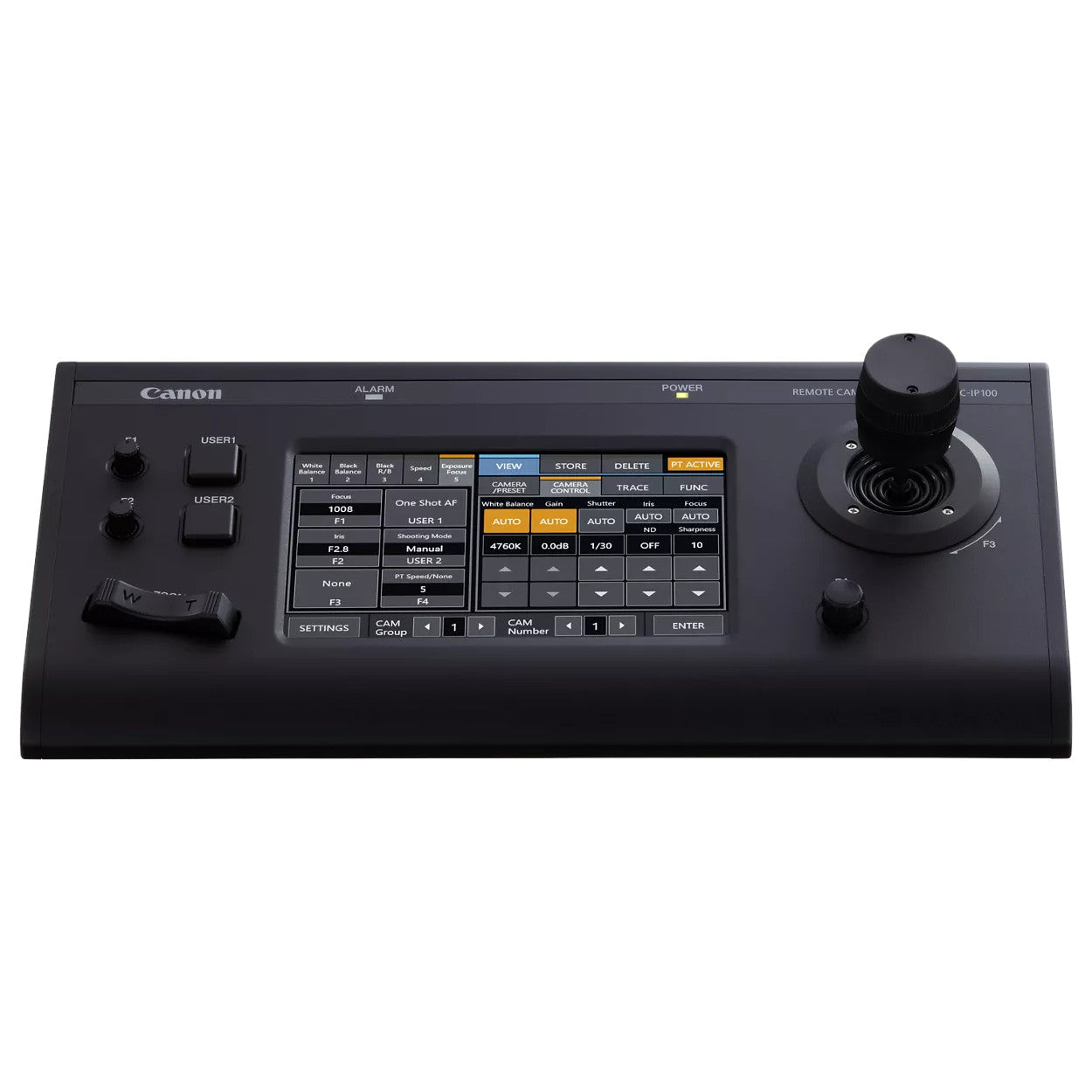

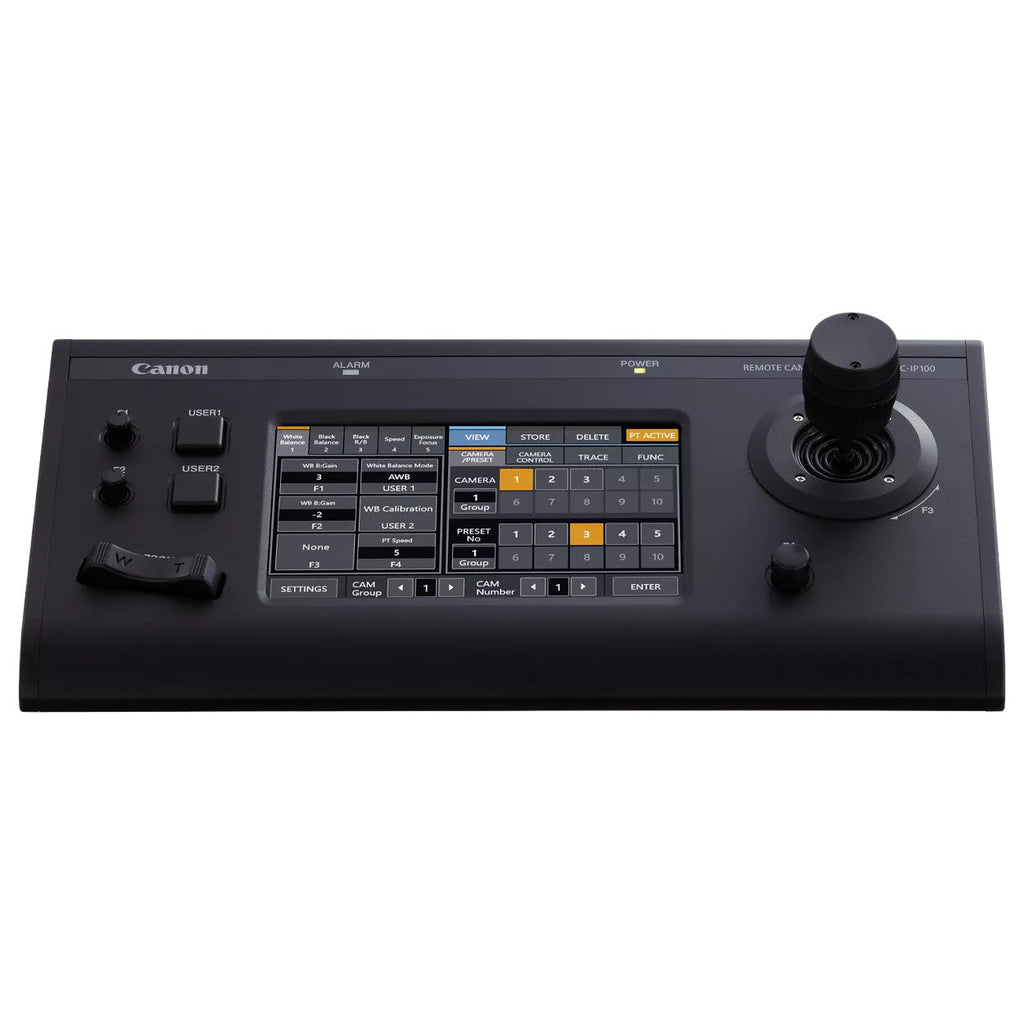

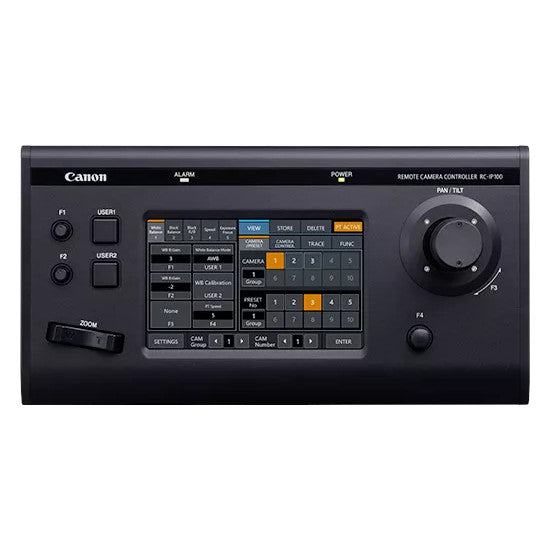

The Canon RC-IP100 is a professional PTZ camera controller designed for broadcast, live production, and multi-camera setups. It provides smooth, precise pan, tilt, and zoom control and allows operators to manage camera functions remotely with confidence.
Key Features
-
Control Up to 100 Canon Supported Cameras: Operate multiple cameras seamlessly in large-scale productions.
-
Smooth PTZ Movement: Responsive joystick ensures precise on-air camera movements.
-
Adjust Pan, Tilt, Zoom, and Camera Settings Remotely: Fine-tune framing, focus, and image parameters from a single control station.
-
7” Diagonal Touch Screen: Intuitive touch interface for viewing menus and camera status.
-
Zoom Lever and Customizable Buttons: Control zoom and assign up to 4 frequently used functions for quick access.
-
Compatibility with Canon PTZ and Cinema Cameras:
-
CR-N700, CR-N500, CR-N300
-
CR-X500, CR-X300
-
C500 Mark II (firmware v1.0.3.1 or later)
-
C300 Mark III (firmware v1.0.1.1 or later)
-
XF605 (firmware v1.0.1.1 or later)
Why Choose the RC-IP100
The RC-IP100 combines a highly responsive joystick, touch interface, and customizable controls to enable operators to manage multiple Canon PTZ and cinema cameras with unmatched accuracy. Perfect for broadcast studios, live events, corporate productions, and houses of worship, it delivers professional-grade control in a single, ergonomic device.
Power
-
DC Input: 12 V DC (AC adapter included)
-
Warning: Only use the supplied 12 V DC adapter—other adapters may cause permanent damage
-
Power Consumption: Not specified
Physical
-
Dimensions (WxHxD): 13.7 × 4.3 × 7.1 in (350 × 110 × 182 mm)
-
Weight: Approx. 2.1 kg (4.6 lbs)
-
Operating Temperature: 0°C – 40°C
Camera Control
-
Supported Cameras:
-
CR-N700, CR-N500, CR-N300
-
CR-X500, CR-X300
-
C500 Mark II (firmware v1.0.3.1+)
-
C300 Mark III (firmware v1.0.1.1+)
-
XF605 (firmware v1.0.1.1+)
-
Number of Connectable Cameras:
-
1 unit (RS-422)
-
100 units (*via RS-422: up to 99 additional units)
-
Presets: 100 per camera (Store / Play / Delete)
-
Trace: 10 per camera (Store / Play / Delete)
-
Communication: IPv4
Interface
-
Touch Panel: 7-inch diagonal touchscreen
-

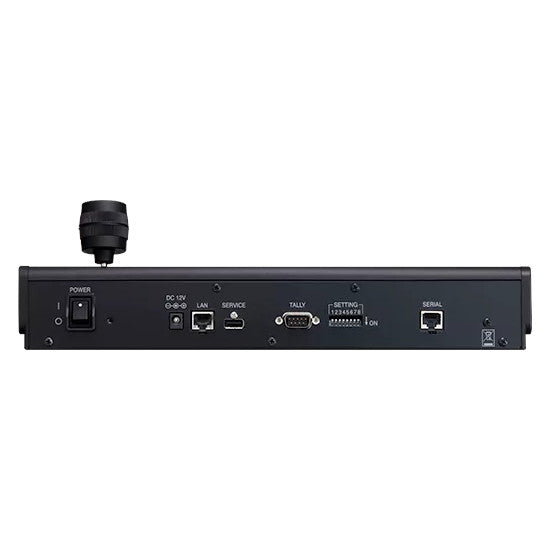

Terminals:
-
Tally: D-Sub 9-pin
-
LAN: RJ-45 ×1 (10/100Base-T)
-
Serial: RJ-45 ×1 (RS-422)
This is a compact, single-controller unit for PTZ cameras supporting RS-422 or LAN/IP control with touchscreen interface, preset/trace storage, and broad compatibility with Canon PTZ and cinema cameras.
