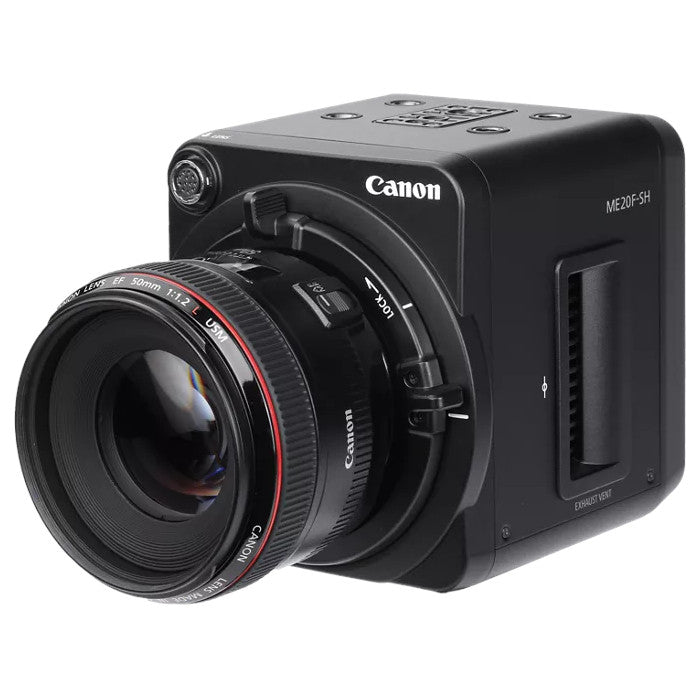

The Canon ME20F-SH is a groundbreaking multi-purpose camera designed to deliver full-color HD video in near-total darkness. Equipped with a 35mm full-frame CMOS sensor and a newly designed high-sensitivity 2.2MP CMOS sensor, this camera provides exceptional image quality and low-light performance, with sensitivity exceeding 4,000,000 ISO.
Key Features
-
Ultra Low-Light Performance: Captures crisp, clean video in extreme low-light conditions, ideal for night-time or dimly lit environments.
-
Full HD Video up to 60fps for smooth, professional-quality footage.
-
Versatile & Rugged Design: Modular build allows flexible deployment across different environments and applications.
-
Professional Connectivity: HDMI and SDI outputs enable integration into broadcast, cinematic, or live-streaming setups.
-
EF-Mount Lens Compatibility: Works with a wide variety of Canon EF lenses to suit different shooting requirements.
-
Additional Functions: Supports advanced imaging features for precise control over exposure, focus, and color.
Ideal For
The ME20F-SH is perfect for television, cinema, nature and wildlife documentaries, astronomy, law enforcement, military, and security applications, providing unmatched clarity in extremely low-light scenarios.
Image Sensor
-
Type: 35mm Full Frame CMOS (16:9 crop)
-
Total Pixels: ~2.59 MP (2160 × 1200)
-
Effective Pixels: ~2.26 MP (2000 × 1128)
-
Resolution: 1920 × 1080, 1280 × 720
-
Pixel Size: 19 µm × 19 µm
-
Minimum Subject Illumination: 0.0005 lux (F1.2, 1/30s, 50IRE, 75 dB gain)
-
Color Filter Array: RGB Bayer

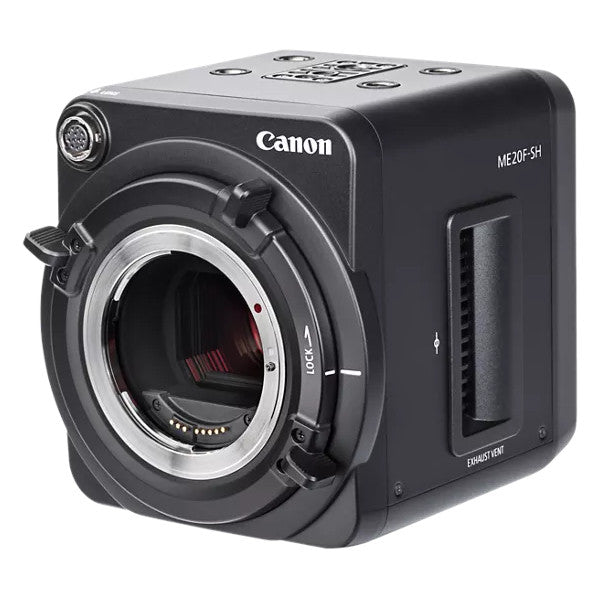

Lens System
-
Mount: Canon EF Cinema Lock
-
Compatible Lenses: EF, EF-S, Cinema EF-mount
-
ND Filter: Built-in 1/8 & 1/64, motorized/manual
-
IR Cut Filter: On/Off, motorized
Exposure & Image Control
Auto Exposure (AE)
-
Iris, Gain, Shutter, ND operate together
-
AE shift & AE response selectable
-
AGC limit: 36 dB – 75 dB
Manual Controls
-
Iris: 1/2 stops (assignable auto iris)
-
Gain: 0 – 75 dB (~ISO 4,560,000 at 75 dB)
-
Shutter: 1/3 – 1/2000 sec
Focus & White Balance
-
Focus: One-Shot AF (assignable)
-
WB: AWB 2000–15,000K, Daylight, Tungsten, Custom A/B
Digital Teleconverter: 2x, 3x, 4x
Custom Picture Settings: EOS Standard, Wide DR, Canon Log, crispImg2, Custom 1–6
Other Functions:
-
Auto black balance
-
Color bar & test tone
-
Peripheral illumination correction
-
Focus limit, EF-S crop, scan reverse
-
Flicker reduction, noise reduction
-
Time display, hour meter

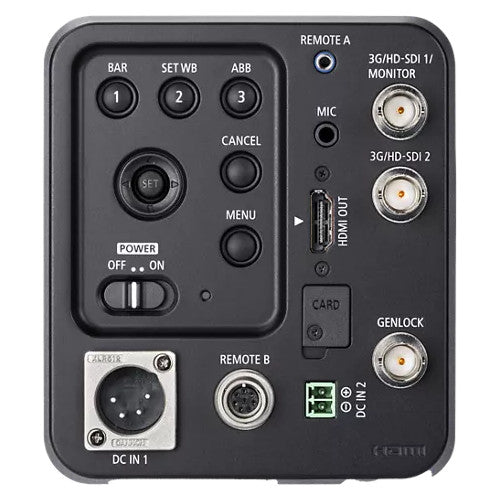

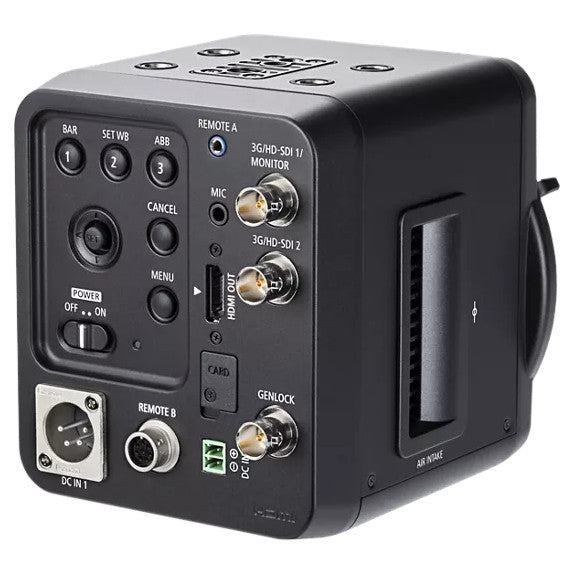

Output Terminals
3G/HD-SDI
-
Terminal 1: On-screen display optional
-
Terminal 2: Clean out only
-
Bit Depth: YCbCr 4:2:2 10-bit (effective 8-bit)
-
Frame Rates: 1920 × 1080: 59.94P/i, 50P/i, 29.97P, 25P, 23.98P; 1280 × 720: 59.94P, 50P, 29.97P, 25P, 23.98P
HDMI
-
Bit Depth: RGB444, YCbCr422/444 (effective 8-bit)
-
Frame Rates same as SDI
-
Auto 480P / 576P output if connected to compatible monitors
Power & Environment
-
Input: DC +11V – +17V (XLR 4-pin or 2-pin terminal block)
-
Power Consumption: ~12W (body only)
-
Operating Temp: 0 – 40°C / 32 – 104°F
Physical
-
Dimensions: 4.0 × 4.6 × 4.4 in (102 × 116 × 113 mm)
-
Weight: ~2.2 lbs (1 kg)
This camera is a highly sensitive, full-frame PTZ model, ideal for ultra-low-light scenarios, cinematic PTZ shots, or specialized broadcast use. Its 19 µm pixel size and extreme low-light capability (0.0005 lux) make it much more light-efficient than typical 1” or 1/2.3” PTZ cameras.
