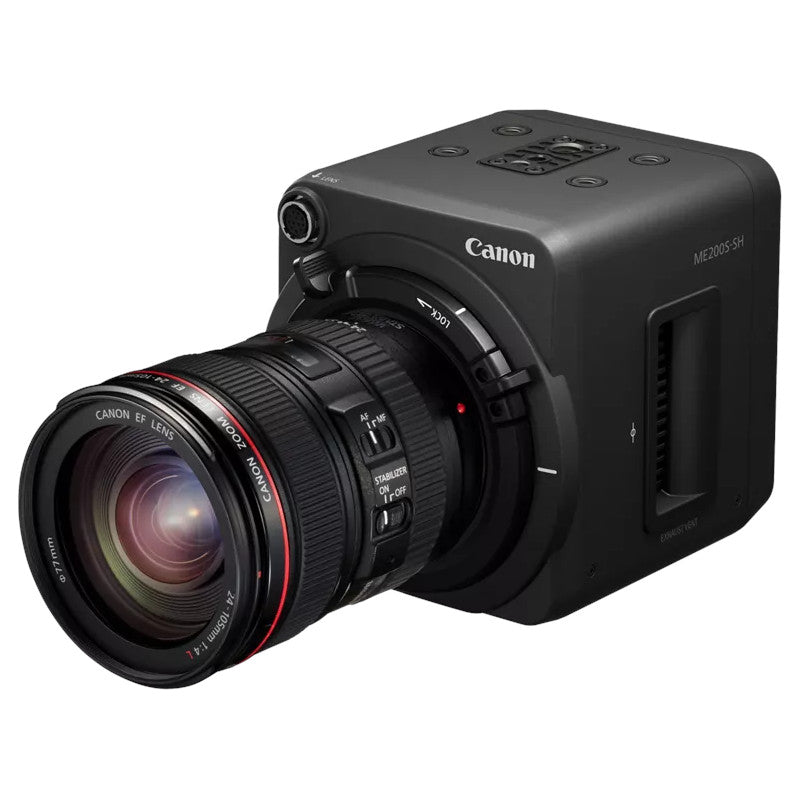

The Canon ME200S-SH is a compact, versatile, and rugged box-style camera designed for professional video production across a wide range of applications. Combining a Super 35mm CMOS sensor with Dual Pixel CMOS Auto-Focus, it delivers exceptional image quality, outstanding low-light performance, and precise focus tracking in a lightweight form factor.
Key Features
-
Super 35mm CMOS Sensor for cinematic image quality and high sensitivity.
-
Dual Pixel CMOS AF for accurate and smooth auto-focus, even on moving subjects.
-
Full HD Video up to 60fps for broadcast and online production needs.
-
Outstanding Low-Light Performance: ISO capability up to 204,000 for challenging environments.
-
Professional Connectivity: 3G/HD-SDI, HDMI terminals for external displays and recording devices.
-
Remote Control Compatibility: Supports Canon RC-V100 for precise camera operation.
-
Compact, Rugged Design: Lightweight (2.2 lbs) and durable for use in harsh conditions.
-
EF-Mount Lens Compatibility: Works with select EF-mount lenses and lens function features.
-
Modular & Expandable: Connect only the components you need, adaptable for multi-camera systems.
Ideal For
The ME200S-SH is perfect for television, documentaries, wildlife and nature filming, security, and law enforcement. Its compact design and robust build make it easy to deploy in a variety of environments, from studios to field production.

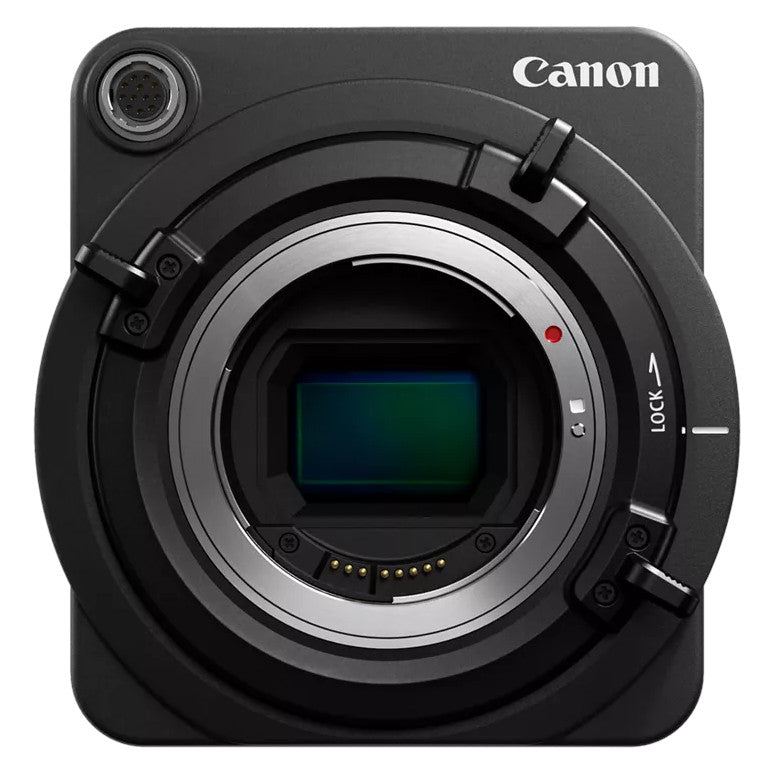

Image Sensor
-
Type: Super 35mm CMOS
-
Total Pixels: ~9.84 MP (4206 × 2340)
-
Effective Pixels: ~8.29 MP (3840 × 2160)
-
Color Filter: RGB Bayer
-
Minimum Subject Illumination:
-
59.94 Hz: 0.021 lux (f/1.2 lens, 56 dB gain, 29.97P, 1/30 sec shutter)
-
50.00 Hz: 0.018 lux (f/1.2 lens, 56 dB gain, 25.00P, 1/25 sec shutter)

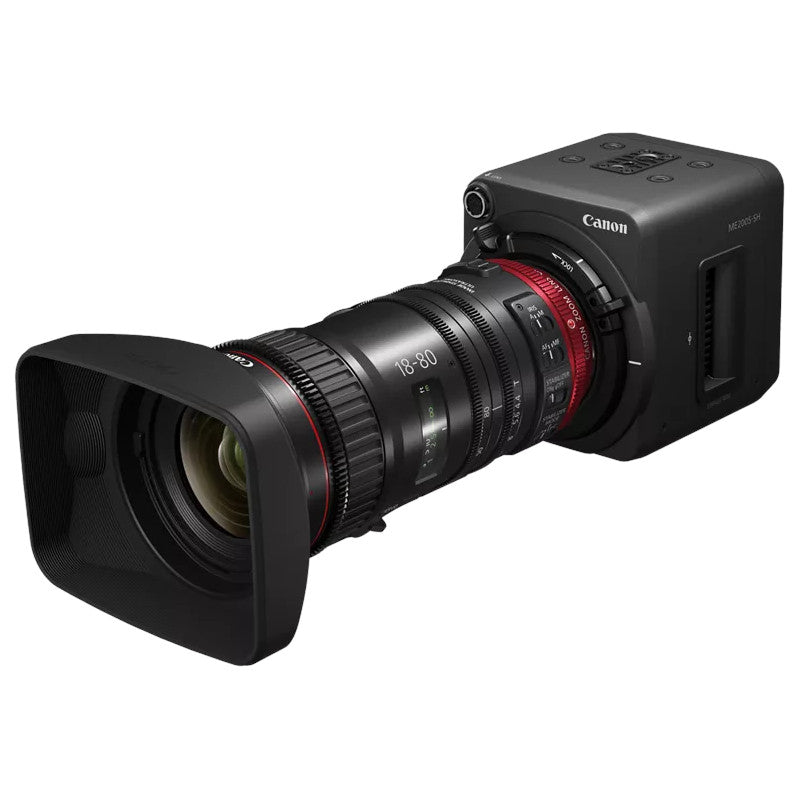

Lens System
-

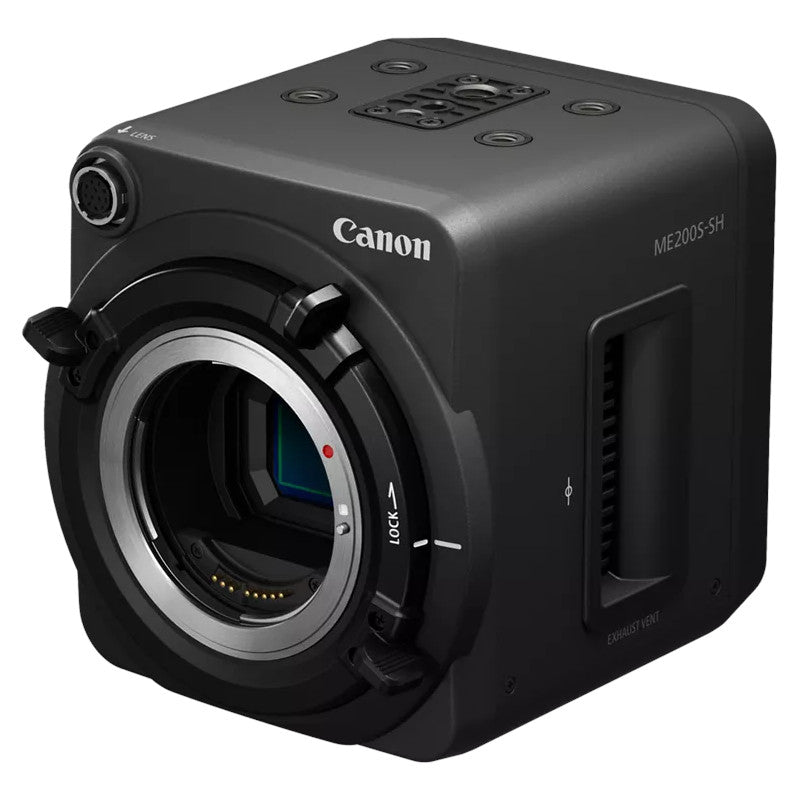

Mount: Canon EF (Cinema Lock type)
-
Compatible: EF, EF-S, Cinema EF lenses

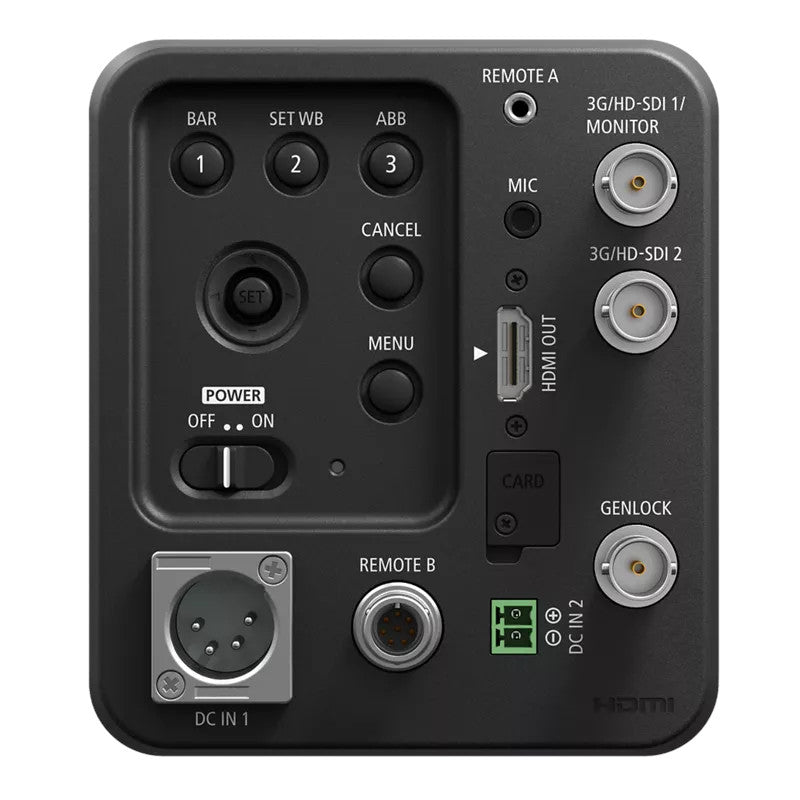

Input Terminals
-
GEN LOCK: Black burst or Tri-level reference
-
Microphone: φ3.5mm stereo mini jack, plug-in power supported
-
Remote A: φ2.5mm stereo mini jack (Canon protocol)
-
Remote B: Circular 8-pin RS-422 (Canon protocol)

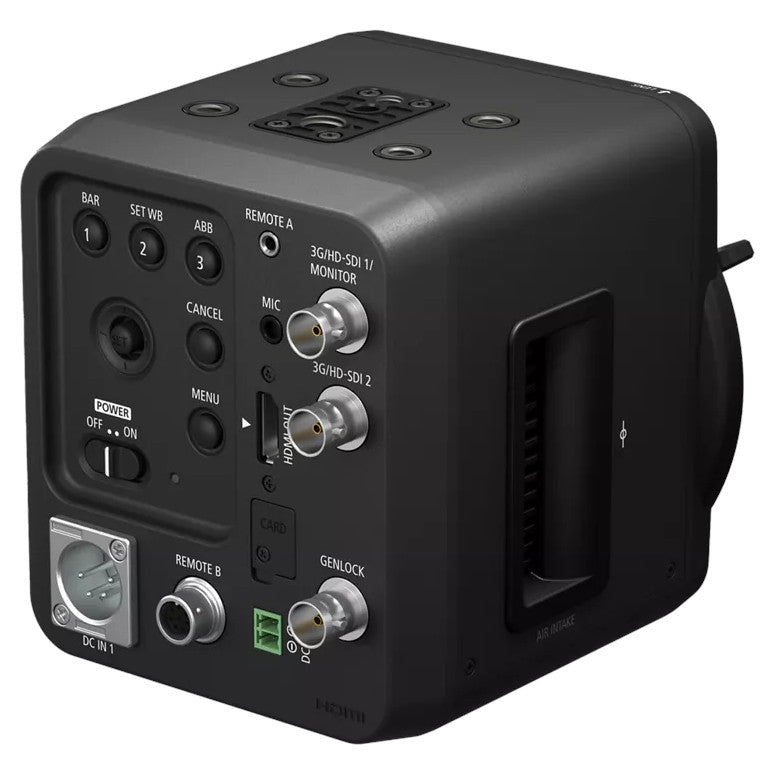

Output Terminals
-
3G/HD-SDI:
-
Terminal 1: On-screen display optional
-
Terminal 2: Clean out only
-
Bit Depth: YCbCr422 10-bit (effective 8-bit)
-
Frame Rates:
-
1920 × 1080: 59.94P/i, 50P/i, 29.97P, 25P, 23.98P
-
1280 × 720: 59.94P, 50P, 29.97P, 25P, 23.98P
-
HDMI:
-
Terminal 1: On-screen display optional
-
Bit Depth: RGB444 / YCbCr422 / YCbCr444 (effective 8-bit)
-
Frame Rates same as SDI
-
Notes: Cannot set frame rate and output size separately by SDI and HDMI; 640×480 (59.94P) and 768×576 (50P) auto output for compatible monitors.
Exposure Modes
-
Auto Exposure (AE): Iris, Gain, Shutter, ND filter operate together; AE shift/response selectable
-
AGC Limit: 30–54 dB in 3 dB steps / Off (56 dB)
-
Manual:
-
Iris: 1/2 stops (push auto iris assignable)
-
Gain: 0–56 dB (ISO ~204,800 at 56 dB)
-
Shutter: 1/3 – 1/2000 sec (1/4 stop increments; 1/3 only at 23.98P)
Image Control
-
Focus: Continuous AF (Dual Pixel CMOS AF), One-Shot AF (assignable)
-
White Balance: AWB (2000–15,000K), Daylight, Tungsten, Custom Set A/B
-
ND Filters: 1/8 & 1/64, built-in, auto/motorized manual
-
IR Cut Filter: On/Off, motorized manual
-
Digital Teleconverter: 2×, 4×, 8×
-
Custom Picture Settings: EOS Standard, Wide DR, Canon Log, Custom 1–6
-
Additional Functions: Auto black balance, color bar, test tone, peripheral illumination correction, focus limit, EF-S crop, scan reverse, flicker reduction, noise reduction, time display, hour meter
Power & Environment
-
Input: XLR 4-pin or 2-pin terminal block, DC +11–17V
-
Power Consumption: ~11 W (body only)
-
Operating Temp: 0–40°C (32–104°F)
Physical
-
Dimensions: 102 × 116 × 113 mm (4.0 × 4.6 × 4.4 in)
-
Weight: ~1.0 kg (2.2 lbs)
