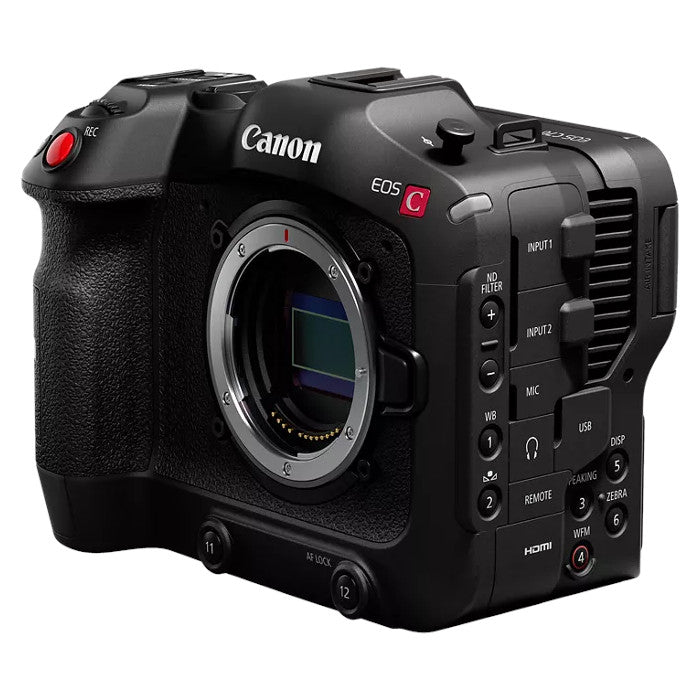

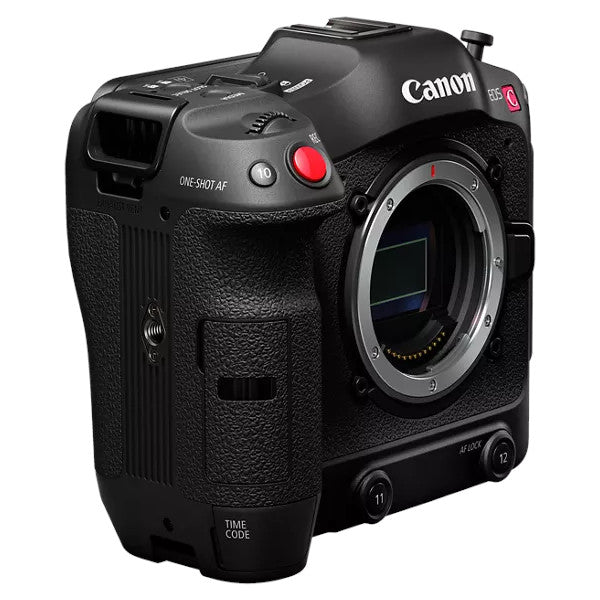

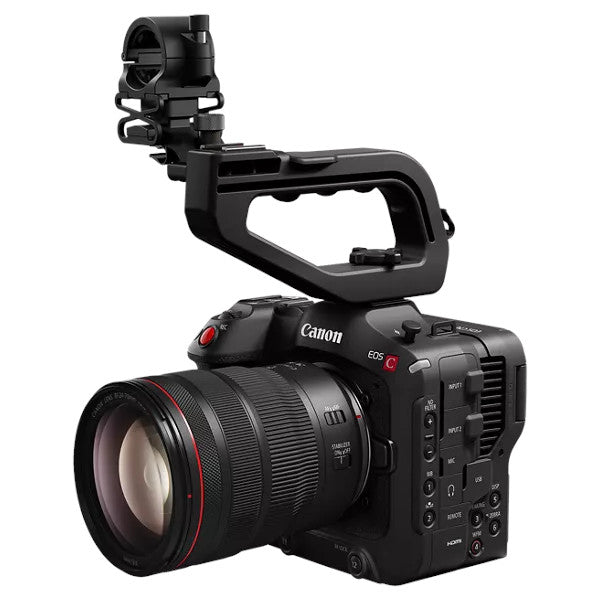

Canon EOS C70 Cinema Camera with 24-105 Lens

The Canon EOS C70 delivers professional cinema-grade performance in a compact, versatile body. Featuring a 4K Super 35mm Dual Gain Output (DGO) Sensor with 16+ stops of dynamic range, it captures breathtaking imagery with exceptional detail and tonal depth, ideal for film, broadcast, and high-end video production.

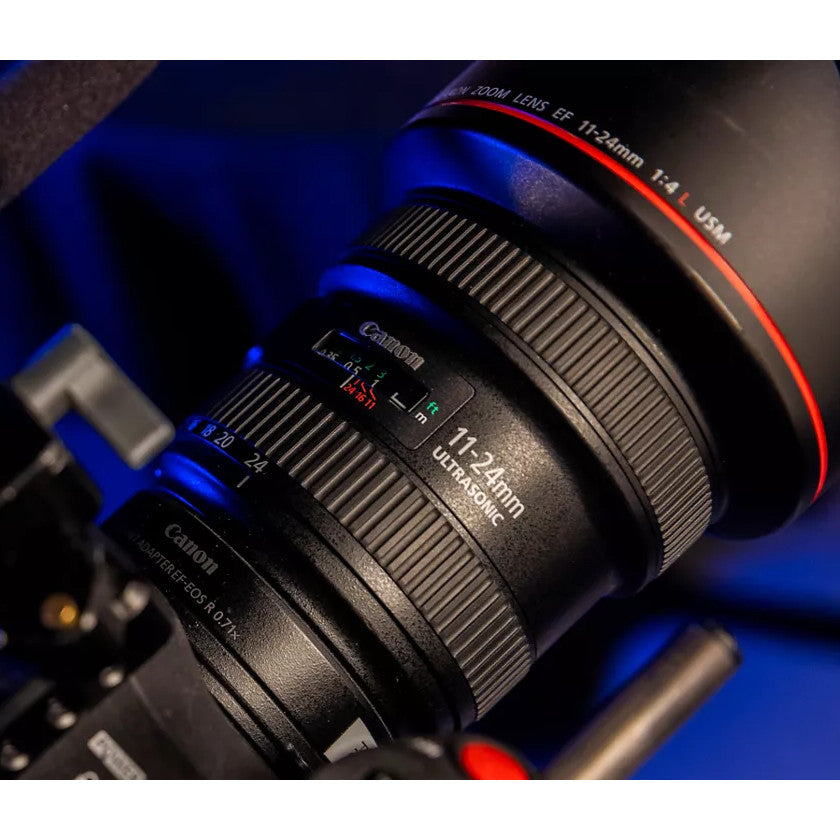

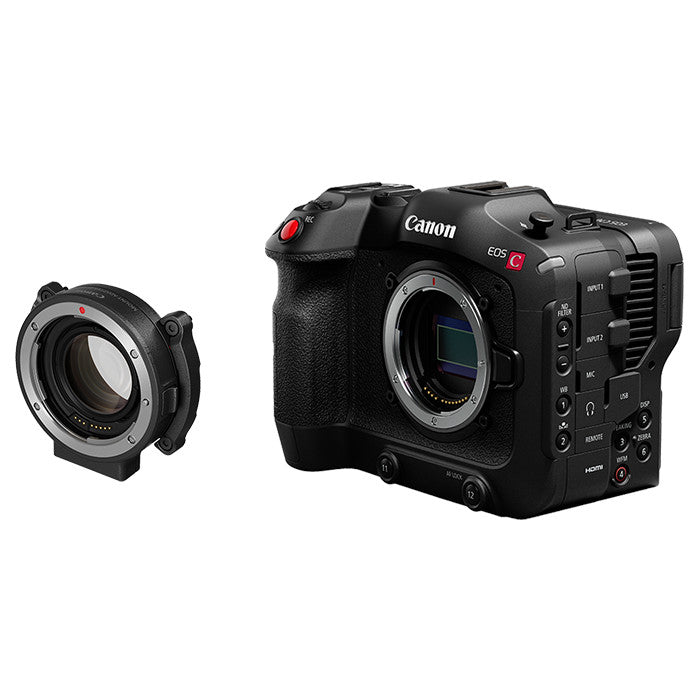

Powered by the DIGIC DV7 Image Processor, the C70 supports Canon Log 2 and 3, as well as PQ and HLG HDR recording, providing maximum flexibility in post-production and color grading. The camera offers RF mount compatibility with the option to use EF lenses via the EF-EOS R 0.71x mount adapter, expanding creative lens choices.

Designed for intuitive operation, the EOS C70 features a direct touch rotatable LCD screen, Dual Pixel CMOS Autofocus, built-in ND filters, and mini XLR inputs, making it highly adaptable for handheld, gimbal, or studio setups. With excellent battery life and Netflix-approved performance, the EOS C70 combines portability and professional-grade cinema capabilities.

Upcoming Firmware Features (Summer 2023):

• Enhanced Clear Scan shutter mode

• Improved Face Detection AF

• Waveform Monitor/Vector Scope magnification for precise exposure and color control

• Support for Canon Flex Zoom CN-E14-35MM T1.7 L S


Ideal For:
Filmmakers, content creators, and broadcast professionals looking for a compact, versatile Super 35mm cinema camera with advanced features, high dynamic range, and broad lens compatibility.

1. Image Sensor

• Type: CMOS, Super 35mm

• Effective Pixels:
• 4096 × 2160 (~8.85 MP for 4K/2K)

• 3840 × 2160 (~8.29 MP for UHD/Full HD)

• Total Pixels: 4206 × 2280 (~9.6 MP)

• Sensor Modes: Super 35mm, Super 16mm crop

• Pixel Pitch: 6.4 µm

• Scanning System: Progressive

• Filter: RGB Primary (Bayer Array)

• Processor: DIGIC DV 7

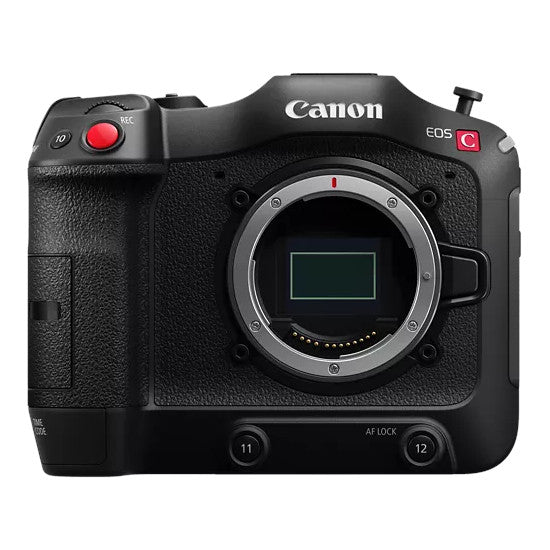

2. Lens System

• Mount: RF mount (default), supports RF lenses only

• Zoom/Focus Preset & Shockless Zoom: Not available

• Digital Teleconverter: Not available

• ND Filter: Mechanical ND filter system (Clear, 2, 4, 6 stops; 8 & 10 stops in extended mode)

• Correction Features: Peripheral illumination, chromatic aberration, distortion (RF lenses only), diffraction


3. Exposure & Metering

• Exposure Modes: Manual, Push Auto Iris, Auto Iris, Auto ISO

• Metering Modes: Standard, Spotlight, Backlight

• Gain / ISO:
• Normal: -6 dB to 54 dB

• Fine: -2 dB to 54 dB in 0.5 dB steps

• ISO Range: 100–102,400

• Exposure Compensation / AE Shift: –2.0 to +2.0 in 0.25 increments


4. Shutter

• Modes: Off, Speed, Angle, Slow Shutter, Clear Scan

• Speed Mode: 1/3 or 1/4 stop increments

• Shutter Speed Range:
• 59.94/24 Hz: 1/12–1/2000 s

• 50 Hz: 1/15–1/2000 s

• Shutter Angle Settings: 360° down to 11.25°


5. Iris Control

• Selectable Steps: 1/2-stop, 1/3-stop, Fine

• Modes: Push Auto Iris, Auto Iris (compatible lenses only)


6. Focus

• Control: Dual Pixel CMOS AF with EOS iTR

• Modes: Manual, Continuous AF, One-Shot AF, AF-Boosted MF, Face Detection AF

• Notes: Face Detection & Tracking AF available in slow & fast motion (24–120 fps)


7. Recording / Codec

• Video Codecs:
• XF-AVC: 10-bit / 8-bit proxy

• MP4 HEVC (H.265): 10-bit

• MP4 H.264: 8-bit

• RAW Recording: Cinema RAW Light (RAW HQ, RAW ST, RAW LT)

• Audio:
• XF-AVC: Linear PCM 24-bit / 48 kHz, 4 channels

• MP4 (HEVC/H.264): MPEG-2 AAC LC 16-bit / 48 kHz (2ch) or Linear PCM 16-bit / 48 kHz (4ch)

• File Formats: MXF (XF-AVC), MP4 (HEVC/H.264)

• File System: FAT32 (≤32 GB SDHC), exFAT (>32 GB SDXC)

• Max Clips per Media: 999


8. Playback & Monitoring

• Playback: Forward/reverse search, frame advance, rec review, clip skip

• Clip Display: 3×4 index

• Waveform / Scopes: Line display, Line + Spot, Line Select, RGB Parade, YPrPb Parade, Vectorscope, False Color

• Focus / Exposure Aids: Peaking, Zebra, Magnify, B/W mode, Focus Guide

• Pre-Record: Yes, 3 seconds cache (audio & video)


9. White Balance

• AWB: Available

• Kelvin Range: 2000K–15000K, 100K increments

• CC Correction: -20CC to +20CC, 1 CC step

• Presets: Daylight (5600K), Tungsten (3200K), Custom A/B

• Auto Black Balance: Available


10. Custom Picture / Display

• Custom Picture Slots: 20

• Adjustable Parameters: Gamma, Black, Black Gamma, Low Key Saturation, Knee, Sharpness, Noise Reduction, Skin Detail, Selective NR, Color Matrix, White Balance, Color Correction, Setup Level

• Display: Customizable LCD/EVF info display

• On-Screen Markers: Center, Horizontal, Grid, Aspect, Safety Zone, User marker (13 assignable buttons on body)


11. Sensitivity & Dynamic Range

• Sensitivity: 59.94 Hz: f/10 (2048×1080) / f/14 (1920×1080)
  50 Hz: f/11 (2048×1080) / f/16 (1920×1080)

• Dynamic Range: Canon Log 2: 16+ stops; Canon Log 3: 14 stops (ISO 800)

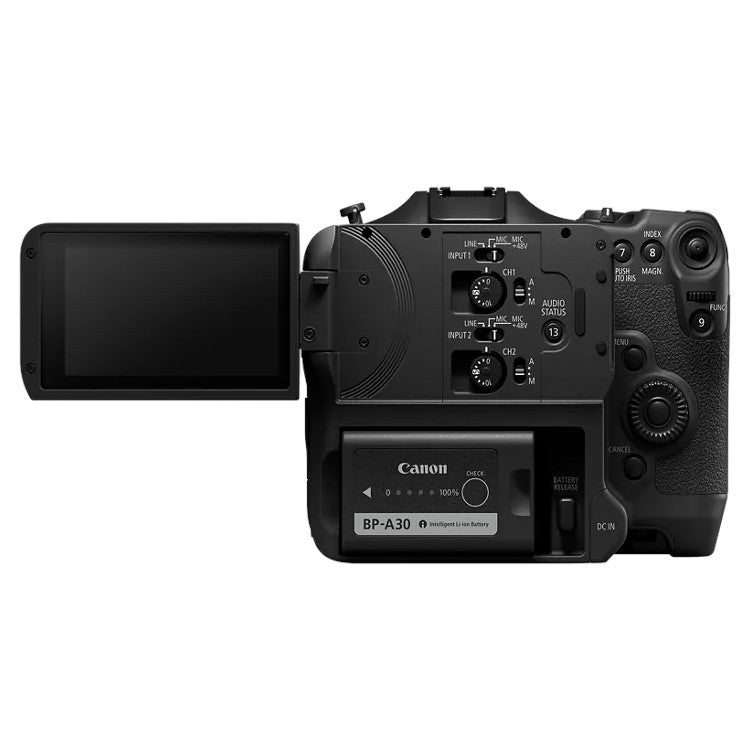

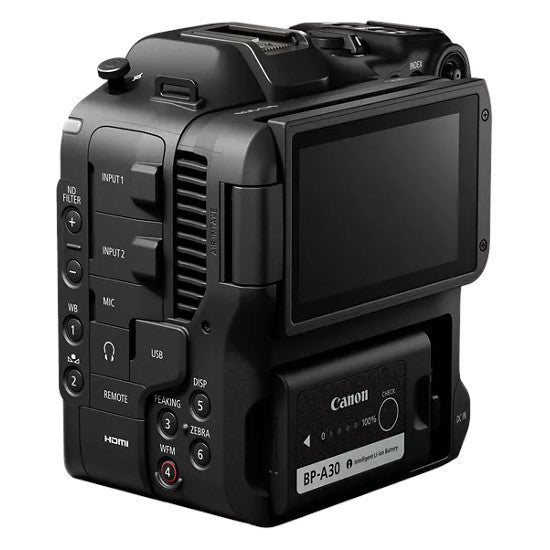

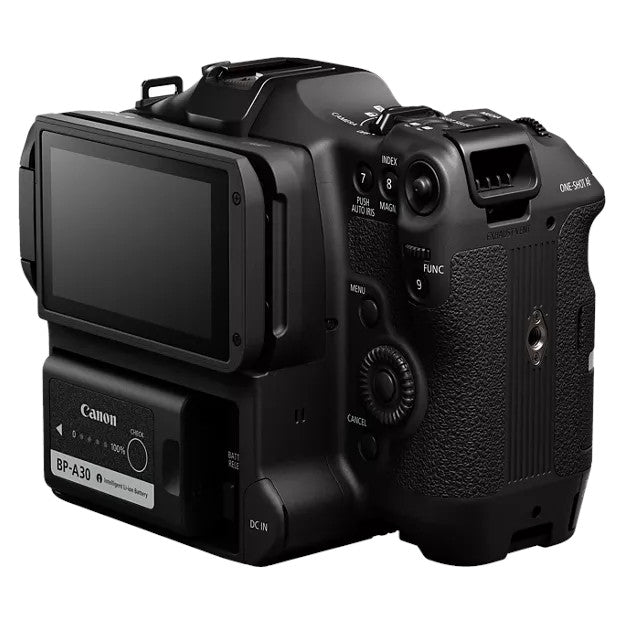

12. LCD Monitor

• Type: 3.5-inch, 2,760,000 dots, 16:9, 100% coverage

• Adjustments: Brightness, Contrast, Color, Sharpness, Luminance

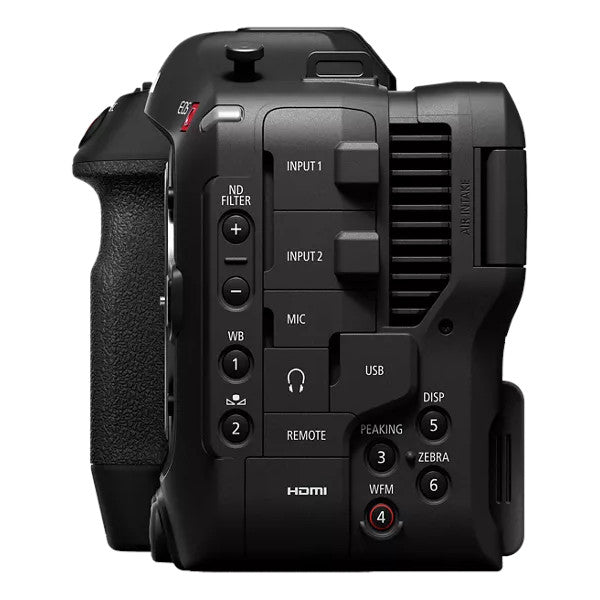

13. Input / Output

• Timecode: In/Out via BNC

• HDMI: Type A (up to 4096×2160)

• Audio Inputs: 2 × Mini-XLR, 3.5 mm mic terminal

• Headphone: 3.5 mm stereo

• Remote: LANC/RC-V100, WiFi/LAN Adapter

• USB & CCU: Yes (optional RC-V100)


14. Power

• Supply: 14.4V DC (battery), 24V DC (DC IN)

• Battery: BP-A Series (BP-A30, BP-A60)

• Compact Power Adapter: CA-CP200L


15. Dimensions & Weight

• Body Only: 130.2 × 160 × 115.9 mm

• Weight: 1.17 kg (2.6 lbs)

• BP-A30 Battery: 225 g

• Adapter CA-CP200L: 290 g


16. Environment / Miscellaneous

• Operating Temp: -5°C to 45°C, 60% humidity

• Performance Temp: 0°C to 40°C, 85% humidity

• Languages: English, Japanese, Chinese, German, Spanish, French, Italian, Korean, Russian

• Time / Date: Auto calendar (2020–2050), UTC support +14:00 to -12:00


This camera is a compact Super 35mm RF-mount cinema camera with mechanical ND, Dual Pixel AF with EOS iTR, advanced exposure & focus aids, internal RAW / XF-AVC / MP4 recording, and extensive HDR and LUT options.
