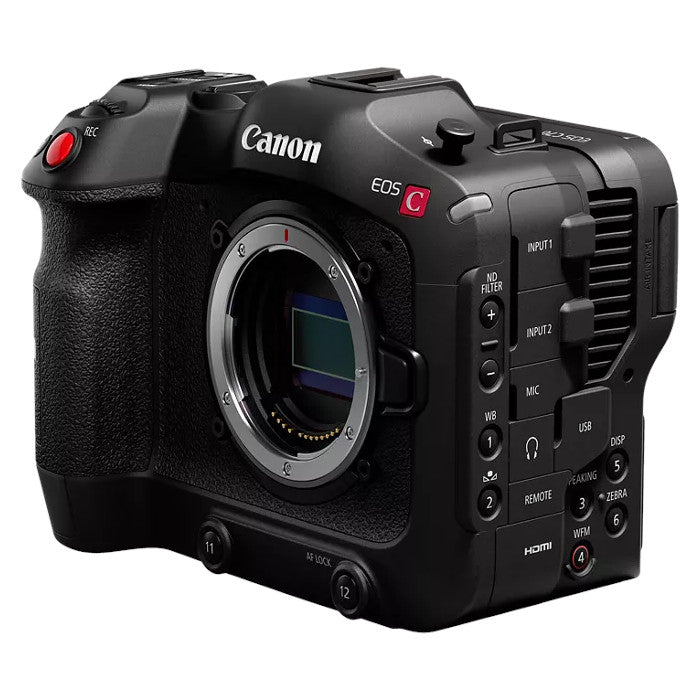

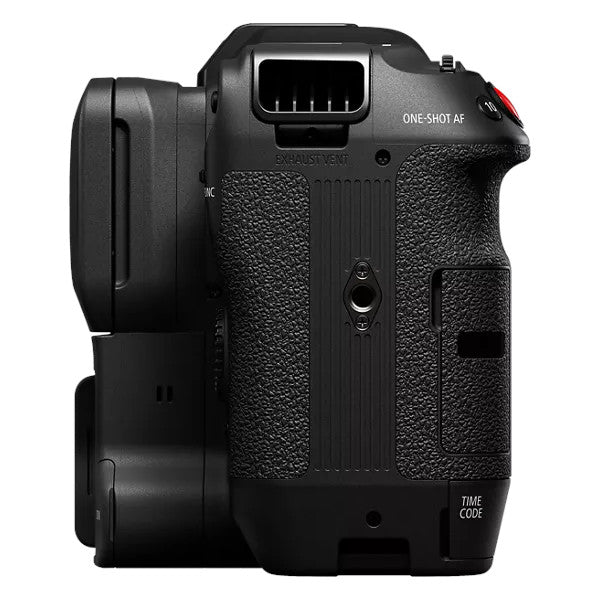

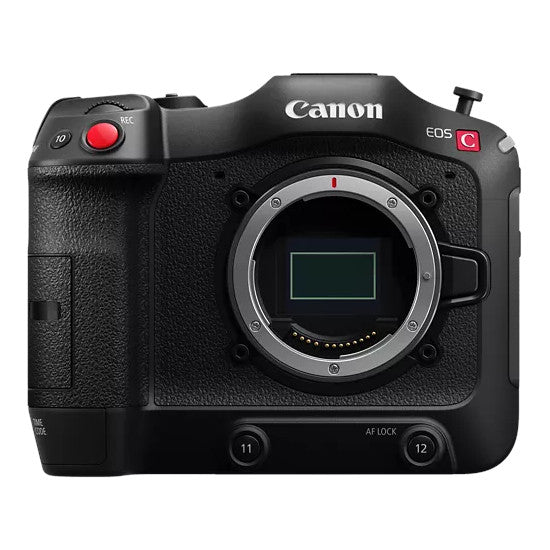

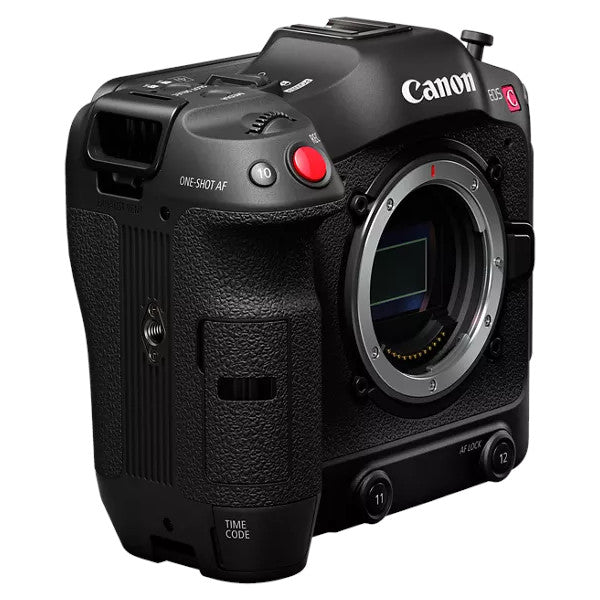

The Canon EOS C70 is a professional cinema camera featuring a Super 35mm Dual Gain Output (DGO) sensor that delivers over 16 stops of total dynamic range. Powered by the DIGIC DV7 image processor, this versatile camera supports Canon Log 2 and 3, PQ, and HLG recording, offering exceptional flexibility for high-end cinematic productions.
Designed with a compact, ergonomic body, the EOS C70 includes a rotatable touch LCD screen for direct control, built-in ND filters, and mini XLR inputs for professional audio capture. The camera features Dual Pixel CMOS Autofocus for precise, smooth focus tracking, ensuring outstanding image quality even in challenging lighting.
The EOS C70 provides RF mount compatibility, with support for EF lenses via the EF-EOS R 0.71x mount adapter, expanding your creative options. Approved for Netflix productions, this camera is ideal for filmmakers, content creators, and broadcast professionals seeking high-quality cinema capabilities in a portable form factor.
Upcoming Firmware Features (Summer 2023):
-
Enhanced Clear Scan shutter mode for flicker-free recording
-
Improved Face Detection Autofocus
-
Waveform Monitor/Vector Scope magnification for precise exposure control
-
Added support for Canon Flex Zoom CN-E14-35mm T1.7 L S
Ideal For:
The Canon EOS C70 is perfect for cinema, documentary, broadcast, and professional video productions requiring a compact camera with high dynamic range, professional audio options, and flexible lens compatibility.
Imaging Sensor
-
Type: CMOS, Single sensor, Super 35mm / Super 16mm (cropped)
-
Total Pixels: 4206 × 2280 (~9.6 MP)
-
Effective Pixels:
-
4096 × 2160 (~8.85 MP)
-
3840 × 2160 (~8.29 MP)
-
Sensor Size:
-
4K: 26.2 × 13.8 mm (29.6 mm diagonal)
-
UHD: 24.6 × 13.8 mm (28.2 mm diagonal)
-
Pixel Pitch: 6.4 µm
-
Scanning: Progressive
-
Color Filter: RGB Bayer Array
-
Imaging Processor: DIGIC DV 7
Lens System
-
Lens Mount: RF Mount (default)
-
ND Filter: Mechanical, clear / 2 / 4 / 6 stops; 8 & 10 stops in extended mode
-
Lens Corrections: Peripheral illumination, chromatic aberration, distortion (RF lenses), diffraction
-
Zoom/Focus Preset & Shockless Zoom: Not available
-
Digital Teleconverter: Not available
Exposure & Metering
-
Exposure Modes: Manual, Push Auto Iris, Auto Iris, Auto ISO
-
Metering Modes: Standard, Spotlight, Backlight
-
Gain: Normal -6 dB to 54 dB; Fine -2 dB to 54 dB (0.5 dB steps)
-
ISO: 100–102,400
-
AE Shift/Compensation: ±2.0 in 0.25 steps
Shutter
-
Modes: OFF, Speed, Angle, Slow Shutter, Clear Scan
-
Speed Mode: 1/3 or 1/4 stop increments
-
Speed Range: 1/12 – 1/2000 sec (59.94/24 Hz), 1/15 – 1/2000 sec (50 Hz)
-
Shutter Angles: 360°–11.25° (varies by system frequency)
Focus
-
Dual Pixel CMOS AF with EOS iTR
-
Focus Modes: Manual, Continuous AF, One-Shot AF, AF-Boosted MF, Face Detection AF
-
Supported in Slow & Fast recording modes (24–120p)
-
Only compatible AF lenses supported
Recording
-
System Frequency: 59.94 Hz, 50.00 Hz, 24.00 Hz
-
Frame Rates:
-
59.94 Hz: 59.94i/P, 29.97P, 23.98P
-
50 Hz: 50i/P, 25P
-
24 Hz: 24P
-
Color Gamuts: Cinema Gamut, BT.709, BT.2020
-
Gamma Curves: Canon 709, BT.709, Wide DR, Canon Log 2/3, PQ, HLG
-
Internal Recording:
-
RAW / Cinema RAW Light: RAW HQ, RAW ST, RAW LT
-
XF-AVC: 10-bit/8-bit (proxy), MP4 (H.265/HEVC 10-bit, H.264 8-bit)
-
File Formats: MXF (XF-AVC), MP4 (HEVC/H.264)
-
File System: FAT32 (≤32 GB), exFAT (>32 GB)
Audio
-
Built-in: Stereo/monaural
-

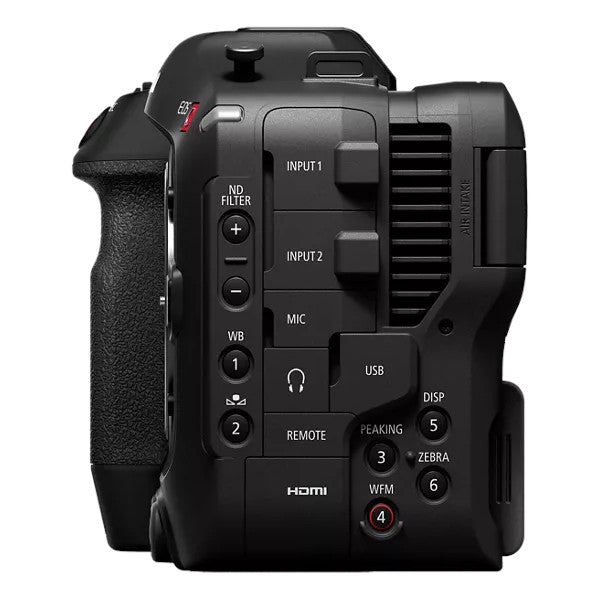

Inputs: 2 × Mini-XLR (Mic/Line, phantom +48V), 3.5 mm mic input
-
Channels: Up to 4-channel recording
-
Recording Formats: Linear PCM 24-bit/48 kHz (XF-AVC), AAC LC 16-bit/48 kHz (MP4)
-
Limiter, XLR trim, headphone output (16 levels)
Monitoring & Playback
-

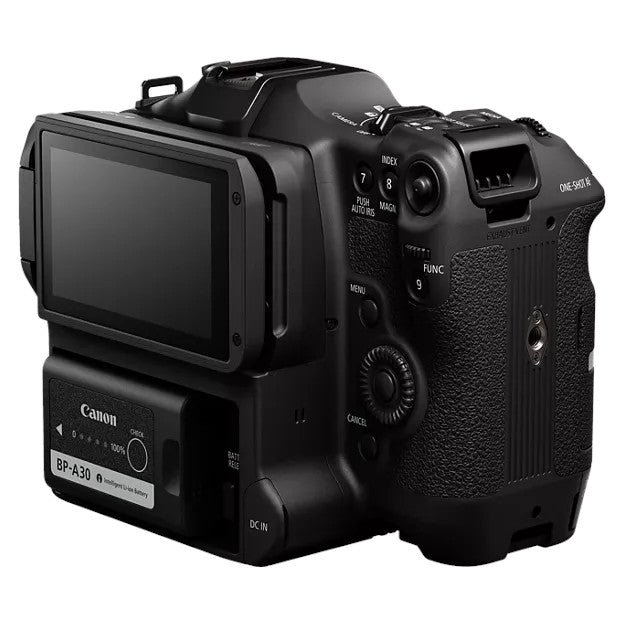

LCD: 3.5-inch, 2.76 million dots, 16:9, 100% coverage
-
EVF: Not specified (assumed optional)
-
Playback: Forward/reverse search, frame advance, record review
-
Waveform, Vectorscope, False Color, Peaking, Zebra, Magnify, Focus Guide
-
Pre-Record: 3 seconds (audio + video)
-
Timecode: Drop Frame / Non-Drop Frame, Regeneration / Record Run / Free Run / External Source
White Balance
-
Auto WB: Available
-
Kelvin: 2,000–15,000 K (100K steps)
-
CC Adjustment: -20 to +20
-
Presets: Daylight 5600K, Tungsten 3200K, Custom A/B
Custom Picture
-
20 slots, adjustable Gamma, Black, Knee, Sharpness, Noise Reduction, Skin Detail, Color Matrix, WB, Color Correction
-
Can be saved to SD card for transfer
Markers & User Interface
-
On-screen markers: Center, horizontal, grid, aspect, safety zone, user-defined (color selectable)
-
13 assignable body buttons
Power & Connectivity
-
Power: 14.4V DC (battery), 24V DC (DC IN)
-

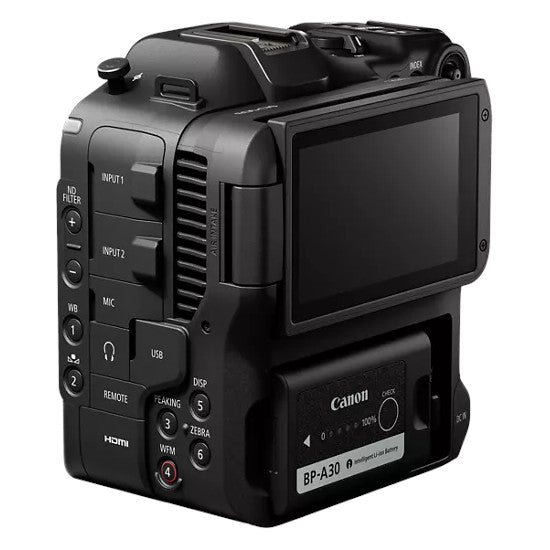

Battery: BP-A30 / BP-A60
-
Optional: Compact Power Adapter CA-CP200L, Battery Charger CG-A20
-
USB: Yes
-
HDMI: Type A (4096×2160/3840×2160/1920×1080/1280×720)
-
Remote: LANC / RC-V100 / Wi-Fi / LAN
Physical
-
Dimensions: 130.2 × 160 × 115.9 mm (body only)
-
Weight:
-
Body: 1.17 kg / 2.6 lbs
-
BP-A30 battery: 225 g / 7.9 oz
-
Operating Temp/Humidity: -5ºC to 45ºC, 60%; Performance: 0–40ºC, 85%
Key Features
-
Super 35mm sensor with Canon Log 2/3, PQ, HLG
-
Dual Pixel CMOS AF with face detection and tracking
-
Cinema RAW Light internal recording, XF-AVC, HEVC / MP4
-
Extensive exposure, shutter, and iris control, with mechanical ND filters
-
Professional audio support with 4 channels, XLR input, phantom power
-
Waveform, vectorscope, false color, focus aids, pre-record
-
Compact, cinema-oriented design, supports battery and DC power
