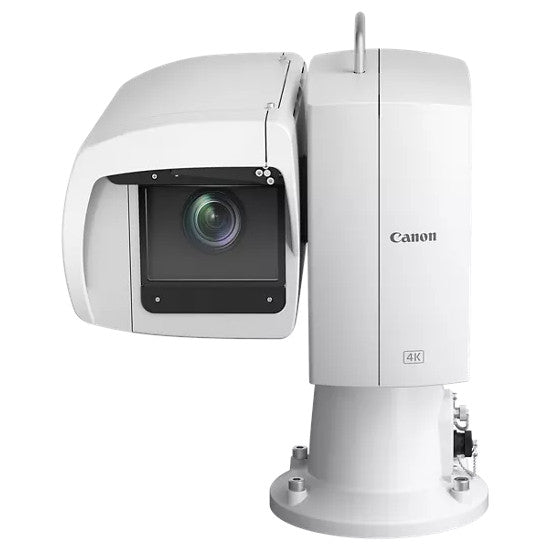

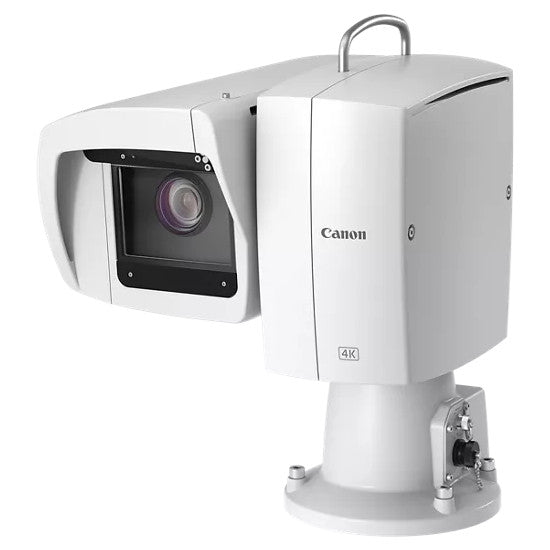

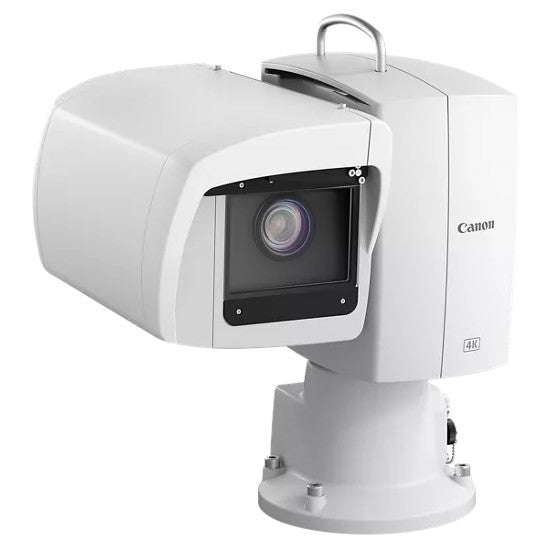

The Canon CR-X500 is a high-performance 4K PTZ camera designed for outdoor broadcasting, live events, sports, traffic, and weather monitoring. Built for professional applications, it combines rugged weather-resistant design with advanced imaging technology to deliver stunning 4K video in any environment.
Key Features
-
1" CMOS Sensor with Dual Pixel Autofocus: Ensures fast, precise focus and sharp 4K imagery.
-
High-Quality 4K 60p Output: Smooth, high-resolution video suitable for live broadcasting and recording.
-
15x Optical Zoom Lens (30x FHD): Flexible framing with wide-angle to telephoto coverage and optical image stabilization for steady shots.
-
Canon Color Science & Wide Dynamic Range: Delivers true-to-life colors with support for Canon Log 3 for advanced post-production flexibility.
-
IP55 Outdoor Rating with Wiper: Dust and water-resistant housing with lens wiper ensures reliability in harsh environments.
-
12G-SDI Video Output: Supports high-bandwidth 4K signals over a single cable for professional connectivity.
-
Dual DIGIC DV 6 Image Processors: Provides fast processing for smooth 4K UHD video and accurate image rendering.
Why Choose the CR-X500
The CR-X500 4K PTZ camera is ideal for broadcasters, live event producers, sports arenas, and public safety monitoring who require high-resolution video, precise autofocus, and rugged outdoor durability. Its combination of Canon’s renowned color science, advanced 4K imaging, and robust design ensures reliable, professional results in any outdoor scenario.
General
-
Color: White
-
Operating Condition: Outdoor
-
Environmental Protection: IP55 (dustproof & waterproof), salt-resistant paint
-
Wiper: Yes
-
Noise: < NC55 at <10°/sec pan/tilt
-
Wind Resistance: Normal 0–25 m/s, Operational 25–35 m/s, Non-destructive 35–60 m/s
Sensor & Imaging
-
Sensor: 1.0-inch CMOS
-
Total Pixels: ~13.4 MP
-
Effective Pixels: ~8.29 MP (3840 x 2160)
-
Color Sampling: 4:2:2, 10-bit
-
Minimum Subject Illumination: ~3 lux (1/60 sec., 59.94P, Gain 33 dB)
-
White Balance: Auto (AWB), Set
-
Focus: Dual Pixel CMOS AF
-
Gamma Options: BT.709, BT.2020, Wide DR, PQ, HLG, Canon Log 3
Lens
-
Focal Length: 8.3 – 124.5 mm
-
35mm Equivalent: 25.5 (W) – 382.5 mm (T)
-
Zoom: 15× optical, 30× Advanced Zoom FHD
-
Aperture: F/2.8 – 4.5, 9-blade iris
-
Lens Configuration: 18 elements in 14 groups (2 aspheric elements)
-
ND Filter: Built-in (Off, 1/4, 1/16, 1/64), motor operated
-
Iris: Auto / Manual
-
Shutter Speed: 1/3 – 1/1000 sec., Auto / Manual
-
Gain: 0 – 33 dB, Auto / Manual
Pan / Tilt
-
Pan Range: ±170°
-
Pan Speed: 0.5° – 25°/sec
-
Tilt Range: -50° – +30°
-
Tilt Speed: 0.3° – 20°/sec
-
Pan/Tilt/Zoom: Simultaneous
-
Repeatability: ±7’
-
Turning Radius: Pan 620 mm, Tilt 430 mm
Video Output
-
SDI:
-
3840 × 2160 @ 59.94P, 4:2:2 10-bit
-
1920 × 1080 @ 59.94P/i, 50/25/29.97/23.98P, 4:2:2 10-bit
-
Supported Protocols: Canon NU Protocol

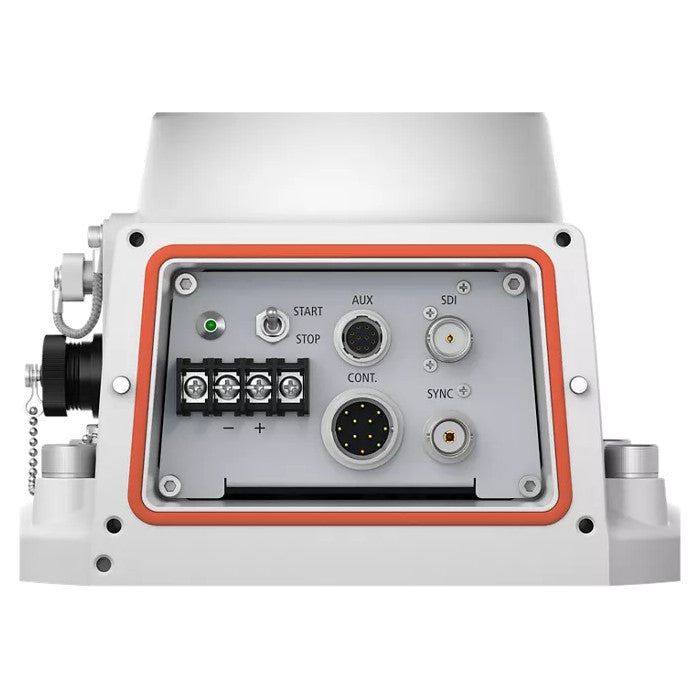

Interface
-
Control: RS-422 Serial
-
12G-SDI OUT: BNC × 1 (output only)
-
GEN-LOCK: BNC × 1
-
AUX Terminal: Yes
Power & Physical
-
Power Source: DC 10.5–15 V, 90 W (external)
-
Dimensions: 337 × 390 × 386 mm (13.27 × 15.35 × 15.2”)
-
Weight: ~17 kg (37.5 lbs)
-
Supported Controllers: RC-IP100
This is a rugged, high-performance outdoor PTZ camera with large 1-inch sensor, dual pixel AF, 4K output, strong environmental protections, and high-precision pan/tilt mechanisms.
