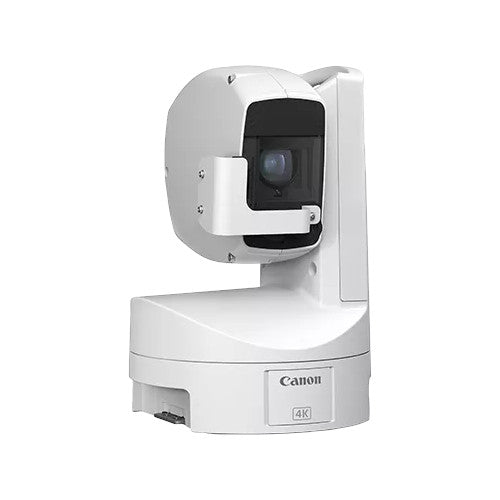

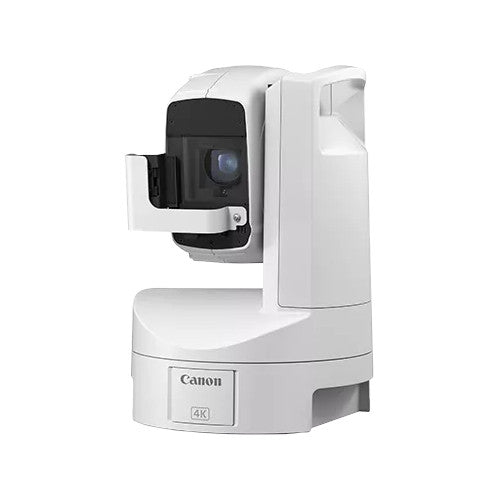

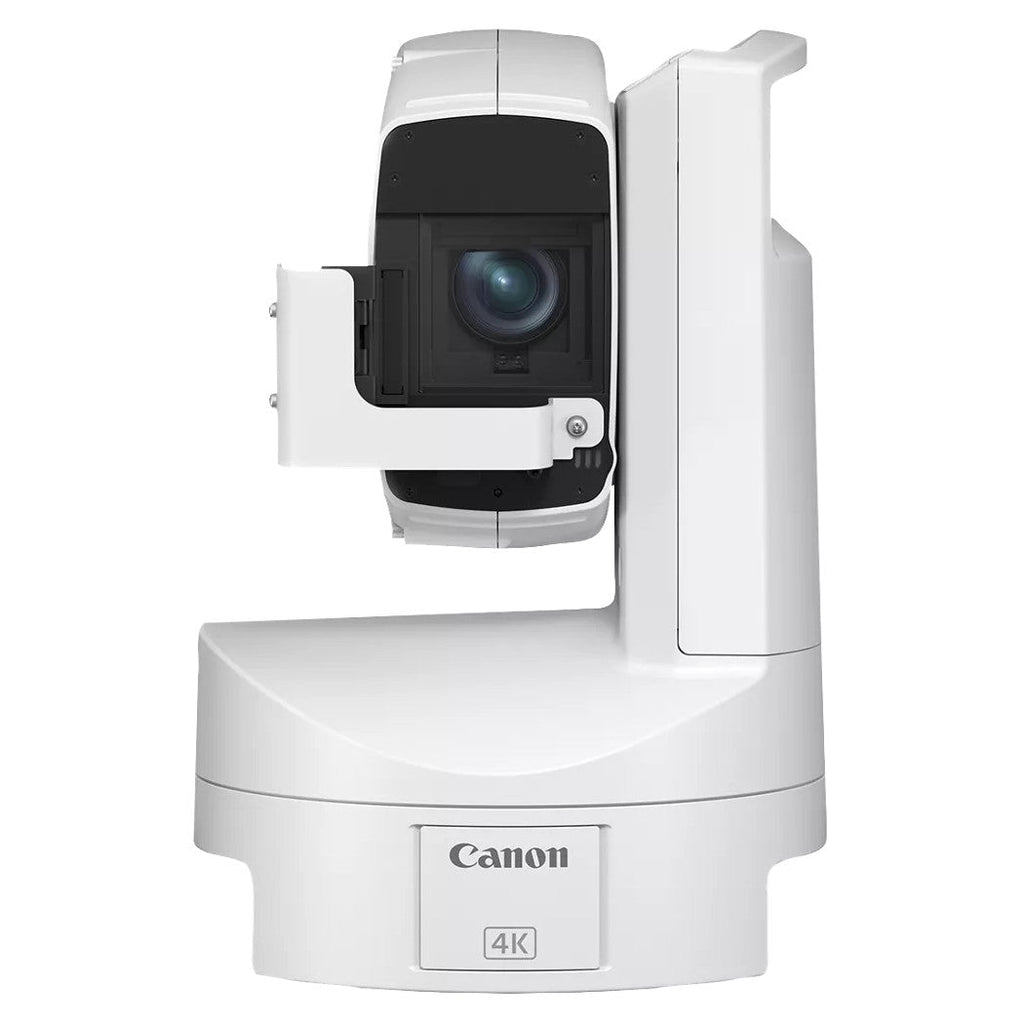

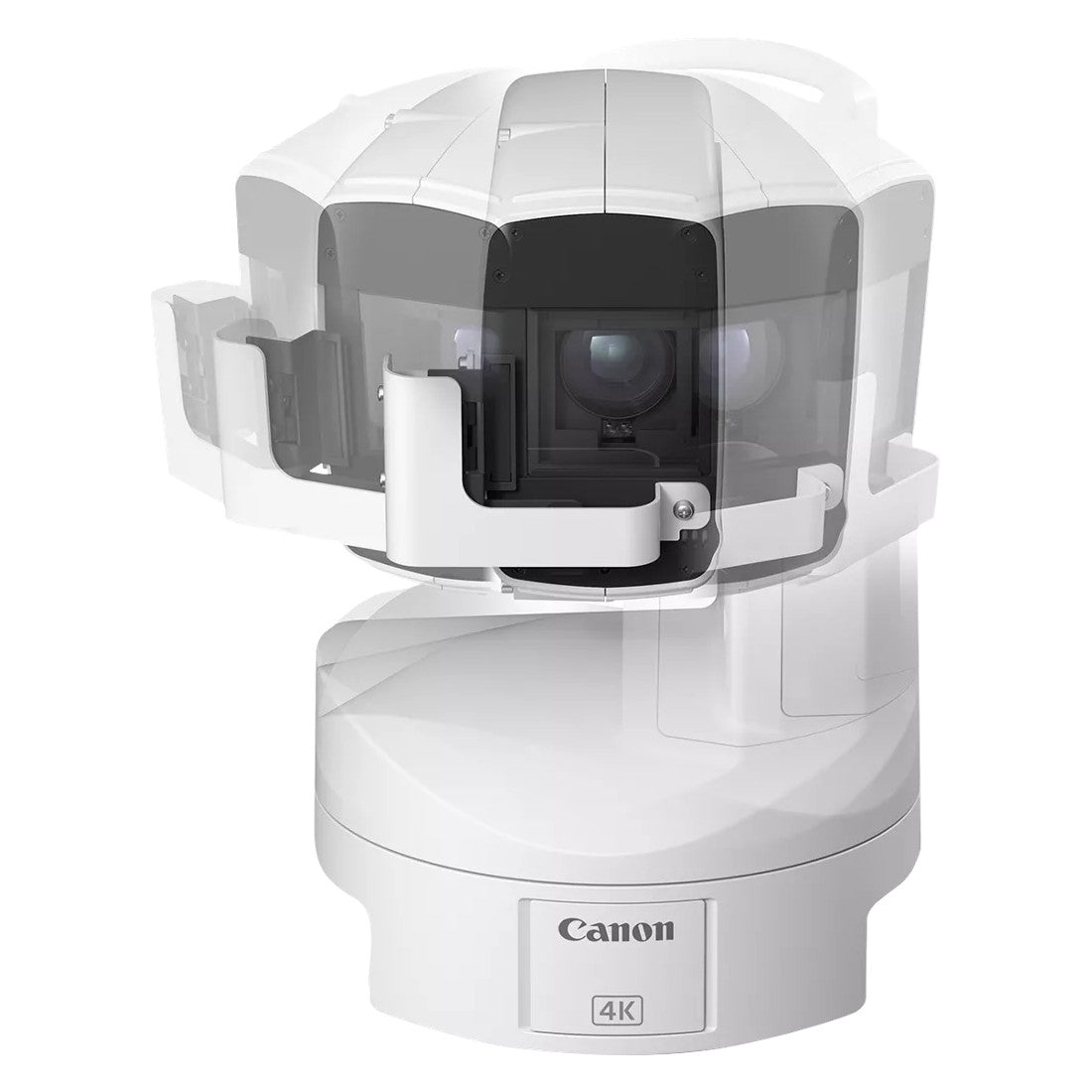

The Canon CR-X300 is a high-performance 4K PTZ camera designed for professional broadcast, live events, sports, and government applications. Compact, lightweight, and weather-resistant, this PTZ camera delivers stunning 4K video and versatile connectivity in virtually any environment.
Key Features
-
1/2.3" CMOS Sensor with Hybrid Auto Focus: Fast and accurate focusing for sharp UHD and Full HD video.
-
4K 30p & Full HD 60p Video Output: Smooth and high-resolution video for professional live production and recording.
-
20x Optical Zoom Lens with Optical Image Stabilization: Flexible framing from wide-angle to telephoto while maintaining image stability.
-
Canon Color Science: True-to-life colors and dynamic range for cinematic video quality.
-

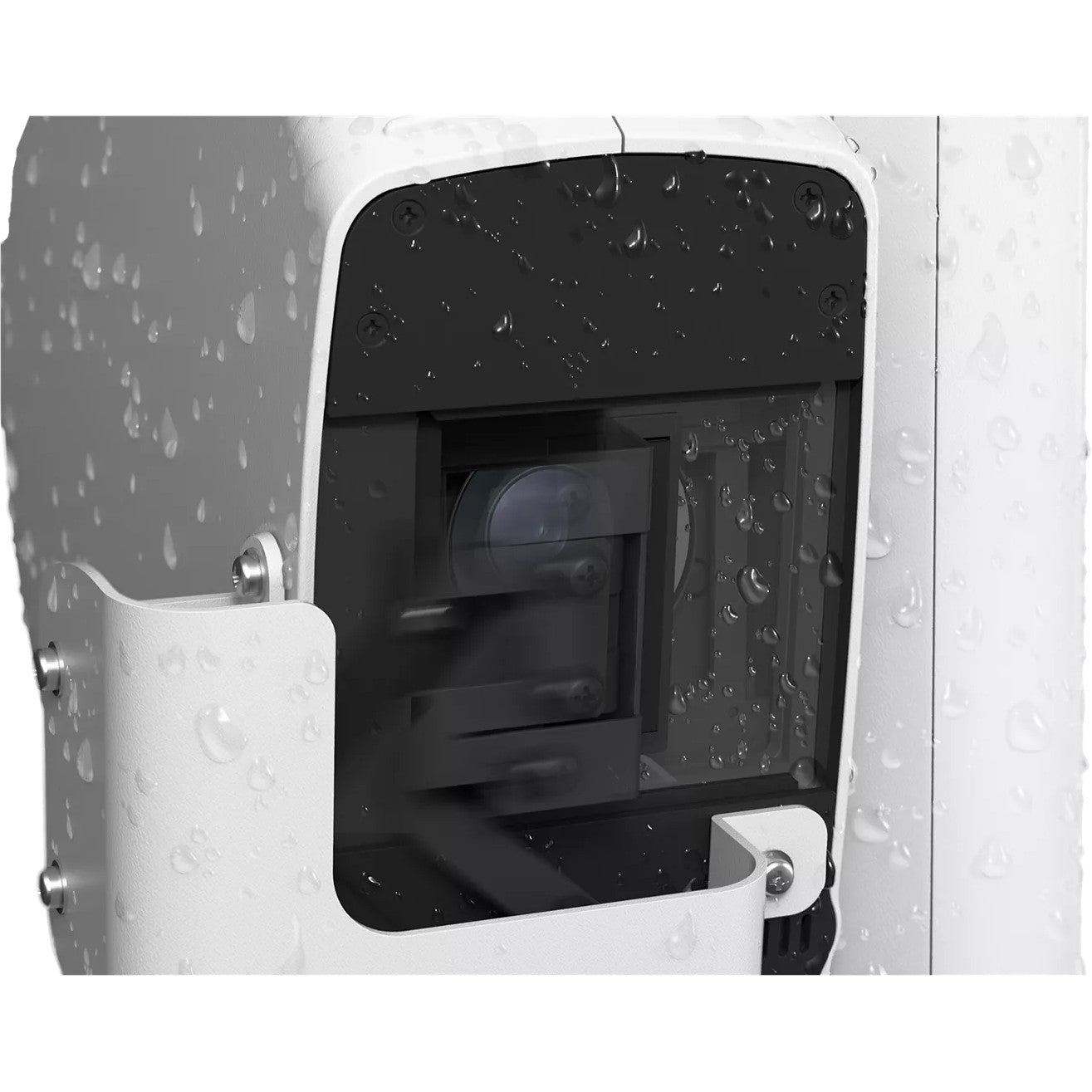

IP65 Outdoor Rating with Wiper: Dust and water protection for reliable operation in outdoor conditions.
-
6G-SDI, HDMI, and IP Video Out: Professional-grade connectivity for broadcast and production setups.
-
Built-in NDI|HX and SRT Support: Seamless IP streaming, remote control, and low-latency video transport over networks.
-
PoE++ Support & Multi-Protocol Integration: Power, control, tally, and streaming via a single cable, with compatibility for Canon XC Protocol and standard IP/serial control.
Why Choose the CR-X300
The CR-X300 excels in high-end production environments, offering a compact, weatherproof design paired with Canon’s renowned imaging quality. With extensive streaming, control, and connectivity options—including PoE++ and NDI|HX2—it’s ideal for multi-camera productions where versatility, portability, and professional image quality are essential.
General
-
Color: Titanium White
-

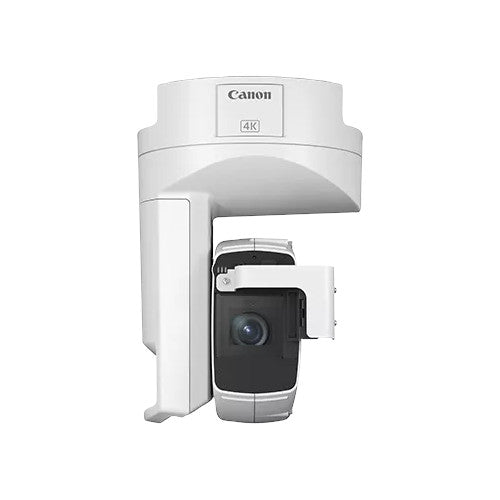

Installation: Upright / Ceiling
-
Dust/Water Resistance: IP65
-
Paint: Outdoor-rated
-

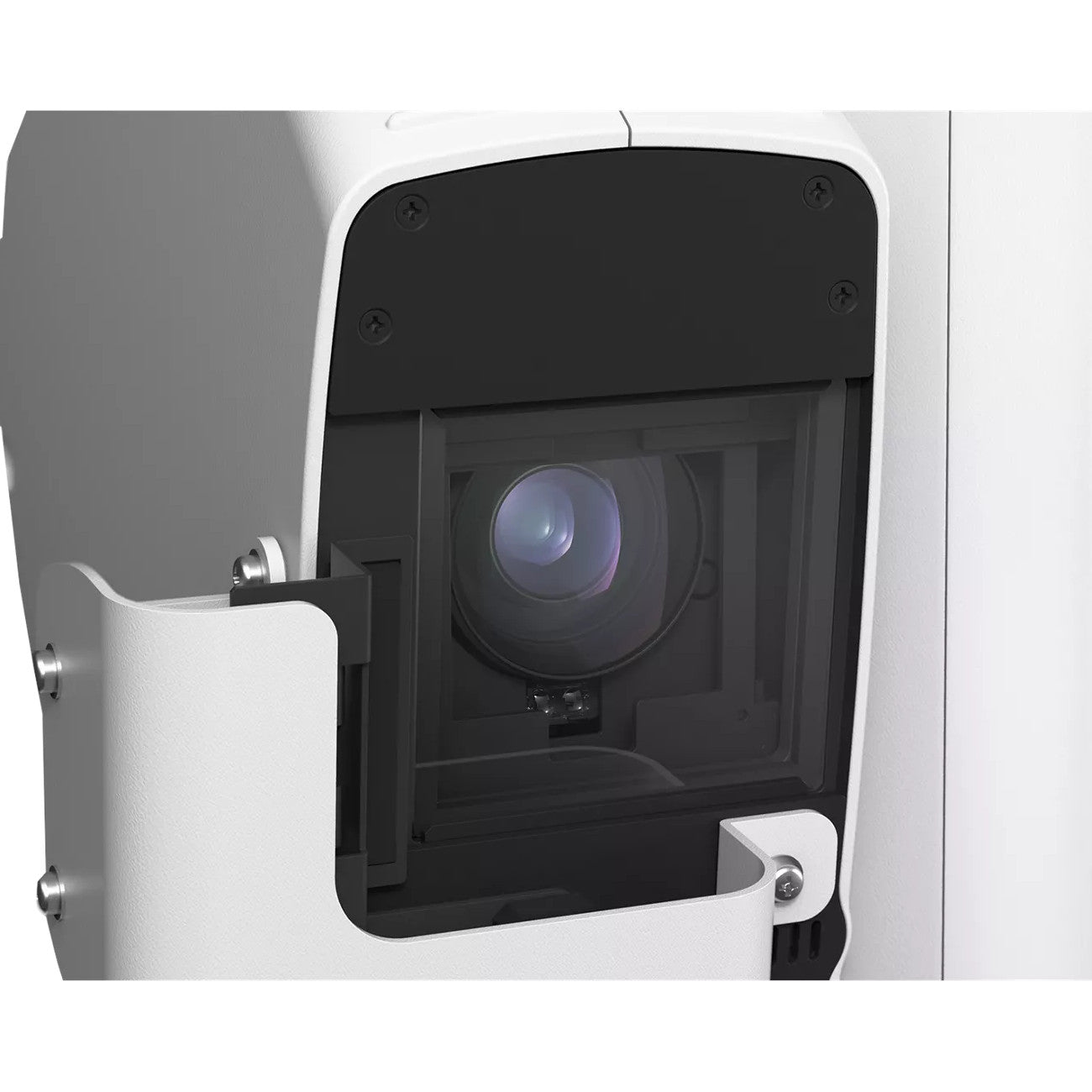

Wiper: Equipped
-
Noise: NC45 or lower (at 60°/sec)
-
Survival Wind Speed:
-
Normal: 15 m/s
-
Operation possible: 30 m/s
-
Non-destructive: 60 m/s
Sensor & Imaging
-
Sensor: 1/2.3-inch single-plate CMOS
-
Total Pixels: ~21.14 MP
-
Effective Pixels: ~8.29 MP (3840 x 2160)
-
Minimum Subject Illumination: ~3 lux (1/60 sec., 59.94 Hz, Gain 36 dB)
-
Color Space: BT.709, BT.2020
-
Gamma: Normal1, Normal3
-
White Balance: Auto (AWB), Set A/B, Manual, 2000–15000 K
-
Gain: 0–36 dB
-
IR Mode: Electrically switchable
-
ND Filter: 1/8 standard, 1/32 enhanced
-
Video Flip: Supports auto/upright/ceiling installation
-
Built-in Microphone: Yes (waterproof)
Lens
-
Focal Length: 3.67 – 73.4 mm
-
35mm Equivalent: 29.3 – 601 mm (4K UHD), 30.5 – 627 mm (Full HD)
-
Optical Zoom: 20×
-
Digital Zoom: 20×
-
Aperture: F/1.8 – 2.8, 8-blade circular
-
Lens Elements: 12 in 10 groups (2 aspheric)
-
Minimum Focusing Distance: 1 cm (wide), 60 cm (throughout zoom)
-
Focus Modes: Manual, Continuous AF, Face Detection AF, Tracking AF (Hybrid AF/Contrast AF)
-
Shooting Modes: F.Auto, P, Tv, Av, M
-
Scene Modes: Portrait, Sports, Low Light, Spotlight
-
Image Stabilization: Optical-shift (Standard IS, Powered IS)
Pan / Tilt
-
Pan Range: ±180°
-
Tilt Range: -40° – +215°
-
Pan/Tilt Speed: 0.3° – 60°/sec
-
Position Accuracy: ±10’
-
Noise: NC45 or lower (60°/sec)
Video Output
-
SDI (6G): 3840×2160 up to 29.97P, 1920×1080 up to 59.94P, 1280×720 up to 59.94P (4:2:2 10-bit)
-
HDMI: Same as SDI (formats must match SDI/HDMI; no simultaneous 4K output to both)
-
IP: Multiple resolutions and frame rates (4:2:0 8-bit), supports 1920×1080, 1280×720, 640×360, 3840×2160 at selected frame frequencies
-
Video Protocols: XC, RTSP/RTP, NDI|HX2, RTMP/RTMPS
-
Control Protocols: XC, NU, NDI|HX, Standard Serial/IP
Interface
-
LAN: RJ45, 1000Base-T
-
6G-SDI: BNC output ×1, embedded audio + VITC/LTC
-
GEN-LOCK: BNC input ×1
-
HDMI: HDMI connector ×1 (output only)
-
RS-422: RJ45 ×1
-
AUX Terminal: 1
Power
-
PoE++: IEEE802.3bt (PoE / PoE+ cannot be used)
-
DC Input: 12 V DC (included cable)
-
Power Consumption:
-
PoE++: 39.8 W max
-
DC Input: 37.7 W max
Physical
-
Dimensions: 8.54 × 12.24 × 8.54 in (217 × 311 × 217 mm)
-
Weight: ~15.5 lbs (7 kg, body only)
Other
-
Supported Controllers: RC-IP100, Remote Camera Control App
This camera is a heavy-duty, high-zoom, outdoor PTZ with full IP/SDI/HDMI output, 4K video, optical stabilization, weatherproofing, and advanced ND/IR control—ideal for outdoor surveillance, broadcast, and live event coverage.
