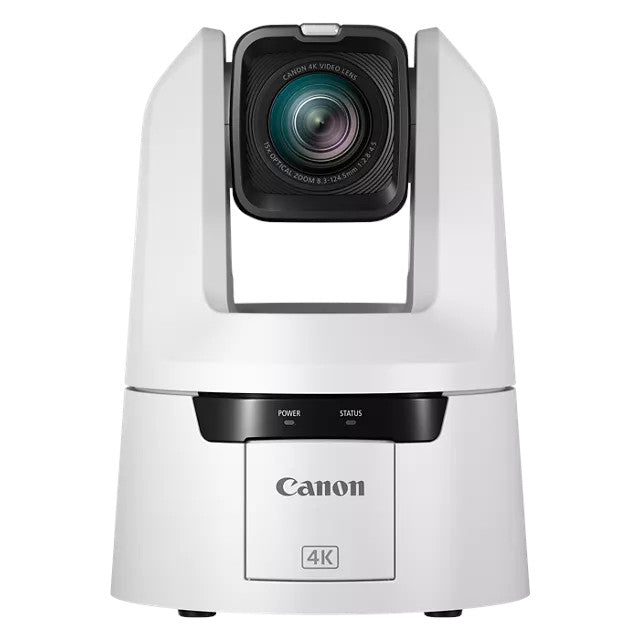

Canon CR-N700 4K NDI 15x Zoom PTZ Camera | Color: White

The Canon CR-N700 PTZ camera sets a new standard for professional broadcast, live production, and high-end studio environments. Equipped with a 1” 4K UHD CMOS sensor and Dual Pixel Autofocus with EOS iTR AF X, it delivers precise, fast focus tracking and incredible image quality even in challenging shooting conditions.

Key Features

• 1” 4K UHD CMOS Sensor with Dual Pixel AF & EOS iTR AF X for advanced subject tracking and clarity.

• High-Quality 4K60p Video Output with 10-bit HDR support (HLG/PQ) for broadcast-ready imaging.

• 15x Optical Zoom Lens (30x FHD) with Optical Image Stabilization for smooth zooms and wide coverage.

• Built-in ND Filter for consistent exposure in bright environments.

• Canon Color Science: Supports Wide DR, Canon Log 3, HDR, and EOS Standard/Neutral Image Modes.

• Professional Connectivity: 12G-SDI, 3G-SDI, HDMI, and IP outputs for flexible workflows.

• Audio Inputs: Dual XLR and 3.5mm mic/line with Genlock for sync.

• Built-in NDI|HX & SRT Support for IP streaming and remote production.

• FreeD Support for AR/VR virtual production.

• PoE++ Support for single-cable operation including power, control, tally, and video.

• Flexible Control Protocols: Canon XC Protocol and Standard Protocol (serial/IP) for integration with third-party systems.

• Color: White


Ideal For

Designed for broadcast studios, live events, corporate productions, houses of worship, and sports coverage, the CR-N700 provides unparalleled image quality, advanced autofocus, and professional-grade connectivity in a compact PTZ form factor.

Camera Specifications

Color Options: Satin Black / Titanium White

Image Sensor

• Type: 1.0-inch single-plate CMOS sensor

• Total Pixels: ~13.40 MP

• Effective Pixels: ~8.29 MP (3840 × 2160)


Lens

• Focal Length: f=8.3–124.5 mm, F/2.8–4.5

• Optical Zoom: 15×

• Digital Zoom: 20×

• Advanced Zoom (FHD): 30×

• 35mm Equivalent: ~25.5 mm (W) – 382.5 mm (T)

• Lens Construction: 14 groups of 18 elements (2-sided aspherical + super-UD lenses)

• Minimum Focusing Distance: 1 cm (wide), 60 cm (through zoom)

• Iris: 9-bladed diaphragm

• ND Filter: 3 levels (ND1 1/4, ND2 1/16, ND3 1/64), glass, sunlight burn-in protection, motorized turret


Imaging & Exposure

• Shutter Speed: 1/3 – 1/2000 sec (dependent on frame rate)

• Gain: -6.0 dB – 33.0 dB

• White Balance: AWB, Set A/B, Presets (Daylight 5600K, Tungsten 3200K), Manual (2000–15000K)

• Focus Modes: Manual, AF-boosted MF, Continuous AF, Face Detection & Tracking, Face-only AF, Eye Detection

• AF Type: Dual Pixel CMOS AF, Contrast AF

• Gamma Options: BT.709 Normal / Wide DR / Standard, Canon Log 3, HDR (PQ/HLG)

• Image Stabilizer: Optical


Pan & Tilt

• Pan Range: ±170° | Speed: 0.1° – 100°/sec

• Tilt Range: -30° – +90° | Speed: 0.1° – 100°/sec


Video Output

3G-SDI:

• 1920 × 1080: 59.94P/i, 50P/i, 29.97P, 25.00P, 23.98P (4:2:2 10-bit)

• 1280 × 720: 59.94P, 50.00P (4:2:2 10-bit)


12G-SDI:

• 3840 × 2160: 59.94/50/29.97/25/23.98P (4:2:2 10-bit)

• 1920 × 1080 & 1280 × 720: same as above

• 720 × 576: 50i | 720 × 480: 59.94i (4:2:2 10-bit)


HDMI:

• 3840 × 2160: 59.94/50/29.97/25/23.98P (4:2:2 10-bit)

• 1920 × 1080, 1280 × 720, 720 × 576/480: supported as above


IP Streaming:

• 3840 × 2160 down to 640 × 360: 59.94 – 5 fps (various frame rates, 4:2:0 8-bit)

• Supported Protocols: XC, RTSP/RTP, NDI|HX, RTMP/RTMPS, Serial/IP, FreeD, SRT

• Presets: Max. 100 (including home)


Interfaces & Control

• Communication: LAN, Wi-Fi, Serial, IR

• Network Terminal: RJ45, 1000Base-T

• SDI OUT: 12G & 3G SDI, BNC, 0.8 Vp-p/75Ω, SMPTE compliant, embedded audio & timecode

• GEN-LOCK: BNC ×1, 1.0 Vp-p/75Ω

• Time Code Terminal: BNC ×1, 1.3 Vp-p/50Ω

• RS-422: RJ45 ×1


Audio:

• Input 1/2: 3-pin balanced XLR, MIC -60 dBu, LINE +4 dBu, 48 V DC phantom

• Mic: 3.5 mm mini jack, MIC -72 dBV, LINE -10 dBV, 2.4 V DC bias

• Media: SD card ×1, microSD ×1 (future expansion, no recording)


Power & Environment

• PoE++ (IEEE802.3bt via LAN, optional)

• External Power: 12 V DC (4-pin XLR input)

• Operating Temp/Humidity: 0–40°C, 10–90% RH

• Storage Temp/Humidity: 0–40°C, 10–90% RH

• Quietness: NC30 or lower


Physical

• Dimensions: 200 × 269 × 208 mm (7.87 × 10.59 × 8.19 in)

• Weight: 4.1 kg (9.04 lbs)


Supported Controllers

• Hardware: RC-IP100

• Software: Remote Camera Control Application
