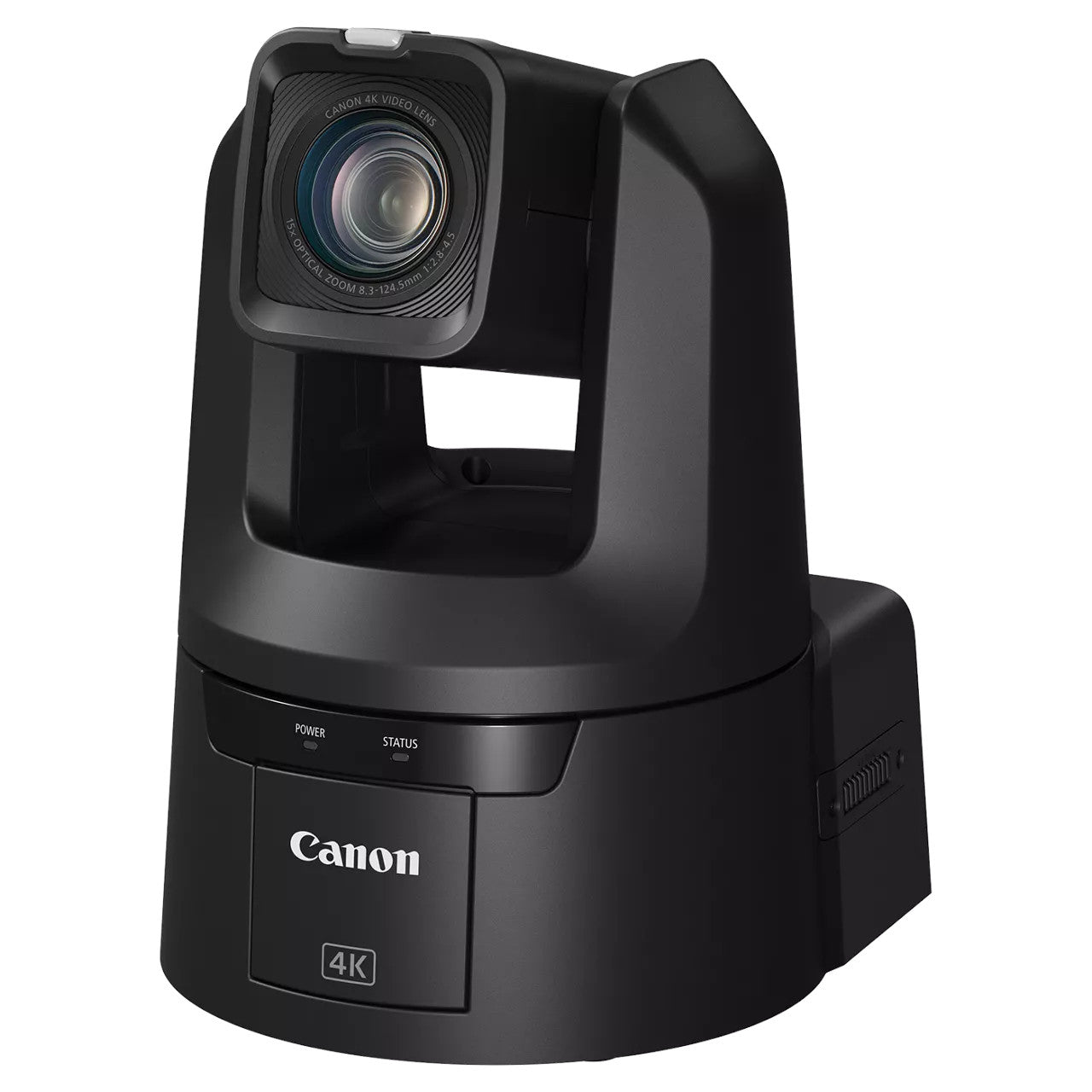

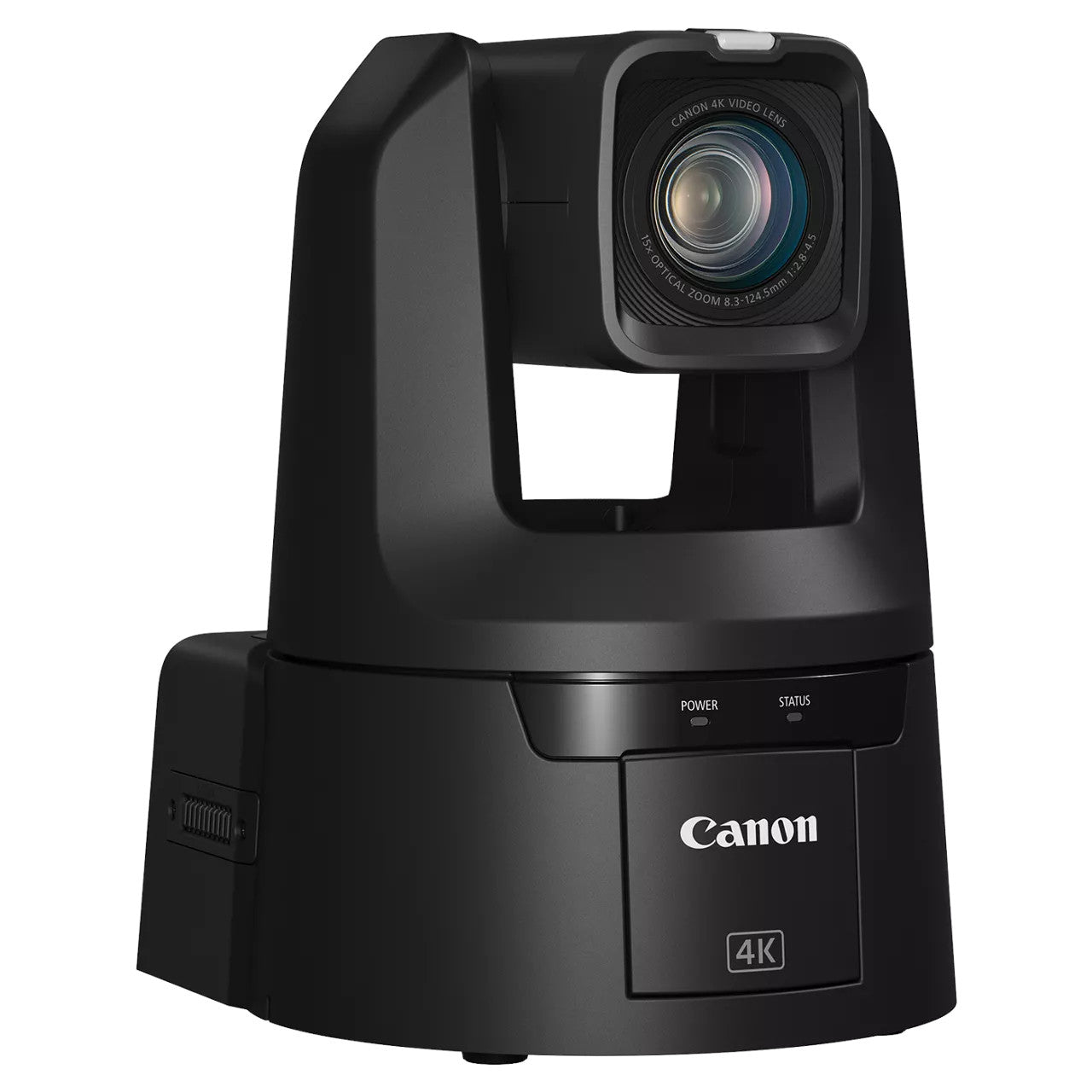

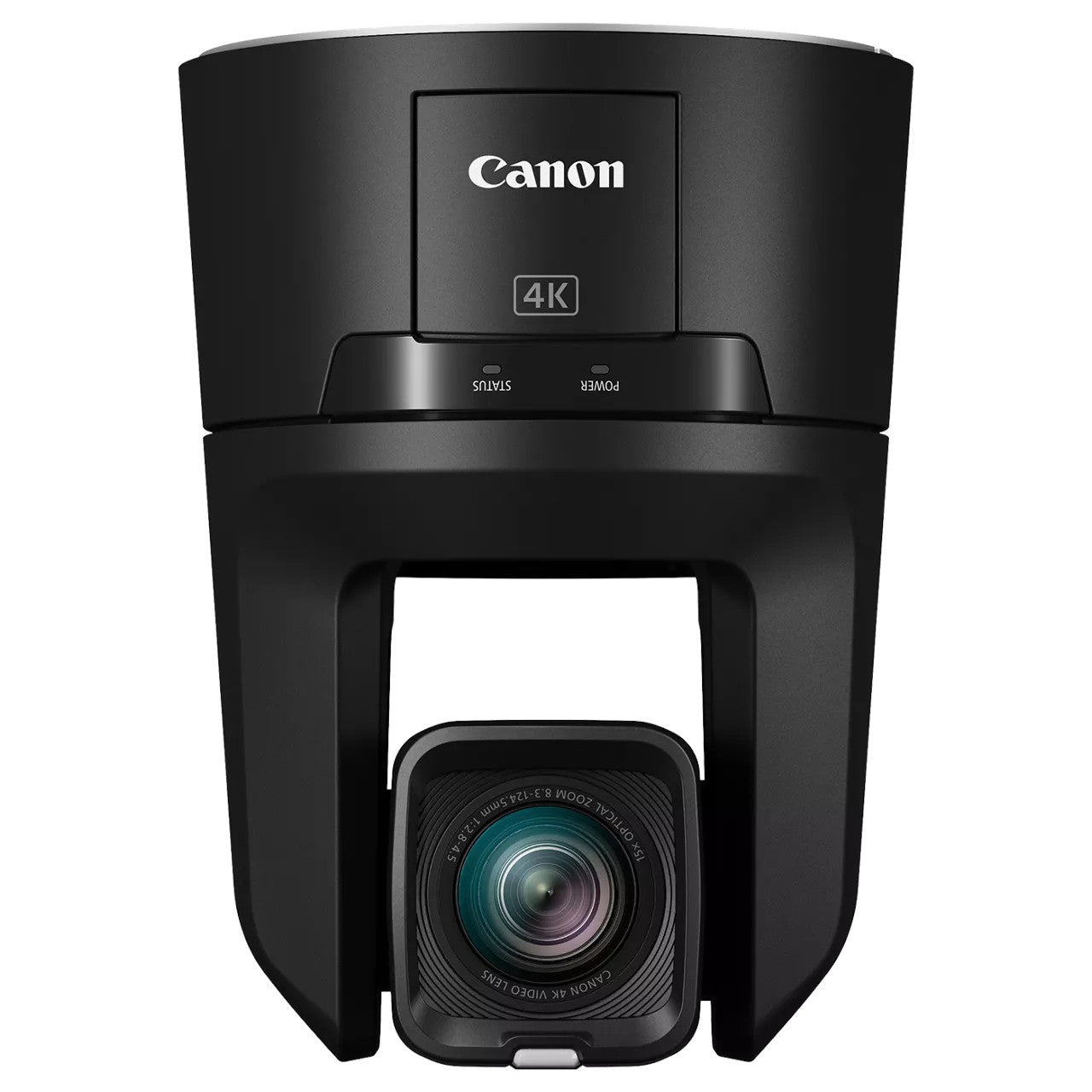

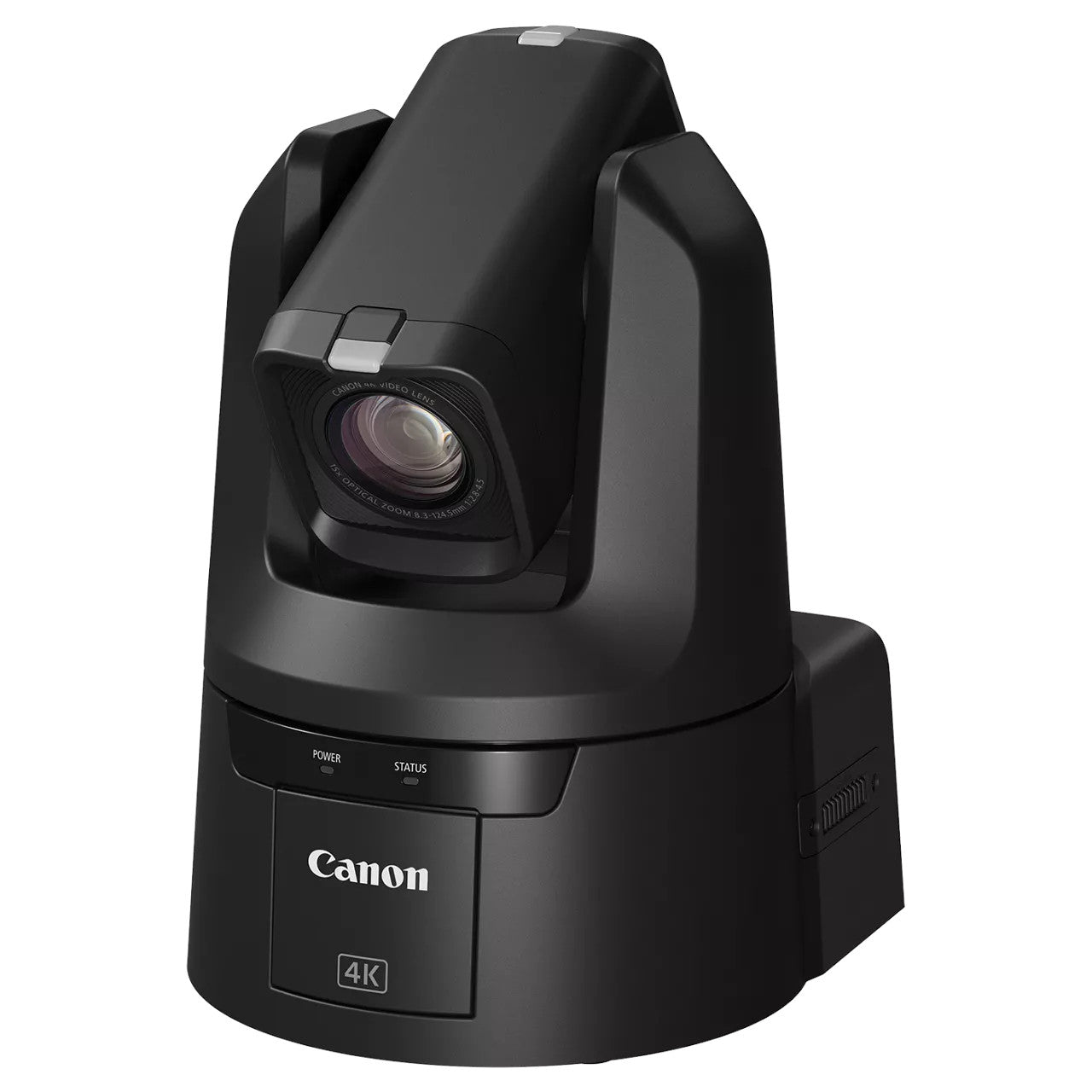

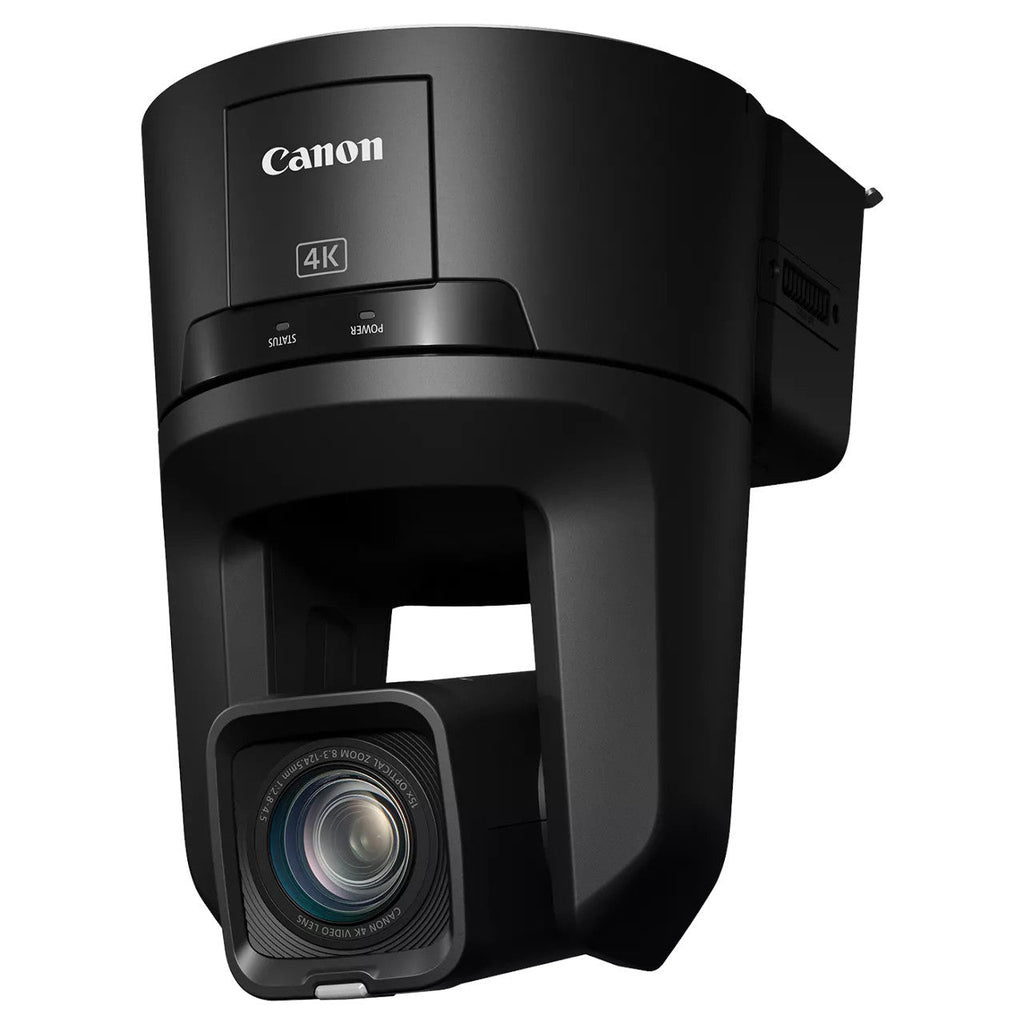

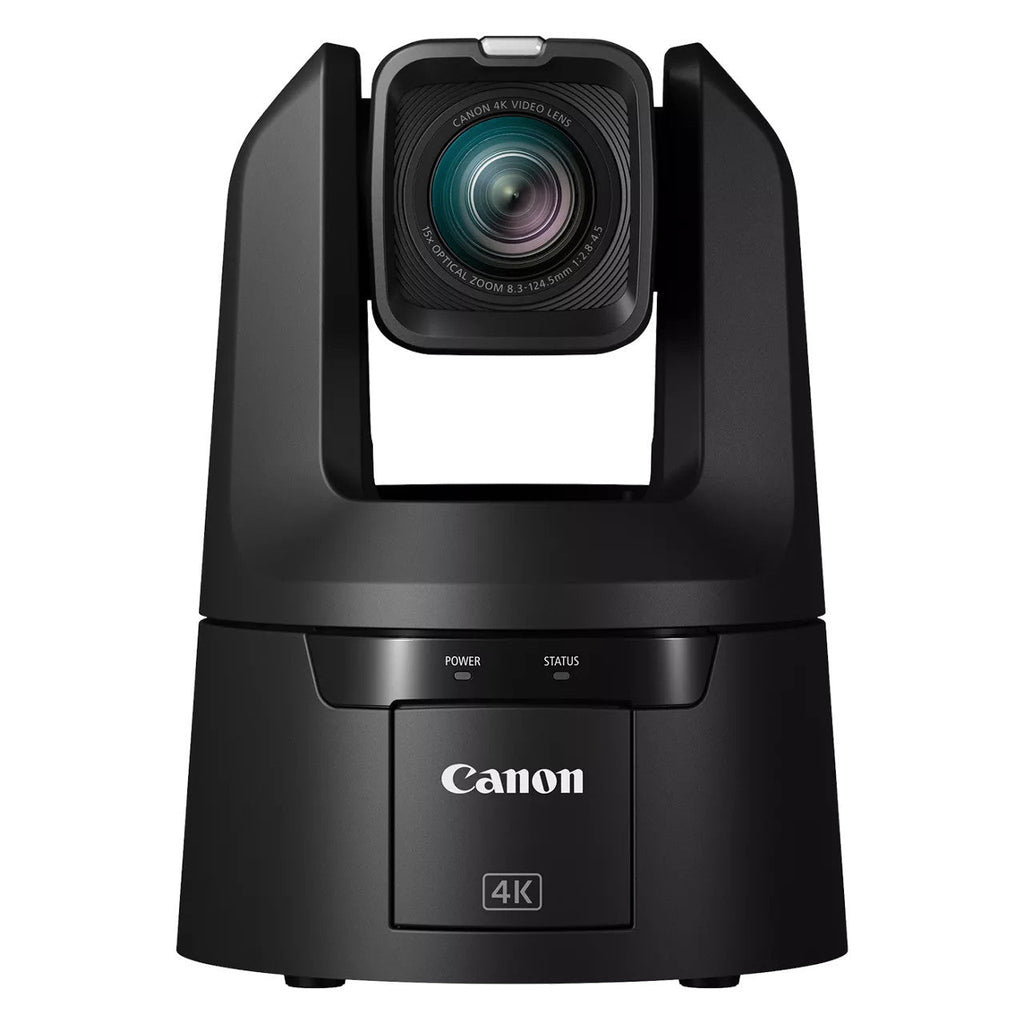

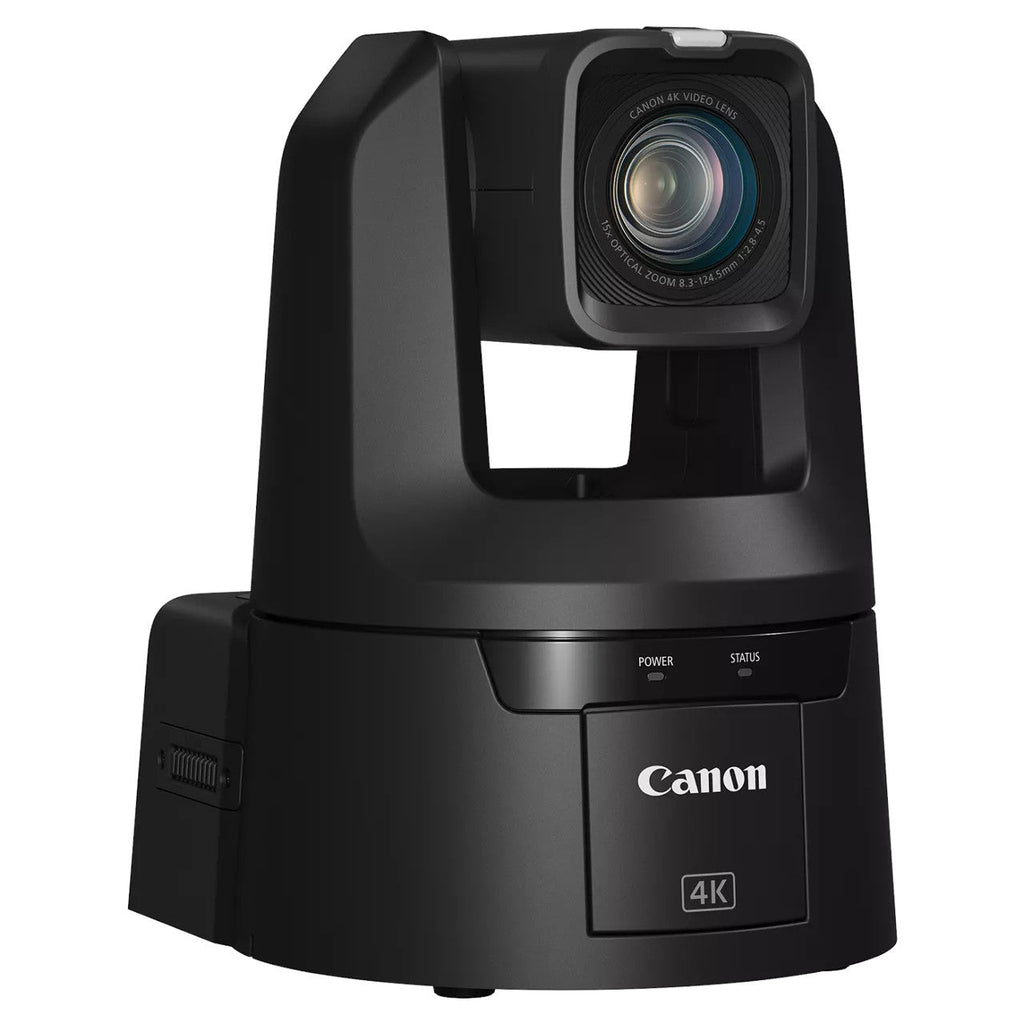

The Canon CR-N700 is a high-end 4K PTZ camera designed for broadcast studios, live events, and professional video productions. Equipped with a 1” UHD CMOS sensor and Dual Pixel Autofocus with EOS iTR AF X, it delivers 4K 60p 4:2:2 10-bit HDR video with exceptional clarity, color accuracy, and smooth auto-focus.
Key Features
-
1” 4K UHD CMOS Sensor for cinematic image quality and superb low-light performance.
-
Dual Pixel CMOS Autofocus with EOS iTR AF X for precise subject tracking and deep-learning-based focus.
-
4K 60p Video Output with HDR support (HLG/PQ) and Canon Log 3 for post-production flexibility.
-
15x Optical Zoom Lens (30x FHD) with Optical Image Stabilization for sharp, steady images.
-
Built-in ND Filter for consistent exposure control in bright environments.
-
Comprehensive Video Outputs: 12G-SDI, 3G-SDI, HDMI, and IP for multi-platform streaming and recording.
-
Professional Audio Support: Dual XLR and 3.5mm inputs, Genlock for multi-camera synchronization.
-
Integrated Streaming & Control: Built-in NDI|HX and SRT support, FreeD for AR/VR workflows.
-
PoE++ Support and Serial/IP Control: Compatible with Canon XC Protocol and Standard Protocol for seamless integration.
-
Advanced Canon Color Science: Wide DR, EOS Standard/Neutral image modes, HDR support.
Ideal For
The CR-N700 is perfect for high-end broadcast, TV studios, live events, houses of worship, and corporate streaming, offering unmatched flexibility, image quality, and professional workflow integration.
Color Options: Satin Black / Titanium White
Image Sensor
-
Type: 1.0” single-plate CMOS
-
Total Pixels: ~13.4 MP
-
Effective Pixels: ~8.29 MP (3840 × 2160)
Lens
-
Focal Length: 8.3 – 124.5 mm
-
Aperture: F/2.8 – 4.5, 9-bladed iris
-
35mm Equivalent: 25.5 mm (W) – 382.5 mm (T)
-
Zoom: Optical 15x, Digital 20x, Advanced FHD 30x
-
Lens Elements: 18 in 14 groups (2-sided aspherical + super-UD lenses)
-
Minimum Focus Distance: 1 cm (wide) / 60 cm (tele)
-
Angle of View: Horizontal 73° – 5.7°, Vertical 45.2° – 3.2°
Shutter / Iris / ND Filter
-
Shutter Speed: 1/3 – 1/2000 sec
-
Iris: Manual / Automatic
-
ND Filter: 3 levels (1/4, 1/16, 1/64), glass, motorized
White Balance
-
AUTO (AWB), Daylight 5600K, Tungsten 3200K
-
Custom: 2000K – 15000K
Focus
-
Modes: Manual, AF-boosted MF, Continuous AF, Face Detection & Tracking, Face only AF, Eye Detection
-
AF Type: Dual Pixel CMOS AF, Contrast AF
Gamma / Image Processing
-
BT.709 Normal / Wide DR / Standard, Canon Log 3, HDR (PQ/HLG)
-
Image Stabilization: Optical
Pan & Tilt
-
Pan: ±170°, 0.1° – 100°/sec
-
Tilt: -30° – +90°, 0.1° – 100°/sec
Video Output
3G-SDI
-
1920 × 1080: 59.94P/i, 50P/i, 29.97P, 25P, 23.98P (4:2:2 10-bit)
-
1280 × 720: 59.94P, 50P (4:2:2 10-bit)
12G-SDI
-
3840 × 2160: 59.94P, 50P, 29.97P, 25P, 23.98P (4:2:2 10-bit)
-
1920 × 1080 / 1280 × 720 / 720 × 576 / 720 × 480: multiple formats, 4:2:2 10-bit
HDMI
-
3840 × 2160: 59.94P, 50P, 29.97P, 25P, 23.98P (4:2:2 10-bit)
-
1920 × 1080 / 1280 × 720 / 720 × 576 / 720 × 480: multiple formats, 4:2:2 10-bit
IP Streaming
-
3840 × 2160: 59.94 – 5.00 fps (4:2:0 8-bit)
-
1920 × 1080: 59.94 – 5.00 fps
-
1280 × 720 / 640 × 360: 59.94 – 5.00 fps
-
Supported Protocols: XC Protocol, RTSP/RTP, NDI|HX, RTMP/RTMPS, Serial/IP, FreeD, SRT
Presets: Max. 100 (including home)

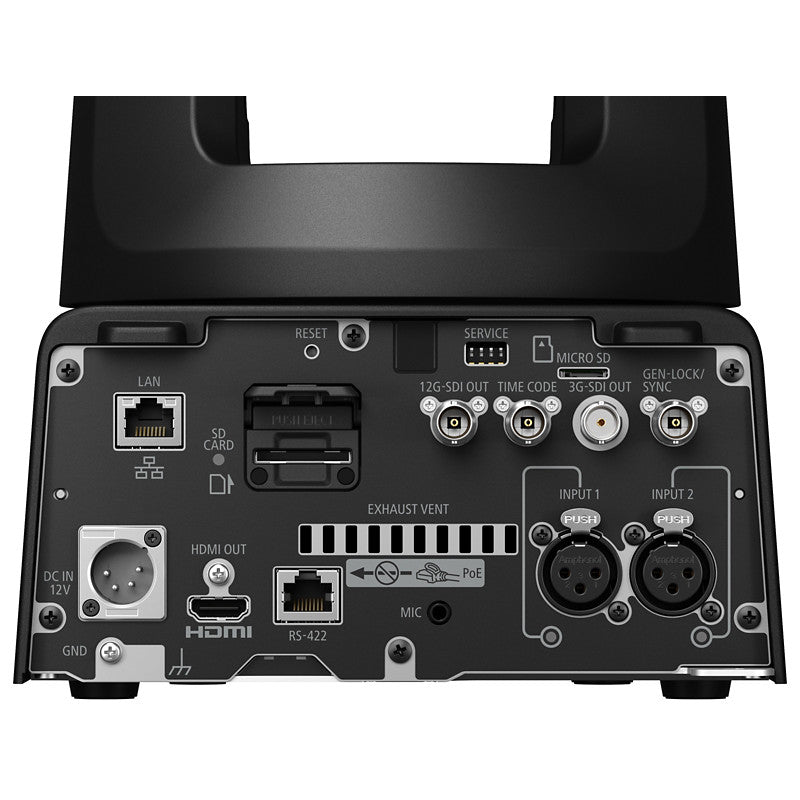

Interface / Connectivity
-
LAN: RJ45, 1000Base-T
-
SDI: BNC 12G & 3G, embedded audio & time code
-
GEN-LOCK: BNC, 1.0 Vp-p/75Ω
-
Time Code: BNC, 1.3 Vp-p/50Ω or less
-
RS-422: RJ45
-
Audio Inputs: 2 × 3-pin balanced MIC/LINE, 3.5mm stereo mini jack
-
Media Slots: SD Card ×1, microSD ×1 (future expansion, no recording)
Power & Environment
-
PoE++: IEEE802.3bt
-
External: 12 V DC (4-pin XLR)
-
Operating Temp: 0 – 40°C / 32 – 104°F
-
Humidity: 10 – 90%
Power Consumption: Not specified explicitly (typical for PTZ ~16–18 W)
Physical & Noise
-
Dimensions: 200 × 269 × 208 mm (7.87 × 10.59 × 8.19 in)
-
Noise: NC30 or lower
-
Weight: Not listed (likely ~4 kg / 9 lbs like similar PTZs)
Supported Controllers
-
Hardware: RC-IP100
-
Software: Remote Camera Control Application
This camera is a high-end PTZ model suitable for live streaming, broadcast, and studio environments, offering:
-
4K 60P output over 12G-SDI & HDMI
-
Dual Pixel AF + Face/Eye Tracking
-
Optical ND filters and advanced zoom
-
PoE++ and 12V DC power support
-
100 programmable presets
