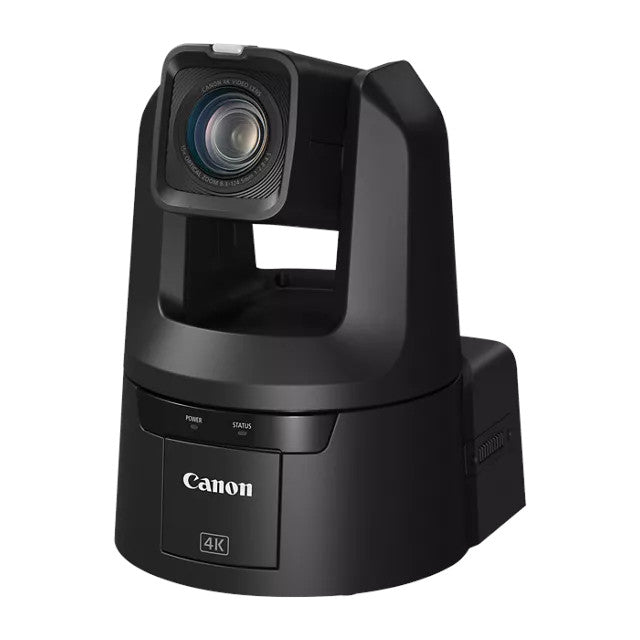

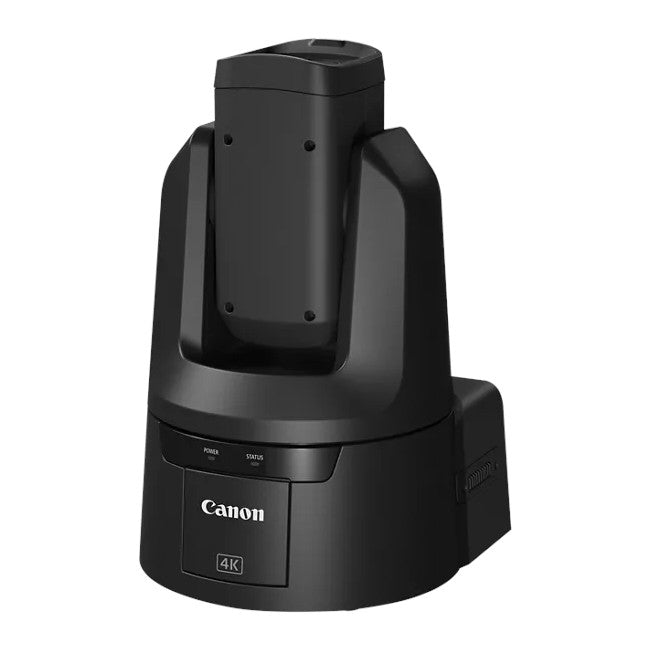

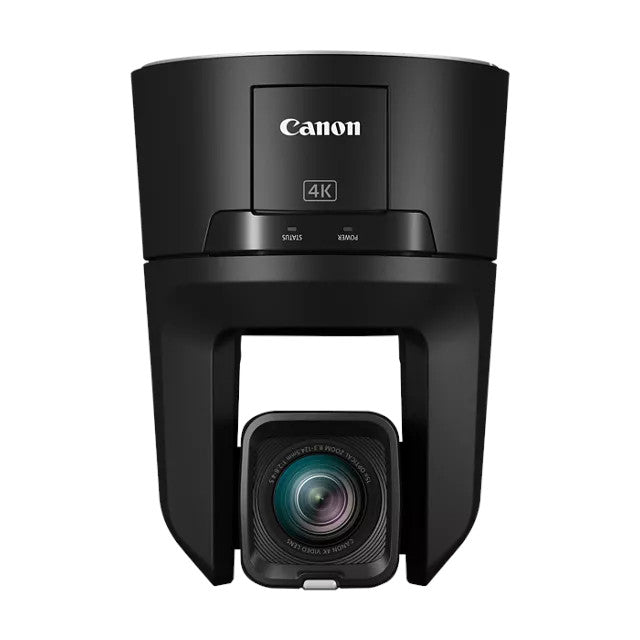

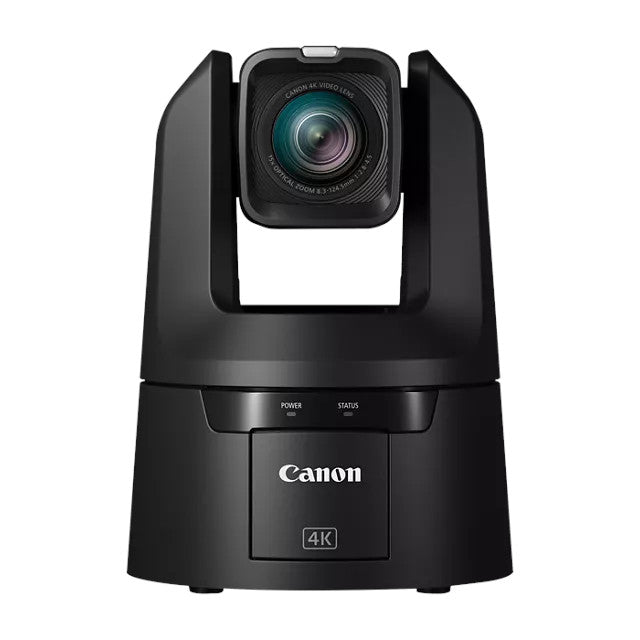

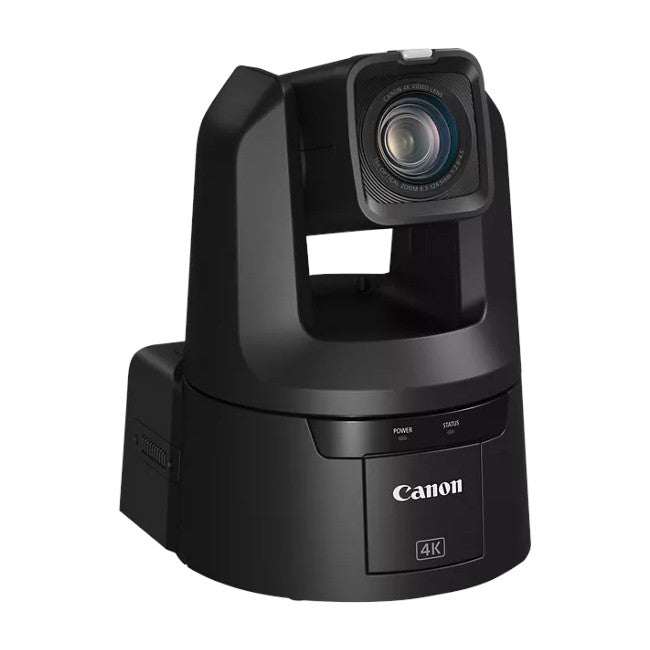

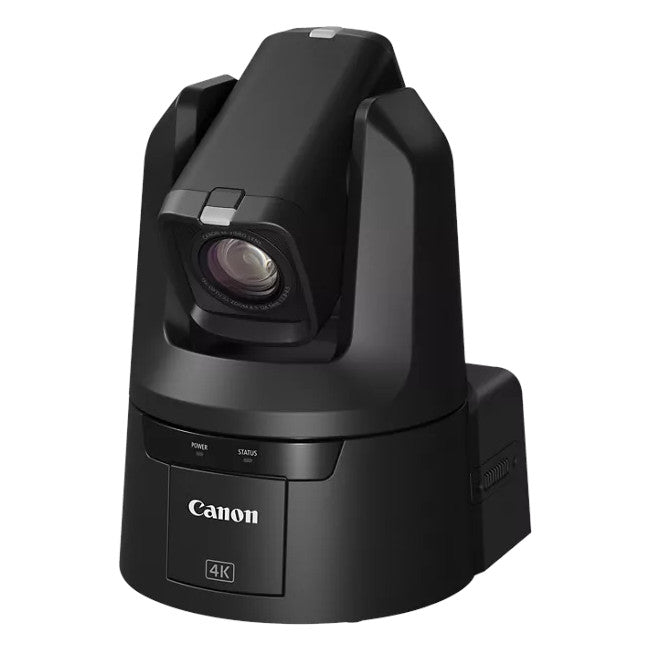

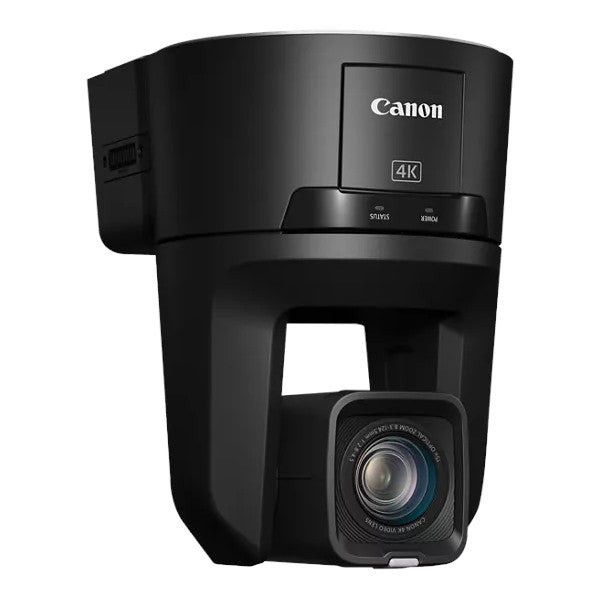

The Canon CR-N500 PTZ camera delivers cinematic 4K UHD image quality with professional connectivity and control, making it a top choice for worship, education, broadcast, live events, and corporate productions. Built with a 1-inch 4K CMOS sensor, Dual Pixel Autofocus, and Canon’s renowned color science, the CR-N500 ensures vibrant, natural imagery with precise focus and smooth pan/tilt/zoom performance.
Key Features
-
1” 4K UHD CMOS Sensor with Dual Pixel Autofocus for superior clarity and precision.
-
High-Quality 4K30p & Full HD 60p Video Output with advanced DIGIC DV 6 image processing.
-
15x Optical Zoom with Optical Image Stabilization (20x digital zoom) for flexible shooting.
-
Built-in ND Filter for exposure control in variable lighting.
-
Canon Color Science with Wide DR & Canon Log 3 support for professional workflows.
-
Multiple Outputs: 3G-SDI, HDMI, IP, and USB for seamless integration.
-
Professional Audio Inputs: Dual XLR and 3.5mm connections.
-
Genlock Support for multi-camera broadcast setups.
-
Built-In NDI|HX and SRT Streaming for low-latency IP production.
-
FreeD AR/VR Support for virtual production systems.
-
PoE+ Power & Control with support for Canon XC Protocol and Standard IP/serial control.
-
Color: Black
Why Choose the CR-N500
With its large 1” CMOS sensor, wide 73° field of view, and professional-grade connections, the CR-N500 is ideal for multi-camera live productions, broadcast streaming, and hybrid event workflows. Its NDI|HX integration, robust autofocus, and AR/VR FreeD compatibility make it a forward-looking solution for both traditional and next-generation productions.
Color Options: Satin Black / Titanium White
Image Sensor
-
Type: 1.0-inch single-plate CMOS sensor
-
Total Pixels: Approx. 13.40 MP
-
Effective Pixels: Approx. 8.29 MP (3840 × 2160)
Lens
-
Focal Length: f=8.3–124.5 mm, F/2.8–4.5
-
Optical Zoom: 15×
-
Digital Zoom: 20×
-
Iris Diaphragm: 9-blade
-
35mm Equivalent Focal Length: Approx. 25.5 mm (W) – 382.5 mm (T)
-
Lens Configuration: 18 elements in 14 groups (incl. 2 aspheric elements)
-
Minimum Focusing Distance: 1 cm (wide), 60 cm (full zoom)
-
Angle of View:
-
Horizontal: 73.0° (W) – 5.7° (T)
-
Vertical: 45.2° (W) – 3.2° (T)
Imaging & Exposure
-
Shutter Speed: 1/3 – 1/2000 sec (varies with frame rate)
-
Gain: -6.0 dB to 33.0 dB
-
ND Filter: Built-in (Off, 1/4, 1/16, 1/64)
-
Gamma Options: Normal1, Normal2, Normal3 (BT.709), Normal4, Wide DR, Canon Log 3
-
Image Stabilization: Optical-shift
Low Light Performance
-
3840 × 2160: Approx. 1.5 lux (1/30 sec, 29.97P, 33.0 dB)
-
1920 × 1080: Approx. 3 lux (1/60 sec, 59.94P, 33.0 dB)
Pan & Tilt
-
Pan Range: ±170° (0.1°–100°/sec)
-
Tilt Range: -30° to +90° (0.1°–100°/sec)
Video Output Formats
SDI:
-
1920 × 1080: 59.94P/59.94i, 50.00P/50.00i, 25.00P, 29.97P, 23.98P (4:2:2 10-bit)
-
1280 × 720: 59.94P, 50.00P (4:2:2 10-bit)
HDMI:
-
3840 × 2160: 29.97P, 25.00P, 23.98P (4:2:2 10-bit)
-
1920 × 1080: Same as SDI
-
1280 × 720: Same as SDI
IP Streaming:
-
3840 × 2160: 29.97, 14.99, 5.00 fps (4:2:0 8-bit)
-
1920 × 1080, 1280 × 720, 640 × 360: 59.94, 29.97, 14.99, 5.00 fps
(Same format must be selected for SDI and HDMI. 4K UHD disables SDI output.)
Supported Protocols
-
XC Protocol, RTSP/RTP, NDI®|HX2, RTMP/RTMPS, Serial/IP Standard Protocol
Audio Inputs
-
XLR Inputs: 2 × balanced (3-pin), Mic/Line selectable
-
Sensitivity (MIC): -60 dBu (600 Ω) / Attenuation: 20 dB
-
Sensitivity (LINE): +4 dBu (1 kΩ or more)
-
Phantom Power: 48 V DC (6.8 kΩ)
-
3.5 mm Mic Input: Stereo mini-jack, plug-in power supported
-
Sensitivity (MIC): -72 dBV (1 kΩ) / Attenuation: 20 dB
-
Sensitivity (LINE): -10 dBV (1 kΩ)
-
Supply Voltage: 2.4 V DC (2.2 kΩ bias)

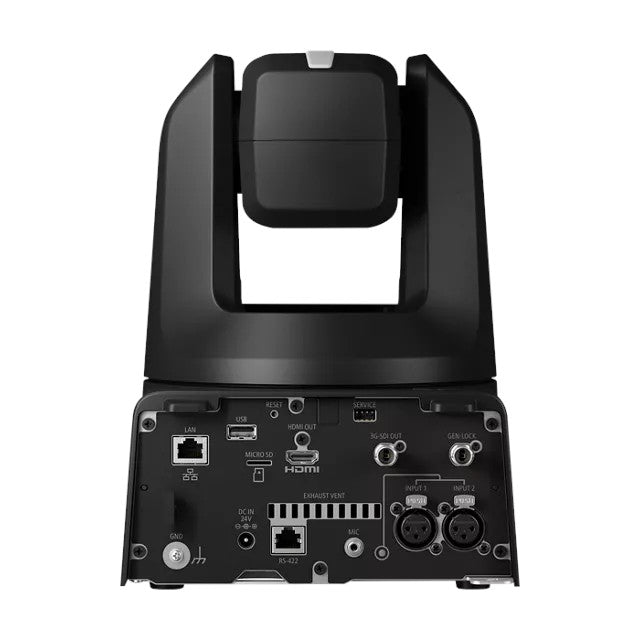

Interfaces
-
LAN: RJ-45, 1000Base-T
-
3G-SDI OUT: BNC (embedded audio, timecode)
-
HDMI OUT: HDMI Type-A
-
GEN-LOCK: BNC input
-
RS-422: RJ-45
-
USB: Type-A (USB 2.0)
-
microSD Card Slot (future expansion)
Presets & Control
-
Number of Presets: Max. 100 (incl. home)
-
Control Options: LAN, Wi-Fi, Serial, IR
-
Supported Controllers: RC-IP100 (hardware), Remote Camera Control App (software)
Power & Environmental
-
Power Supply: 24 V DC (AC adapter), PoE+ (IEEE802.3at compliant, Class 4)
-
Power Consumption:
-
PoE+: ~16.2 W (body only)
-
DC: ~18.6 W (body only)
-
Operating Temperature: 0°C – +40°C (32°F – 104°F)
-
Operating Humidity: 10% – 90% (non-condensing)
-
Storage: Same as operating
Physical
-
Dimensions (W × H × D): 200 × 269 × 208 mm (7.87 × 10.59 × 8.19 in)
-
Weight: Approx. 4.1 kg (9.04 lbs, body only)
