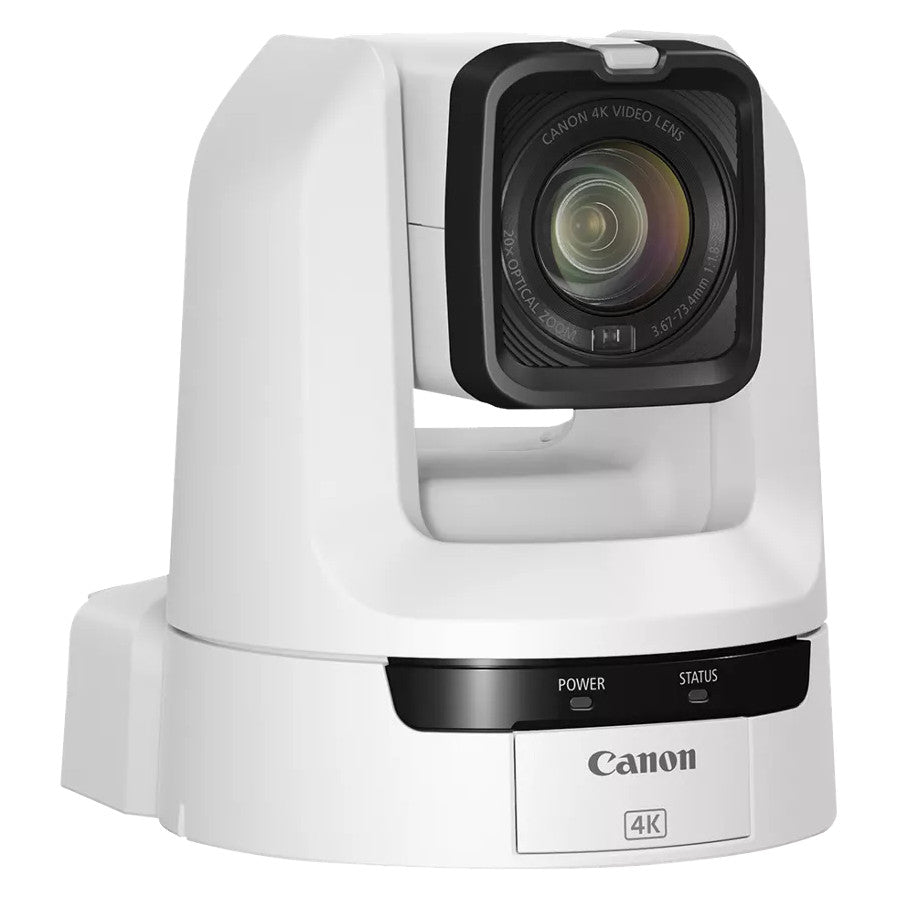

The Canon CR-N300 PTZ camera delivers exceptional 4K UHD video quality and advanced features in a compact, cost-effective design, making it perfect for worship spaces, education, broadcast, and corporate environments. Combining a 1/2.3" CMOS sensor, DIGIC DV 6 processor, and Canon’s renowned color science, the CR-N300 produces stunning 4K30p or Full HD 60p footage with smooth, precise PTZ movement.
Key Features
-
1/2.3" CMOS Sensor with Hybrid Auto Focus for sharp, accurate subjects.
-
High-Quality 4K30p & Full HD 60p Video Output for professional production.
-
20x Optical Zoom Lens with Optical Image Stabilization maintains precision and clarity.
-
Renowned Canon Color Science for natural, vibrant images.
-
Professional Connectivity: 3G-SDI, HDMI, IP, and USB outputs for flexible workflows.
-
Built-In NDI|HX & SRT Support for efficient streaming and low-latency IP production.
-
FreeD AR/VR Support for virtual production and augmented reality systems.
-
PoE+ Power and Control via a single cable for simplified setup.
-
Multiple Control Options: Supports Canon XC Protocol, Standard Control, IP, Serial, IR, or Wi-Fi.
-
Color: White
Why Choose the CR-N300
The CR-N300 combines Canon’s imaging expertise with powerful connectivity options, making it ideal for multi-camera live streams, hybrid classrooms, professional events, and virtual productions. Its smooth PTZ performance and wide compatibility ensure seamless integration with third-party hardware controllers and streaming platforms like Facebook Live and YouTube.
SEO Metadata
Meta Title: Canon CR-N300 PTZ Camera (White) – 4K30p, 20x Zoom, NDI|HX Support
Meta DescriptiImaging
-
Sensor: 1/2.3 in. CMOS (Single-plate)
-
Total Pixels: ~21.14 MP
-
Effective Pixels: ~8.29 MP (3840 × 2160)
-
Lens:
-
f = 3.67–73.4 mm, F/1.8–2.8
-
20× Optical Zoom
-
8-blade circular aperture
-
35 mm Equivalent:
-
4K UHD: ~29.3–601 mm
-
Full HD: ~30.5–627 mm
-
Lens Configuration: 12 elements / 10 groups (2 aspheric)
-
Minimum Focusing Distance: 1 cm (wide), 60 cm (zoom range)
-
Angle of View:
-
4K UHD: Horizontal 65.6°–3.6°, Vertical 39.8°–2.0°
-
Full HD: Horizontal 63.5°–3.4°, Vertical 38.4°–1.9°
-
Stabilization: Optical-shift
-
Shutter Speed: 1/6–1/2000 sec (varies by frame rate)
-
Gain: 0.0–36 dB
-
White Balance: Auto, Set A/B, Daylight (5600K), Tungsten (3200K), 2000–15000K manual
-
Focus Modes: Manual, Continuous AF, Face AF, Tracking AF (Hybrid/Contrast AF)
-
Gamma: Normal1 (Standard), Normal3 (BT.709)
-
Low-light Performance: Min. illumination ~1.5 lux (1/30 sec, 59.947P, Auto Slow Shutter On)
Pan / Tilt
-
Pan Range: ±170°
-
Tilt Range: –30° to +100°
-
Pan Speed: 0.2°–300°/sec
-
Tilt Speed: 0.2°–170°/sec
-
Presets: Up to 100 (including Home Position)
Video Output
-
SDI:
-
1080p/i: 59.94P/59.94i, 50P/50i/25P, 29.97P/23.98P (4:2:2 10-bit)
-
720p: 59.94P, 50P (4:2:2 10-bit)
-
HDMI:
-
4K UHD: 29.97P, 25P, 23.98P (4:2:2 10-bit)
-
1080p/i: Same as SDI
-
720p: 59.94P, 50P
-
Note: SDI and HDMI cannot output different formats; when HDMI is set to 4K, SDI output is disabled.
-
IP Streaming:
-
4K UHD: 29.97, 14.99, 5 fps (4:2:0 8-bit)
-
1080p: 59.94, 29.97, 14.99, 5 fps
-
720p: 59.94, 29.97, 14.99, 5 fps
-
640×360: Same rates
-
JPEG over IP: 1280×720 (frame-rate dependent)
-
USB (Motion JPEG):
-
1080p: 12/5 fps (59.94/50 Hz)
-
720p: 12/5 fps (59.94/50 Hz)
-
640×360: 12/5 fps (59.94/50 Hz)
Connectivity & Protocols
-
Control Protocols: XC Protocol, RTSP/RTP, NDI®|HX2, RTMP/RTMPS, Standard Serial/IP
-
Interfaces:
-
LAN: RJ45 (1000Base-T, PoE+ IEEE802.3at)
-
3G-SDI OUT: BNC jack (SMPTE 424/425, embedded audio, VITC/LTC)
-
HDMI OUT: HDMI connector (output only)
-
RS-422: RJ45 connector
-
Mic Input: 3.5 mm stereo mini-jack (plug-in power supported)
-
USB: Type-A (2.0) for future expansion, Type-C (3.0)
-
microSD slot: For future expansion (recording unavailable)
-
IR and Wi-Fi supported for control
Power & Environmental
-
Power Supply:
-
PoE+: Via LAN (IEEE802.3at)
-
External: 24 V DC (AC adapter included)
-
Power Consumption: PoE+ ~16.2 W max; DC ~15.0 W max (Class 4 device)
-
Operating Temperature/Humidity: 0–40°C (32–104°F), 10–90% (non-condensing)
-
Storage Environment: Same as operating conditions
Physical
-
Dimensions (WxHxD): 154 × 178 × 164 mm (6.06 × 7.01 × 6.46 in.)
-
Weight: ~2.2 kg (4.86 lbs) (body only)
-
Colors: Satin Black or Titanium White
Supported Controllers
-
Hardware: RC-IP100
-
Software: Canon Remote Camera Control Application
