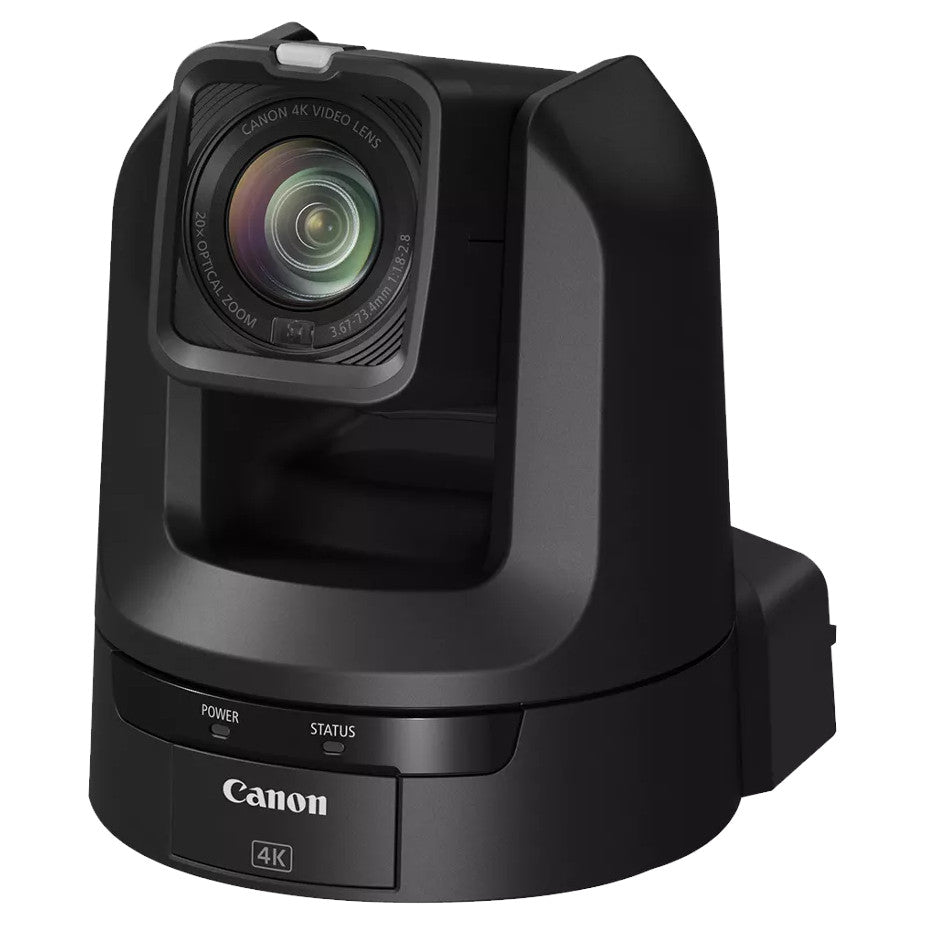

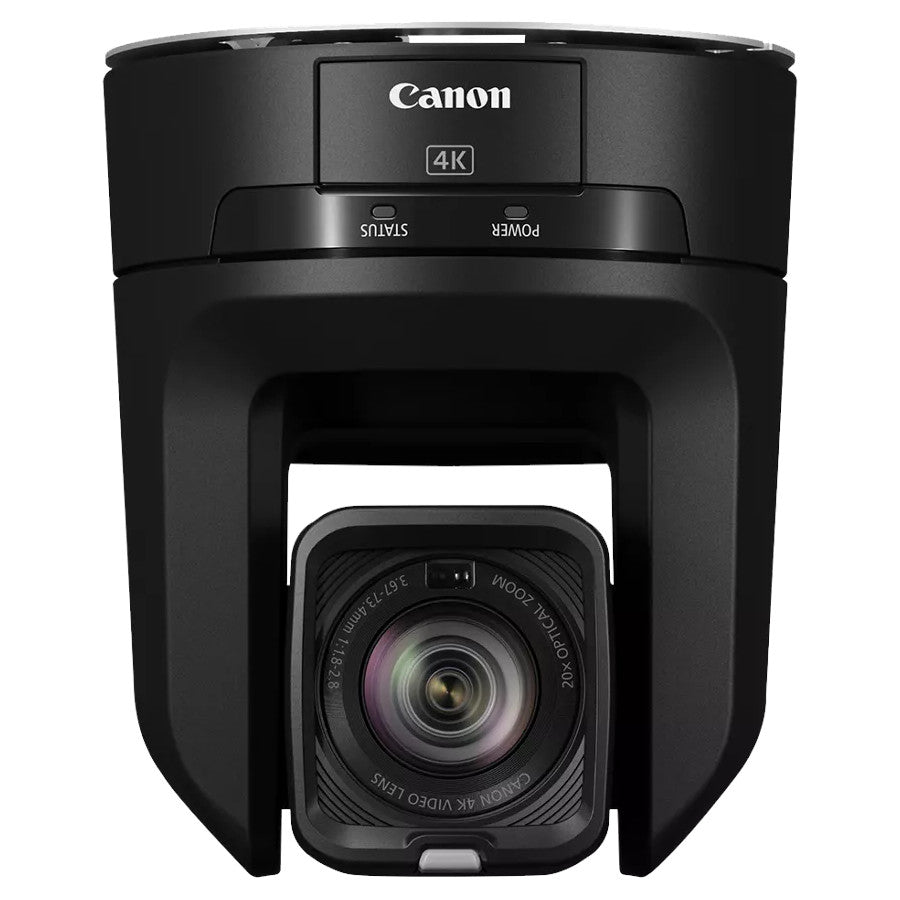

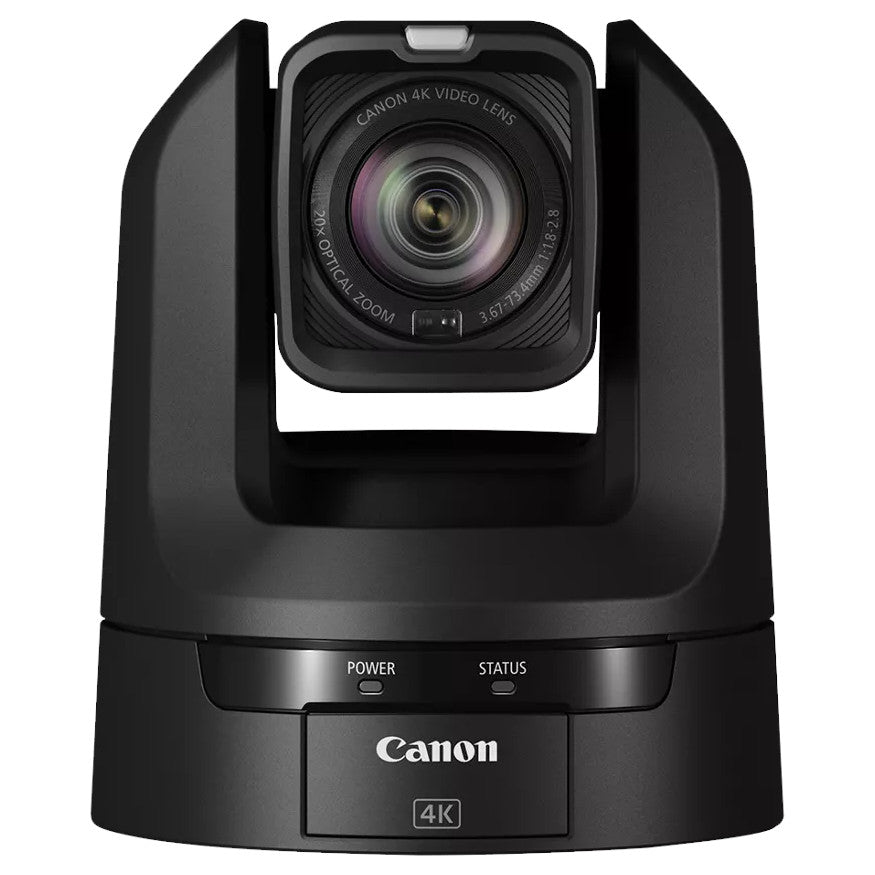

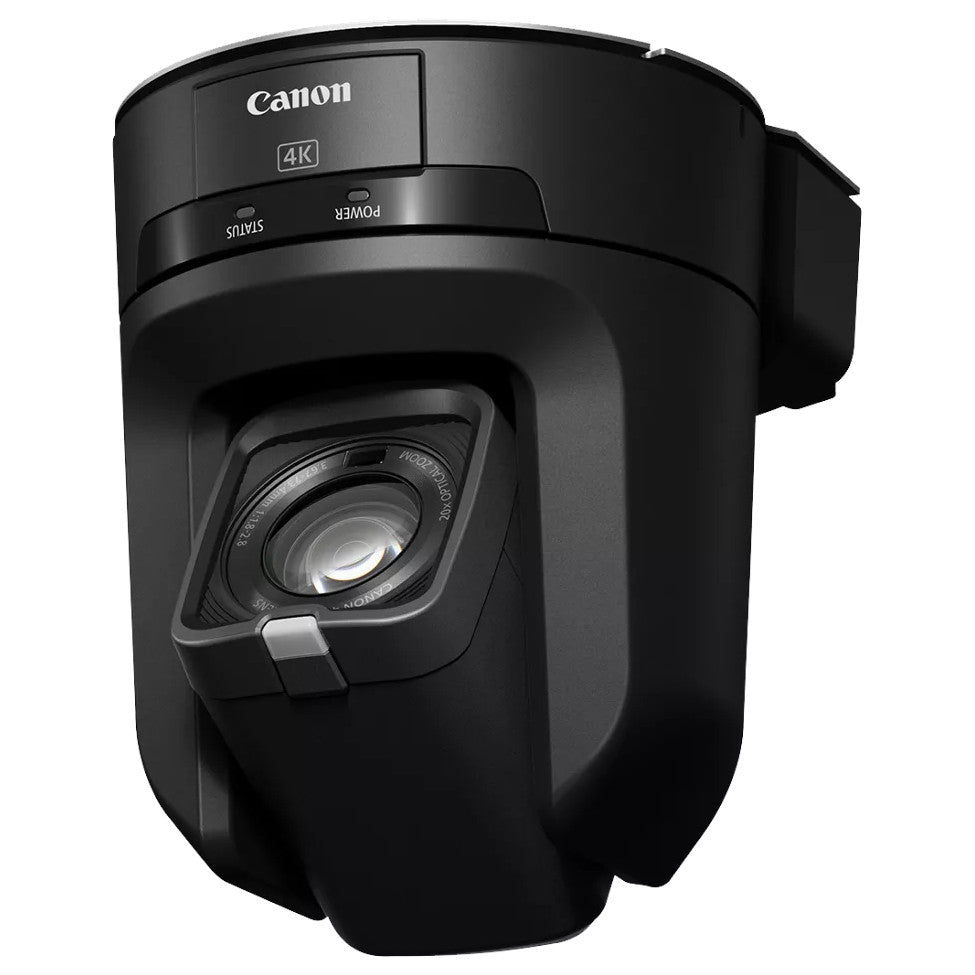

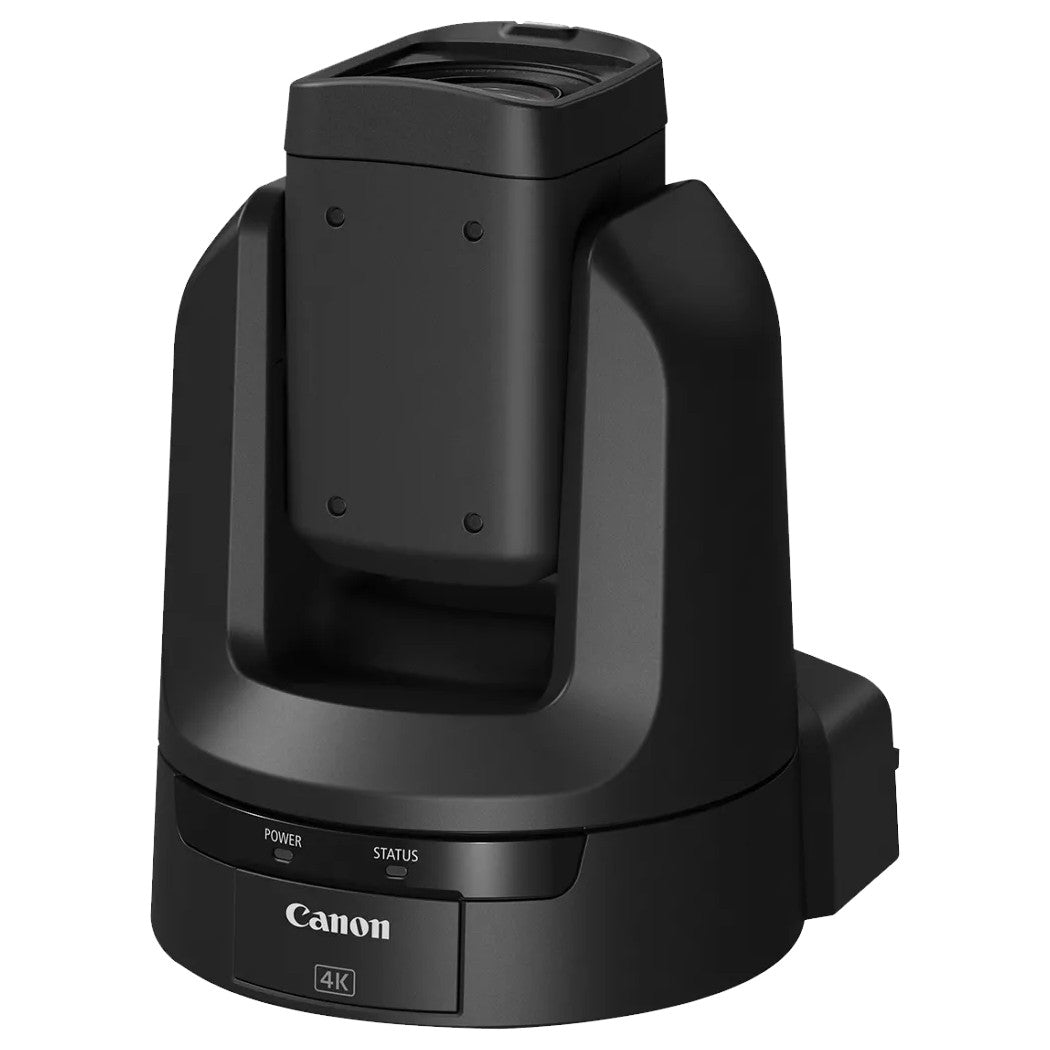

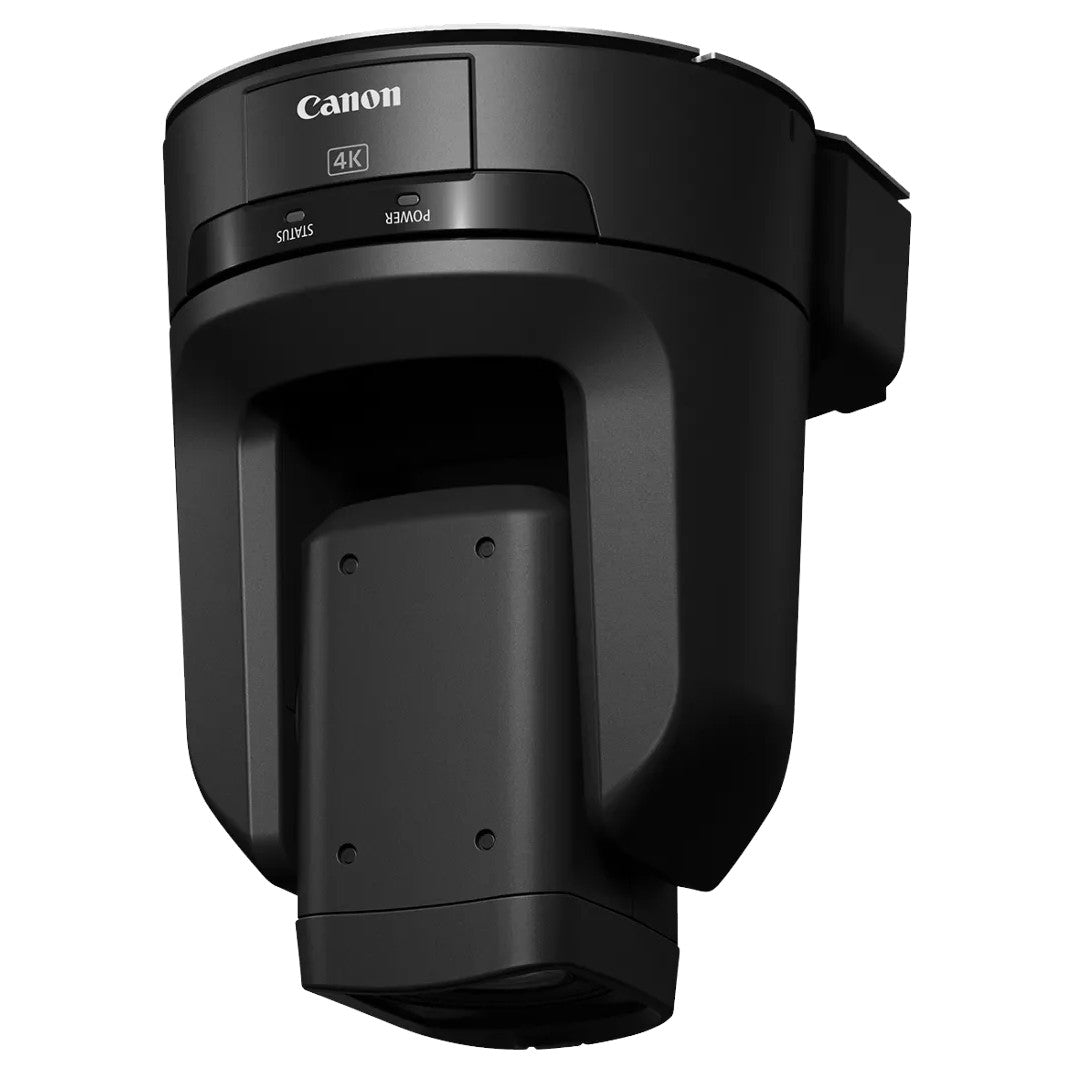

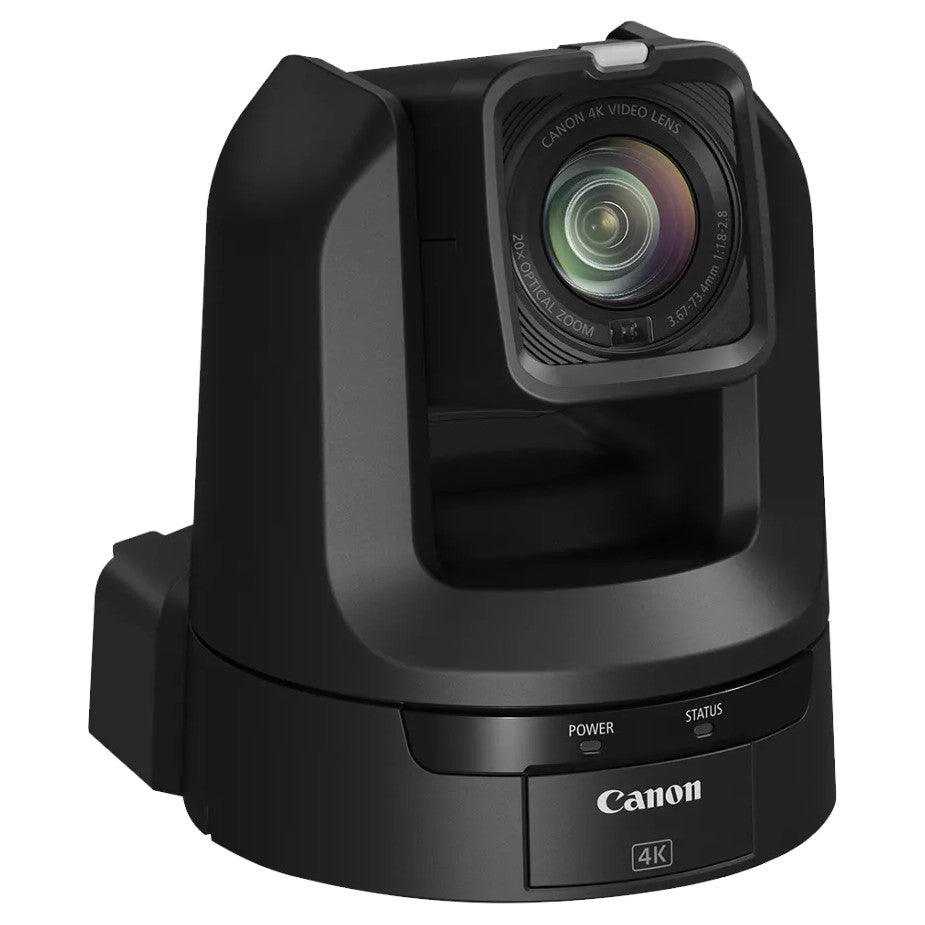

The Canon CR-N300 PTZ camera brings exceptional 4K image quality and professional control features to worship, education, live streaming, corporate events, and broadcast productions. Its 1/2.3" CMOS sensor, Hybrid Auto Focus, and DIGIC DV 6 image processor deliver sharp, vibrant footage with Canon’s renowned color science, while the 20x optical zoom lens ensures stunning detail from virtually any angle.
Key Features
-
1/2.3” CMOS Sensor with Hybrid Auto Focus for sharp, responsive focus.
-
High-Quality 4K30p & Full HD 60p Video Output with DIGIC DV 6 processing.
-
20x Optical Zoom Lens with Optical Image Stabilization for versatile shooting.
-
Canon Color Science for lifelike, accurate colors.
-
Video Outputs: 3G-SDI, HDMI, IP, and USB for flexible integration.
-
Built-In NDI|HX and SRT Support for efficient IP workflows and low-latency streaming.
-
FreeD Support for AR/VR Systems to enable virtual production applications.
-
Single-Cable PoE+ Connectivity for power, control, tally, and video over one cable.
-
Supports Multiple Control Protocols: Canon XC Protocol, Standard IP/serial, IR, and Wi-Fi.
-
Color: Black
Ideal For
The CR-N300 is a perfect fit for live streaming, hybrid events, house of worship productions, lecture capture, and professional broadcast setups. Its smooth PTZ mechanics, remote control options, and robust connectivity make it a reliable and flexible solution for multi-camera workflows.
Color Options: Satin Black / Titanium White
Image Sensor
-
Type: 1/2.3-inch single-plate CMOS sensor
-
Total Pixels: ~21.14 MP
-
Effective Pixels: ~8.29 MP (3840 × 2160)

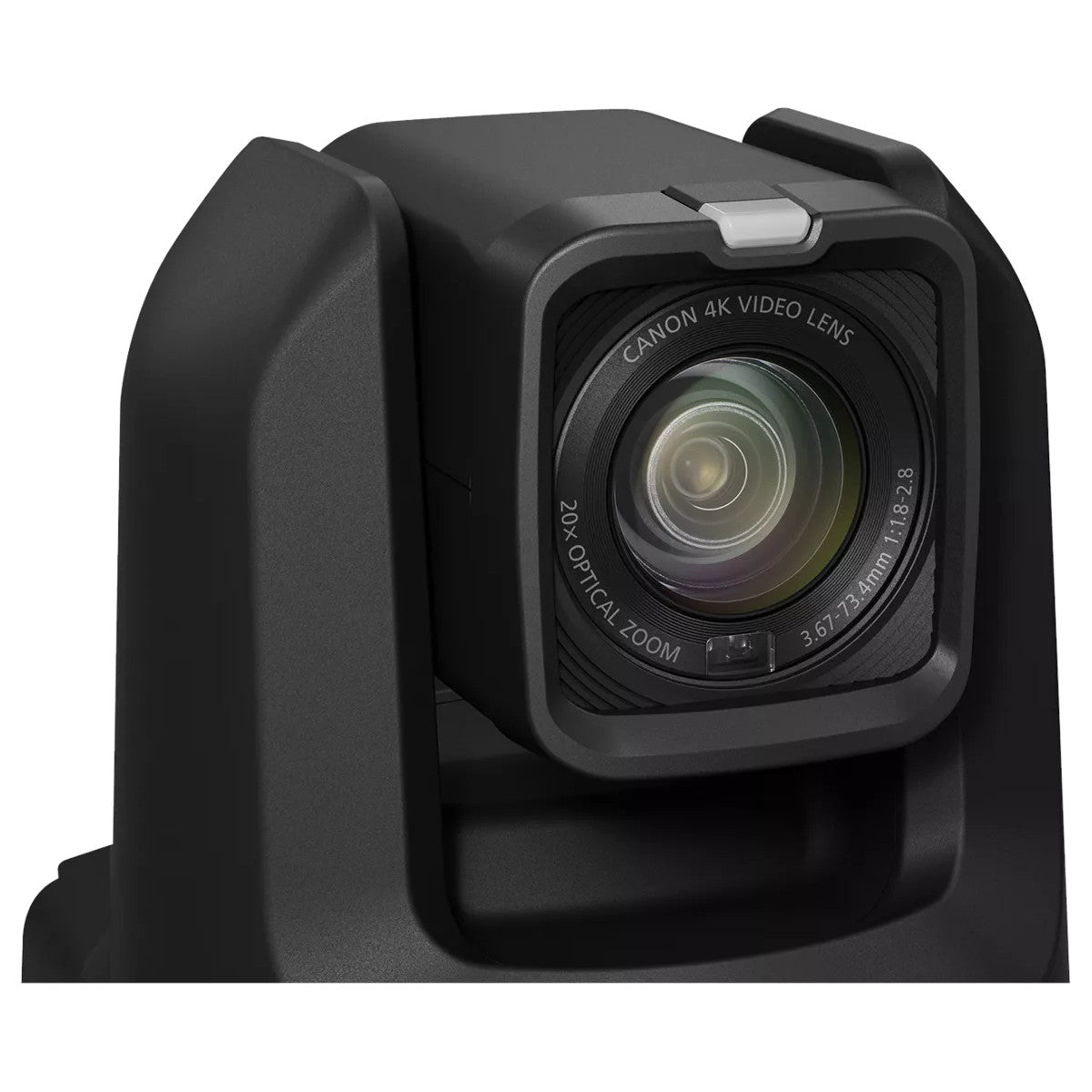

Lens
-
Focal Length: f=3.67–73.4 mm, F/1.8–2.8
-
Optical Zoom: 20×
-
Digital Zoom: 20×
-
Aperture: 8-blade circular
-
35mm Equivalent Focal Length:
-
4K UHD: ~29.3 mm (W) – 601 mm (T)
-
Full HD: ~30.5 mm (W) – 627 mm (T)
-
Lens Configuration: 12 elements in 10 groups (incl. 2 aspheric elements)
-
Minimum Focusing Distance: 1 cm (wide) / 60 cm (through zoom range)
-
Angle of View:
-
4K UHD: 65.6° (W) – 3.6° (T) (H) / 39.8° (W) – 2.0° (T) (V)
-
Full HD: 63.5° (W) – 3.4° (T) (H) / 38.4° (W) – 1.9° (T) (V)
Imaging & Exposure
-
Shutter Speed: 1/6 – 1/2000 sec (varies by frame rate)
-
Iris: Auto / Manual
-
Gain: 0.0 dB – 36 dB
-
White Balance: AWB, Set A, Set B, Presets (Daylight 5600K, Tungsten 3200K), Manual (2000K – 15000K)
-
Focus Modes: Manual, Continuous AF, Face AF, Tracking AF
-
AF Types: Hybrid AF, Contrast AF
-
Gamma: Normal1 (Standard), Normal3 (BT.709)
-
Image Stabilizer: Optical-shift
-
Minimum Illumination: ~1.5 lux (1/30 sec, 59.94P, auto slow shutter on)
Pan & Tilt
-
Pan Range: ±170° (0.2° – 300°/sec)
-
Tilt Range: -30° to +100° (0.2° – 170°/sec)
Video Output
SDI:
-
1920 × 1080: 59.94P/59.94i, 50.00P/50.00i, 25.00P, 29.97P, 23.98P (4:2:2 10-bit)
-
1280 × 720: 59.94P, 50.00P (4:2:2 10-bit)
HDMI:
-
3840 × 2160: 29.97P, 25.00P, 23.98P (4:2:2 10-bit)
-
1920 × 1080: Same as SDI
-
1280 × 720: Same as SDI
-
Note: 4K UHD output via HDMI disables SDI output
IP Streaming:
-
3840 × 2160: 29.97 / 14.99 / 5.00 fps (4:2:0 8-bit)
-
1920 × 1080, 1280 × 720, 640 × 360: 59.94 / 29.97 / 14.99 / 5.00 fps (4:2:0 8-bit)
USB (Motion JPEG):
-
1920 × 1080: 12 / 5 fps
-
1280 × 720: 12 / 5 fps
-
640 × 360: 12 / 5 fps
Protocols
-
Supported: XC Protocol, RTSP/RTP, NDI®|HX2, RTMP/RTMPS, Serial, IP Standard Protocol
-
Presets: Max. 100 (incl. Home)

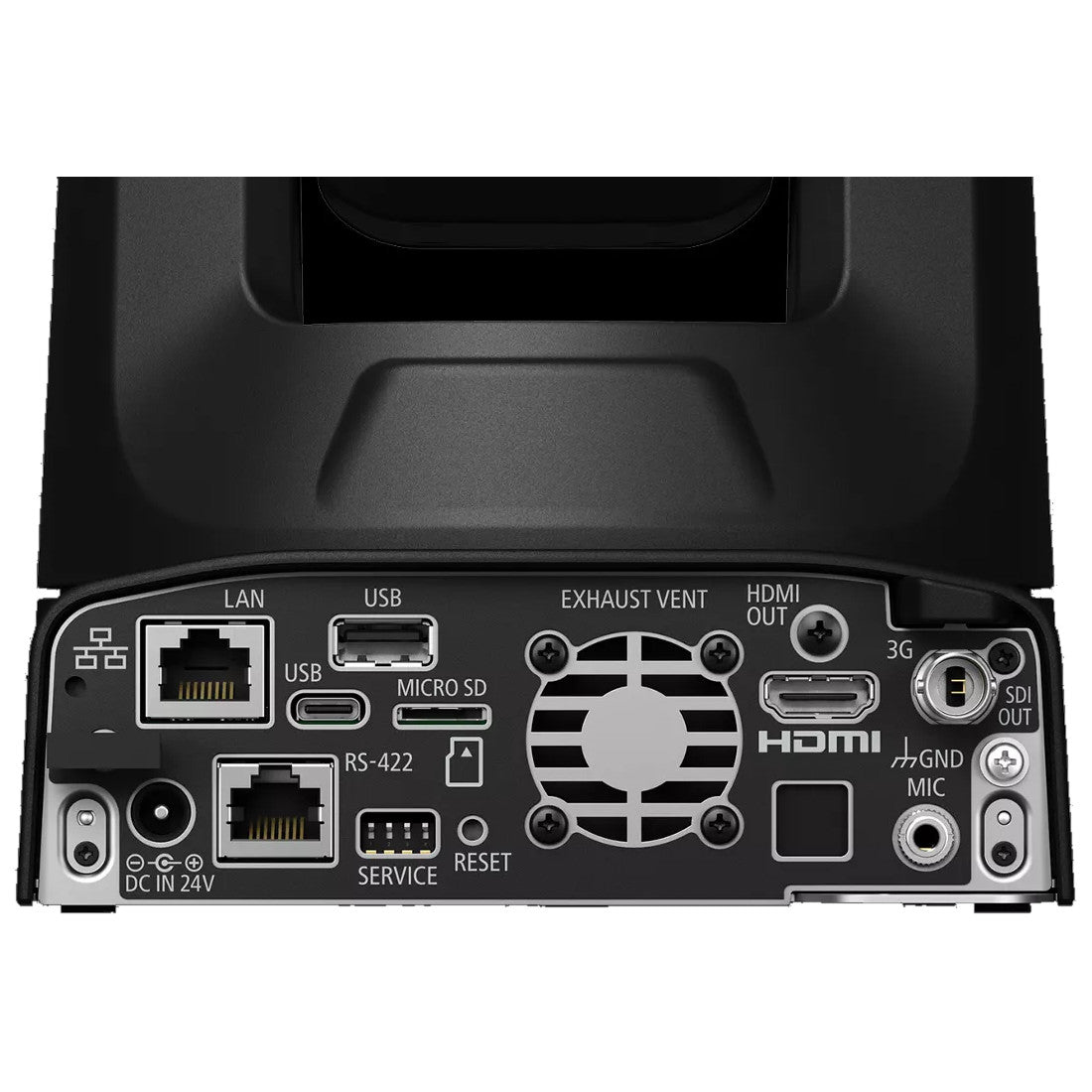

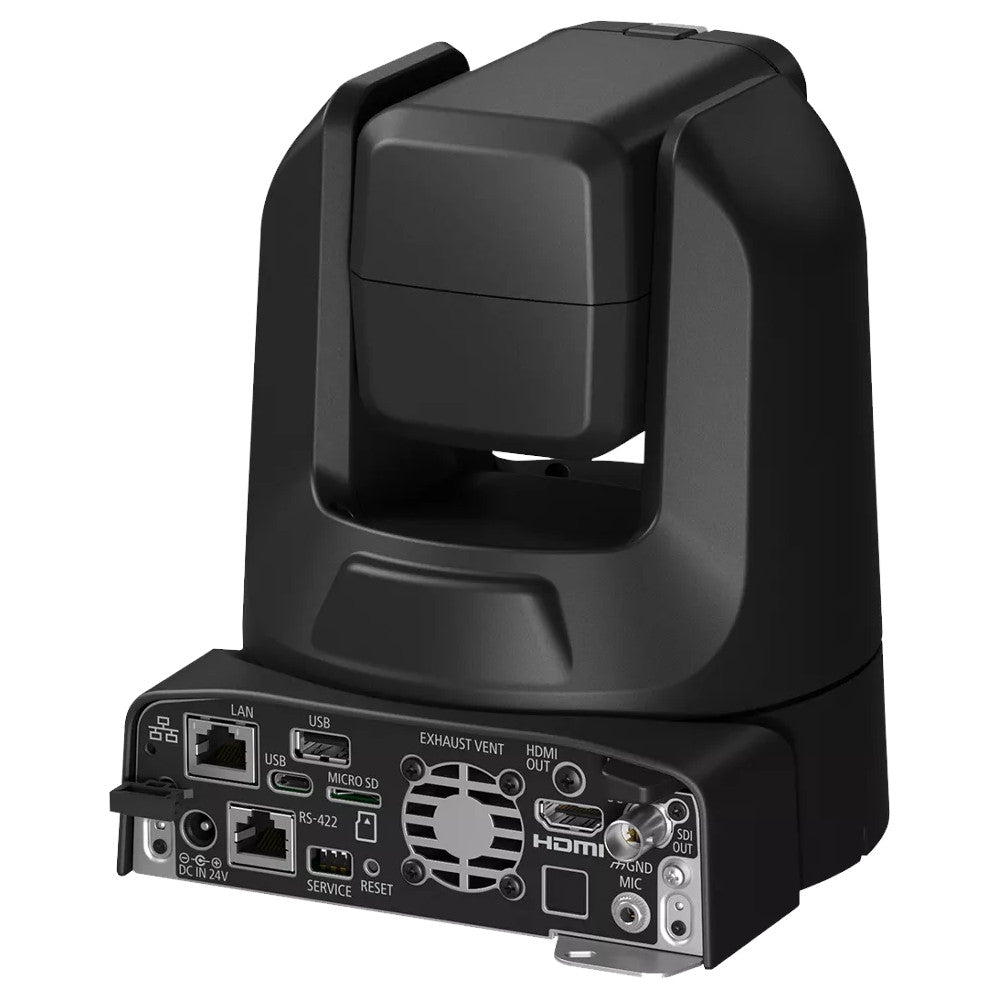

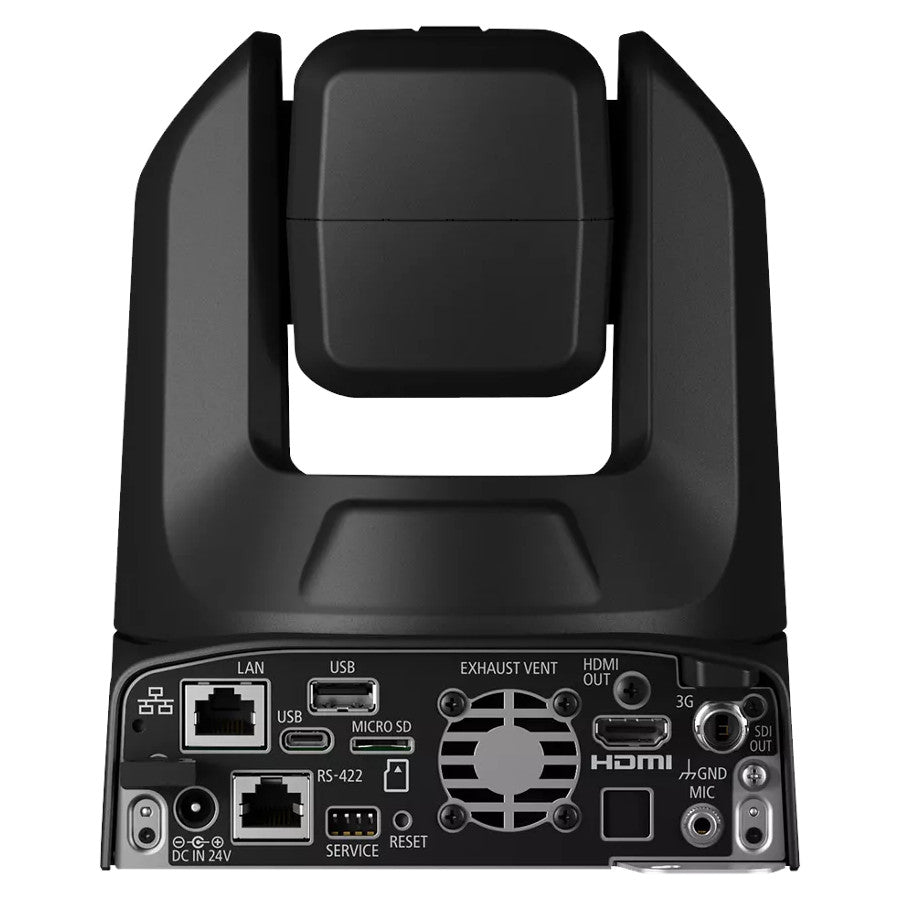

Interfaces
-
Network: LAN ×1 (RJ-45, 1000Base-T)
-
3G-SDI OUT: BNC ×1 (embedded audio, VITC/LTC timecode)
-
HDMI OUT: HDMI connector ×1
-
RS-422: RJ-45 ×1
-
USB: Type-A (USB 2.0, future use), Type-C (USB 3.0)
-
Media Slot: microSD ×1 (future use, recording unavailable)
Audio
-
Mic Input: 3.5 mm stereo mini jack (unbalanced, plug-in power supported)
-
Sensitivity (MIC): -72 dBV (1kΩ) / Attenuation: 20 dB
-
Sensitivity (LINE): -10 dBV (1kΩ)
-
Supply Voltage: 2.4 V DC (2.2 kΩ bias)
Power & Environment
-
Power Supply:
-
External 24 V DC (AC adaptor included)
-
PoE+: IEEE802.3at compliant (not usable for this model)
-
Power Consumption:
-
PoE+: ~16.2 W max (body only)
-
DC Input: ~15.0 W max (body only)
-
Operating Temperature: 0°C – +40°C (32°F – 104°F)
-
Operating Humidity: 10% – 90% (non-condensing)
-
Storage: Same as operating
Physical
-
Dimensions (W × H × D): 154 × 178 × 164 mm (6.06 × 7.01 × 6.46 in) (excluding protrusions)
-
Weight: ~2.2 kg (4.86 lbs, body only)
Control
-
Supported Controllers:
-
Hardware: RC-IP100
-
Software: Remote Camera Control Application
