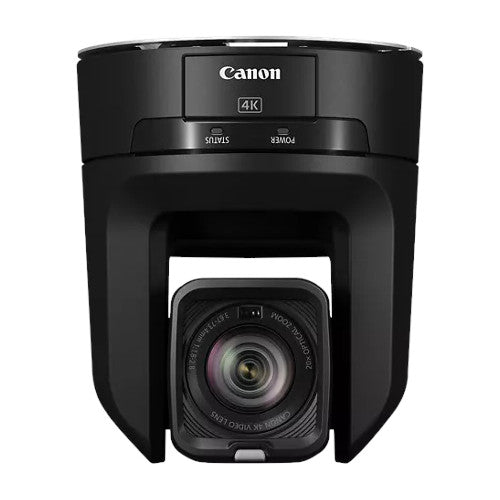

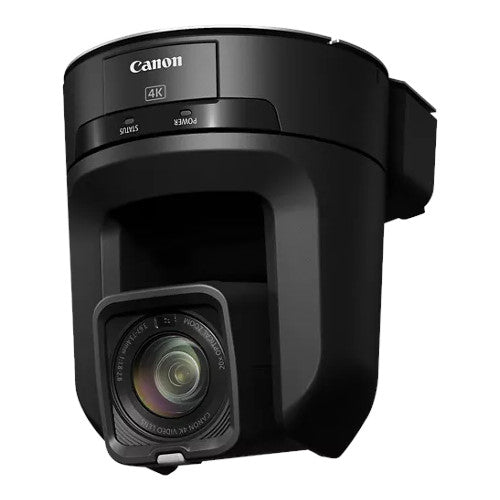

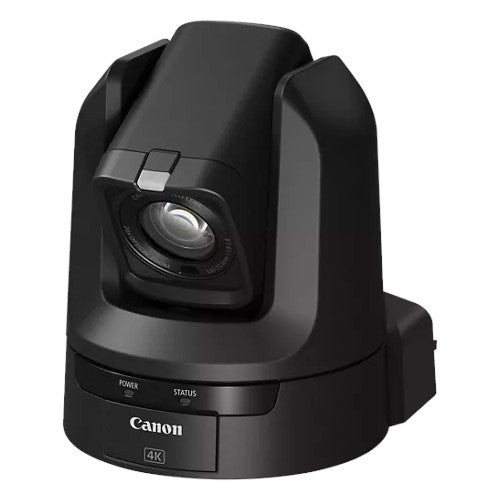

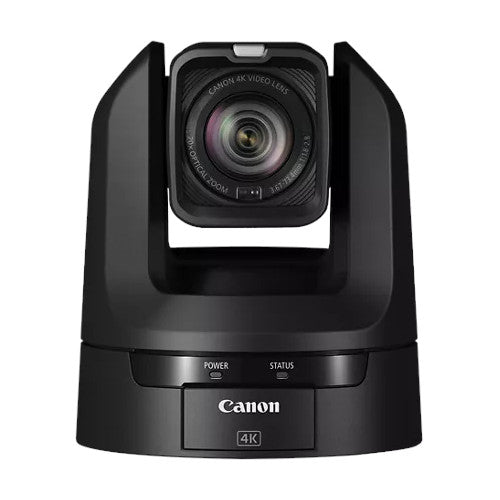

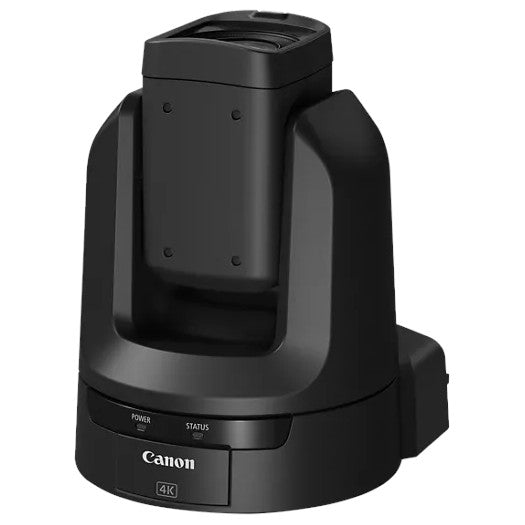

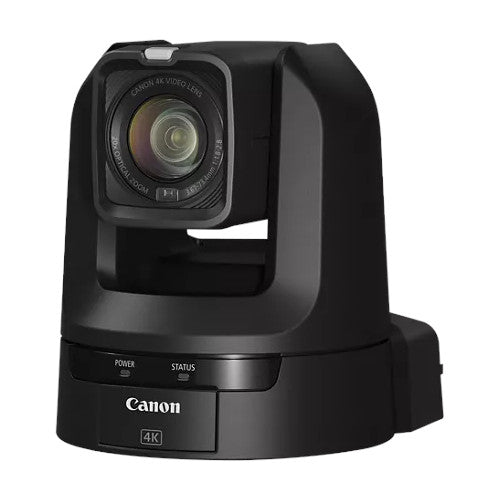

The Canon CR-N100 PTZ Camera combines professional image quality, precise PTZ control, and versatile connectivity in a compact and cost-effective design. Ideal for houses of worship, education, broadcast, corporate events, and live streaming applications, the CR-N100 delivers sharp, vibrant images with smooth pan, tilt, and zoom performance.
Key Features
-
1/2.3" CMOS Sensor with Hybrid Auto Focus: Ensures sharp and accurate focus across a variety of shooting scenarios.
-
High-Quality Video Output: 4K UHD at 30P and Full HD at 60P over HDMI and IP for stunning clarity.
-
20x Optical Zoom Lens with Optical Image Stabilization: Captures distant subjects without sacrificing detail or stability.
-
Smooth PTZ Control: High-precision drive mechanism for responsive, silent, and fluid pan, tilt, and zoom movements.
-
Connectivity Options: HDMI, IP, and USB video output for flexible integration.
-
Tally Lamp: Front-mounted indicator for camera status, providing visual confirmation during live productions.
-
Power over Ethernet (PoE+) Support: Simplifies installation with single-cable power and control.
-
Multiple Control Protocols: Supports Canon XC Protocol, standard serial/IP protocols, NDI|HX, SRT, and add-on applications for easy integration into production workflows.
-
Webcam Functionality: Compatible with Canon’s Webcam Driver for hybrid or remote production setups.
-
Compact and Durable Design: Lightweight, black chassis designed for both permanent installations and mobile setups.
Why It Stands Out
The CR-N100 is a versatile PTZ camera that combines Canon’s renowned imaging technology with advanced control options. Its 4K sensor and 20x zoom lens provide professional-grade visuals, while PoE+, NDI|HX, and SRT support make it simple to integrate into any modern production or streaming setup.
General
-
Color Options: Satin Black / Titanium White
-
Operating Environment: 0°C – 40°C (32°F – 104°F), 10% – 90% humidity (non-condensing)
-
Dimensions (WxHxD): 154 × 178 × 164 mm (6.06 × 7.01 × 6.46 in.)
-
Weight: ~2.2 kg (4.86 lb.) (body only)
-
Power Supply:
-
PoE+: IEEE 802.3at via LAN (PoE cannot be used with DC)
-
External: 24 V DC via AC adapter
-
Power Consumption: PoE+ 13.9 W max, DC 13.3 W max
Image Sensor & Lens
-
Sensor: 1/2.3-inch CMOS, single-plate
-
Total Pixels: ~21.14 MP
-
Effective Pixels: ~8.29 MP (3840 × 2160)
-
Lens: 3.67 – 73.4 mm, F/1.8 – 2.8, 20× optical zoom, 12 elements in 10 groups (2 aspheric)
-
35mm Equivalent Focal Length:
-
4K UHD: 29.3 – 601 mm
-
Full HD: 30.5 – 627 mm
-
Minimum Focusing Distance: 1 cm (wide) – 60 cm (throughout zoom)
-
Digital Zoom: 20×
-
Optical Image Stabilization: Optical-shift
-
Iris: Manual/Automatic
-
Gain: 0 – 36 dB
-
Minimum Subject Illumination: ~1.5 lux (1/30 sec, 59.947P, AE Programmed, slow shutter ON)
Pan / Tilt
-
Pan Range: ±170°
-
Pan Speed: 0.2° – 300°/sec
-
Tilt Range: -30° – +100°
-
Tilt Speed: 0.2° – 180°/sec
Focus & White Balance
-
Focus Modes: Manual, Continuous AF, Face AF, Tracking AF
-
AF Type: Hybrid AF, Contrast AF
-
White Balance: Auto, Set A/B, Preset (Daylight 5600 K, Tungsten 3200 K), Color Temp 2000–15000 K, Manual
-
Gamma: Normal1 (Standard), Normal3 (BT.709)
Video Output
-
SDI / HDMI / IP
-
SDI & HDMI Video:
-
4K UHD: 29.97P, 25.00P, 23.98P (4:2:2 10-bit)
-
1080p: 59.94P/i, 50P/i, 25P, 29.97P, 23.98P (4:2:2 10-bit)
-
720p: 59.94P, 50P (4:2:2 10-bit)
-
IP Streaming:
-
4K UHD: 29.97 / 14.99 / 5 fps (4:2:0 8-bit)
-
1080p: 59.94 / 29.97 / 14.99 / 5 fps (4:2:0 8-bit)
-
720p: 59.94 / 29.97 / 14.99 / 5 fps
-
360p: 59.94 / 29.97 / 14.99 / 5 fps
-
Supported Protocols: XC, RTSP/RTP, NDI®|HX, SRT, RTMP/RTMPS, Serial, IP
Audio
-
Mic Input: 3.5mm stereo mini jack (unbalanced, plug-in power supported)
-
Sensitivity:
-
MIC: -72 dBV (manual volume center, full scale -18 dB)
-
LINE: -10 dBV (manual volume center, full scale -18 dB)
-
Supply Voltage: 2.4 V DC (bias resistance: 2.2 kΩ)

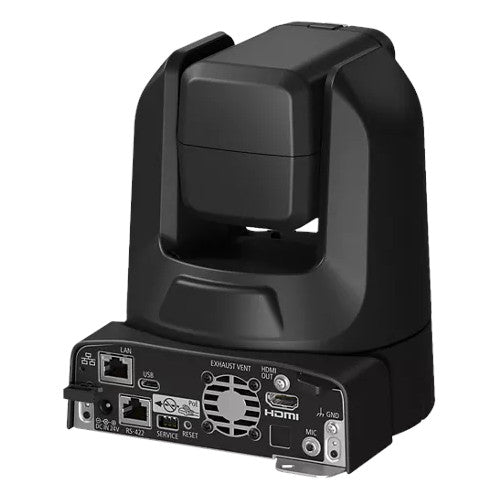

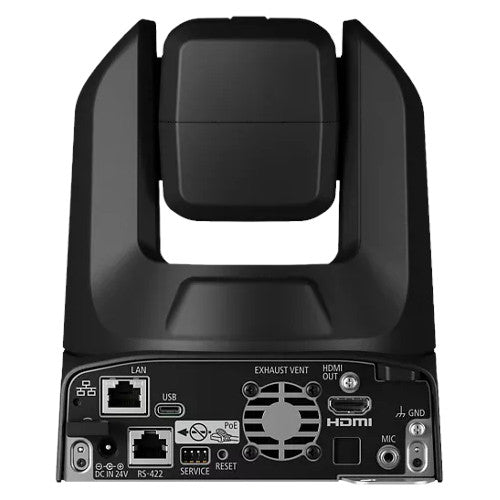

Interface / Control
-
LAN: 1 × RJ45, 1000Base-T
-
HDMI OUT: 1 × HDMI (output only)
-
RS-422: RJ45 ×1
-
USB: Type-C (USB 3.0) ×1
-
Supported Controllers: RC-IP100, RC-IP1000, Remote Camera Control App
-
Presets: Up to 100 (including home position)
This camera is designed for high-resolution PTZ operations, with full 4K UHD streaming, extensive pan/tilt range, multiple control options, and low-light performance down to 1.5 lux.
