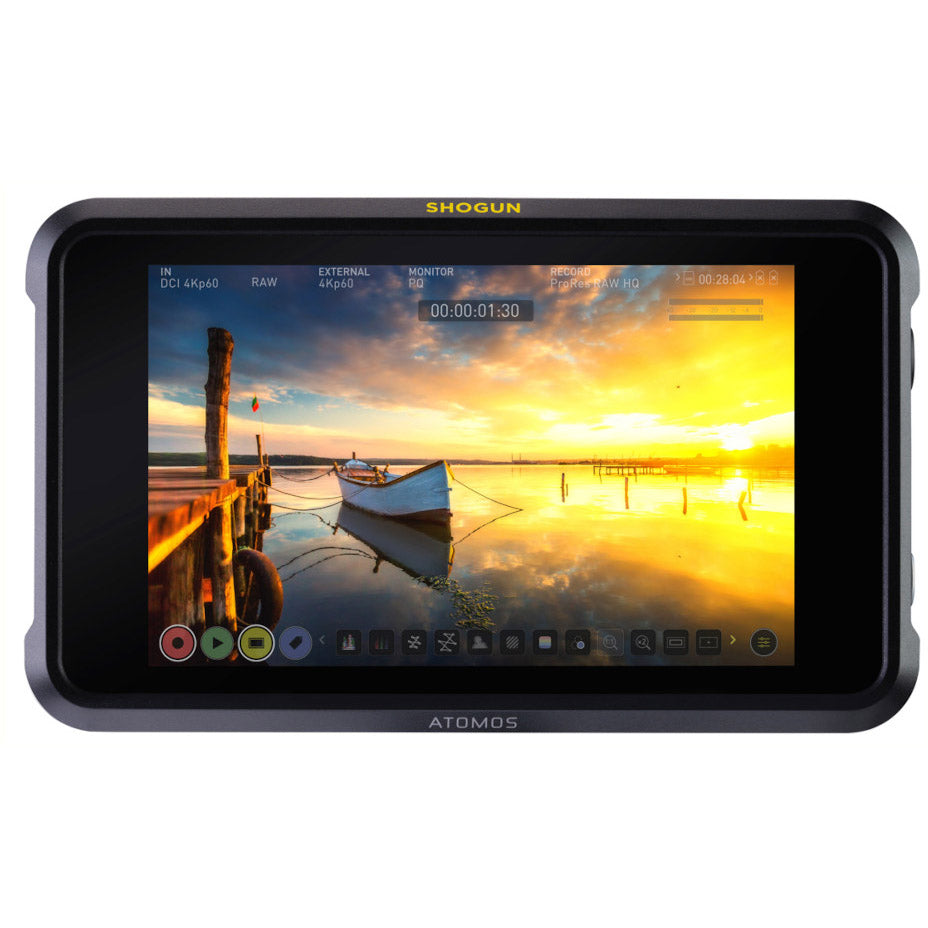

Elevate your video production with the Atomos Shogun 7 HDR Monitor Recorder Switcher—a powerful all-in-one 7" touch screen field monitor with 4K Apple ProRes RAW recording, quad SDI/HDMI I/O, and multi-camera live switching. Ideal for film, live events, and professional streaming setups, it offers instant playback, balanced audio, and stunning HDR monitoring with 3000-nit brightness and 1,000,000:1 contrast. Perfect for multicam shoots, DJ livestreams, and on-location productions needing high-speed, high-quality output.
At-a-Glance Highlights
-
7” HDR touch screen with 3000-nit peak brightness
-
4 x SDI & HDMI 2.0 inputs/outputs with live quad switching
-
Records 4K ProRes, ProRes RAW, DNx, and more
-
Live mix & record up to 4x 1080p60 camera feeds
-
Instant playback, shot tagging & custom LUT support
-
Professional audio I/O and high-speed SSD recording
Physical & Environmental
-
Dimensions (W × H × D): 214 × 127 × 45 mm
-
Weight: 709 g (25 oz)
-
Mount Points:
-
1 × anti-rotation mount (1/4" or 3/8") on top and bottom
-
Operating Temperature: Up to 40°C
-
Construction: Durable polycarbonate ABS plastic
-
Cooling: Actively controlled fan + heat sink
-
Tally Lights: Front and rear
-
Multi-Function Button: Power and screen lock
Power
-
Input Voltage: 6.2V – 16.8V
-
Power Consumption: 10W – 33W
-
Battery Compatibility: Sony NPF L-series
-
Built-In Battery: No
-
Battery Runtime (Recording 4K 30p):
-
5200mAh: up to 1.5 hours
-
7800mAh: up to 2.2 hours
-
Dual Battery Slots: Continuous power
-
DC Input: 2.1mm DC jack
-
DTap Input: Via optional DTap to DC cable
Display
-
Type: 7.2" SuperAtom IPS touchscreen (capacitive)
-
Resolution: 1920 × 1200
-
PPI: 327
-
Color Depth: 10-bit (8+2 FRC)
-
Backlight:
-
Dynamic zoned
-
FALD (Full Array Local Dimming), 360 zones
-
Brightness:
-
1500 nits typical
-
3000 nits peak (HDR)
-
Aspect Ratio: 16:10
-
Color Gamut: DCI-P3 (D65)
-
Calibration: Compatible with Atomos Calibrator and X-Rite i1 Display Pro/Plus
Color Pipeline
-
Gamma Support:
-
Sony SLog, SLog2, SLog3
-
Canon CLog, CLog2, CLog3
-
ARRI Log (CEI160 to CEI1600)
-
Panasonic V-Log
-
JVC JLog1
-
RED LogFilm, Log3G10, Log3G12
-
Fujifilm F-Log
-
PQ (HDR10), HLG
-
Nikon N-Log
-
Gamut Support:
-
BT.2020, DCI-P3, DCI-P3+
-
Sony SGamut / SGamut3 / SGamut3.cine
-
Canon Cinema, DCI-P3, BT.2020
-
Panasonic V-Gamut
-
ARRI Alexa Wide Gamut
-
RED: DragonColor, DragonColor2, RedColor2–4, RedWideGamut
-
Rec.709, JVC LS300
-
3D LUT:
-
.CUBE format support
-
3D LUT downstream loop-out
-
50/50 LUT split view
-
Monitoring Modes: Native, HLG, PQ, 3D LUT
-
HDR Output Conversion: Not supported
Video Input
-
HDMI: 1 × HDMI 2.0 (up to 4Kp60)
-
SDI:
-
Quad-link 3G-SDI
-
2 × 12G-SDI (auto-detect, backward-compatible)
-
SDI RAW: ProRes RAW up to 6K
-
Bit Depth:
-
Video: 8/10-bit
-
RAW: up to 16-bit
-
Chroma Subsampling: 4:2:2
Metadata Support
-
HDMI RAW: White balance, EI, shutter, iris, ISO, gamma, gamut
-
SDI: File name from ARRI & RED
Video Output
-
HDMI: 1 × HDMI 2.0 (4Kp60)
-
SDI Loop-Out:
-
2 × 12G-SDI (auto-detect, backward-compatible)
-
SDI Playback Out:
-
2 × 12G-SDI (Auto-detect, Level A/B selectable)
-
Bit Depth: 10-bit
-
Chroma Subsampling: 4:2:2
Web Streaming
-
USB UVC Support: Optional via Connect 4K module
Signal Conversion
-
HDMI to SDI: Yes (Video + RAW)
-
SDI to HDMI: Yes (Video + RAW)
Audio I/O
-
Quality: 24-bit / 48kHz (PCM)
-
HDMI Input: 8 channels (24-bit)
-
SDI Input: 12 channels (24-bit)
-
Analog In/Out:
-
Via optional XLR breakout cable
-
Headphone Output: 3.5mm stereo
Timecode & Sync
-
Embedded: HDMI & SDI
-
Time of Day: Supported
-
LTC In: Via BNC in Record mode
-
Genlock: In Playback mode
Resolutions & Frame Rates
-
6K (RAW via SDI only): Up to 30p
-
4K DCI & UHD: 23.98 – 60p
-
2K DCI (2046 × 1080): Up to 60p (Sony FX9 RAW: up to 180p)
-
1080p (Progressive): 23.98 – 120p
-
1080p (PsF): Converted to P; looped as PsF
-
1080i (Interlaced): 23.98 – 60i
-
720p: 50, 59.94, 60p
Recording Codecs
-
CDNG: SDI RAW only
-
Apple ProRes RAW: RAW and HQ
-
Apple ProRes: LT, 422, 422 HQ
-
Avid DNxHD: 220x, 220, 145, 36
-
Avid DNxHR: LB, SQ, HQ, HQX
Playback
-
Playlist Creation: Yes (custom from full or sub clips)
-
Loop Playback: Yes (user-defined in/out points)
-
ProRes RAW Playback: Yes
-
ProRes & DNx Playback: Yes (with Linear PCM audio)
Recording Functions
-
Pre-roll:
-
HD: 8s
-
4K: 2s
-
(Not available in RAW)
-
ISO Recording:
-
Up to 4 × ISO (up to 1080p60, 3G SDI Level A)
-
Switched Program Record: Up to 1080p60
Multi-Input / Switching
-
SDI A/B Toggle: Yes (up to 12G-SDI)
-
Dual Input Display: Via Multi ISO mode
-
Multiple SDI Inputs: Up to 4 × 1080p60 (3G SDI Level A)
-
Transitions: Auto or manual with XML support
Media Support
-
Master Caddy I: Not compatible
-
SSDmini: Yes (with optional handle)
-
CFast II: Via optional AtomX CFast Adapter
-
File Naming: Unit name + Scene/Shot/Take (with ARRI & RED via SDI)
-
File System: ExFAT
On-Screen Monitoring Tools
-
Waveform, RGB Parade, Vectorscope: Adjustable size/position
-
Zoom:
-
1× (1:1 pixel mapping for 4K)
- 2×
-
Focus Assist: Peaking (adjustable color and threshold)
-
False Color: With scale
-
Zebra: Adjustable
-
Color Isolation: Blue only
-
Frame Guides:
-
Cinematic: 2.4:1, 2.35:1, 1.9:1, 1.85:1, 4:3
-
Social: 9:16, 1:1, 1.91:1, 4:5
-
Safe Areas: Action and graphic
-
Grid Markers: 9-grid
-
Anamorphic Desqueeze: 1.25×, 1.33×, 1.5×, 1.8×, 2×
-
Display Flip: Vertical only
Signal Processing
-
Pulldown Removal:
-
24/25/30pSF > 24/25/30p (2:2 pulldown)
-
60i > 24p (3:2 pulldown)
-
4K to HD Downscale: Loop-out
-
DCI Crop: 17:9 to 16:9 loop-out crop
Remote Control
-
HDMI: Auto trigger (Canon, Sony, Atomos Open
