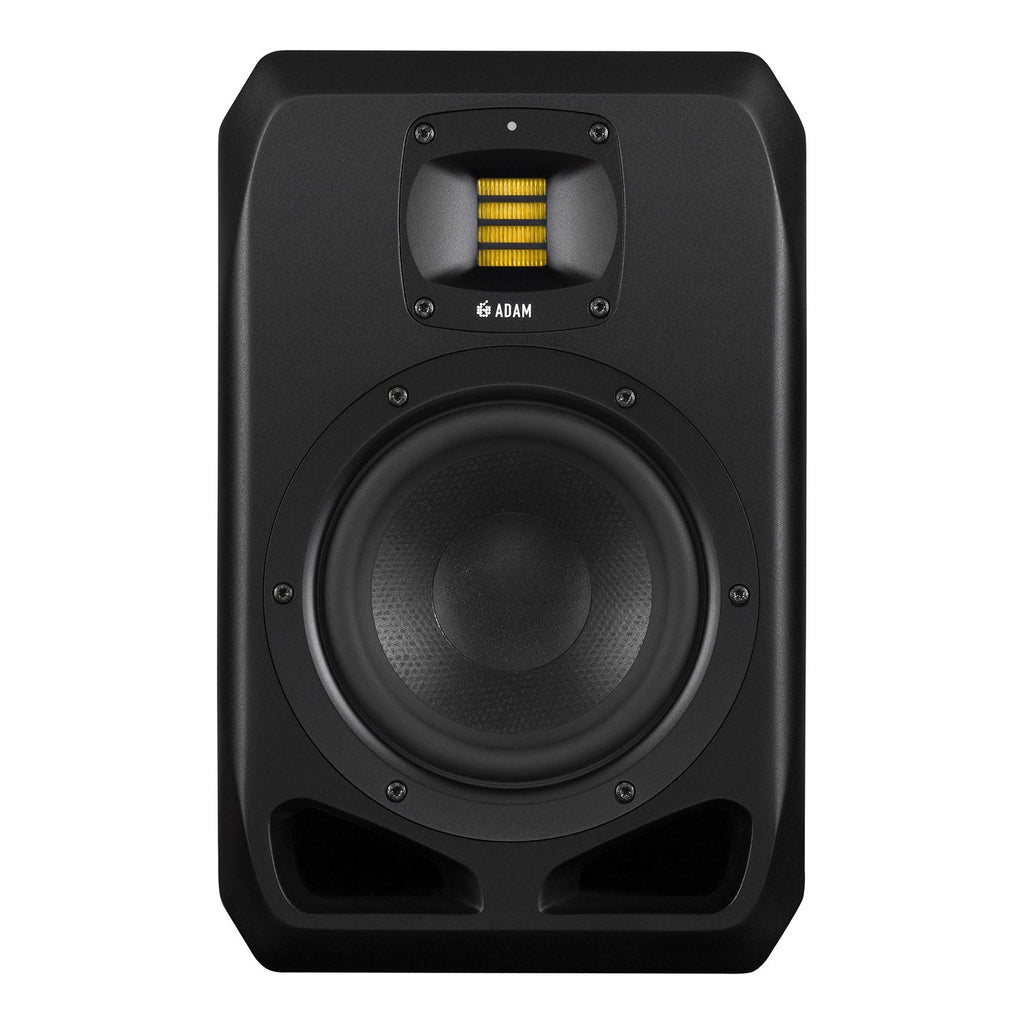

ADAM Audio S2V Nearfield Studio Monitor

Experience impeccable sound accuracy with the ADAM Audio S2V Nearfield Studio Monitor, a meticulously engineered two-way monitoring solution crafted for small to medium-sized control rooms. Combining groundbreaking German craftsmanship with innovative technology, the S2V delivers unmatched clarity, razor-sharp imaging, and an expansive frequency response spanning from 35 Hz to 50 kHz — perfect for professional mixing, mastering, and critical listening.

Key Features:

• Handmade S-ART Tweeter: Precision-engineered in Berlin with a unique folded membrane delivering a velocity transform ratio of 4:1, ensuring ultra-fast transient response and crystal-clear highs.

• Newly Designed HPS Waveguide: Milled from solid aluminum, this waveguide optimizes sound dispersion to create a wide and stable sweet spot.

• Custom Extended Linear Excursion (ELE) Bass Drivers: Powerful 7” HexaCone woofer designed for deep, distortion-free bass reproduction.

• Symmetrical Magnet Assembly (SMA): Enhances driver linearity and reduces distortion for cleaner sound.

• Powerful Dual Amplification: 300W Class D amplifier driving the woofer paired with a 50W Class A/B amplifier for the tweeter, delivering up to 120 dB SPL per pair at 1 meter.

• Advanced DSP Engine: Custom DSP enables precise crossover tuning, limiter-based driver protection, parametric EQ, room compensation, delay settings, and up to five user presets.

• Flexible Connectivity: Analog XLR input and digital AES3 input with high input impedance and support for high input levels (+24 dBu).

• Acoustically Optimized, Robust Cabinet: Heavily constructed MDF enclosure with spacious front bass reflex ports ensures superior acoustic performance and minimized cabinet resonance.

• Compact and Efficient Design: Dimensions of 13.6" x 8.7" x 13.3" and weighing 24.2 lbs make the S2V a versatile option for any studio space.


Technical Specifications:

• Woofer:
• Size: 7" (178 mm) HexaCone

• Voice Coil Diameter: 1.5" (39 mm)

• Tweeter:
• Type: Handmade S-ART with folded membrane

• Diaphragm Area: 4 in² (2420 mm²)

• Equivalent Diameter: 2" (56 mm)

• Velocity Transform Ratio: 4:1

• Built-in Amplifiers:
• Woofer: 300W RMS, PWM Class D

• Tweeter: 50W RMS, Class A/B

• Frequency Response: 35 Hz – 50 kHz

• Max SPL per Pair @ 1m: ≥120 dB

• Crossover Frequency: 3 kHz

• Total Harmonic Distortion (THD): ≤0.4% above 100 Hz

• Input Connectors: Analog XLR, Digital AES3

• Input Impedance: 48 kΩ

• Max Input Level: +24 dBu

• Power Consumption: Max 230 W

• Dimensions (HxWxD): 13.6" x 8.7" x 13.3" (346 x 222 x 338 mm)

• Weight: 24.2 lbs (11 kg)


Why the ADAM Audio S2V?

Designed for audio professionals who demand the utmost precision, the S2V Nearfield Monitor excels in delivering a balanced, natural sound with exceptional detail retrieval across the entire spectrum. Its advanced DSP capabilities allow for tailored room correction and personal voicing, ensuring accurate monitoring tailored to your unique acoustic environment. Whether mixing music, sound design, or post-production, the S2V provides the clarity and dynamic range necessary to make confident decisions.

Elevate your studio’s monitoring capabilities with the ADAM Audio S2V, engineered for precision, built to last, and designed to inspire.
